lithium polymer battery 36v 10ah / 36 volt lithium ion battery for electric bicycle with rear rack case
- Category: >>>
- Supplier: Shenzhen Hengxing Electronics Technology Co. Ltd.
Share on (2023023950):
Product Overview
Description
lithium polymer battery 36v 10ah / 36 volt lithium ion battery for electric bicycle with rear rack case
Product Description
Feature:
- Contains battery protection board to protect pack from short circuit overcharge, -discharge and -heating
- Tags, plugs and connectors are available
- Low-resistant and self-discharge
- Small size and lightweight
- 1/3 weight of lead-acid and 65% weight of NiMH
- Eco-friendly
- Long lifespan
- Industrial leading packing technology ensures the cells have a precise conformance and a stable performance
- Light plastic packing with excellent heat relieving
- Customized configurations are accepted
- OEM and ODM orders are welcome
Specification:
| Product Name | lithium polymer battery 36v 10ah / 36 volt lithium ion battery for electric bicycle with rear rack case | |
| Model Name | 36 volt lithium ion battery for electric bicycle | |
| Cell Type | XINCHI battery cell 18650-22P M | |
| Rated Voltage | 36V | |
| Rated Capacity | 12 electric bicycle battery(36v 10ah) 10.4Ah | |
| Internal Resistance | ≤190mΩ (AC1kHz AC impedence) | |
| Weight | About 3.5kg | |
| Dimension | 115mm(L)x81mm(W)x389mm(H) or customized size | |
| Charge&Discharge Mode | CC&CV | |
| Cycle Life | 2000 times | |
| Battery Hopower Retention (power strorage:one month) | ≥95% | |
| Certification | CE/FCC/ROHS/UN38.3/MSDS | |
| Warranty | 2 years | |
| Applicaiton | Electric bike,E-scooter etc | |
| Charge | Standard Charge Current | 2A |
| Max Discharge Current | 3.5A | |
| Max Charge Voltage | 42V | |
| Discharge | Standard Discharge Current | 5A |
| Max Discharge Current | 20.8A | |
| Discharge Cut-off Voltage | 30V | |
| PCB parameters | Overcharge Protection Voltage | 4.25±0.03V |
| Over-discharge Voltage Protection | 2.5±0.1V | |
| Over-current Protection Current | ≥40A | |
| Over-current Protection Delay | < 15 ms | |
| Working Temp. | Charge Temp. | 0~45°C |
| Discharge Temp. | -20~55°C | |
Applications:
·Electric Vehicles, such as E-bike, E-scooters, E-cars, E-bus;
·Electric boats, such as trolling fishing boat;
·Robots for industries and military;
·Remote data transfer system;
·Satellite communication station;
·Un-manned submarine;
·Un-manned aircrafts;
·Power tools, such as drilling, cutting and polishing tools;
·Power station for low temperature application, such as -40;
·Power supplier for Training systems
Notice
1, Cell options: Samsung battery, A123 battery and our own brand XINCHI battery available
2, Customized voltage, capacity and shape are available,
For example:
24v 8ah; 24v 10ah;24v 12ah; 24v 15ah...
36v 8ah; 36v 10ah; 36v 15ah; 36v 20ah...
48v 8ah; 48v 10ah; 48v 12ah; 48v 20ah...

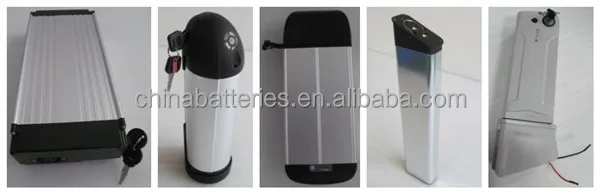

3, Different kinds of case are available. Such as,
water bottle case, silver fish case, flat silver fish case, frog case, rear rack type case and so on

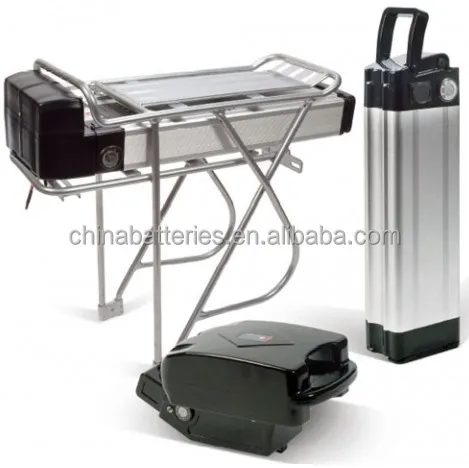

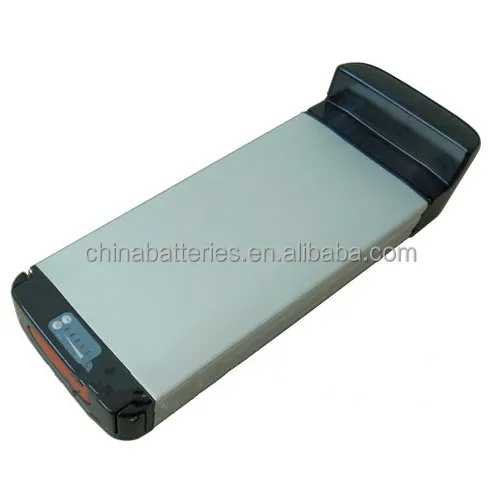

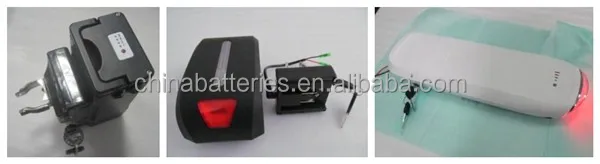

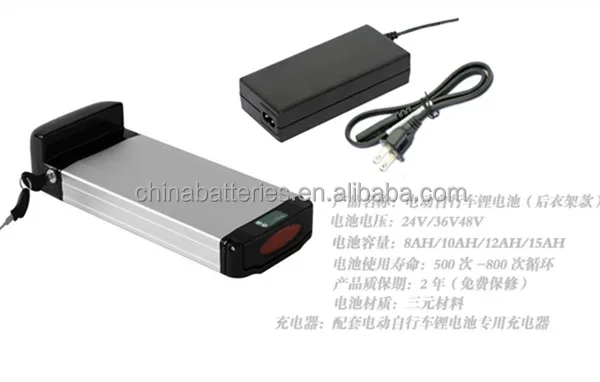

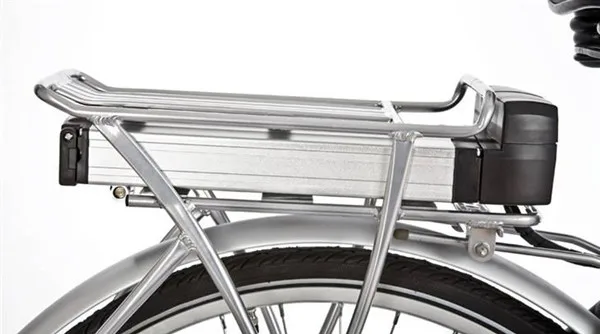

Product Display:
Packaging & Shipping
1.Packaging:
a. In generral, international standard packaging
b. As customers required
2. Shipping:
a. Sample order: 3-10 days by plane;
b. Bulk order: 15-30 days by sea
3. Payment:
a.We accept T/T , Western Union, Paypal, L/C and so on.
b. If you prefer other payment terms,please contact us.
Our Services
Our Service:
1. High quality: Restrict quality control in every step before shipping you.
2. Best Service: We try our best to support customers as friends.
3. OEM Welcomed: PLS don’t hesitate to tell us your ideas.
4. Low MOQ: We hope can reach your every business demands.
5. Prompt & Favorable Delivery: We will share the best price advantage from our forwarder with you.
6. Customer centric Aim& Warranty: Your satisfaction is our honor; we will be back you ASAP.
Company Information
Shenzhen Transtar Electronic Technology Co., Ltd.
Shenzhen Transtar Electronic Technology Co., Ltd. is a high-tech enterprise specialized in the R&D, production, sales and services of all kinds of Lithum-ion Batteries. The company has been focusing on the application and industrialization of the New Materials in Green Energy. We always believe that technology is the power of the enterprise, With its advanced technology, strong R&D and production capacity , our batteries have been sold well to many countries and regions all over the world, such as America, Singapore, South Korea, UK, Italy, Middle East, Hong Kong and Taiwan etc.
FAQ
Q1: Is it the capacity of your battery real?
Re: All of our batteries are real full capacity with top quantity, competitive price& long lifecycle.
Q2: What is your payment term?
Re: We accept T/T, Western Union, PayPal, L/C.
Q3: How about the lead time?
Re: 3-7 working days for the samples and mass production depend on your order quantity;
We will share the best advantage from our forwarder with you.
Q4: Do you accept OEM?
Re: We support the OEM service: Pls don’t hesitate to tell us your ideas.
Q5: Which certificates do you have?
Re: We have CE/FCC/ROHS/UN38.3/MSDS
Q6: How about your warranty?
Re: Depends on the battery type(6 months-1 year)
