Fully popular model in USA XD 10T waste tyre recycling pyrolysis plant with high performance

Product Overview

Description



We have the certification of CE, ISO9001-2001,ROHS,etc.

Product features



1). Unique design of reactor guarantee the service life and safety.



2). No need to crush tires. We can feed whole tires into the reactor. Save manpower and increase efficiency.



3). Electric cabinet help you watch the temperature and easy to control power.



4). Technical condensers and circulating water guarantee the cooling effect and improve oil yield.



5). The residual gas (tail gas) recycle to furnace as fuel. Save energy.



6). Flue gas is processed by dust removal device. Reach the emission standard.



7). Experienced engineers will help you install the machine and train your workers.





Approx oil yield of different raw materials

PE	95%
PP	90%
PS	90%
ABS	40%
Leftovers of paper	Wet 15-20%, dry 60%
House garbage	35-50%
Plastic cable	80%
Plastic bag	50%
Submarine cable	75%
Rubber cable	35%
Sole	30%
Big tires	45-50%
Small tires	35-40%
PVC	Not suitable
PET	Not suitable







Environmental Protective



Dispose waste gas, liquid, and residua in the process:



1. Waste gas: Transferred through two safety device: water close &burning air nozzle. Fully burnt, not only eliminated pollutant but also minimized the quantity of fuels. For smoke dust discharge, we apply series machines of patent in our company Desulphurization and dust remover which could control the smoke dust discharge amount meet relative standards of GB-2001.



2. Waste liquid: Produced waste acidic water in the process of oil disposing (50kg process from 1 ton of oil easy to process for small quantity). counteract the liquid by alkalescent liquid solution. After three stage of filtration, the litmusless waste water was introduced to evaporator(use the heat of the flue of main processor as its heating resource)



3. Waste solid. The solid residua will be left after the catalyst splitting from scrap plastic, approximately composes the waste plastic weight about 5% to 10%. Its main component is the thick black carbon. It can be the raw material of the production industry of black carbon. Also could be mixed with the pulverized coal ash which produces for the raw material thermal power plant, also could be the raw material of manufacture pulverized coal ash brick (one kind of environmental protection building material).



Safety

1. Our factory uses auto welding machine for the reactor, which can improve the working efficiency and guarantee the quality of welding lines, so that can avoid explosion caused by gas leak.

2. Professional testing for the reactor before sending from factory, which can garantee the safety of the plant.

3. Our plant includes professional thermometer, pressure gauge and safety valve to make sure the safety.

4. We have special design for dealing with the exhaust gas(C1 to C4), during our process, it is safety burned through the  special designed device.

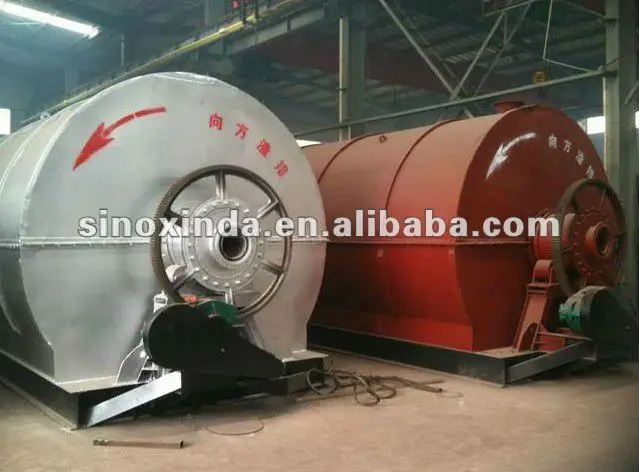

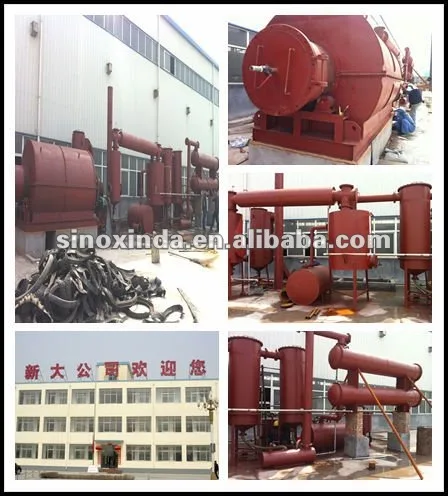

Plastic to diesel machine photos





Payment Terms

Payment:

T/T

Frist pay 30% as advance by TT, when delivery pay 70% by TT



Or L/C at sight.

Delivery time:

We will delivery the machine within 30days after get the advance payment(30% of the total amount).

Warranty and machine life:

We guarantee the complete machine one year, the reactor life more than 4 years,others parts no need change lifelong expect the wearing parts.

The machine Raw material:

The reactor is made of Q345RBoiler plate.

The machine installation and catalyst formula:

We will give the foundation drawings to buyer after make the order .we will send engineer when buyer get the machine. The engineer mainly install the machine and training your workers.



Technical Parameters of plastic to diesel machine

ITEM	CONTENT
equipment’s model	XD-06	XD-08	XD-10
Daily Handling capacity	6 tons	8 tons	10 tons
Door's model	Semi-open door	Semi-open door	Semi-open door
Structure Form	Horizontal type	Horizontal type	Horizontal type
Raw material	Waste rubbers/tyres/plastic	Waste rubbers/tyres/plastic	Waste rubbers/tyres/plastic
Material of reactor	Q245R thickness 14mm	Q245R thickness 14mm	Q245R thickness 14mm
Main engine rotating speed	0.4R /min	0.4R /min	0.4R /min
Power	10-15KW	10-15KW	10-15KW
Cooling Mode	Water	Water	Water
Consumption of Cooling water	0.2	0.3	0.4
Heating Mode	Direct	Direct	Direct
Installation	Main engine integral installation	Main engine integral installation	Main engine integral installation
Noise dB (A)	<=85	<=85	<=85
Machine dimension(mm)	D2000*L6000	D2200*L6600	D2600*L6600
Working Mode	Intermittent	Intermittent	Intermittent



Plastic to diesel machine
