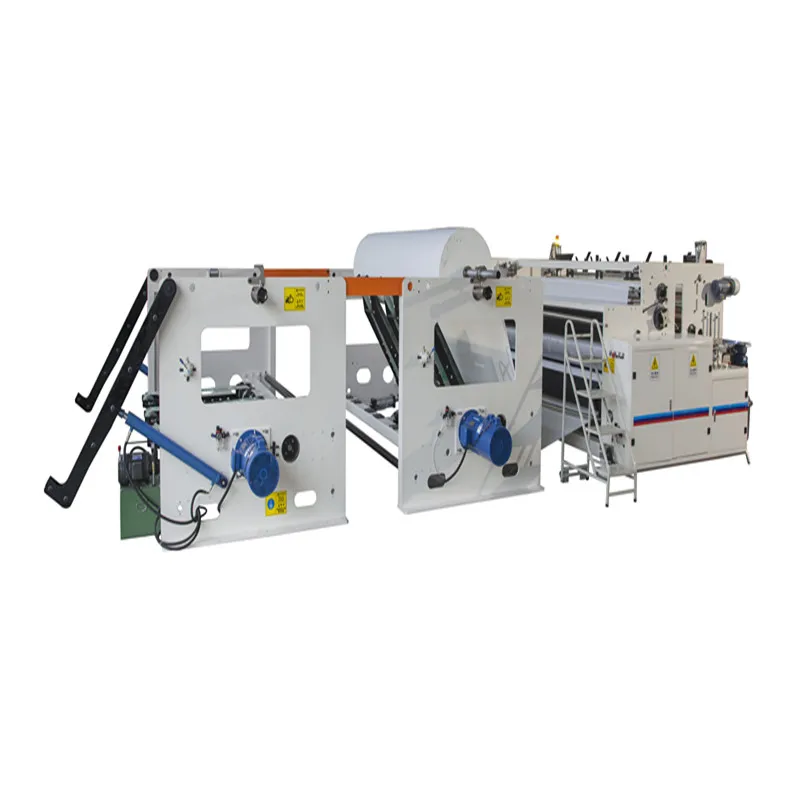

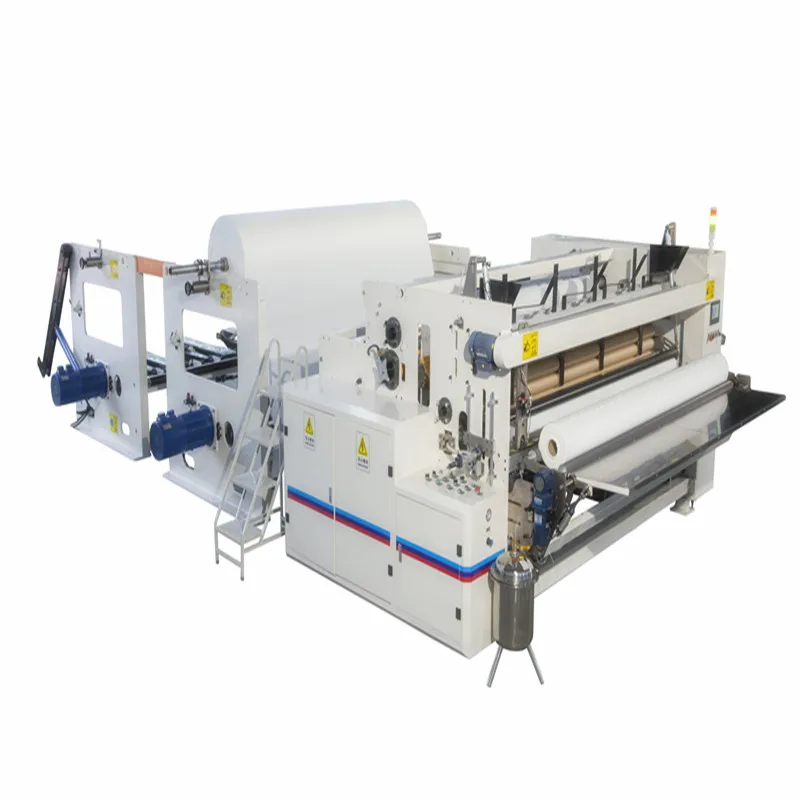

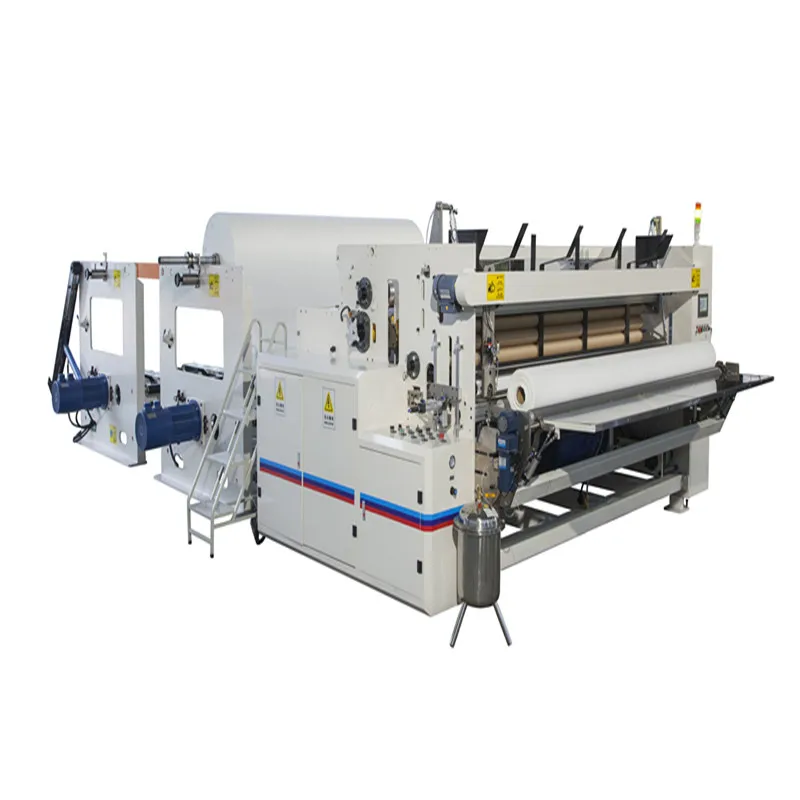

HX SJC 1575 Fully Automatic Toilet Paper and Kitchen Towel Production Line with Colorful Lamiation (Top Grade)

Product Overview

Description





Functions and Features

1.Automatic core feeding system, automatic log pusher after rewinding, then rewind the new log again.

2. Automatic edge-trimming, core feeding; auto edge trimming, glue spraying and sealing synchronously in one time. Leaving 10-18mm tail, easy to rewind again, so reducing shortcut waste and save the cost.

3. Adopts international advanced PLC programmable controlling technique, man-machine interface operation, data set and parametric fault shows on touch screen.

4. Adopts 4 pieces high Precision spiral knives, low noise, clear perforation, adopt gearbox to have bigger range.

5. Three horizontal type back stands, pneumatic loading system, with wide driving flat belts; each jumbo roll can be adjusted independently.

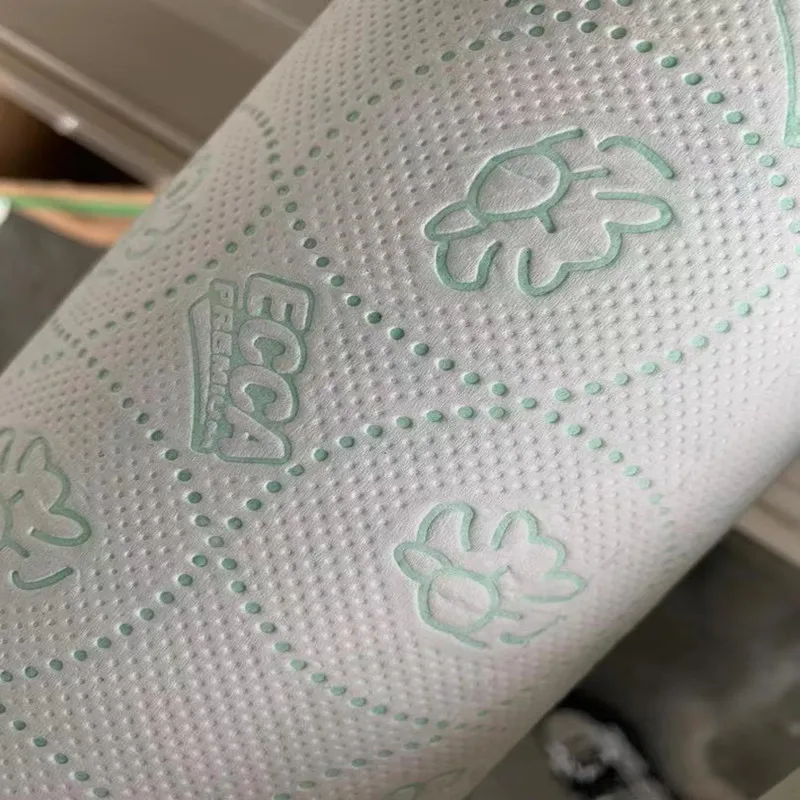

6.Embossment Unit: adopt point to point embossing rollers, making the two layers match well, the paper is soft and has clear patterns

7. Adopt jogging switches for wearing the paper, easy and safe to operate.



The Main Technical Parameters

Jumbo Roll Max Width	1750mm (Other size can be specified)
Jumbo Roll Diameter	Φ1100mm
Jumbo Roll Inner Diameter	3inches(76.2mm)
Finish Product Diameter	Φ90-φ280mm
Finish Product Inner Diameter	φ38-φ48mm
Perforation Distance	100-150mm
Production Speed	0-230m/min
Parameter Set	HMI, Touch Screen
Pneumatic System	3HP Air Compressor, Minimum Pressure: 5kg/cm 2Pa(Provide by user)
Total Power	7.5-15KW(depends on model and configuration)
Unwind Stands	2 or 3 Stands
Unwinding Transmission	Frequency Stepless Speed Regulation
Rewinding Unit	With Core or Coreless
Dimension	7800X3000X1720mm
Weight	3500~4500kg

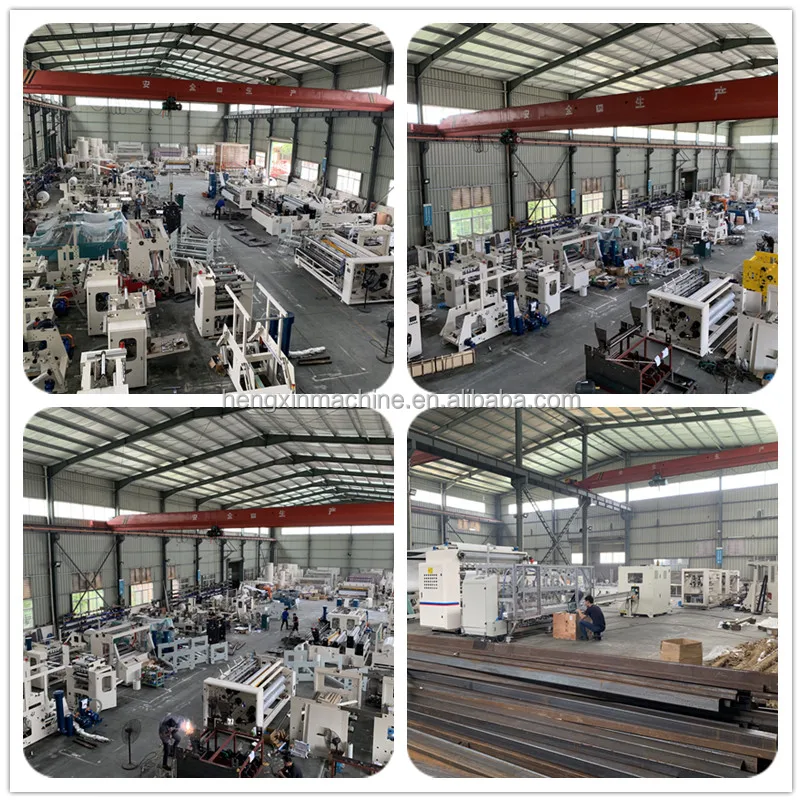

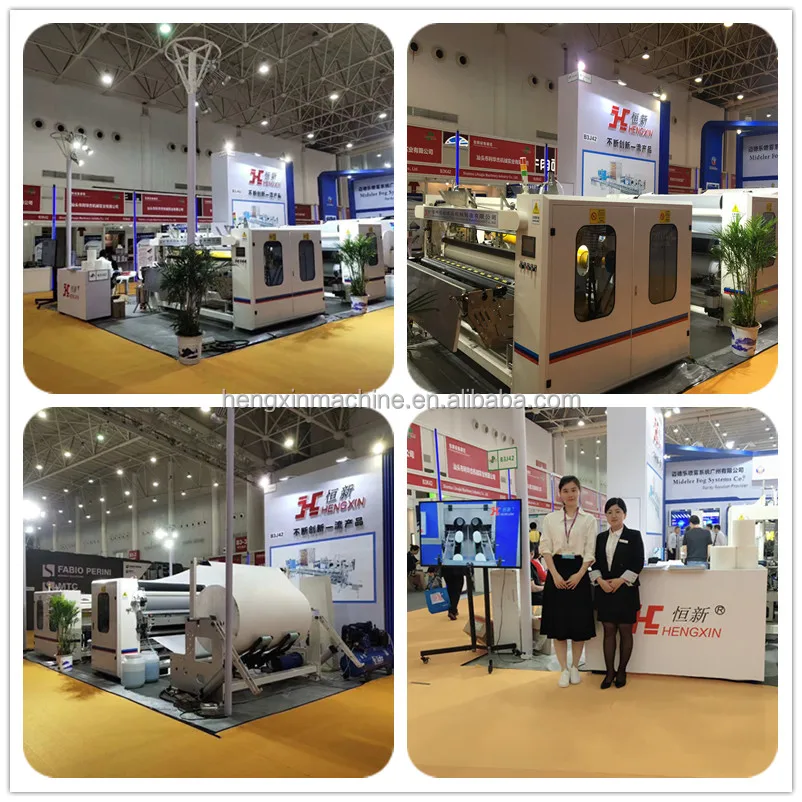

Warehouse&Exhibition
