HP 30S TTMC Shop Press for Bearing, Shop Press Fabrication Tools, 30 Ton Manual Cylinder Press Machine
- Category: >>>
- Supplier: Tengzhou Tri-Union Machinery Co. Ltd.
Share on (202467334):
Product Overview
Description
Product Overview

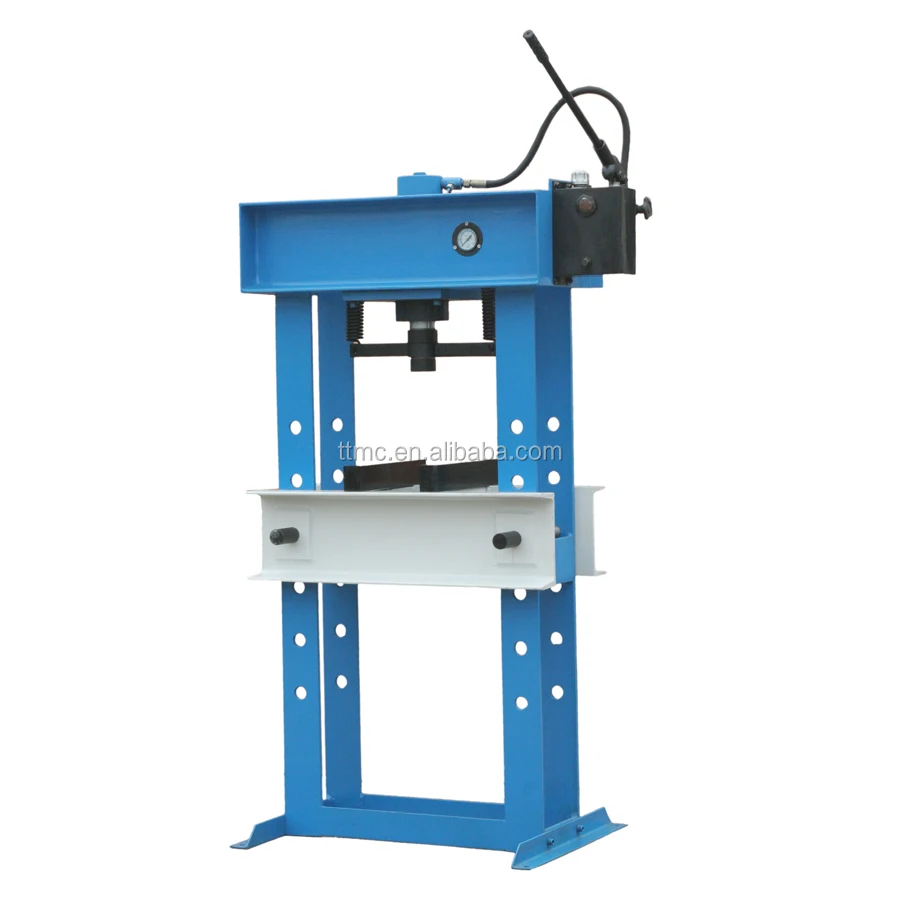

TTMC Manual Shop Press HP-30S
This hydraulic shop press maintains strength and accuracy with a fully-welded solid steel frame.
FEATURES AT A GLANCE
30-ton capacity.
200 mm cylinder stroke.
Industrial-grade hydraulic components will provide years of reliable use.
Adjustable table to fit a wide variety of applications.
Includes pressure regulator and gauge.
Rigid, electro-welded steel construction lets you work at full capacity with no worries about the machine flexing.
Comes standard with a V-block set.
200 mm cylinder stroke.
Industrial-grade hydraulic components will provide years of reliable use.
Adjustable table to fit a wide variety of applications.
Includes pressure regulator and gauge.
Rigid, electro-welded steel construction lets you work at full capacity with no worries about the machine flexing.
Comes standard with a V-block set.
Different capacity available
PRODUCT SPECIFICATIONS
Manual Shop Press, 20T, 30T, 50T, 80T and 100T
Item No. | 382107 | 382108 | 382109 | 382220 | 382210 |
Model | HP-20S | HP-30S | HP-50S | HP-80S | HP-100S |
Capacity (KN) | 200 | 300 | 500 | 800 | 1000 |
Pressure (Mpa) | 50 | 60 | 60 | 40 | 40 |
Travel (mm) | 200+450 | 200+450 | 250+450 | 300 | 300 |
Table size (mm) | 200x300 | 300x400 | 360x500 | 500x400 | 800x400 |
Packing size (cm) | 50x35x130 | 55x40x150 | 100x55x150 | 156x65x195 | 160x65x210 |
N.W./G.W.(kg) | 290/350 | 320/380 | 460/540 | 820/930 | 960/1090 |
