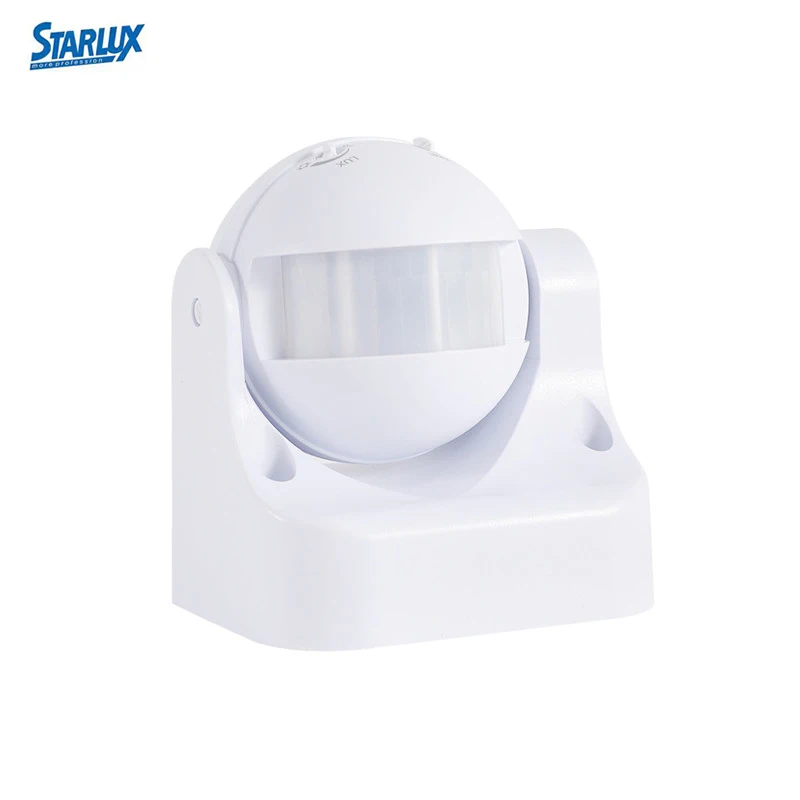

Outdoor IP44 Waterproof Small ST09 PIR motion sensor wall mount CE ROHS approval

Product Overview

Description

Outdoor IP44 Waterproof Small ST09 PIR motion sensor wall mount CE ROHS approval

The product adopts good sensitivity detector and integrated circuit. It gathers automatism, convenience, safety, saving-energy and practicality functions. The wide detection field consists of up and down, left and right service field. It works by receiving human motion infrared rays. When one enters the detection field, it can start the load at once and identify automatically day and night. Its installation is very convenient and its using is very wide.



SPECIFICATIONS:

Power Source: 110 -130V/AC   220 -240V/AC       Detection Range: 180°

Power Frequency: 50/60Hz                                    Detection Distance: 12m max(<24℃)



Ambient Light: <3-2000LUX (adjustable)                Working Temperature: -20~+40℃



Time Delay: Min.10sec±3sec                                  Working Humidity: <93%RH



                    Max.7min±2min                                   Power Consumption: approx 0.5W



Installation Height: 1.8-2.5m                                    Detection Moving Speed: 0.6-1.5m/s



 Rated Load:  110 -130V/AC :                        220 -240V/AC :

                    800W(incandescent lamp)         1200W(incandescent lamp)

                    200W(energy-saving lamp)        300W(energy-saving lamp)



Lifetime and Warranty:

Lifetime (hr)	26000-45000 at least
Warranty	3 years



FUNCTIONS:

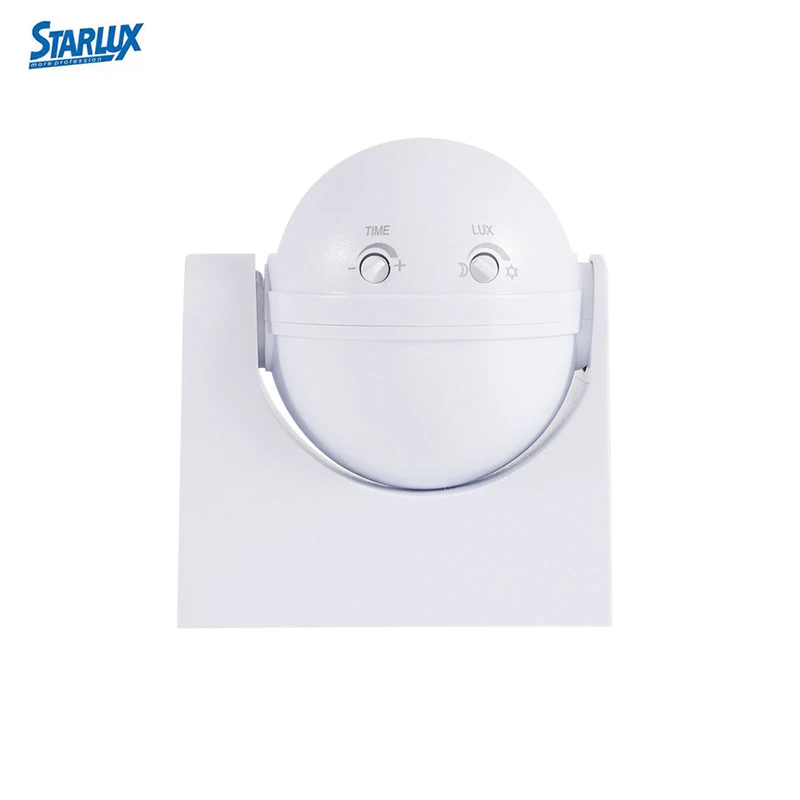

Ø  Can identify day and night: The consumer can adjust working state in different ambient light. It can work in the daytime and at night when LUX knob is adjusted on the “sun” position (max). It can work in the ambient light less than 3LUX when it is adjusted on the “moon” position (min). As for the adjustment pattern, please refer to the testing pattern.

Ø Time-Delay is added continually: When it receives the second induction signals within the first induction, it will restart to time from the moment.



CONNECTION:



Ø  Loosen the screw in the back and unload the bottom (refer to figure 1).

Ø  Find the wire hole in the bottom and pass the power wire through hole. Connect the power wire into connection-wire column according to the connection-wire diagram.

Ø  Fix the bottom with inflated screw on the selected position. (refer to figure 2)

Ø  Install back the sensor on the bottom, tighten the screw and then test it.



CONNECTION-WIRE DIAGRAM:(See the below figure)
