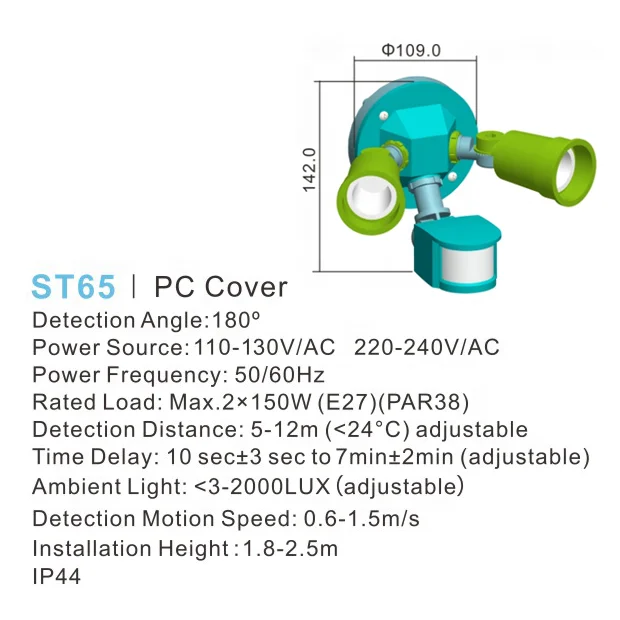

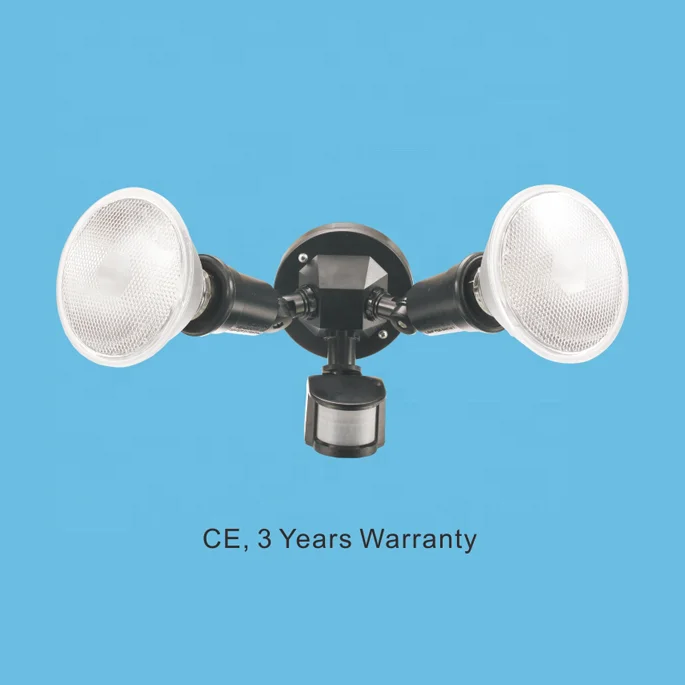

ST65 Flexible infrared sensor lamp Double E27 Bulb Holder Fluorescent lamp holder

Product Overview

Description



FUNCTION:

Ø  Can identify day and night: The consumer can adjust working state in different ambient light. It can work in the daytime and at night when it is adjusted on the “sun” position (max). It can work in the ambient light less than 3LUX when it is adjusted on the “moon” position (min). As for the adjustment pattern, please refer to the testing pattern.

Ø  SENS adjustable: It can be adjusted according to using location. The detection distance of low sensitivity could be only 5m and high sensitivity could be 12m which fits for large room.

Ø  Time-Delay is added continually: When it receives the second induction signals within the first induction, it will restart to time from the moment.

Ø  Adjustable Time Delay: the length of time delay could be set according to the customers’ requirement, the minimum time of this item is 10sec ± 3sec, the maximum is 7min±2min.



INSTALLATION:

Ø  Switch off the power.

Ø  Screw off the nail on the bottom of sensor lamp and unload the bottom. Open the wire hole in the bottom and pass the wire through the hole.

Ø  Fix the bottom on the selected position with the inflated screw.

Ø  Connect the power wire into connection-wire column according to the connection-wire diagram.

Ø  Fix back the sensor lamp on the bottom. Switch on the power and then you can test it.



CONNECTION-WIRE DIAGRAM:



PRODUCT CAPACITY:

Our company adopts automatic machines,such as:SMD,auto component inserter,wave solder,auto injection machine and so on.And the daily output is up to 20000~30000pcs.



CERTIFICATE:

The concept of our company is"advocating new modern living environment",which focuses on researching and developing the contemporary household intelligent product.Our product can be truly satisfied for different customer's requirement,most of them are available with CE GS ROHS R&TTE REACH certification.
