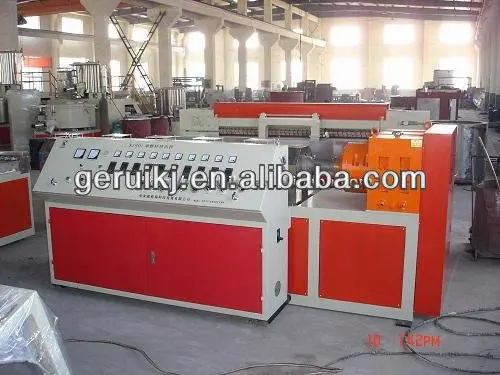

PE pipe extruder plastic pipe production line

Product Overview

Description



1. The SJ Series Single Screw Extruder with appropriate screws.dies and other auxiliaries

can directly convert thermoplastic especially PE.powder into pipe/plate/sheet/film and profile

also provide function of modifying and pelleting.

2. The Single screw extruder can process PP/PE/ABS/PMMA /PC/PA etc.



Technology Paramete of Our Standard Single screw extruder:



MODEL	DIAMETER OF SCREW(mm)	RATIO OF L/D	MAIN POWER(kw)	OUTPUT(kg/h)
SJ45×25	45	25:1	7.5	5-38
SJ65×25	65	25:1	22	20-85
SJ65×30	65	30:1	30	30-110
SJ65×33	65	33:1	75	20-150
SJ90×25	90	25:1	55	50-100
SJ90×33	90	33:1	90	90-250
SJ120×25	120	25:1	75	50-250
SJ120×30	120	30:1	110	90-300
SJ150×25	150	25:1	110	370
SJ200×25	200	25:1	132	180-430

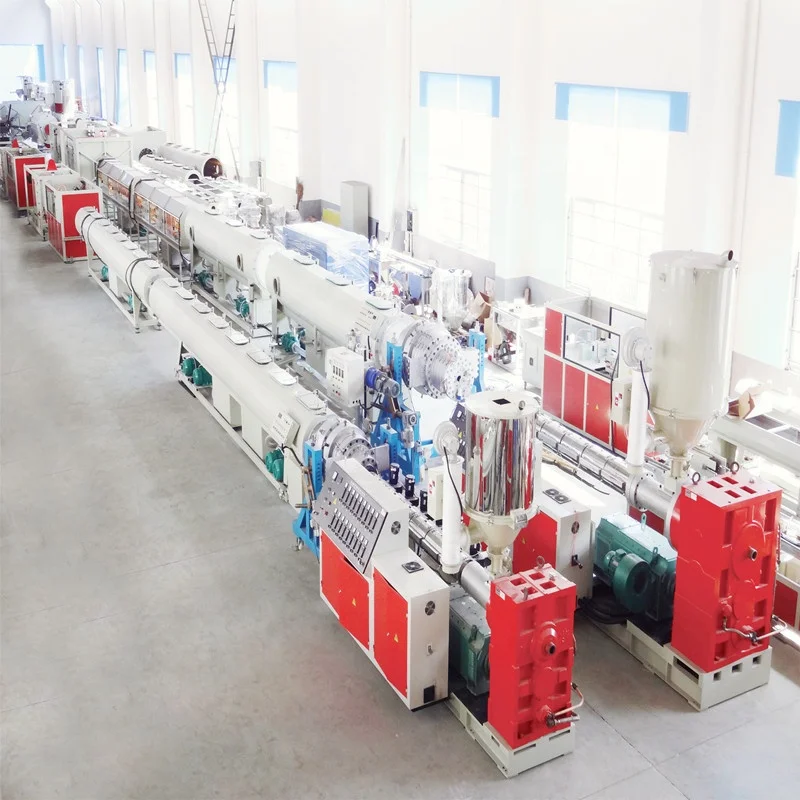

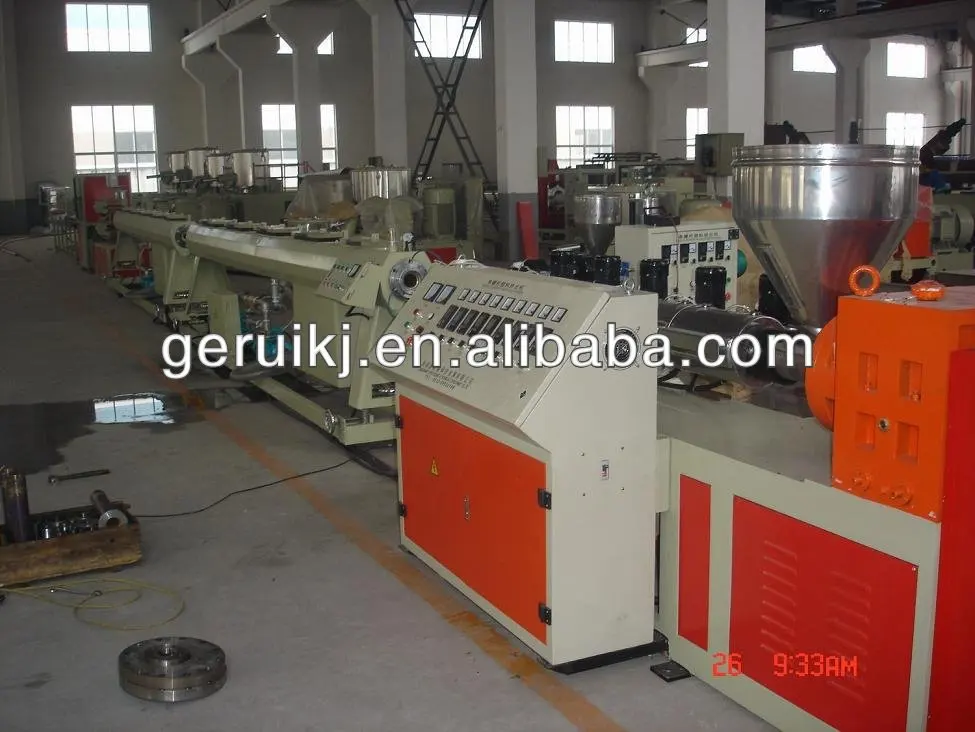

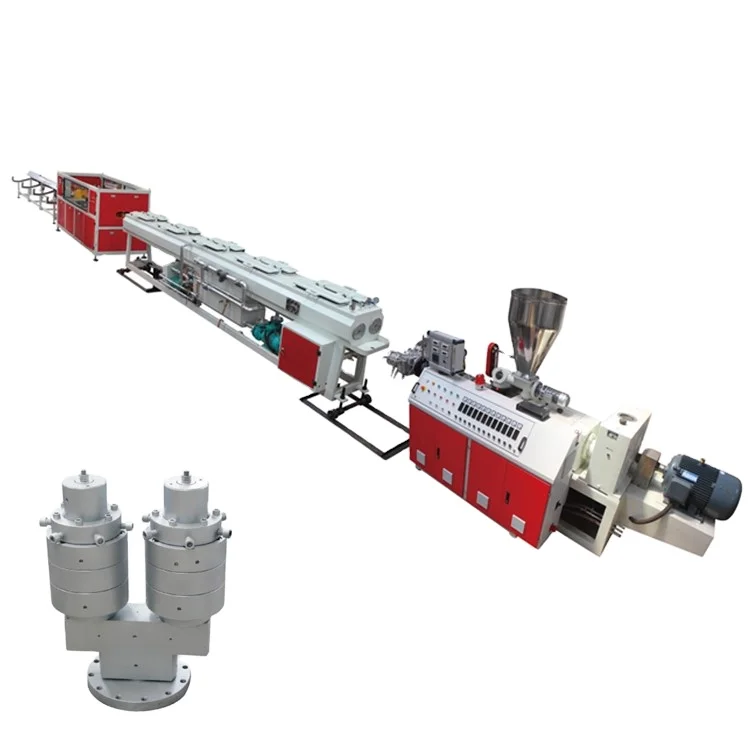

Prcocess Flow of PP/PE/PPR Pipe Production Line:



Feeding Machine---- Dry Hopper ----- Single Screw Extruder----- Mould ----- Vacuum Tank

-----Water Tank----Haul Off ---- Cutting Machine-Stacker

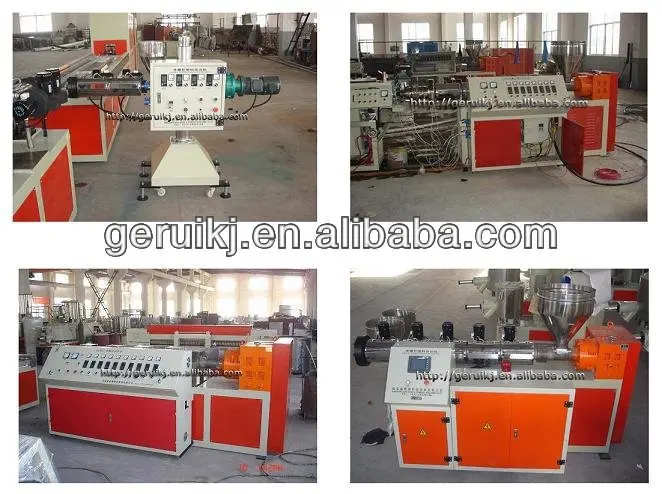

Individual Machine Photo of 20-63mm PE/PP/PPR Pipe Production Line Which

Adopt Single Screw Extruder As The Main Machine:

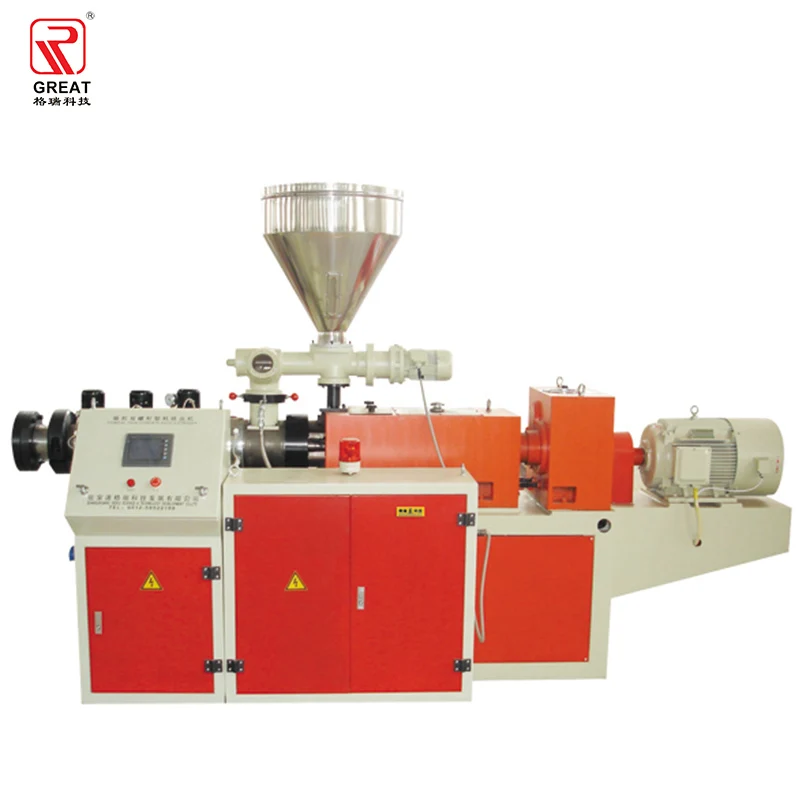

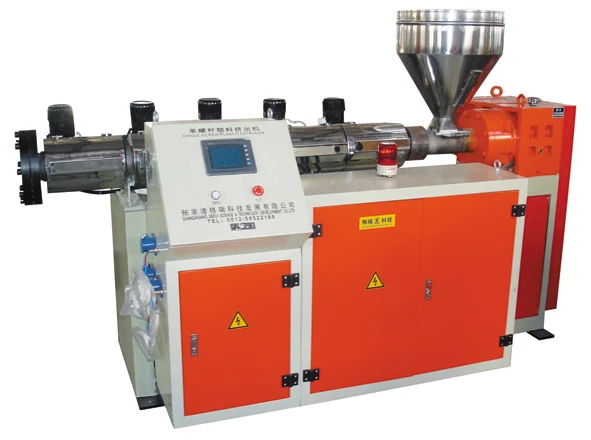

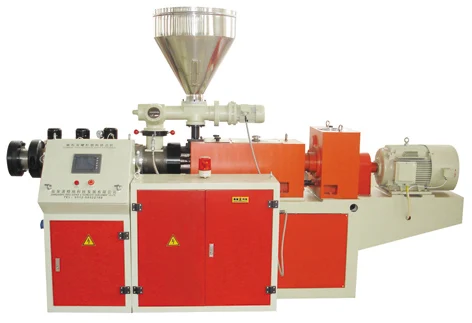

SJ 65/33 Single Screw Extruder



Vacuum Tank



Water Cooling Tank



Haul Off Machine



Cutting Machi
