Тип CE, хорошее качество, поверхностная Массовая отделка, вибрационная Ванна
- Category: >>>
- Supplier: Huzhou Xingxing Abrasive Co. Ltd.
Share on (203564643):
Product Overview
Description
Product Description
It is mainly used for deburring, removing rust, rounding and polishing all sorts of metals, non-ferrous metals and non-metals parts. The workparts after surface finishing, not only remain the shape accuracy of the original state, but also improve the precision of surface roughness of parts.
SPECIFICATIONS FOR VIBRATORY FINISHING MACHINE XXZP-ZC200 | ||||||
Vibratory Finishing Machine | Machine Type | XXZP-ZC200 | SET | |||
Motor | 1.2 | KW | ||||
Motor Speed | 1440 | RPM | ||||
Main parameters | Machine Size | 1530*885*1005 | MM | |||
Process Vessel Volume (L) | 200 | L | ||||
Process Vessel （L*W*H） | 1100*450*460 | MM | ||||
Other information | Lining | PU lining | PU | |||
Lining thickness | 20 | MM | ||||
Voltage | 220V-440V | 3 Phase | ||||
Detailed Images
Product Application & Features
1. Adoption of vibratory motor to produce vibratory force, it makes workparts and medias move in one direction and mass finished interactively in the processing vessel to accomplish the surface improvement.
2. Applicable to process small and medium size workparts in large amount load, with good finish effect and short time needs for processing.
3. No damage to the original shape and size of the workpart.
4, The processing vessel interior surface is lined with PU (polyurethane), avoiding direct damage to the workparts and machine metal, and working life for the machine is extended.
5. Random checking the workparts in the finishing process, easy operation. Option to choose the independent electrical box with inverter and auto dosing(inverter and auto dosing functions are options for customer to choose).Vibratory tub machine

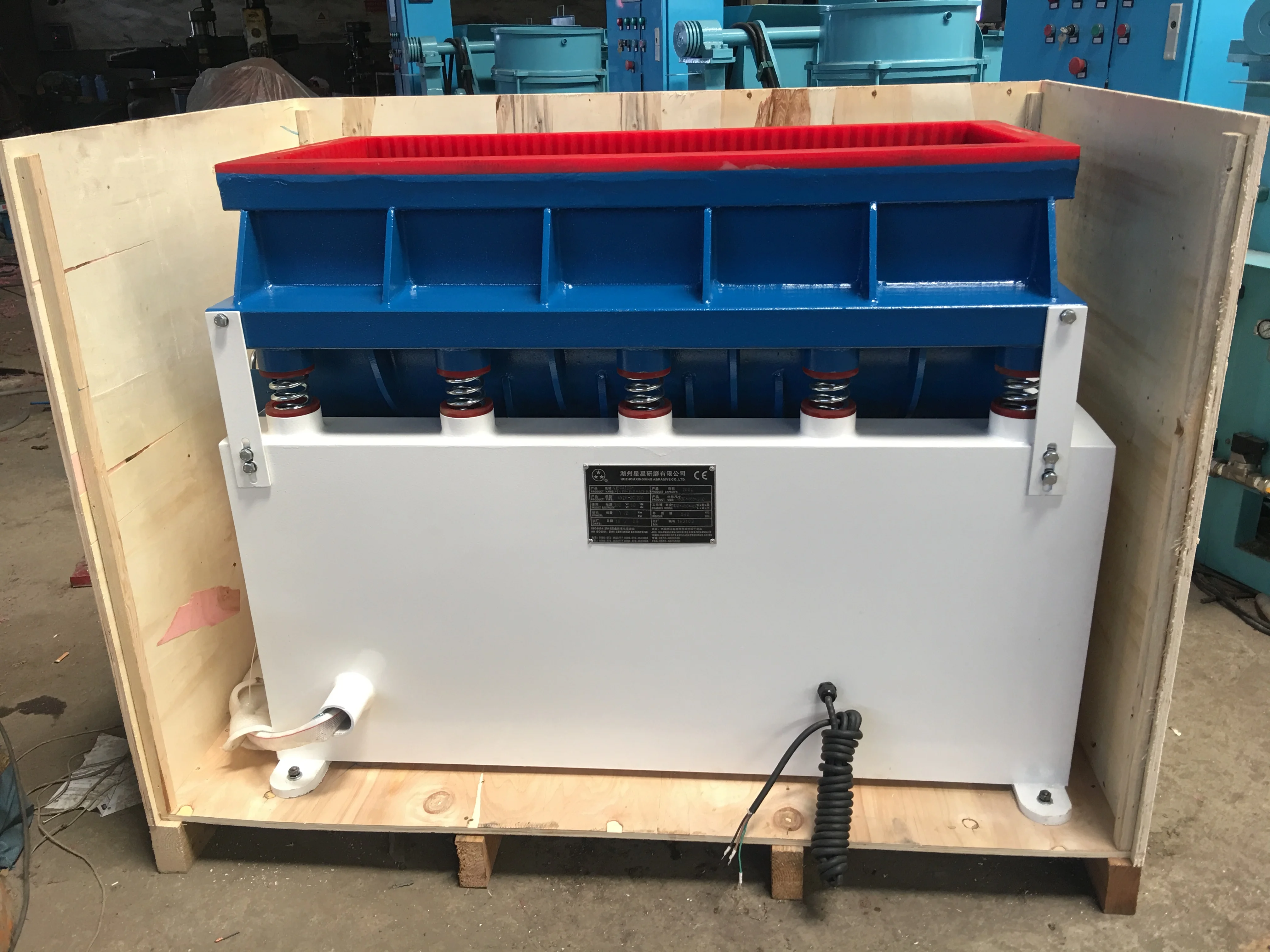

Vibratory Finishing Machine
Name: Vibratory Finishing Machine
Code: XXZP-ZC200
Brand: Xingxing
Original: Zhejiang, China
1. CE certified vibratory finishing machine.
2. Stress relief welding required, heavy duty structure design, USA design one.
3. This machine type is rectangular shape
with function of processing long and big
work parts in the processing tub.
4. With PU cup for springs installation to eliminate the machine running noise.
5. With independent control panel available.
6. The machine tubl is with floor drain design
7. The machine basement design with easy maintenance windows.

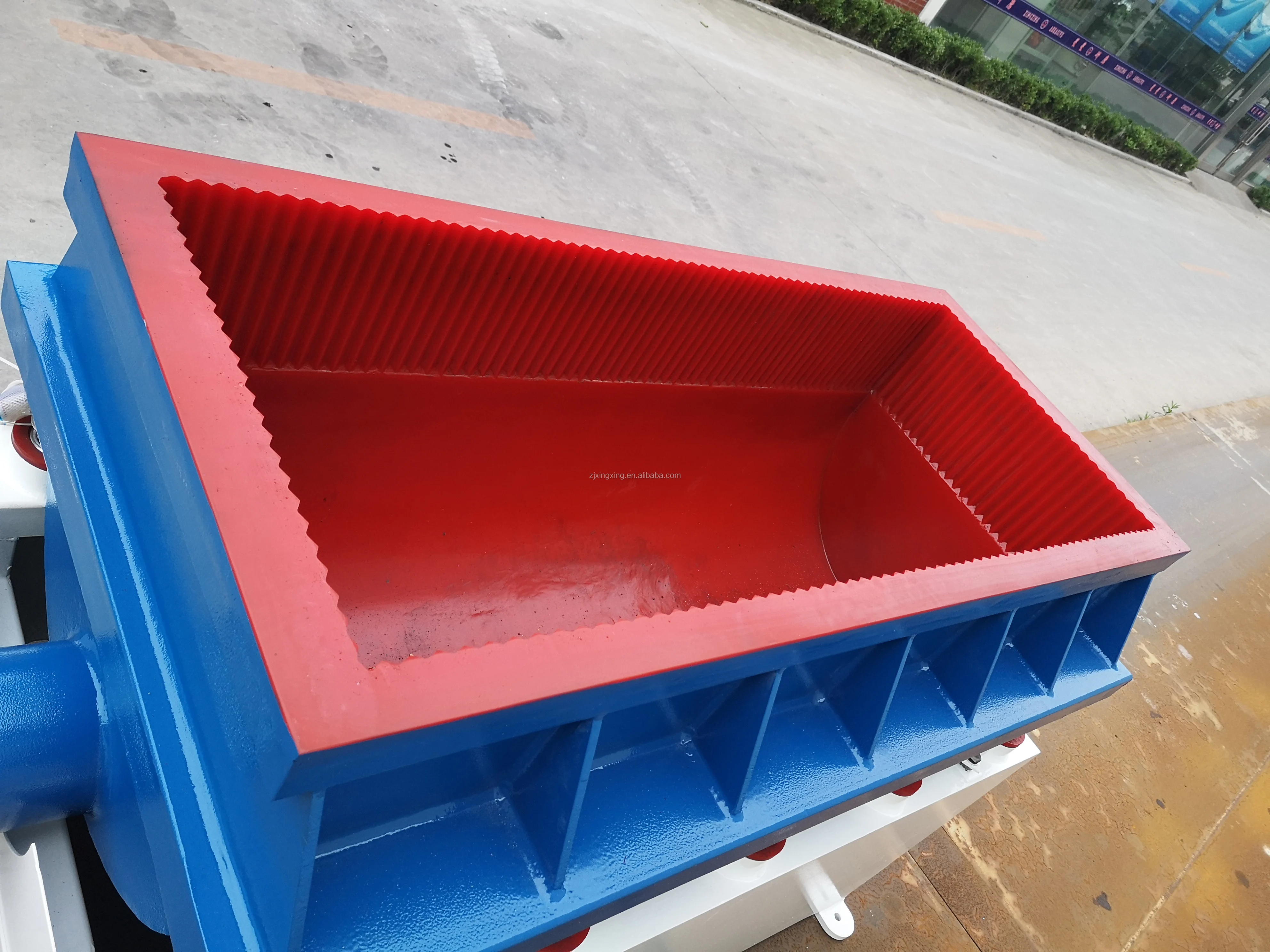

Name: Vibratory Tub
Brand: Xingxing
Original: Zhejiang, China
Brand: Xingxing
Original: Zhejiang, China
1. PU lining with 20mm thickness with guaranntee of 2 years using min.
2. Stress relief welding design and heavy duty design for the motor base.
3. The Process Vessel （L*W*H）is 1100*450*460mm.
4. With PU dividers available for the tub in case customer needs it.
2. Stress relief welding design and heavy duty design for the motor base.
3. The Process Vessel （L*W*H）is 1100*450*460mm.
4. With PU dividers available for the tub in case customer needs it.
Name: The thickness & hardness of PU lining
Brand: Xingxing
Instrument: sclerometer
1.Every machine we will test the hardness, we only export the machine which hardness is qualified.
2.The PU lining thickness is average with 20mm, to ensure the PU lining wear life time, the main wear part of the work channel
with thickness over 20mm.
Name: Machine bowl structure stress relieving
1. The steel metal bowls will be shot blasted before PU casting to ensure the machine bowl structure stress relieving. It is our
standard process for every machine.
2. It is our standard procedures for machinery manufacturing technique. It helps the machine intergral quality for customer to use
in long life time.
3. The pic is for your reference of circular vibratory machine, but we keep the standard stress relieving process for every
machine we make.
Brand: Italy brand OLI
Original: Zhejiang, China
1. Italy made quality vibratory motor, with consistant reliable quality.Original: Zhejiang, China
2. CE certified type motor.
3. Energy saving type motor.
4. Easy adjustment: with motor fan shape shafts, the intersection angle can be adjusted with the reading of point marks on the shaft. EASY FOR MOTOR VIBRATING FORCE ADJUSTMENT.
5. Voltage available: 220V/380V/400V/415V/440V
Name: Indepent Contorl panel
Original: Zhejiang, China
1. Contorl panel without inverter and auto dosing function.2. The control panel with timer and motor protective breaker.
3. DC24V Safe control voltage for buttons
4. With Emergency button installed for emergency usuage.
5. Voltage available: 220V/380V/400V/415V/440V
Name: Independent control panel- OPTION
Original: Zhejiang, China
1. Contorl panel with inverter(without auto dosing function).1. With Safe DC24V control voltage
2. With Inverter (Taiwan brand) installed inside.
3. With Emergency button installed for emergency usuage.
4. With Timer to set the running time.
5. Voltage available: 220V/380V/400V/415V/440V
6. The above price doesn't include the optional cost.
Name: Independent control panel- OPTION
Original: Zhejiang, China
1. Contorl panel with inverter and auto dosing function.2. With Safe DC24V control voltage
3. With Inverter (Taiwan brand) installed inside.
4. With Emergency button installed for emergency usuage.
5. With Timer to set the running time.
6. Auto dosing for different options. Italy dosing pump installed.
7. Voltage available: 220V/380V/400V/415V/440V
8. The above price doesn't include the optional cost.
Related Products
Packing&Shipping
Packing:wooden case
Suitable for sea shipping
Certifications
After Sales Service
Our company pays great attention to quality problems. In case of quality problems, you can discuss with us.
we offer perfect surface finishing technology!
Company Introduction
The company has been awarded province and municipal titled " Excellent Technology Advancement"
for several times. The company has set up a strict quality assurance system, it passed the ISO:
9001:2000 in 2004, and CE certification in 2008.
The company mainly has three production workshops for mass finishing machinery, mass finishing
media, and compound, which are integrated to offer our customers with complete mass finishing
solutions. The company has a variety of finishing machines available in five categories: Vibratory
finishing machine, Centrifugal barrel machine, Centrifugal disc machine, Rotating barrel machine,
and shot blasting machine.
There are three series of mass finishing medias as ceramic media, plastic media, special media, and
more than thousand specifications.
In addition, Xingxing Abrasive also supply 12 kinds of polishing compound for mass finishing solutions.
The mass finishing product serves every sector of modern industry, such as aviation, automobile,
motorcycle, engine, compressor, textile machinery, alloy metal, non-metal workparts,, magnetic
products, and decorations, etc
