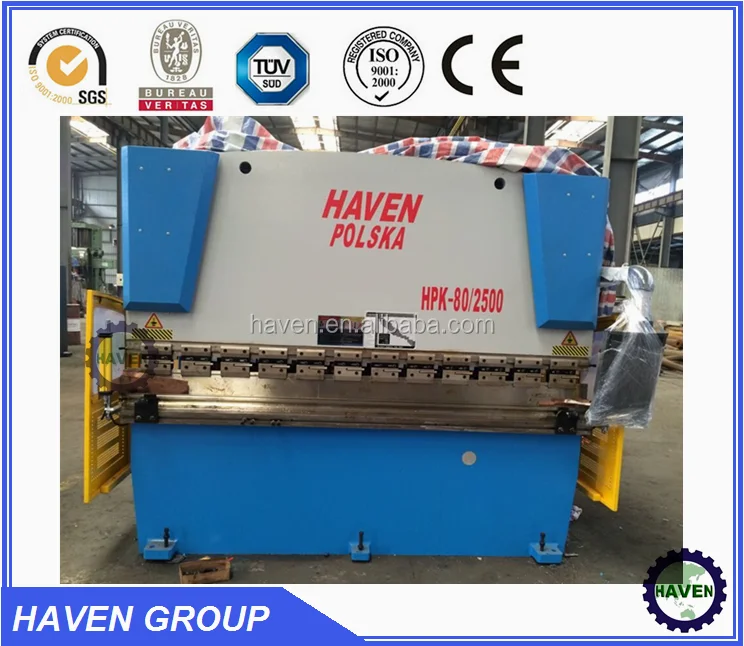

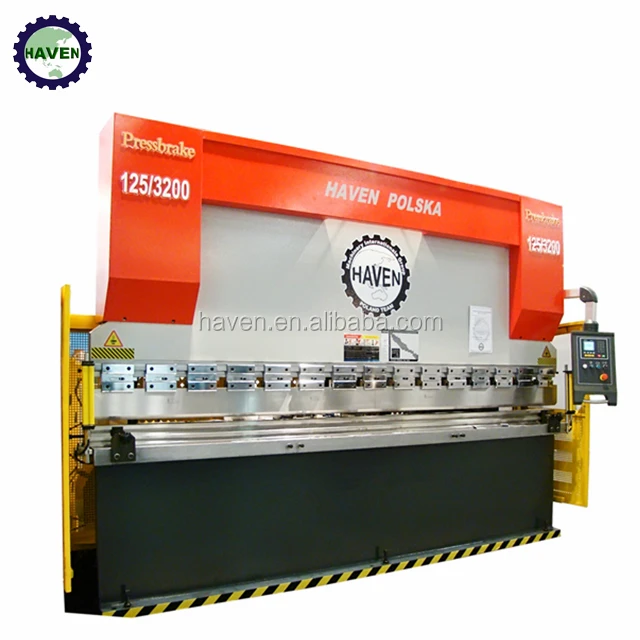

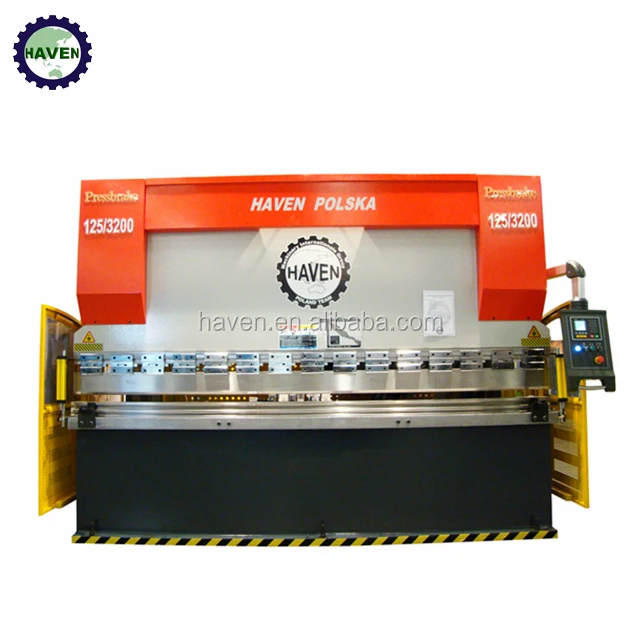

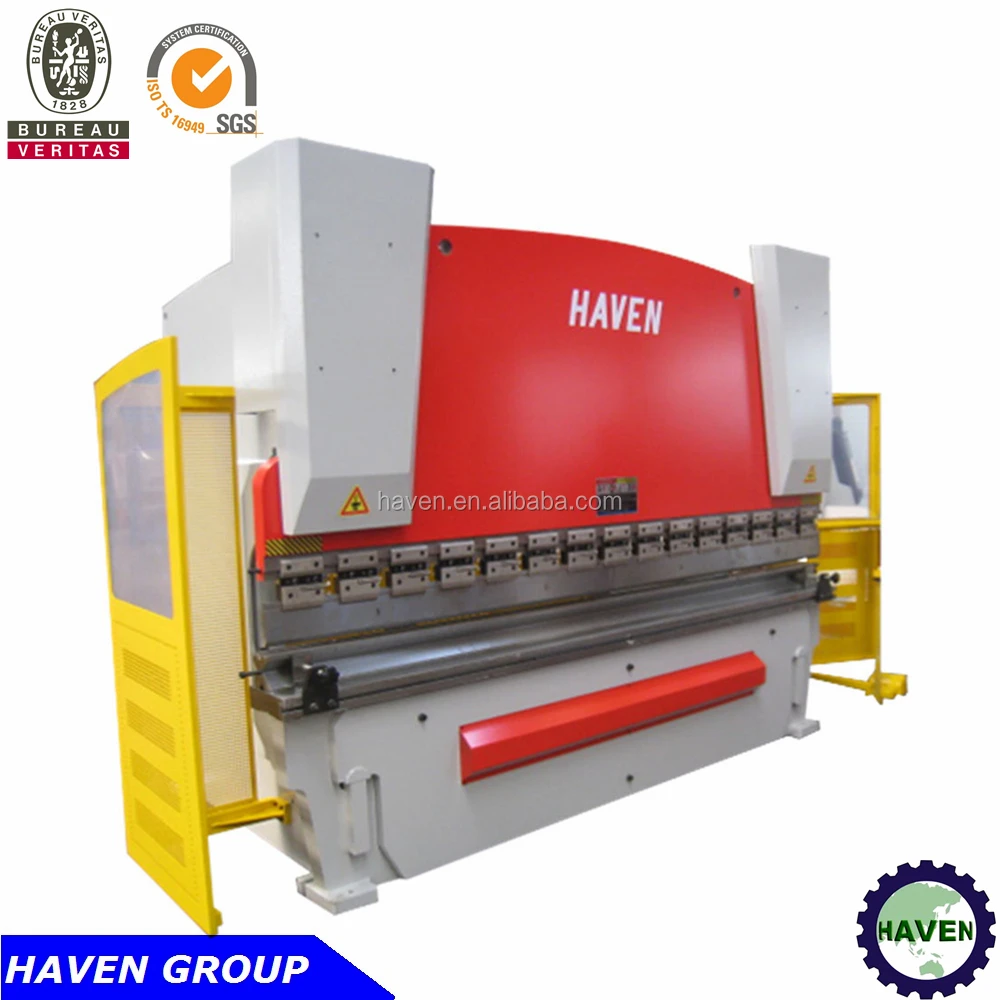

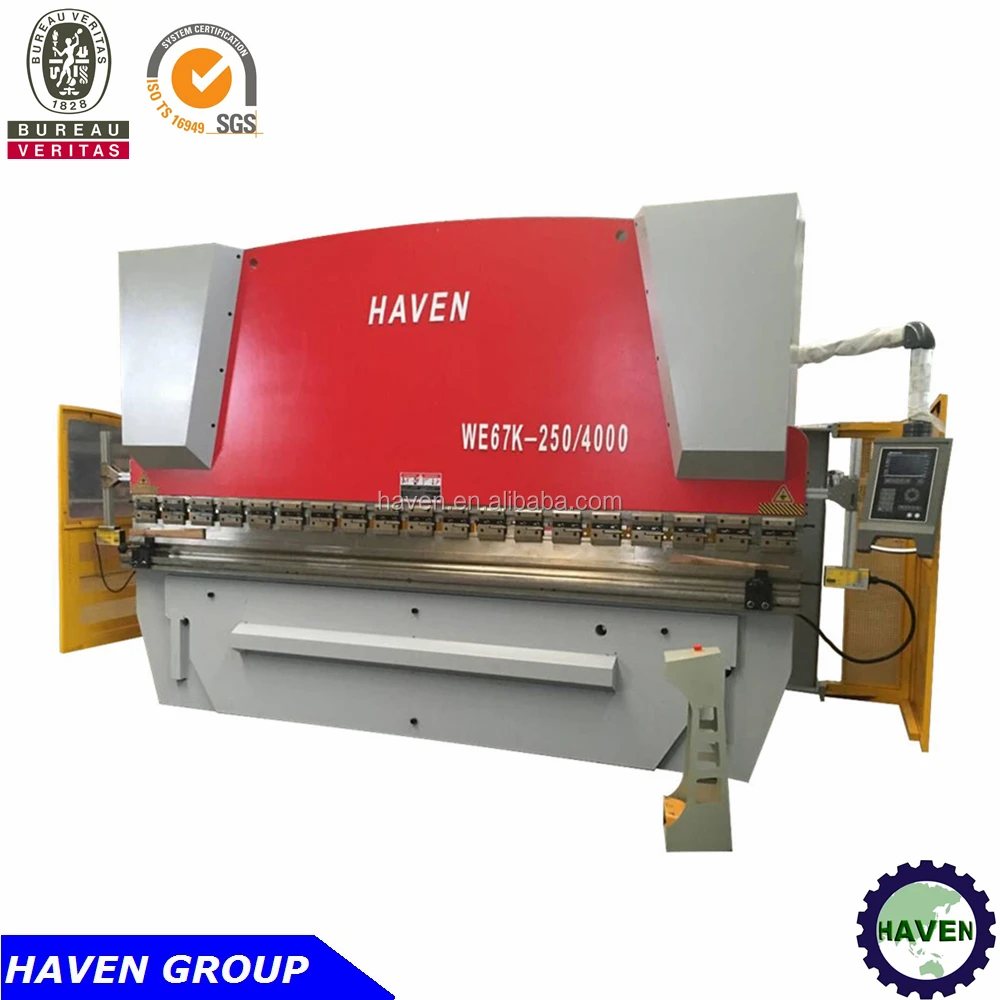

WC67Y series hydraulic press brake manufacture cnc hydraulic sheet metal press brake WC67Y 80/3200 Brake Bending Machine
- Category: >>>
- Supplier: Shaanxi Haven Equipment Co. Ltd.
Share on (203798873):
Product Overview
Description
WC67Y series hydraulic press brake bending machine, steel plate bending and folding machine
Product Description
Standard Facilities:
1. ESTUN E21 NC control + Frequency inverter
2.Front support arms
3. Motorized stroke adjustment
4. T slot on both front side and back side of the worktable
5. OMAGE Hydraulic valve
6. SUNNY hydraulic pump
7. Siemens famous brand motor
8. Siemens or Schneider Electric parts
9. Machine power is turn-off when the electric cabinet door opened
10. Upper clamps with Anti Wedges
11. Hydraulic and Electrical overload protection
12. Side safety guard and Full height back safety guard
13. With standard Top punch and Bottom Die
14. Back gauge beam is made of profile steel and liner guide
15. Back gauge is supported with ball screw and polished steel round bar with 0,05mm accuracy
2. Estun E21 NC Press Brake Control system:
1. Monochrome LCD Box Panel.
2. Integral factor programmable freely
3. Automatic positioning control
5.Internal time relay
6.Ram stroke counter
3. Our Services
1: Response in time after getting customer’s claim
1: Provide solution in 1 day
2: Usually solve problem within 2 days
2. For big machine, Installation Service is available as per customer’s requirement
4. Training Service
Our technician is available to your factory and offer training of how to use our machines. As well, you may send your technician to our company to learn how to operate machines.
5. Quality Guarantee
We guarantee the quality of machine (e.g. processing speed and working performance is the same as the data of samples making). We sign the agreement with detailed technical data.
We arrange final test before shipment. We run the machine for a few days, and then use customer's materials for test. After making sure machine is the best performance, then make shipments.
6. Main features
1. The whole machine is in sheet plate welded structure, which internal stress eliminated by vibration aging technology, high strength and good rigidity of machine.
2. Double hydraulic oil cylinder is applied for upper transmission, provided with mechanical limit stopper and synchronous torsion bar, stable and reliable operation, as well as high precision.
3. Electrical adjustment and manual fine-tuning adjustment mode are adopted for distance of rear stopper and stroke of gliding block, and fitted with digital display device, easy and quick in use.
4. Upper clamp is fitted with compensation device.
5. Worktable mechanical compensation or hydraulic compensation device is optional.
Machine details:
Main Specification
Specification | 40 2000 | 40 2500 | 63 2500 | 80 3200 | 100 3200 | 100 4000 | 125 3200 | 160 3200 | 200 3200 | 250 3200 | 300 4000 | 300 5000 | 400 4000 | 400 6000 |
Nominal pressure (KN) | 400 | 400 | 630 | 800 | 1000 | 1000 | 1250 | 1600 | 2000 | 2500 | 3000 | 3000 | 4000 | 4000 |
Working width (mm) | 2000 | 2500 | 2500 | 3200 | 3200 | 4000 | 3200 | 3200 | 3200 | 3200 | 4000 | 5000 | 4000 | 6000 |
Ram stroke (mm) | 100 | 100 | 100 | 100 | 120 | 120 | 120 | 200 | 200 | 200 | 250 | 250 | 300 | 300 |
Stroke adjustment (mm) | 80 | 80 | 80 | 80 | 100 | 100 | 100 | 160 | 160 | 160 | 300 | 300 | 320 | 320 |
Max. Stroke number (/min) | 11 | 11 | 10 | 8 | 8 | 8 | 8 | 8 | 7 | 7 | 6 | 6 | ≥3 | ≥3 |
Motor power (k w) | 3 | 3 | 5.5 | 7.5 | 7.5 | 7.5 | 7.5 | 11 | 15 | 20 | 22 | 22 | 30 | 30 |
Net weight ( t ) | 2.6 | 3.1 | 4.5 | 6.5 | 8.2 | 9.5 | 8.7 | 10.5 | 13.5 | 15.5 | 21 | 26 | 29 | 44 |
