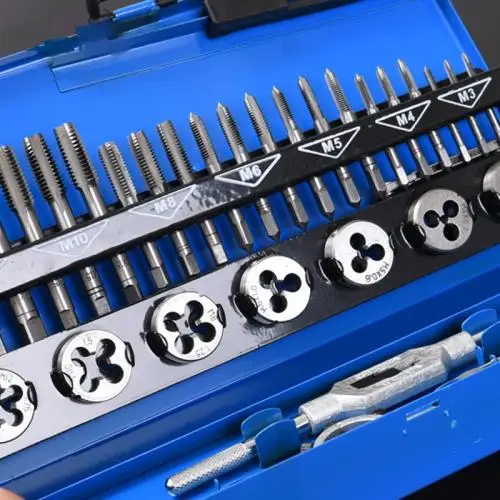

32pcs HSS material Din 352 standard tap and die kit
- Category: >>>
- Supplier: Hangzhou Pangong Tool Co. Ltd.
Share on (204177080):
Product Overview
Description
Product Description
Specification
Model: PT32-1 |
Multi Functional Application and Combination tool box taps & dies Screw threading tool |
Metrail: Alloy steel Gcr15,9Crsi or HSS4241/4341/6542/5341/M2 (optional) HCR: 58-63 Package: Metal case |
Color: Bright / Black / Golden Process: grinding,drilling,tapping,milling,stamping,heat treating,chamfering |
1.OEM: Accpetable 2.Logo Printing: We can print your LOGO on the handle and package. 3.Free Samples: We are willing to provde free samples. 4.Payment term: T/T,L/C,Western Union,Paypal and etc. 5.Delivery: within 15-40 days after the order be confirmed |
METRIC / DIN |

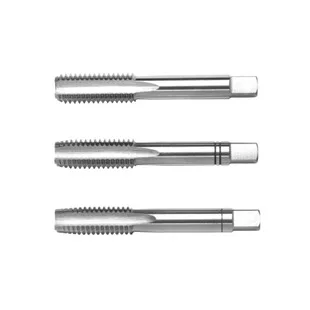

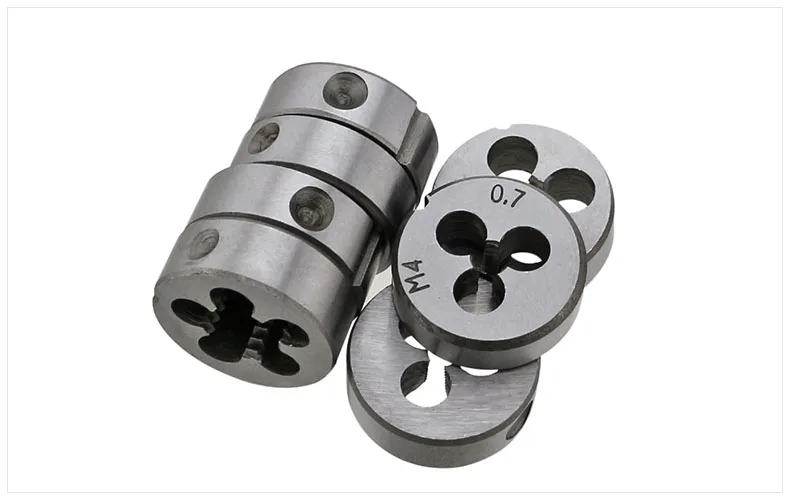

21PC Taps size(3pcs per size): 3×0.5, 4×0.7, 5×0.8, 6×1.0, 8×1.25, 10×1.5,12×1.75 7PC Dies size: same size as Taps 1PC Tap wrench 1PC Screwdriver 1PC Die handle 1PC Screw-pitch gauge |

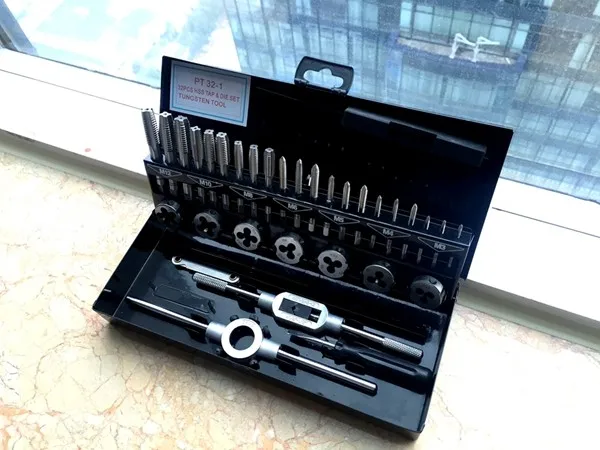

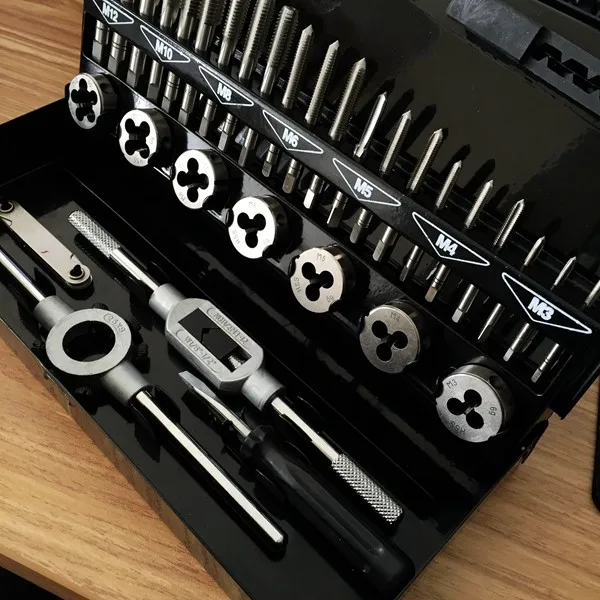

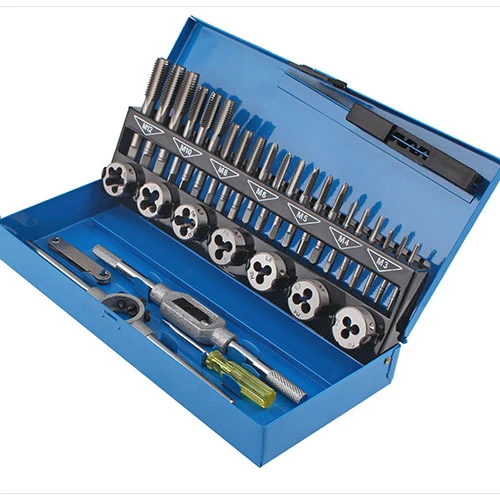

32PC Hand Tap die set contains:
21 Taps + 7 Dies + 1 Tap wrench + 1 Die handle +1 Screw driver + 1 Screw-pitch Gauge
21 Taps + 7 Dies + 1 Tap wrench + 1 Die handle +1 Screw driver + 1 Screw-pitch Gauge

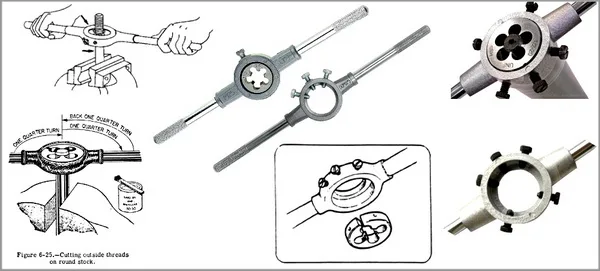

How to create outernal screw threads :
1.Choose the required thread diameter and the associated thread pitch.
2.Select a suitable bolt,and fix a suitable die in the die stock. Before positioning the die over the bolt, deburr workpiece and
file it to a slightly taper.
3.Cut the outside thread by turning the die stock backwards and forwards several times. Keep the workpiece lubricated with cutting
oil.State cutting only possible from the marked side
1.Choose the required thread diameter and the associated thread pitch.
2.Select a suitable bolt,and fix a suitable die in the die stock. Before positioning the die over the bolt, deburr workpiece and
file it to a slightly taper.
3.Cut the outside thread by turning the die stock backwards and forwards several times. Keep the workpiece lubricated with cutting
oil.State cutting only possible from the marked side
How to create internal screw threads :
1.Choose the required thread diameter and the associated thread pitch.
2.Drill a pilot hole in the appropriate diameter.
3.Fix a suitable tap in the tap wrench. Cut the thread by truning the tapping tool backwards and forwards a few times,at the same
time putting cutting oil into the drilled hole.
1.Choose the required thread diameter and the associated thread pitch.
2.Drill a pilot hole in the appropriate diameter.
3.Fix a suitable tap in the tap wrench. Cut the thread by truning the tapping tool backwards and forwards a few times,at the same
time putting cutting oil into the drilled hole.
