Product Overview
Description
Product Description
Application
- Shielding for wire and cable products

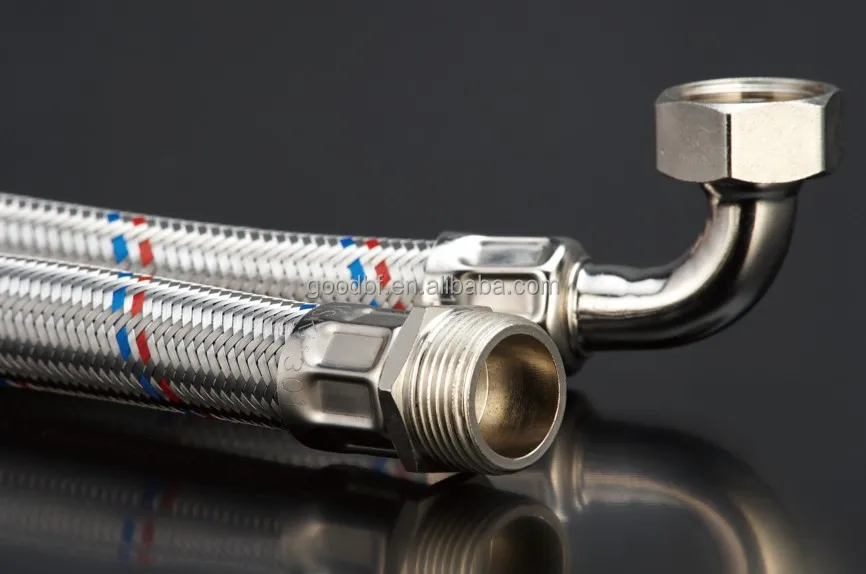

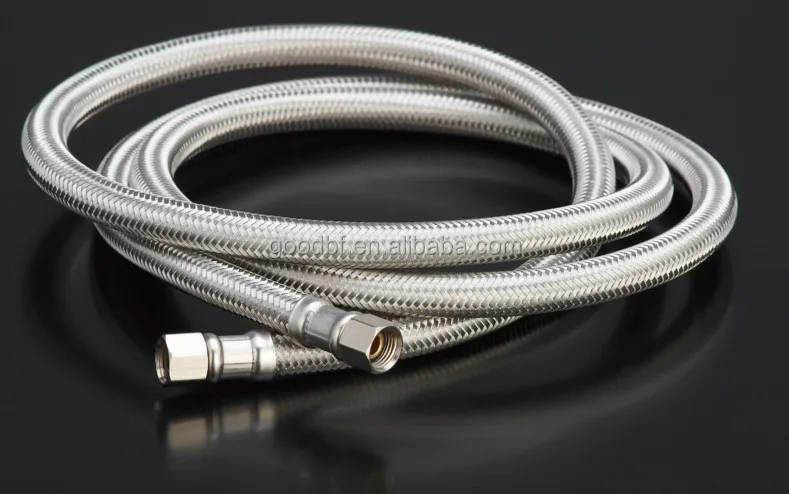

- Sanitary hose (Plumbing hose) product
- Teflon hose
- Low pressure hose and high pressure hose
- Irony steam hose
- Refrigerating fluid charge hose
- Hydraulic hose
Braiding Material :
- Stainless steel wire (0.10-0.35mm)
- Nylon wire
- Alumium wire (0.15-0.30mm)
- Carbon steel
- Polyester yarn
- Cotton yarn
- Aramid fiber
Technical Features
- Core centralizing unit
- Individual carrier tension control
- Operating speeds:
- 16 Carrier 55 rpm
- 24 Carrier 50 rpm
- 36 Carrier 36 rpm
- 48 Carrier 20 rpm
- Gear driven take-off for accurate control
- Braid patterns (2 over 2, and 1 over 1)
- Inverter motor drive for controlled acceleration and deceleration
- Adjustable traverse mechanism to accommodate reel variation
- Digital production counter
- Options
- Empty bobbin detector
- Central lubrication system (recommended)
- Enhanced Sound Enclosure
- Keel lubricator (recommended)
- Advance display, variable speed
- Longitudinal tape applicator
- Motor driven capstan(speed reducer capstan )
- Single deck( Double Deck) Braiding System
Technical Specifications
| BFB16L-114B | BFB24L-114B | BFB36L-114B | BFB48L-114B |
Motor power | 0.75kw | 1.1kw
| 1.5kw | 2.2kw |
Voltage | 3 Phase 380V | 3Phase 380V | 3Phase 380V | 3Phase 380V |
Spindle RPM | 55RPM | 45RPM | 36RPM | 20RPM |
Traction RPM | 5.26-26RPM | 4.26-18.5RPM | 2.13-10.8RPM | 0.13-0.58RPM |
Take Up Reel | Attachment | Attachment | Charge for take up reel | Charge for take up reel |
Hose Diameter | ≤16mm | ≤24mm | ≤36mm | ≤48mm |
Traction Gear | 200 | 200 | 800 | 800 |
Spindle NO | 16 Spindle | 24Spindle | 36Spindle | 48Spindle |
Weight | 280kg | 305kg | 680kg | 48kg |
Bobbin Size | Out edge 56× Inner edge 22×High170mm Cubage:354cm3 | |||
Apply | Change spindle can braiding wire and yarn | |||
Dimenson | 620*500*1580mm | 890*720*1680mm | 1100*1000*1780mm | 1500*1300*2100mm |

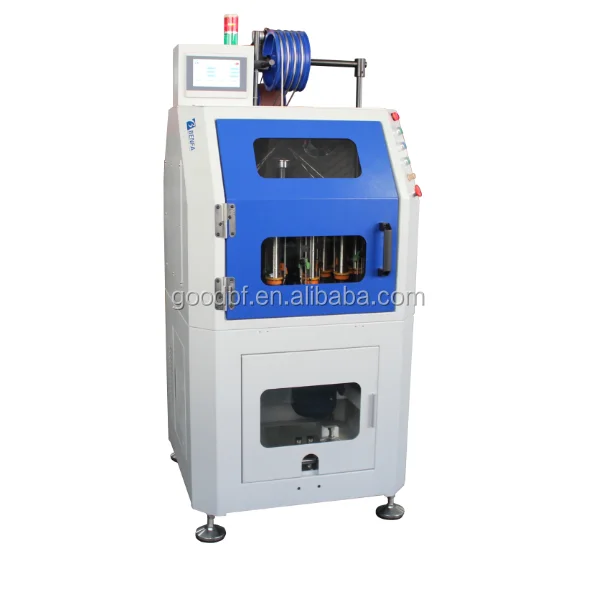

BFB24L-114B with full cabinet same as the photo show
Remake: Our machine have passed CE certificate
CE certificate No: MD070126-01CN

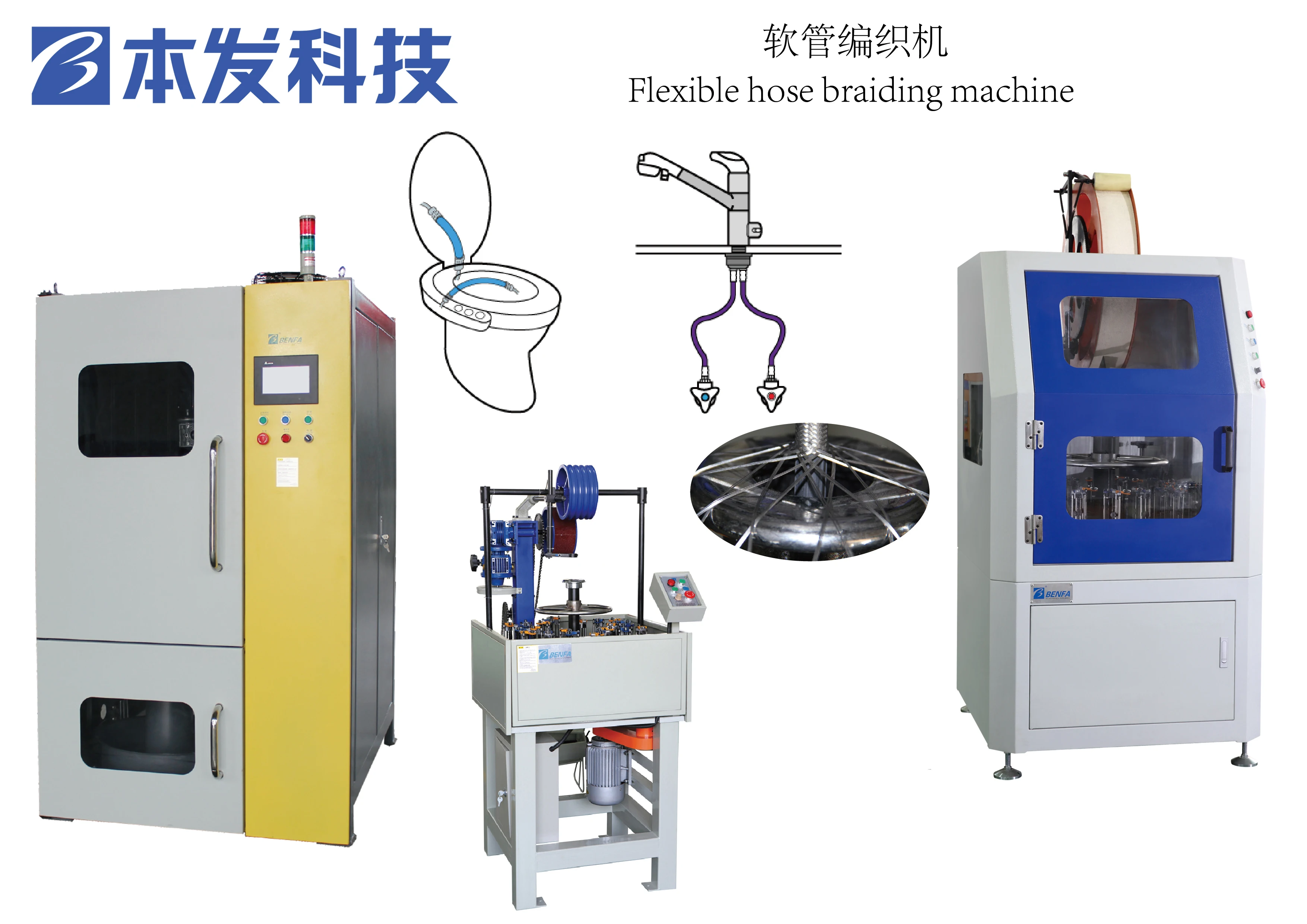

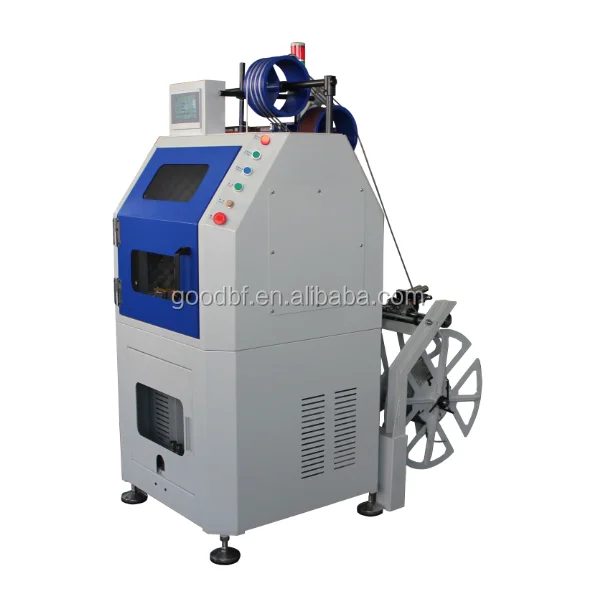

BFB24L-B Vertical Automatic Hose Braiding Machine has been designed to use for multipurpose like shielding on bellows tube for car-flex, shielding on shipboard cables, reinforcement in rubber hoses of high pressure as a machine to braid with high carbon steel wire and stainless steel wire.
Braid material: Stainless steel wire, Aluminum wire, Cotton thread, yarn thread, Terylene thread, etc.
The machine has the following features:
1. High automatic extent: Broken, empty bobbin or no tube, automatic machine self-closed.
2. Adopt adjustable speed to accommodate pitch, don't need to change gear.
3. High productive efficiency: Capacities two times than present common machine per hour.
4. Low noise, transmission and pulling system adopt absorbing sound, reducing shake and inserting equipment.
5. Easy maintenance: Transmission flexible, structure easy install and remove.

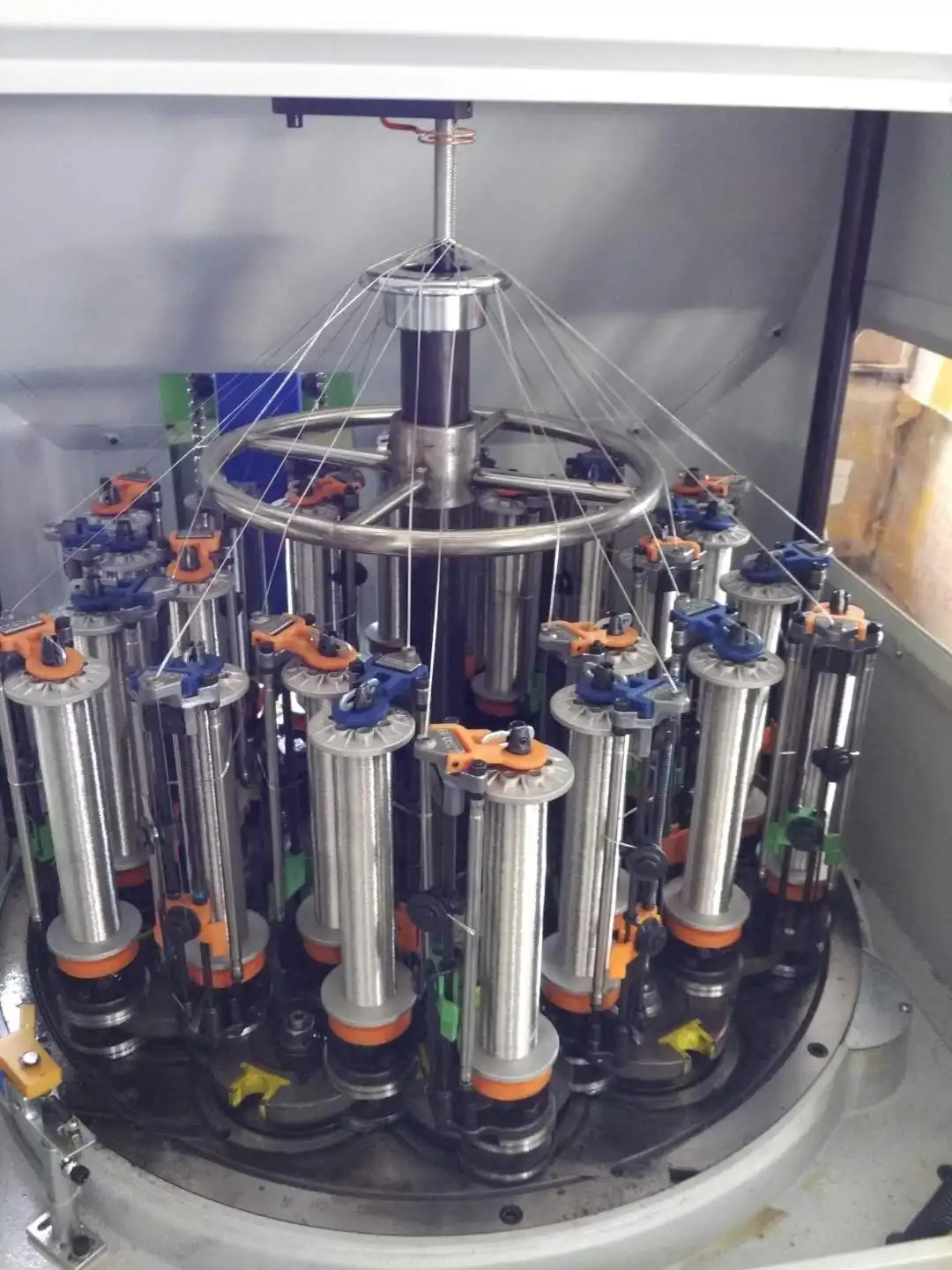

6. Spindles adopt elastic and adjustable equipment, dependable position, easy, convenient and flexible install bobbin.
7. Small abrasion and long using life, the key part use excellent material and adopt heat-treat and lubricant equipment.
8. Each machine while export to oversea market with a cabinet for safe.
9. Spindle RPM and Traction RPM can adjust infinitude between certain range.
Motor: 1.1KW
Voltage: 3Φ-380V/50Hz
Spindle RPM: 52RPM (max)
Traction RPM: 4.26-18.5RPM
Process hose diameter: Φ20 (max)
Process efficiency (m/min): 1.4 (max)
Horn gear: Φ114MM
Spindle Quantity: 24pcs
Bobbin size: Outer Φ54 * inner Φ21.5* H178 (capacity: 342.8CM³ ).
If you want braiding machine, but don't know which model is the best for you,
do not know how to operate, even don't know any knowledge about these machines,
please contact me, professional and patient service for you!
