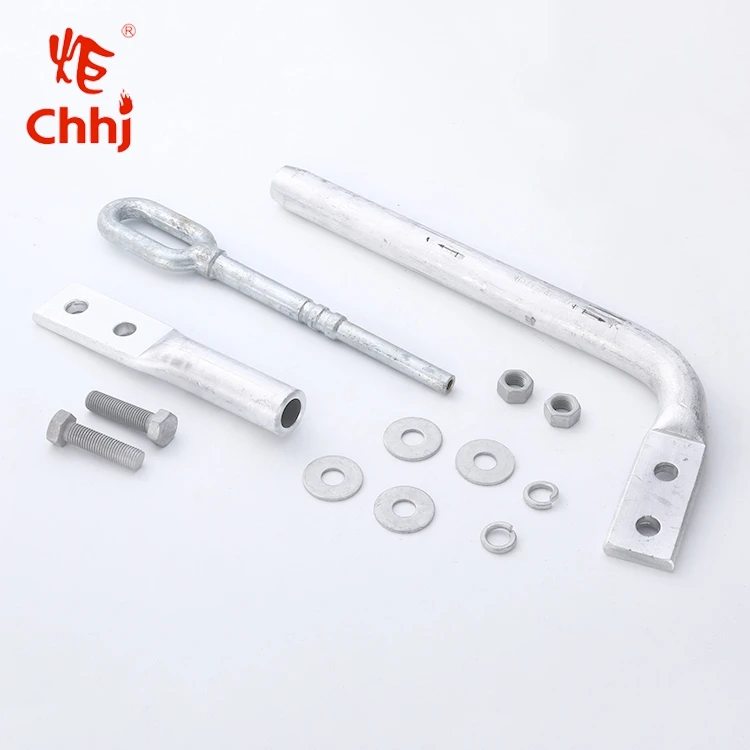

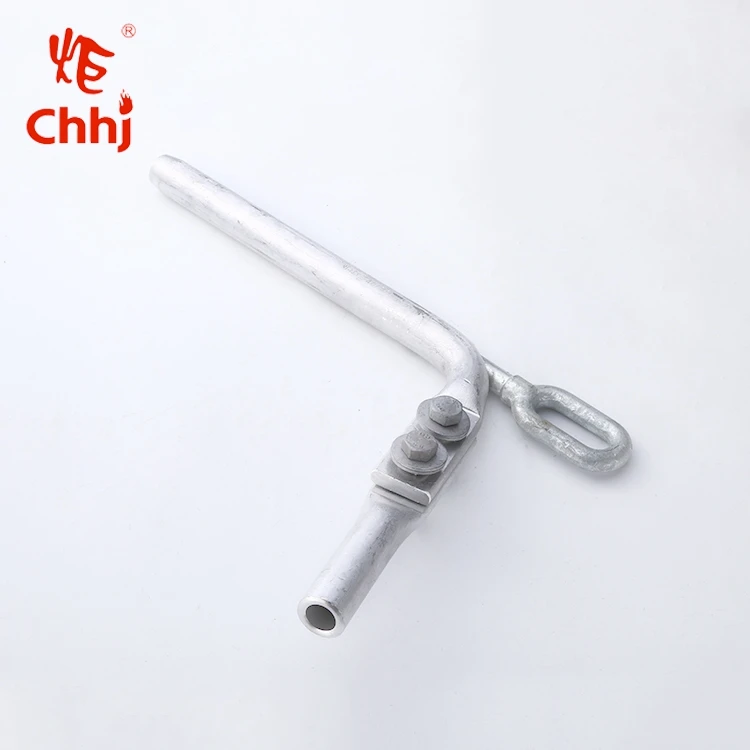

Compression Type Strain Clamp for ACSR Conductor

XG Suspension Clamp(envelope type)
NY Hydraulic Dead-end for ACSR Conductor
Cat.No.	Applicable Conductor	Dimensions(mm)						Grip strength(kN)
		D1	D2	D3	C	L1	L2
NY-95/15A(B)	JL/G1A-95/15	26	14	16	20	390	55	33.5
NY-95/20A(B)	JL/G1A-95/20	26	14	16	20	390	55	35.4
NY-120/20A(B)	JL/G1A-120/20	30	14	16	20	408	55	39
NY-120/25A(B)	JL/G1A-120/25	30	14	16	20	430	55	45.5
NY-150/20A(B)	JL/G1A-150/20	30	14	16	20	438	65	44.3
NY-150/25A(B)	JL/G1A-150/25	30	14	16	20	447	65	51.5
NY-150/35A(B)	JL/G1A-150/35	30	16	16	20	465	65	62
NY-185/25A(B)	JL/G1A-185/25	32	14	16	20	445	65	56.5
NY-185/30A(B)	JL/G1A-185/30	32	16	16	20	473	65	61.5
NY-185/45A(B)	JL/G1A-185/45	32	18	18	22	490	65	76.5
NY-240/30A(B)	JL/G1A-240/30	36	16	18	22	510	65	72
NY-240/40A(B)	JL/G1A-240/40	36	16	18	22	510	65	79.2
NY-240/55A(B)	JL/G1A-240/55	36	20	20	24	565	65	97
NY-300/15A(B)	JL/G1A-300/15	40	14	16	20	510	65	65
NY-300/20A(B)	JL/G1A-300/20	40	14	18	24	523	70	72
NY-300/25A(B)	JL/G1A-300/25	40	14	18	24	527	70	79.3
NY-300/40A(B)	JL/G1A-300/40	40	14	18	24	547	70	88
NY-300/50A(B)	JL/G1A-300/50	40	16	18	26	557	70	98.3
NY-300/70A(B)	JL/G1A-300/70	42	18	20	26	610	78	122
NY-400/20A(B)	JL/G1A-400/20	45	14	18	24	560	70	84.5
NY-400/25A(B)	JL/G1A-400/25	45	14	18	24	560	70	91
NY-400/35A(B)	JL/G1A-400/35	45	16	20	26	580	78	99
NY-400/50A(B)	JL/G1A-400/50	45	20	22	26	605	78	117.2
NY-400/65A(B)	JL/G1A-400/65	48	22	22	26	650	78	128.5
NY-400/95A(B)	JL/G1A-400/95	48	26	24	30	700	80	163

Note: 1. Material: Body, jumper-1050A Aluminum, Others-hot-dip galvanized steel.
2. Steel anchor is welded.If customers need forged steel anchor,please spease specify when order.
3. The company could produce various strain clamps according to clients, requirements.
