Chinese special wavelength LED manufacturer offer 3528 PLCC2 930NM 940nm SMD Infrared diode with ROHS and competitive price

Product Overview

Description

Chinese special wavelength LED manufacturer offer 3528 PLCC2  940nm SMD Infrared  diode with ROHS and competitive pirce





Shenzhen Starsealand Opto Electronic Co.,LTD  deal with special wavelength  LEDs from 250nm to 4400nm, if you have any inquires please let me know .

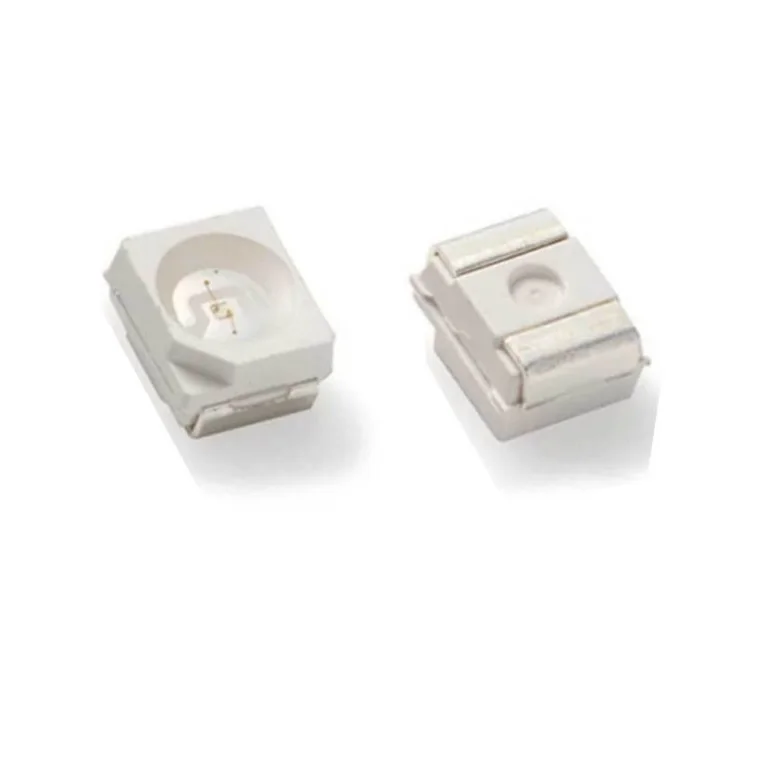

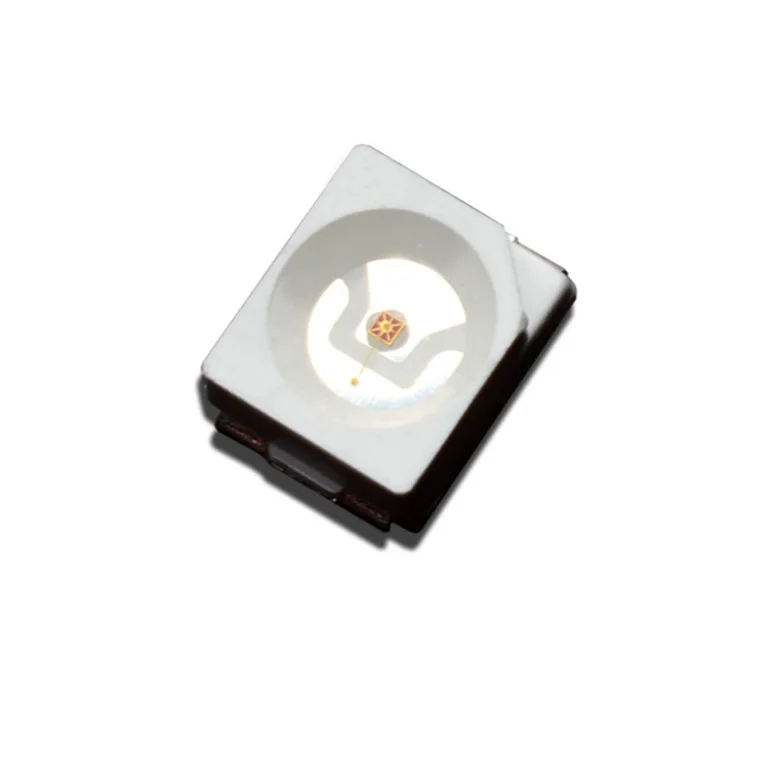

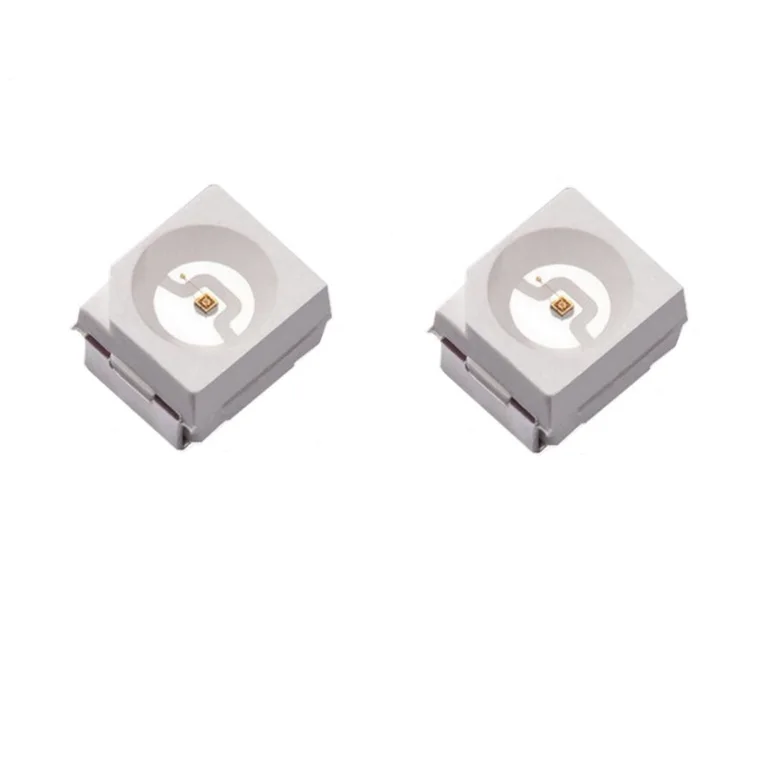

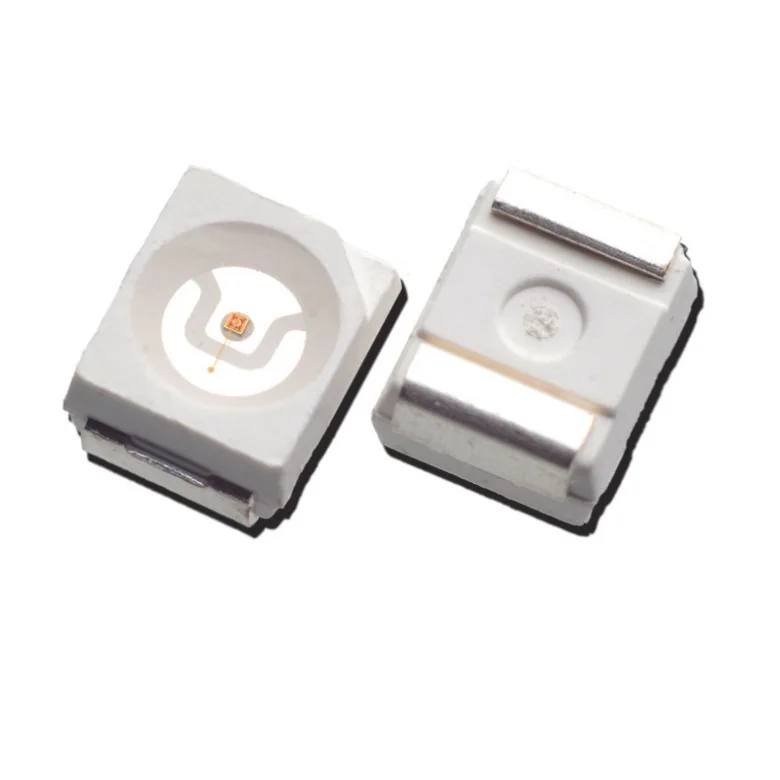

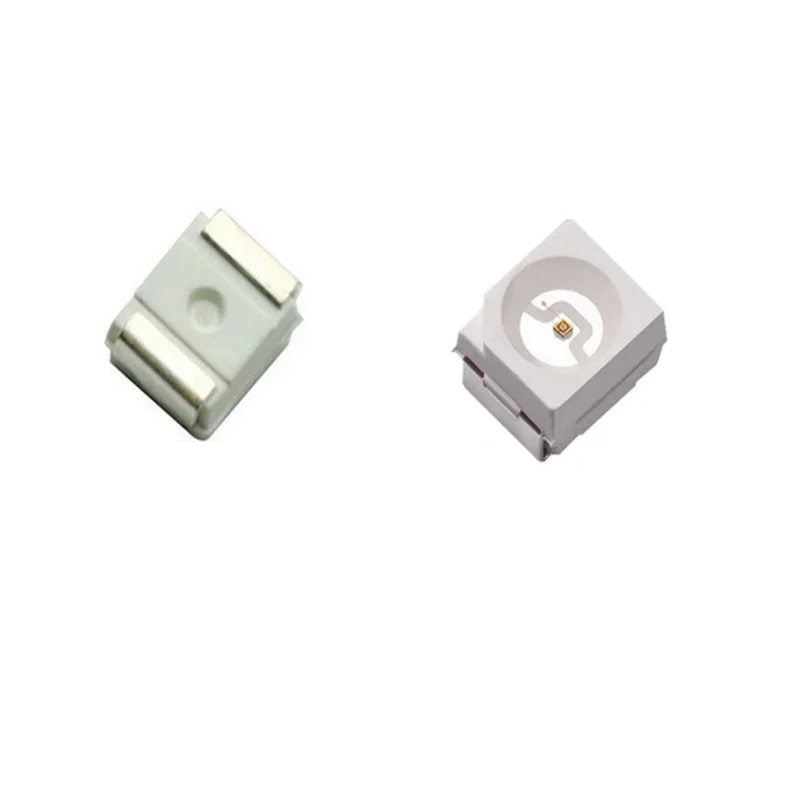

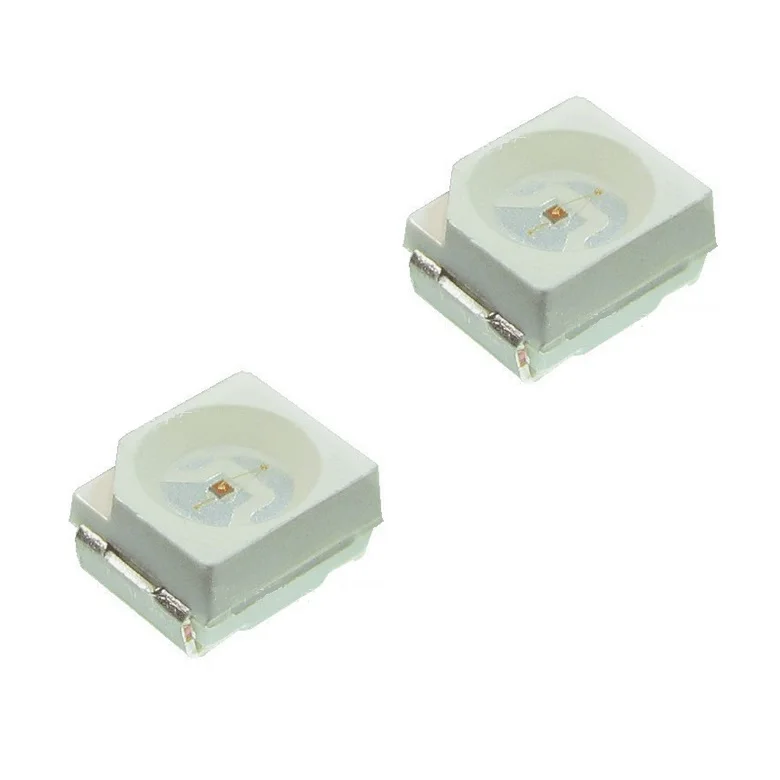

Photo:



Applications

                          1.Free air transmission system

                          2.Up to electronic switch

                          3.Infrared remote control units with high power requirement

                         4.Floppy disk drive

                          5.Smoke detector  and  armarium





Absolute Maximum Rating

Item	Symbol	Value	Unit
DC forward current	IF	20	mA
Pulse forward current	IFP	100	mA
Power dissipation	PD	60	mW
Operating temperature	Topr	-20~+75	°C
Storage temperature	Ystg	-30~+80	°C
Reverse voltage	VR	5	V
Sold soldering temperature	Tsol	260°C/3Sec	---

3528 SMD LEDs for Led Lighting



Initial Electrical/Optical Characteristics

Item	Symbol	condition	Min	Type	Max	Unit
DC forward Voltage	VF	I=20mA	1.1	1.2	1.35	V
DC reverse Current	IR	V=5V	----	----	10	μA
Chromaticity coordinates*	λ	I=20mA		940	950	nm
Spectrum Radiation Bandwidth	Δλ	I=20mA	----	28	----	Nm
Luminous Intensity	IV	I=20mA	2	----	5	mw
50%Power Angle	2θ1/2	I=20mA	----	120	----	deg
