RoHS compliant chinese special wavelength LED supplier hot sell 3528 PLCC2 800nm 810nm InGaAs SMD infrared diode

Product Overview

Description

Chinese special wavelength LED supplier hot sell 3528 PLCC2 800nm 810nm InGaAs SMD infrared diode  at competitive price with ROHS





Shenzhen Starsealand Opto Electronic Co.,LTD  deal with abnormal size LEDs and special wavelength  LEDs from 250nm to 4400nm, if you have any inquires please let me know .







Applications:

1. oxygen meter
2.Gene testing device
3.motion capture
4. iris authentication
5.Vein certification
6.Surveillance camera
7.Color selection
8.encoder
9.Appearance inspection
10.solar simulation
11.photo therapy



Package size:

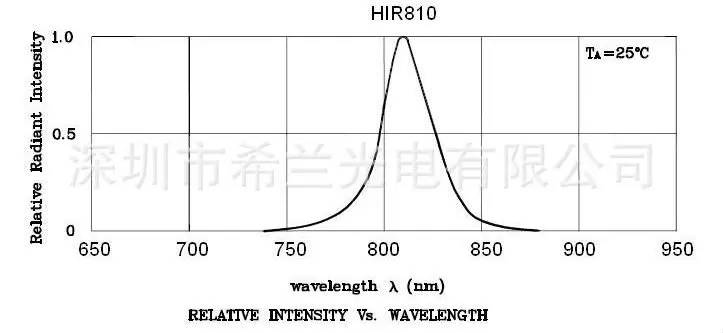

Electro-Optical Characteristics

Item	Symbol	Condition	Min.	Typ.	Max.	Unit
Forward Voltage	UF	IF = 20 mA		1.6	1.9	v
Forward Voltage *	UF	IF = 50 mA		1.7		v
DC reverse Current	IR	V=5V			10	μA
Radiation power	Po	IF = 20 mA	4	6		mW
Radiation power	Po	IF = 50 mA	16	18.5		Mw
Radiation intensity	Ie	IF = 20 mA	1.5	2		Mw/sr
Radiation intensity	Ie	IF = 50 mA	4	5.5		Mw/sr
peak wavelenth	λP	IF = 20 mA	800	805	810	nm
Half Width	Δλ	IF = 20 mA		30		nm
50%Power Angle	φ	IF = 20 mA		120		deg
Switching Time	tr, tf	IF = 20 mA		40		ns













Why Choose Us?



1. Your inquiry for our products or prices will be replied in 24 hours.
2. We offer the OEM and ODM service, and we have been in this field for 15 years.
3. Protection of your sales area, ideas of design and all your private information.
4. We gurantee both quality and service regardless of your big or small order.
5. Advanced equipment and good materials: ASM machine, good chips and epoxy resin.



Our company :

SHENZHEN STARSEALAND OPTO ELECTRONICS  CO.,LTD is a High-tech professional supplier of special wavelength  LEDs . We could better offer you full range electronics components with competitive price and professional service.





Our more products :















Main Material







Certifications:









Packaging & Shipping

All items will be shipped by DHL , UPS , EMS , airmail with tracking number in order to speed up the delivery !



FAQ:

Q:How can I get your pricelist?
A:Please Email us your country name, your detailed contact telephone, fax number, part# you need and how many pieces will
you buy.
Q:If I place an order, how long will it take to delivery it?
A:It usually takes about only 2-3 days on receipt of payment, depends on the quantity ordered and the stock status.
Q:How do you deliver parts to us?
A:Normally sent to you by TNT, DHL, UPS etc Worldwide Express or by shipment. Delivery charge is ofen $35.00,but it will be decided by how many you order and where will you need us to send or you may offer us your account
Q:How is the payment made?
A:There are different payment options. You may choose any of following at your convenience.
by western union: you can find your local service from www.westernunion.com.
by T/T (wire transfer) you can pay to our company account for large quanatity order.
Q:Guarantee?
A:Product guarantee 30days covers form, fit, and function and is limited to prorated refund or replacement
Q:If you want to get more information about our company,pls contact us immediately.
