Pipe fabrication production line (containerized);Pipe spool production line (movable)

Product Overview

Description

Pipe Fabrication Production Line (Containerized Type );

PIPE SPOOL FABRICATION PRODUCTION LINE (Movable)

Model: SPFPL-24Aa

Performance Features:
1. Basic Configurationa:

    Containerized Type Piping/ Pipe Spool Fabrication System

    Many Sets of Pipe Cutting & Beveling Machining Workstation.

    Many Sets of Mechanical Pipe Fitting Up Workstation

    Many sets of Piping Automatic Welding Workstation

    Many Set sof Logistics Transport System or Conveying Sstem.

    A Set of Steel Structure Pipe Racks.

2. Production Efficiency: Eextremely high ( Hoisting by overhead traveling crane, Beveling by

    High Speed Pipe Cutting and Beveling Machine and Welding by Automatic Welding Station)
3. Applicable Industries:OIL & GAS, OIL REFINERY FACILITIES, PETROCHEMICAL, ONSHORE & OFFSHORE,

  CHEMICAL ENGINEERING, NUCLEAR POWER PLANT, SHIPBUILDING, POWER PLANT, ENERGY, AEROSPACE.

    Especially suit for field pipe prefabrication.

4. Production Capacity: 20, 000~150, 000 DI/ month (or depend on filed size or machines config),

    reduce manpower input, improve automation level & efficiency, and save much more cost.

Technical Parameter:

Technical Description	Standard Type :	Custom-Made :
Suit for Pipe Diameter:	2"-16"/24"/32"	2"-40"/48" or above
Pipe Wall Thickness:	3-80 (mm)	3-80 (mm)
Conveying Speed:	2-20 m/min	2-20 m/min
Welding type:	Automatic root pass, fill in & final pass	Automatic root pass, fill in & final pass
Welding Process:	TIG/MIG/MAG/SAW	TIG/MIG/MAG/SAW
Automatic Pipe Welding Rate:	≥60%	≥60%

Pipe Cutting & Beveling Speed:	≤5min/ two bevels(8"Sch40)	≤5min/ two bevels(8"Sch40)
Pipe Spool Prefabrication Ratio:	≥60%-80%	≥60%-80%
Piping Design Software:	PDSOFT 3D Piping	PDSOFT 3D Piping
Process Management Software:	PDSOFT SPFMS	PDSOFT SPFMS

 Welcome to you visiting our factory or project site at any time in Shanghai City, P.R.China; For more detail information please contact us. Or browse our website: www.qs-pipe.com www.qiansh.com  www.jsqianshan.com Thank you !

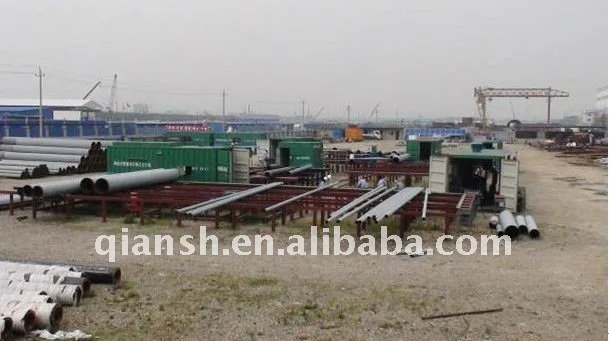

Photos:
