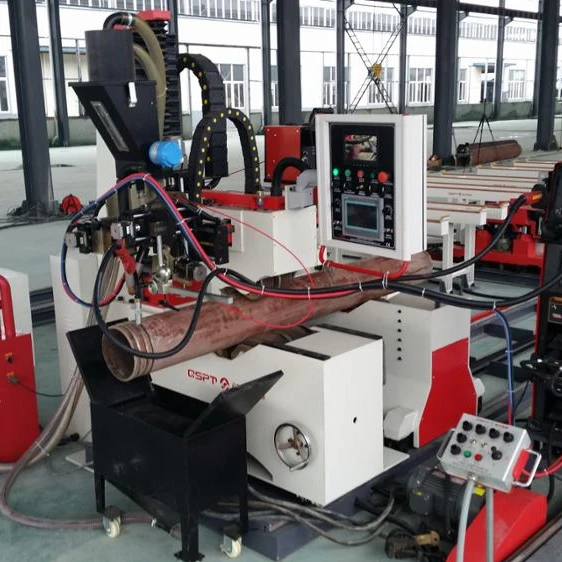

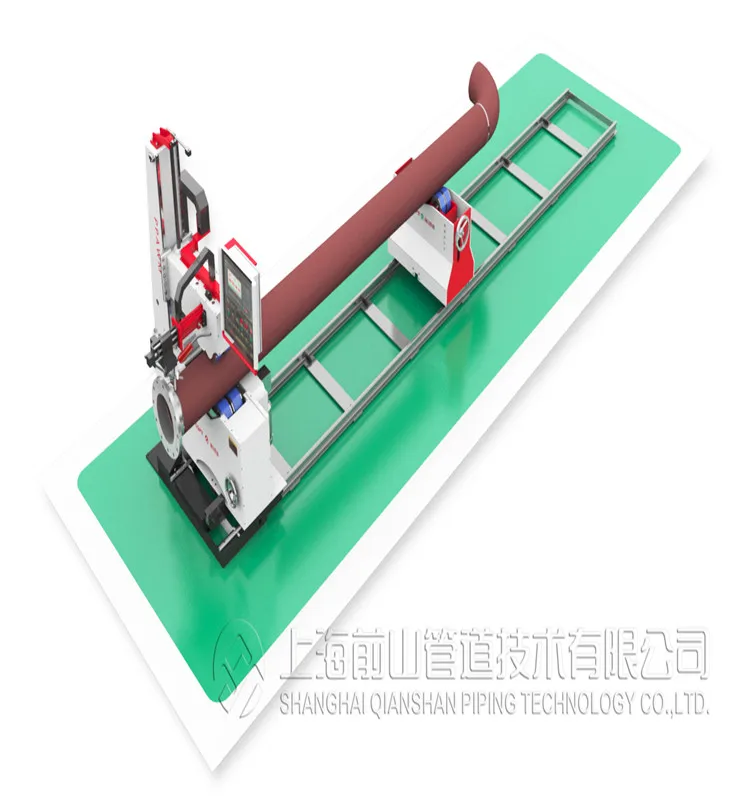

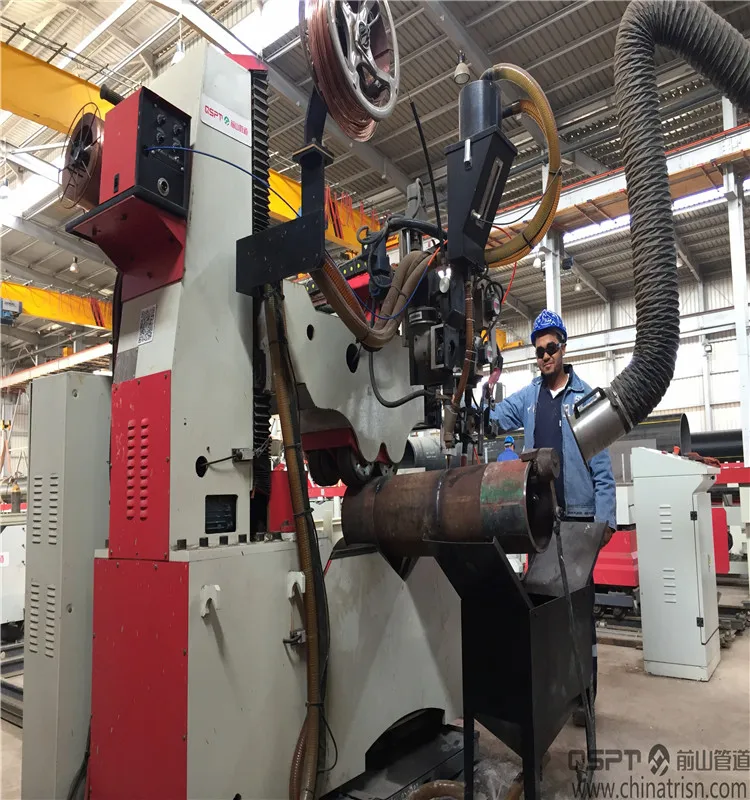

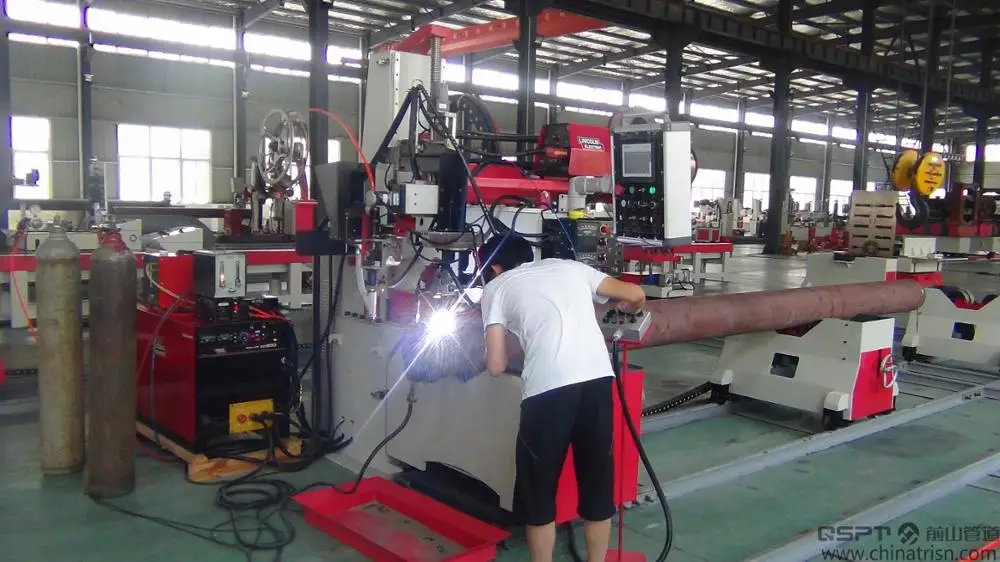

Piping Prefabrication Automatic Welding Machine (MIG)
- Category: >>>
- Supplier: Shanghai Qianshan Piping Technology Co. Ltd.
Share on (204997668):
Product Overview
Description
Product Description
Piping Prefabrication Automatic Welding Machine (MIG)
Model: PPAWM-24D1/D3
Performance features
On-line Performance: Excellent (Designed completely as per the one line equipment of the production line)
Application: backing welding or welding the pipes or the cover of the aluminum alloy pipe which need higher quality.
Welding Capacity: high (150~250 inch/day)
Operability: Good (applicable and easy to operate even if you are a new user within a short period of time).
Surface finishing: Excellent (the welding gun will always be positioned in the optimum position)
Welding compliance rate: 98% min (without re-working for the skilled operator).
Driving Reliability: Good (driven by frictional force, however, it is required to set essential balance weight to offset large
bending moment caused by elbows for large diameter pipe, or providing a chain tensioner to improve the reliability of the
driving).
Price: much higher than the Piping All-position Automatic Welding Machine (FCAW/GMAW).
Technical parameters
Pipe diameter applicable: DN50~600(φ60~610)
Pipe wall thickness applicable: 3~10MM
Materials applicable: carbon steel, alloy steel, stainless steel and cryogenic steel,etc.
Welding line applicable: various welding lines of spool pieces such as pipe-pipe, pipe-elbow, pipe-flange, flange-flange and
flange-elbow, etc (a fake pipe transition connection shall be applied if necessary).
Driving System: driven by three-row stainless steel roller and worm- worm wheel (D1) or driven by two-row rubber roller and
reducer (D3).
Clamping system: the electric clamping arm is adjustable and 180 degree rotational ability; it clamps manually with screw double
wheels. A chain tensioner might be equipped if necessary.
Bracket System: Separate type of trolley matching for welding machine, which may be adjusted along the track according to the
length of the pipeline.
Counterweight System: no Counterweight
Speedregulation Mode: VF stepless speed control system
Adjustment Mode: with electric cross regulator
Oscillating system: a product of our patented technology, driven by step motor.
Control system: a product of our patented technology, PLC control.
Welding method: MIG
Welding power: SAF-PRO DIGI@WAVE500 (or as per customers demands).

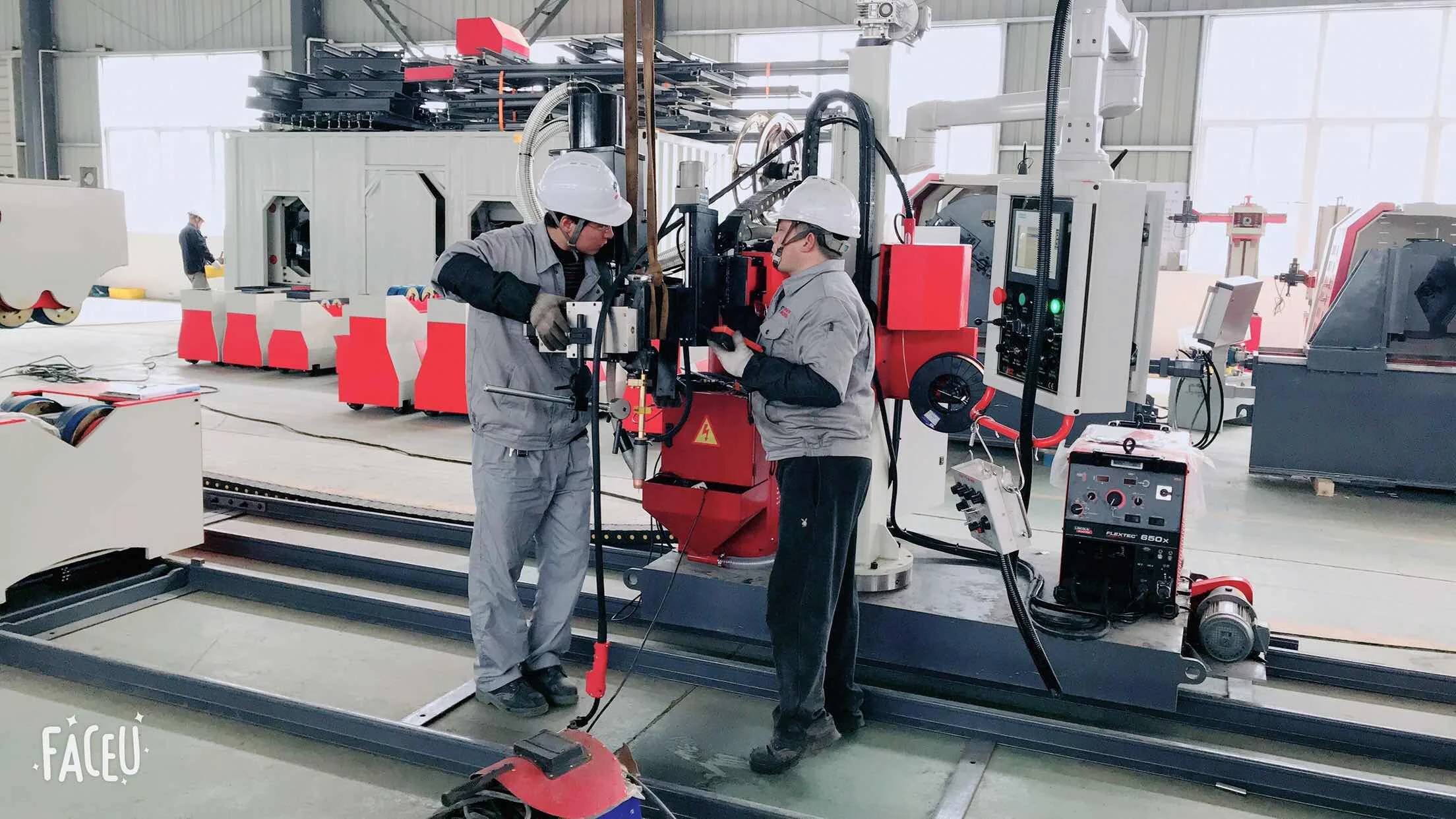

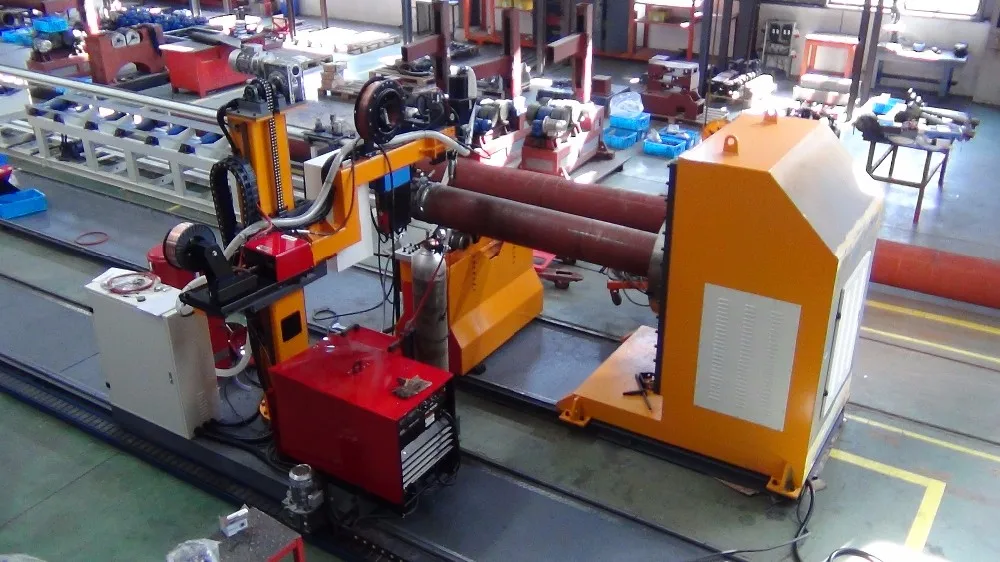

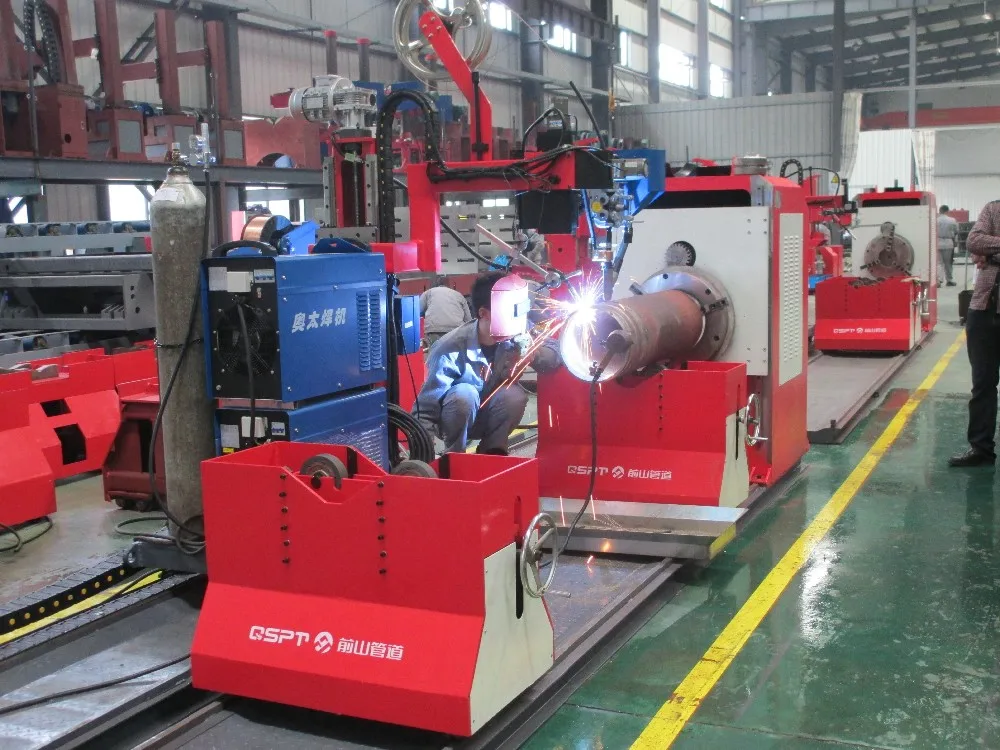

Detailed Images
Company Profile
Shanghai Qianshan Piping Technology Co,.Ltd
Shanghai QianShan Piping Technology Co., Ltd (Q. S. P. T) was established in 2005, is the most innovation ability provider of integrated solutions for piping fabrication, also is the unique provider of professional piping plant design software & management software system and piping equipments in China which included pipe spool fabrication line, cutting equipments, bevelling equipments, fitting up equipments, handling equipments, welding equipments, as well as offer the commercialize piping fabrication service, training & guidence management service for automation pipe spool fabrication engineering project of Oil & Gas,Petrochemical, Petroleum, Chemical Industry, Power Plant,Offshore & Marine Engineering, Shipbuilding Industry, Aerospace,
Electromechanical, Energy Engineering, Cement Plant, Boiler, Pressure Vessel, Heavy Industry, Heat Exchanger, Pipework
Construction and Erection Fields etc.
Electromechanical, Energy Engineering, Cement Plant, Boiler, Pressure Vessel, Heavy Industry, Heat Exchanger, Pipework
Construction and Erection Fields etc.
Certifications
Our Service
1.Classic solution for pipe shopfabrication
2.Customized solution for pipe shop fabrication
3.Intelligent solution for pipeshop fabrication
4.Total solution for pipe shop fabrication
Why Choose Us
Aim of after-sales service: standing in the customers' shoes
Team of after-sales service: Client satisfaction is lowest standard
Site of after-sales service: professional, comprehensive,detailed
promise of after-sales service: to quickly and efficiently resolve all after-sales issues raised by clients without being limited by conditions of costs.
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory based trading company
Q: How long is your delivery time?
A: Generally it is 30-40 days if the goods are in stock. or it is 60-80 days if the goods are not in stock, it is according to quantity.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 40% T/T in advance ,balance before shippment.
