Fixed type Cold Pipe Beveling Machine

Product Overview

Description

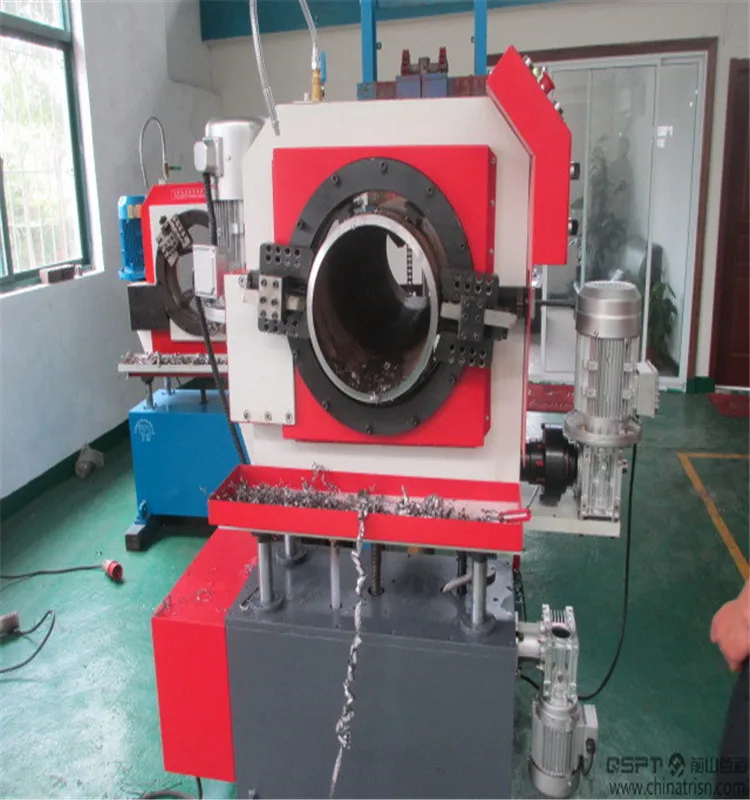

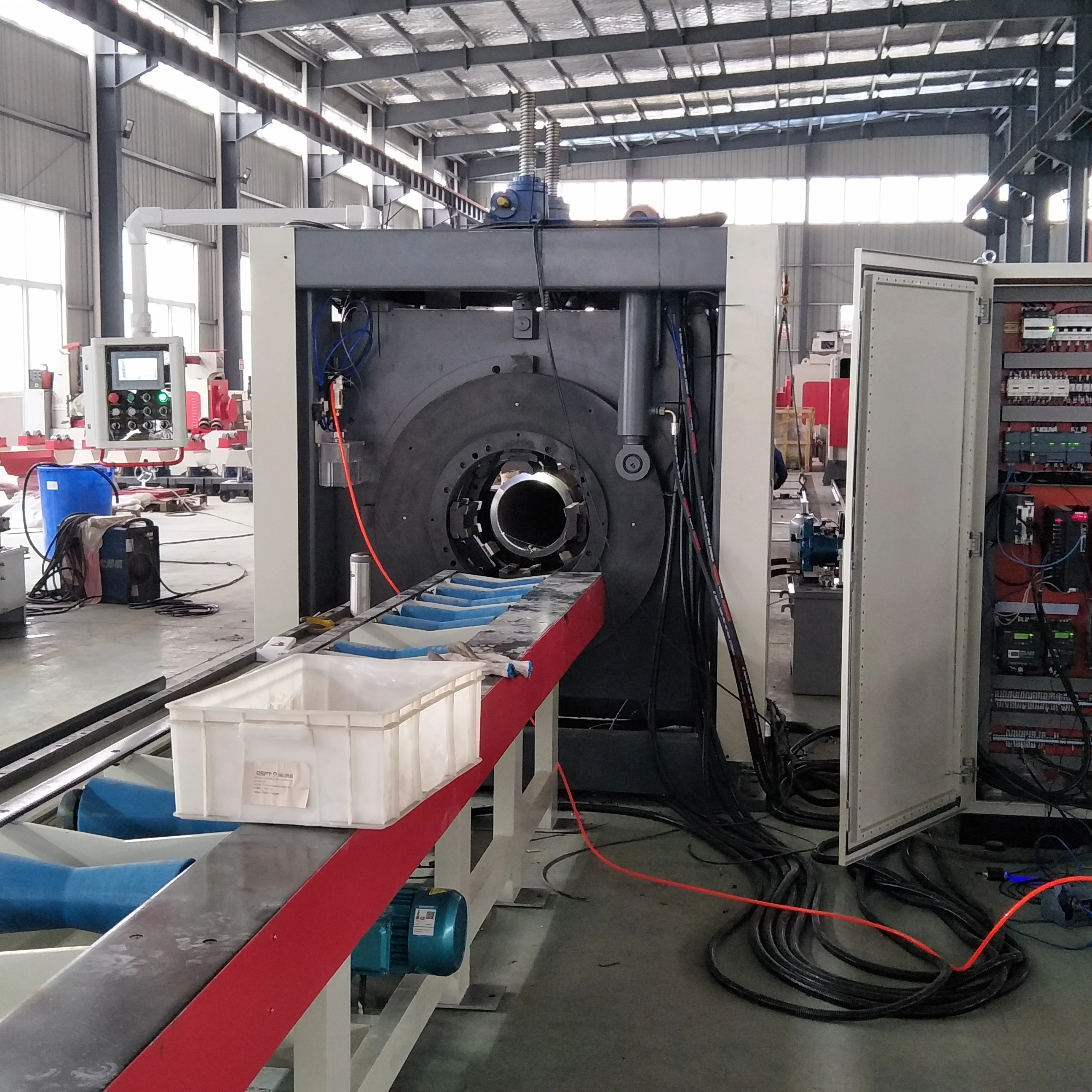

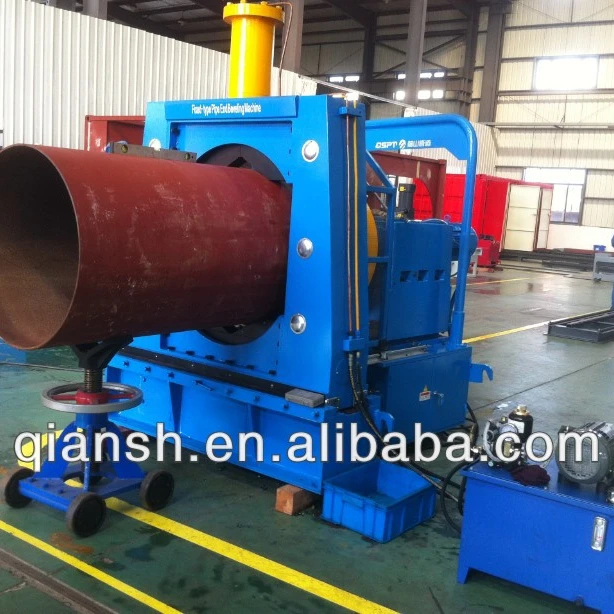

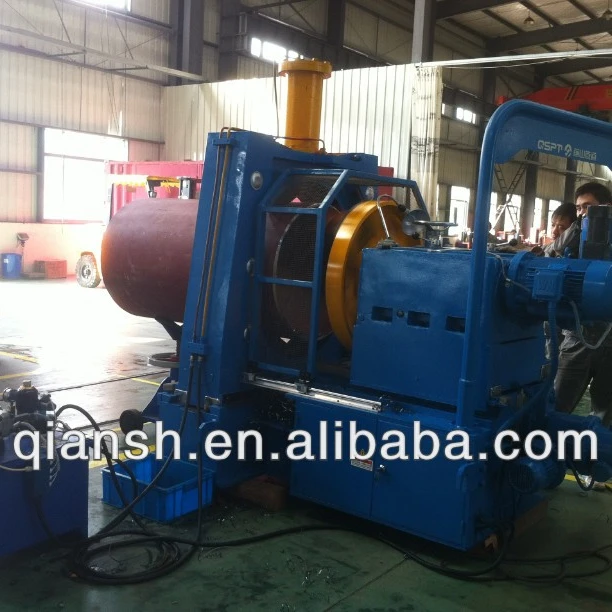

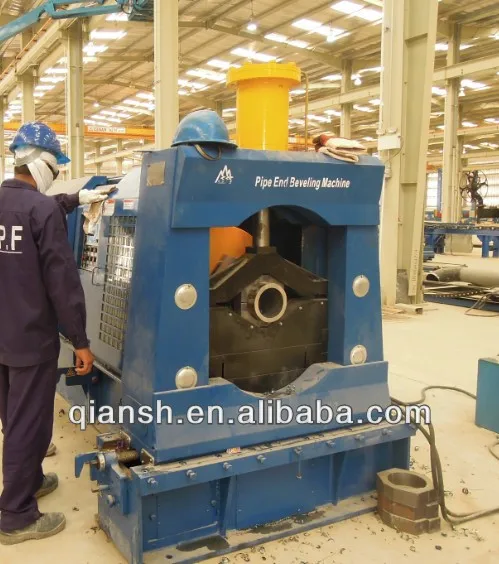

Fixed-type Cold Pipe Beveling Machine

            Model: FPEBM-16Aa/24Aa/32Aa/48Aa

            Performance features

           On-line Performance: Good(Designed as per the one line equipment of the production line)

            Beveling Capacity: ≤5Min /pipe bevel (DN200 SCH40)

            Bevel cutting: cutting a pipe with other equipment such as band saw and then machining each bevel.

            Bevel quality: very good

            Mobility: low

            Application: for machining the U or V shape bevels for numbers of pipes with thick wall thickness

            Technical parameters

            Pipe diameter applicable: DN50~400(φ60~426); DN100~600(φ114~610); DN 200-800 ( φ219-813); DN 400-1200 ( φ 426-1219)

            Pipe wall thickness applicable: 4~90MM ; 6~180MM

            Materials applicable: carbon steel, alloy steel, stainless steel and cryogenic steel,ect.

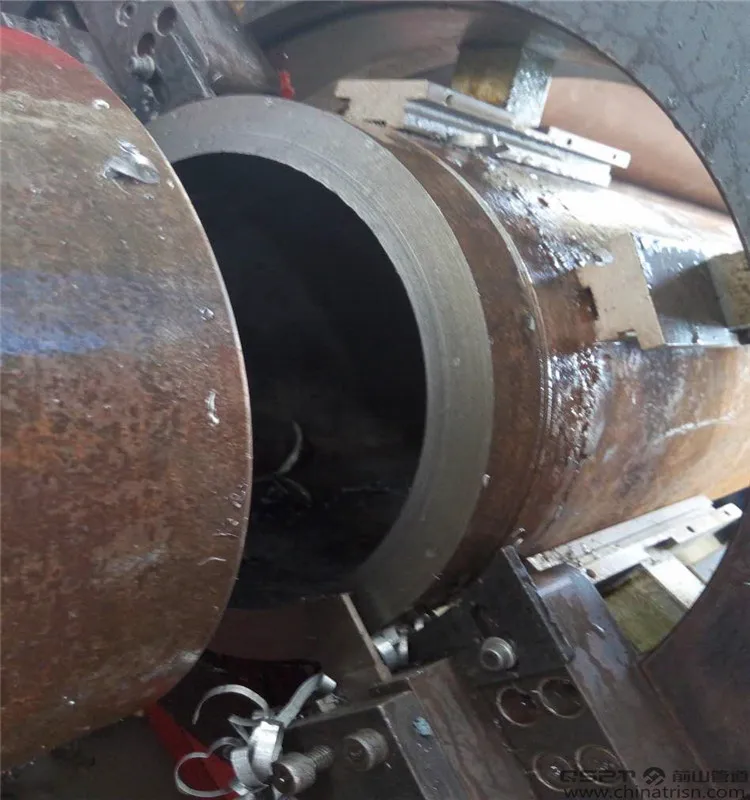

            Bevel shape: compound bevel, V, X, J, U & Double V

            Cutting direction: lengthwise

             Driven by: motor

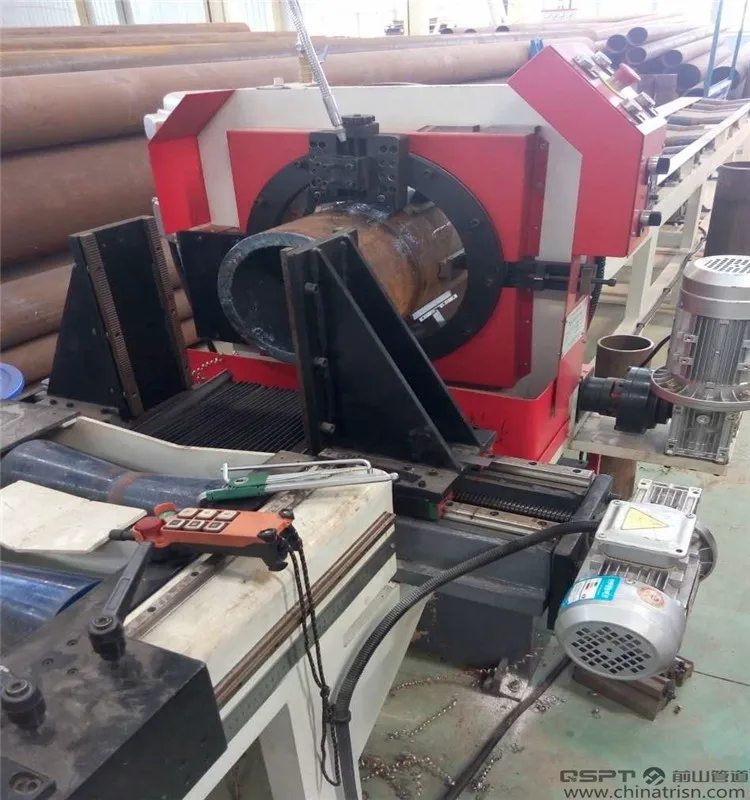

             Clamping system: work piece is clamped by hydraulic cylinder/manual screw clamping; manual screw clamping

             Bracket system: screw lifting and lowering manually

             Rev of the principal axis: 3 shifts; 9 shifts; 6 shifts

             Lengthwise displacement: 150MM (principal axis), 300MM (machine head); 80MM (principal axis), 100MM (machine head),

             Widthwise displacement: ±100MM; ±50MM

             Control system: gear shift and manual control

             Length-measuring system: Nil

             Automatic aligning: An end beveling machine conveying system equipped with   lifting and lowering device could be provided if necessary to adjust automatically the center elevation of the pipe, so as to bevel the pipes with different diameters.

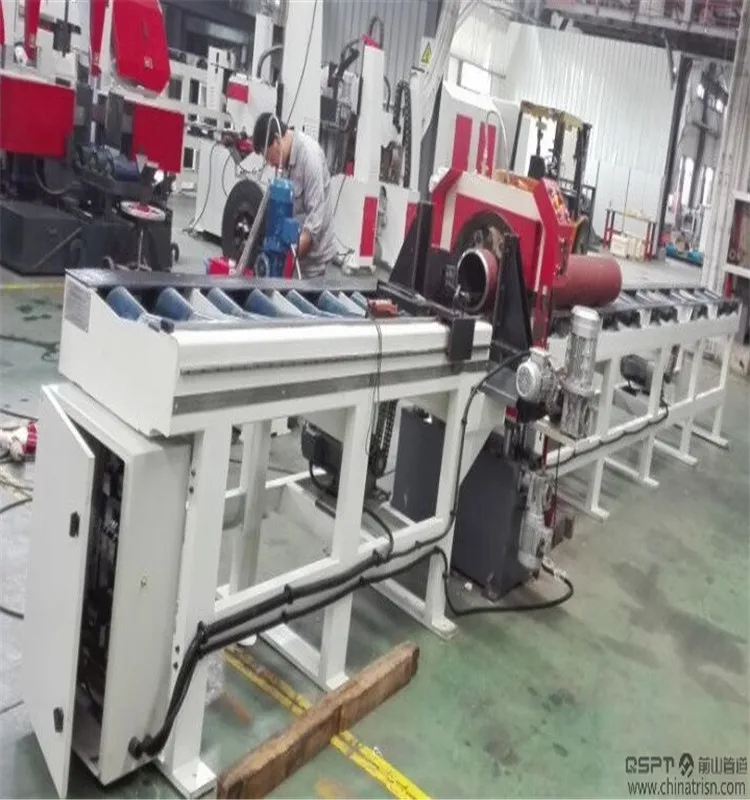

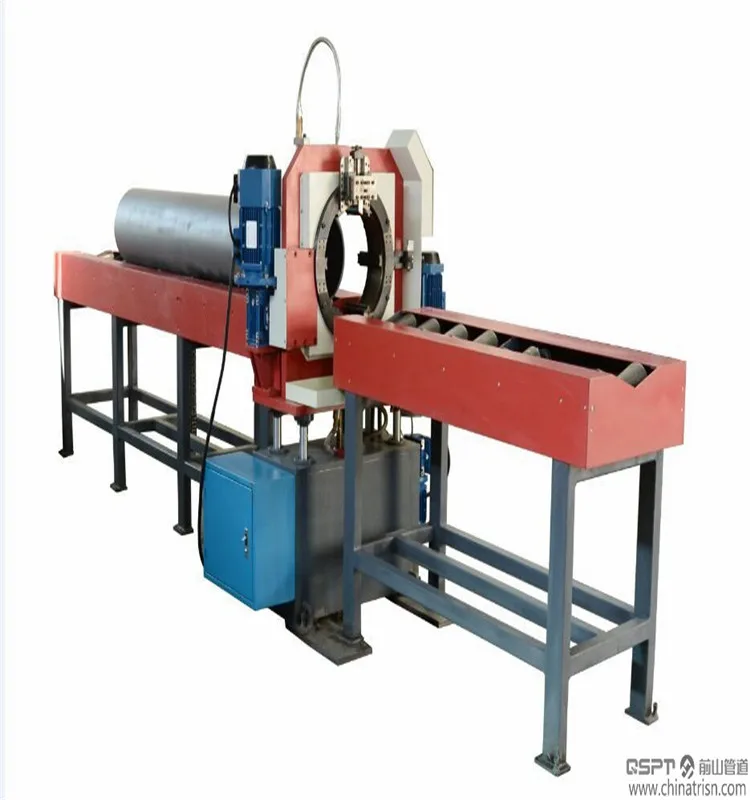

             Conveying system: End beveling VF conveying systems driven by motor are equipped at front and rear sides of the beveling machine if necessary.
