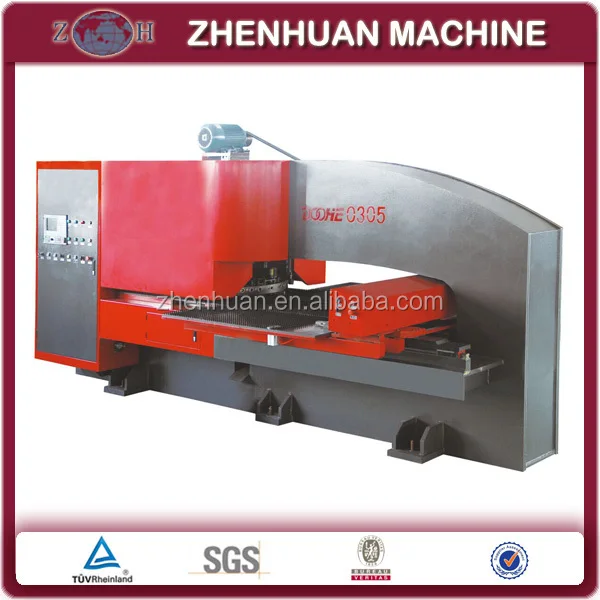

CNC Mechanical Turret Punching Machine
- Category: >>>
- Supplier: Nantong Zhenhuan Trade Co. Ltd.
Share on (205090115):
Product Overview
Description
CNC Mechanical Turret Punching Machine
Features of CNC mechanical turret punching machine
CNC hydraulic punch press with high accuracy and efficiency.. It’s a perfect combination of newest control technology and conventional mechanism. It is an ideal equipment in numerically controlled metal fabrication industry and has such features as high automation, high productivity, stable feature, safe and reliable, ect..
Main configuration of CNC mechanical turret punching machine
Control system: SIEMENS
Servo motor: YASKAWA (from Japan)
Servo amplifier: YASKAWA (from Japan)
Precision ball screw assemblies: TBI (from taiwan)
Precision liner roller rail: ABBA (from taiwan)
Electric parts: OMRON
Main technical date of CNC mechanical turret punching machine
1 | Type | DOOHE-0305 |
2 | Punching force | 300KN |
3 | Max. punching diameter | 88.9mm |
4 | Max. sheet size | 2500×1300mm |
5 | Max. sheet thickness | 6mm |
6 | Max. sheet weight | 210kg |
7 | Machining accuracy | ±0.1mm |
8 | Repeat positioning accuracy | ±0.02mm |
9 | Ram stroke | 30mm |
10 | Punching frequency | 300h.p.m |
11 | Max. positioning speed (simultaneous) | 60m/min |
12 | X-Axis traverse length | 1300mm |
13 | Y-Axis traverse length | 2500mm |
14 | Throat gap | 1300mm |
15 | Number of tool stations | 24 |
16 | Controlling axes | 3 |
17 | Main motor power | 14.5kW |
18 | Voltage | 380V 50HZ |
19 | Compressed air | 0.1m3/min 0.5Mpa |
20 | Machine dimensions(approx) | 4800×3150×2700mm |
21 | Machine weight(approx) | 15tons |
