Offset printing machine Quarto CF620C printer ,offset press,printing machinery

Product Overview

Description

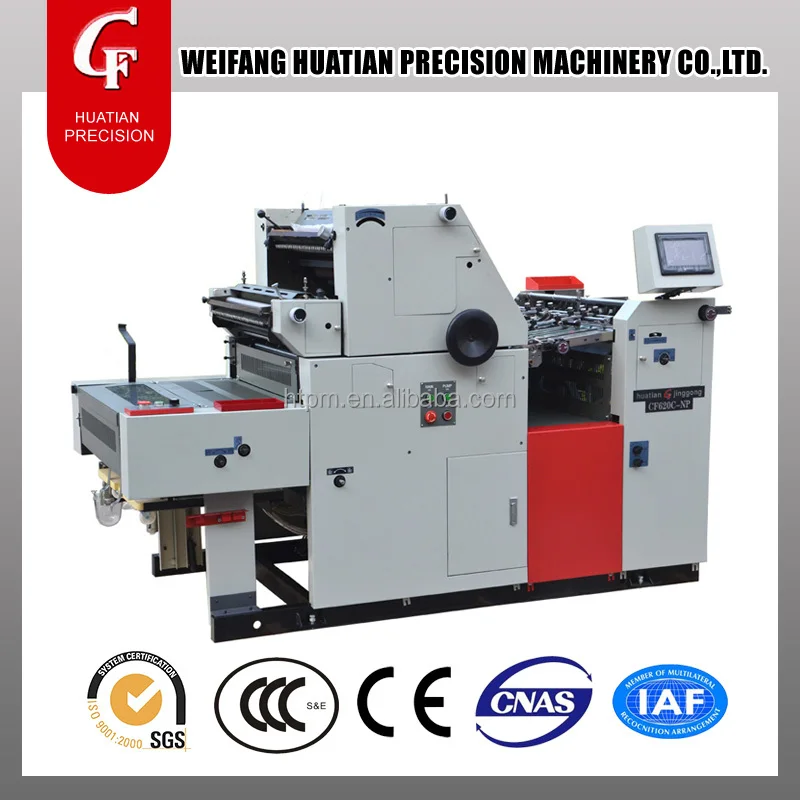

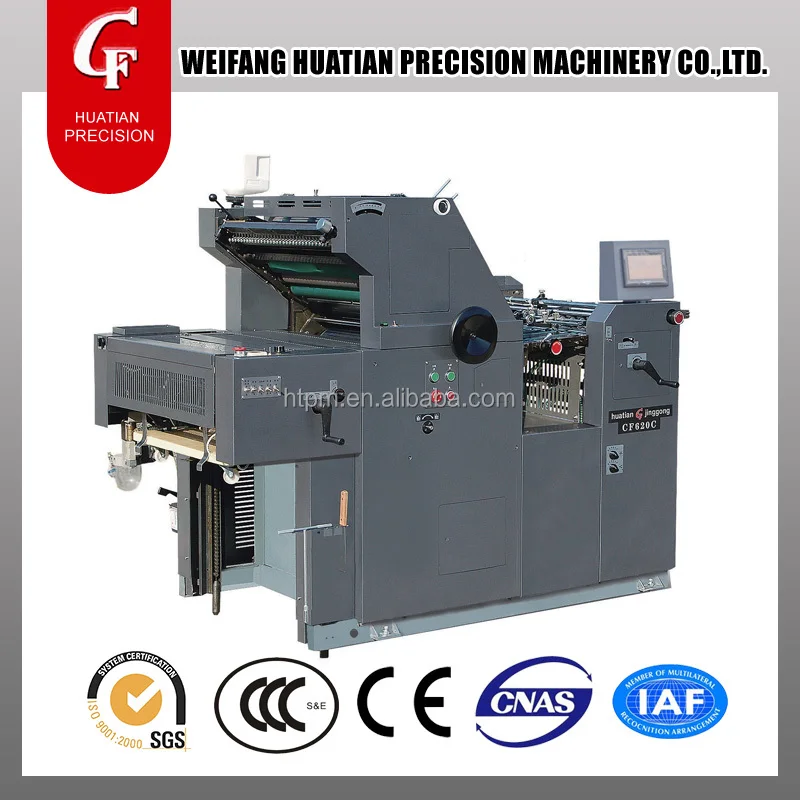

Offset  printing machine  Quarto CF620C printing machinery

Character and advantage :

1.Applicable scope:   This machine is suitable for schools,hospital,Medium and small companies etc.

2.Products: business forms,exam papers, prescription sheet,NCR(carbonless)bills,notebooks,exercise book etc.

3.consumable items:  paper from 17-250gsm,normal 1.95mm blanket,common aluminium plate.

4.Main fuction:    Printing 1 color at a time.

5.Main parts:

  a)much thicker and heavier cylinder Pressure NO PROBLEM!

  b.)cast iron wall and metal case hardening and galvanized .

  c) gears and bearings hardened.

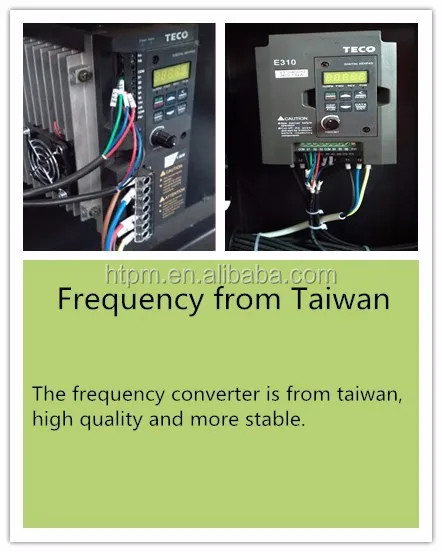

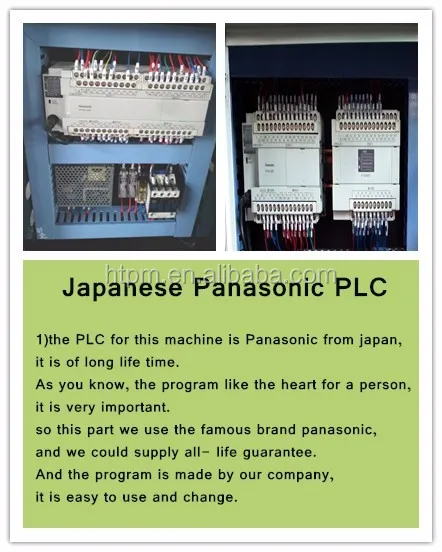

  d)electric apparatus.Panasonic PLC,Taian Converter.Mikom sensor.

6.Operation:   We send the manual and videos. If possible we can send the techician.

7.Aftersale service: The machine have a year warranty. We send as many spare parts as possible.

 Parameter:



Maximum printing area	620x450mm
Maximum paper size	605x440mm
Minimum paper size	180x260mmmm
Paper type	28-250g/m2
Number of ink rollers	Main machine system :10 pieces (2 form rollers) NP system 6 pieces 2 form rollers
Number of dampening rollers	4 pieces (1 form rollers)
Registration mechanism	Roller type side lays
Printing speed	2000-8000 sheets/hour
Motor power	Main motor: 1.5KW/380V	Air pump moto:1.5KW/380V
Machine size	1980L×1100W×1400H mm
Weight	1050KG



 Spare parts list :
