Emulsion Mixer high shear homogenizer

Product Overview

Description



batch high shear homogeneous emusifier,food machine,daily cosmetics homogeneous emulsifier

1   Select the international famous-brand motor for us,with lower noise and more stable operation to ensure the high quality of the whole machines;

2   The design of the self-positioning system of main shaft and the special treatment of stainless steel(S.S.)shaft material would ensure the highest precision and maximum prolongation of the service life for the operation of machines;

3  Operate under catilevered shaft or axial sleeve;

4  Reasonable design,convenient for cleaning,in accordance with GMP sanitary requirements;

5  Suitable for the atmosphere,obtuation,vacuum and pressure operating modes;

6  Application temperature≤200;

7  Help you easily finish high-quality scattering,emulsification,homogeneity,the acceration for dissolving and reaction.

Main Technique Parameter

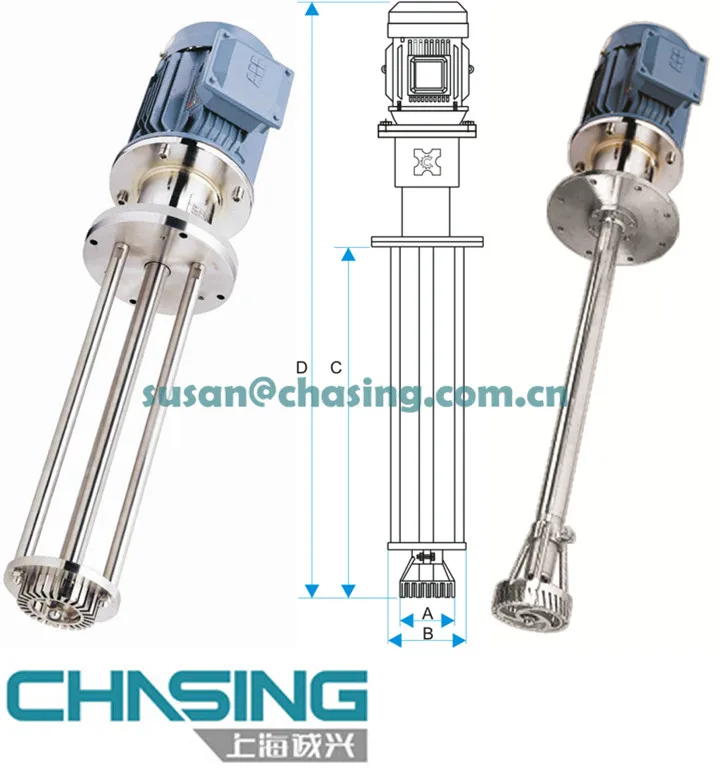

SPEC	KW	RPM	A (mm)	B (mm)	C (mm)	D (mm)	E (nxmm)	L
ZGF-310/320	2.2~75	3000~ 1500	120~ 350	150~ 410	650~ 1650	1200~ 3000	4xΦ12/6xΦ16 /8xΦ20 12xΦ20 /16xΦ20	50~ 10000

Remark:

The measured medium is water for the max.batch processing capacity in the table;

The batch processing capacity depends on viscosity and solids content of the materials;

Insert in from the top of the vessel,while amounting,it has the requirement for horizontal verticality
