Steel Galvanized Anchor Shackle For Overhead Insulator Strings Connection

Product Overview

Description

Steel Galvanized Anchor Shackle For Overhead Insulator Strings Connection

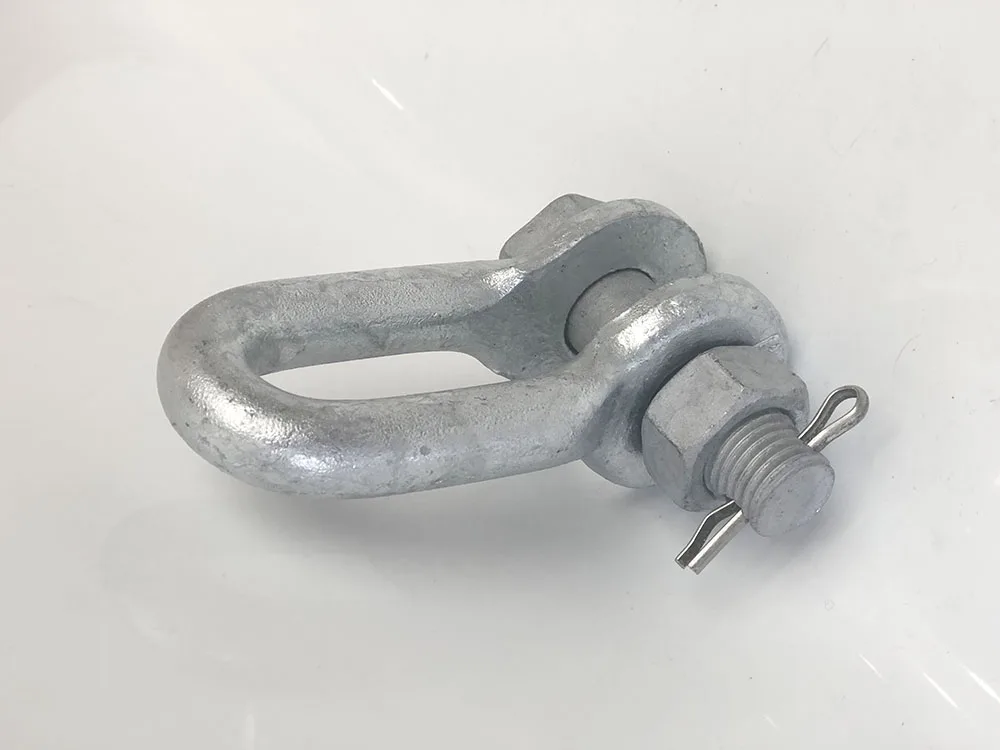

Steel galvanized anchor shackle
Cat No.	Dimensions()					Faiure Load(kN)	Weight(kg)
	C	M	d	H	R
U-7	20	16	16	80	10	70	0.44
U-10	22	18	18	85	11	100	0.54
U-12	24	22	20	90	12	120	0.96
U-16	26	24	22	95	13	160	1.47
U-21	30	27	24	100	15	200	2.79
U-25	34	30	26	110	17	250	2.79
U-30	38	36	30	130	19	300	3.75



Material:

Steel,hot-dip galvanized.

Split Pin-stainless steel
