Automatic Shrink Wrapping Machine, Size flexiable, stable quality & reliable service

Product Overview

Description

Automatic Carton Box Packing Machine Carton Box Packer

 Features:

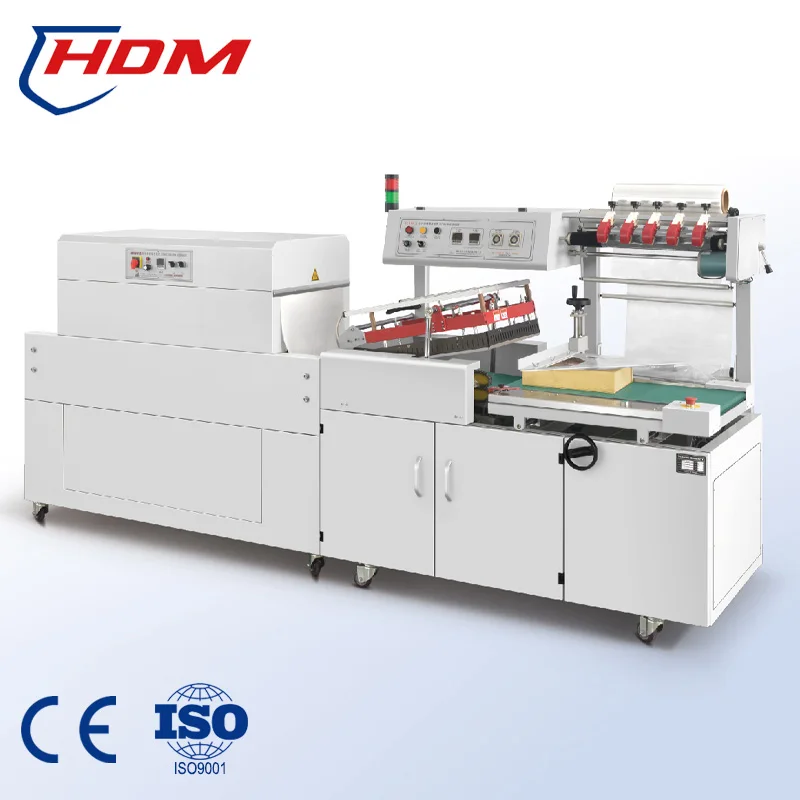

1. BS-400LA+BMD-450C is a fully automatic shrink packaging machine including L sealer and shrink tunnel which can feed products, seal and cut film and shrink film bag automatically. It is widely used in food, pharmaceutical, stationary, toy, auto parts, cosmetics, printing, hardware, electrical appliances and other industry.

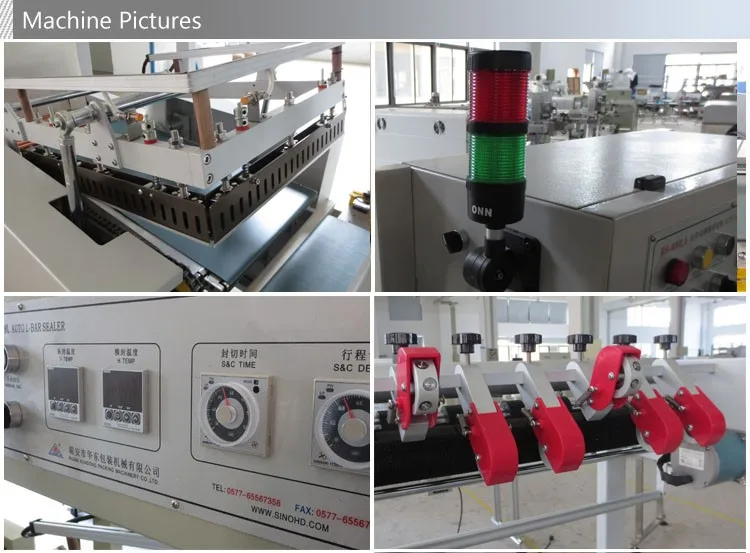

2. Special durable alloyed sealing knife with anti-stick Teflon coats makes sealing strong and has better performance of heat conduction.

3. Only adjust packing width and height by hand wheels without changing any molds and parts when packing size changes. Packing length can be detected by the sensor automatically.

4. Different products with different sizes can be packed together as promotional package.

5. Adopt Omron brand parts such as temperature controller, timer, relay, switch, and sensor.

6. A pair of photoelectric switch in vertical for thin products.

7. Optional closing conveyor for small products.

8. Optional sensor for transparent products.



Automatic Carton Box Packing Machine Carton Box Packer



Technical   Data	BS-400LA+BMD-450C
Sealing type	L-sealing
Power supply	380V/50-60Hz/3phase
Packing   capacity	15 - 35 packs/min
L-bar sealing size	570x480 mm
Sealing height	150 mm
Product size	width + height <   400mm, length + height < 480mm
Film type	center-folded polyolefin (POF)   film
Max film   size	530mm (width) x 280mm(outer diameter)
Oven size	1200(L) x 450(W) x 220(H) mm
Shrink tunnel   conveyor speed	variable, max. 40   m/min
Shrink tunnel conveyor	rotating silicon coated rods
Power   consumption	max. 8.5 kW
Working height	780-850 mm
Air   pressure	0.5MPa (5 bar)
Sealing knife	Teflon coated alloyed knife with   permanently heated bar
Main control   components	Omron temperature   controller, timer, relay and sensor
Machine main material	powder coated carbon steel

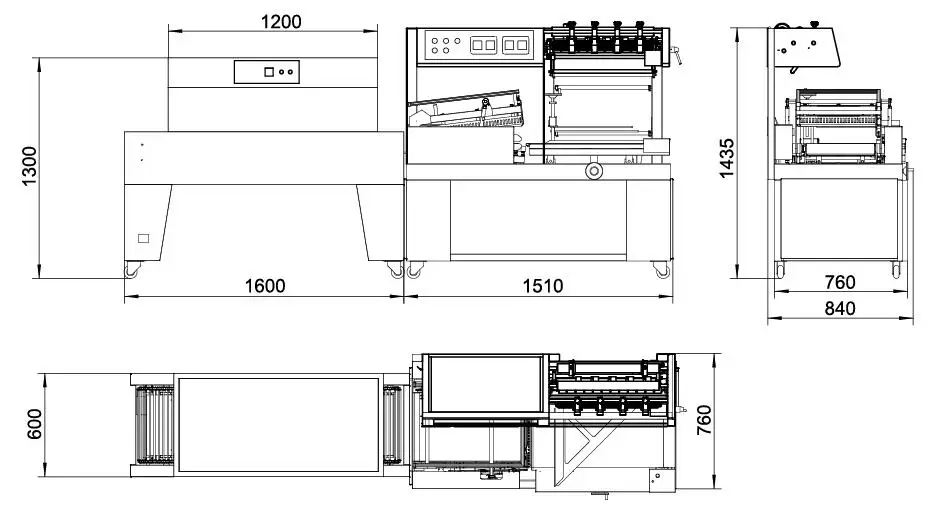

Machine   dimension	1600 x 770 x 1450mm   1600 x 600 x 1260mm
Machine weight	450kgs
