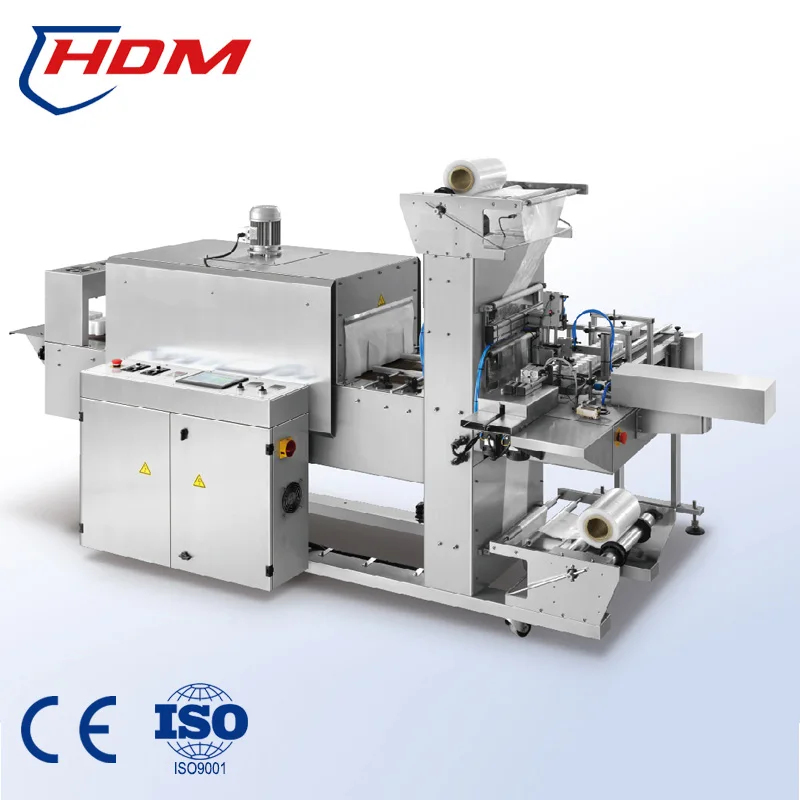

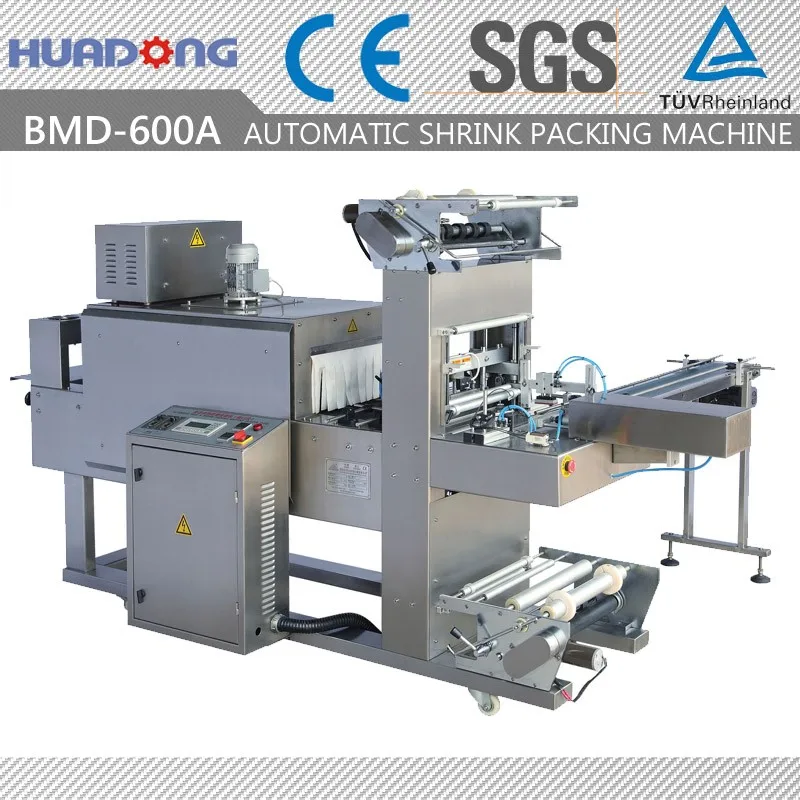

Automatic Sleeve Sealer Thermal Shrink Packaging Machine
- Category: >>>
- Supplier: Ruian Huadong Packing Machinery Co. Ltd.
Share on (206006764):
Product Overview
Description
Automatic Sleeve Sealer Thermal Shrink Packaging Machine
Application:
Bottles, tins and boxes in multi-row. It can be connected and work with auto labeling machine.
Automatic Sleeve Sealer Thermal Shrink Packaging Machine
| Technical data | BMD-600A Automatic Sleeve Sealer Thermal Shrink Packaging Machine |
| Sealing type | sleeve sealing |
| Power supply | 380V/50-60Hz/3phase |
| Max product size | 320(L) x 180(W) x 160(H) mm |
| Packing capacity | 8 - 25 packs/min |
| Film type | polyethylene (PE) film |
| Max film size | 380 (width) x 280mm(outer diameter) |
| Power consumption | max. 8kw |
| Shrink tunnel oven size | 1050mm(L) x 450(W) x 220(H) mm |
| Tunnel conveyor speed | variable, 30m/min |
| Tunnel conveyor | teflon mesh belt or stainless steel mesh conveyor |
| Working height | 850-950 mm |
| Air pressure | 0.5MPa (5 bar) |
| Sealing knife | Teflon coated alloyed knife with permanently heated bar |
| Main control components | Siemens PLC and touch screen, Omron temperature controller, relay and sensor |
| Machine main material | stainless steel |
| Machine dimensions | 2700 x 1700 x 1590mm |
| Machine weight | 600kgs |
Automatic Sleeve Sealer Thermal Shrink Packaging Machine
Automatic Sleeve Sealer Thermal Shrink Packaging Machine
