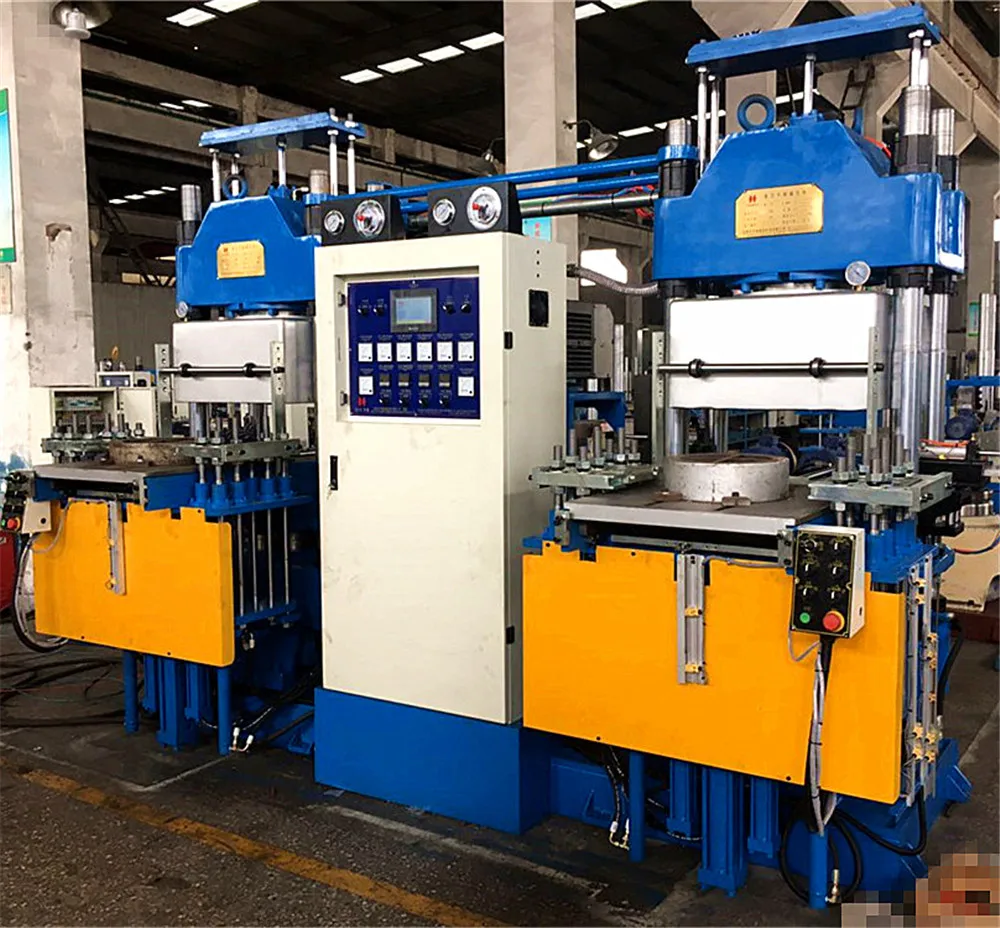

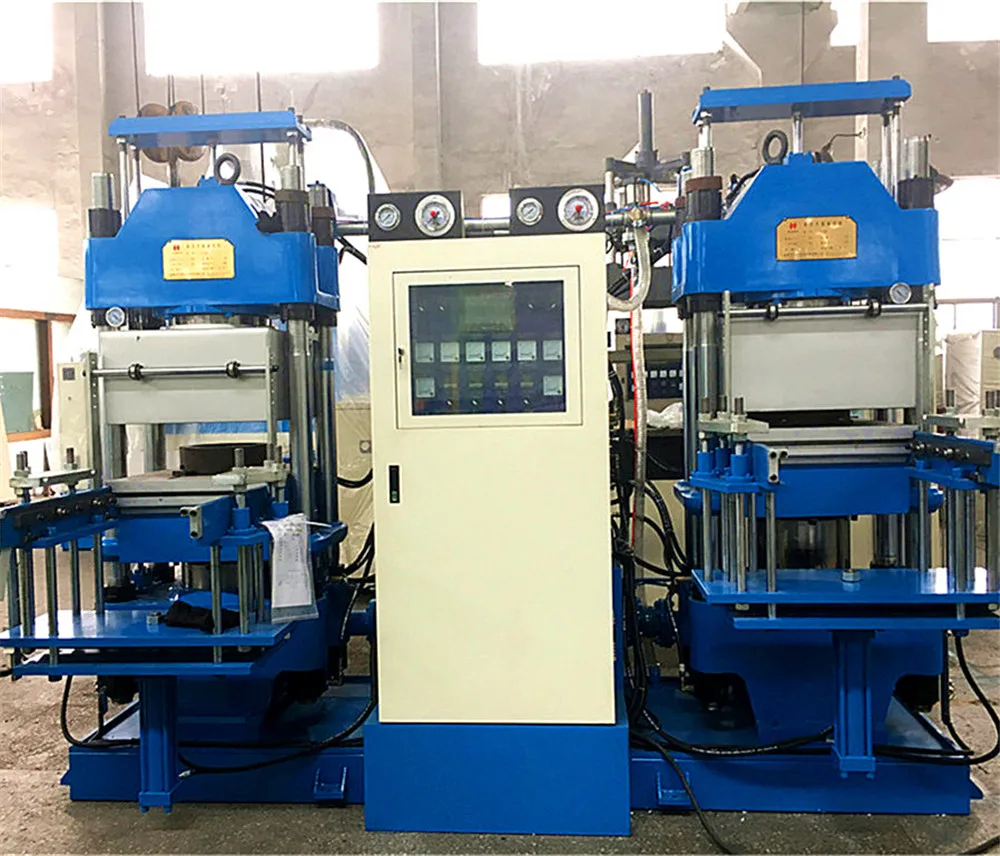

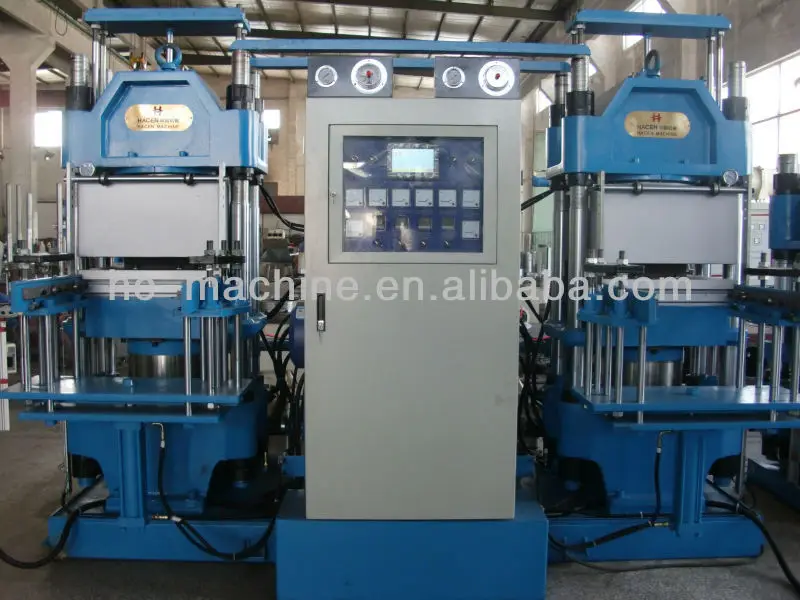

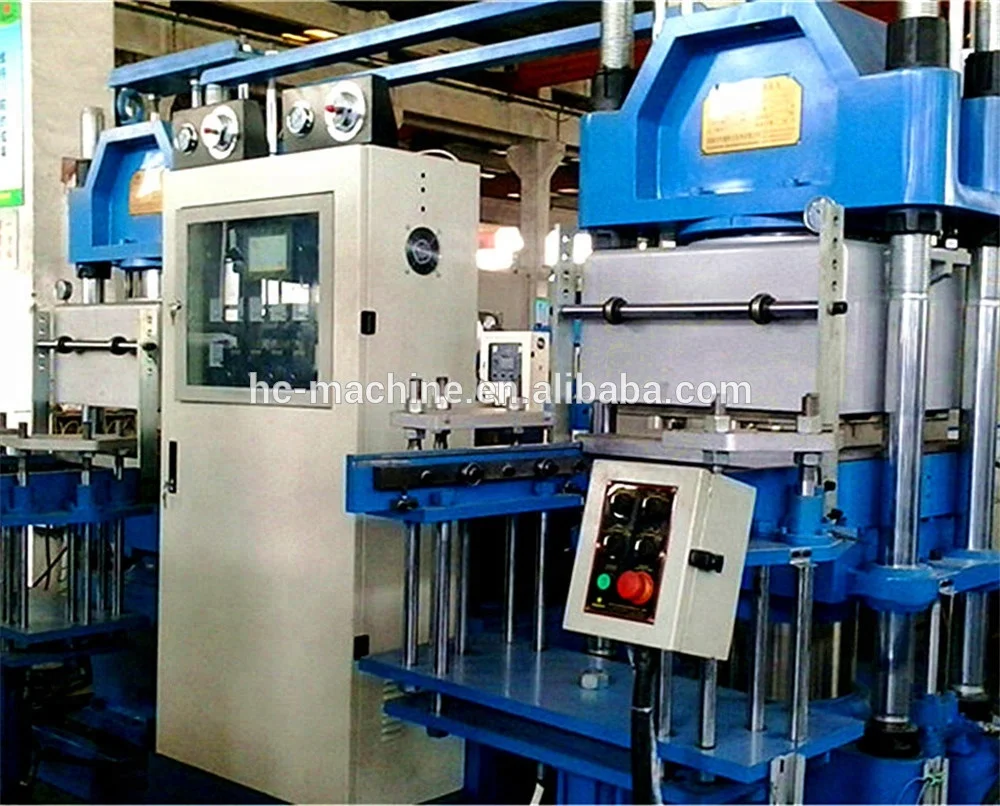

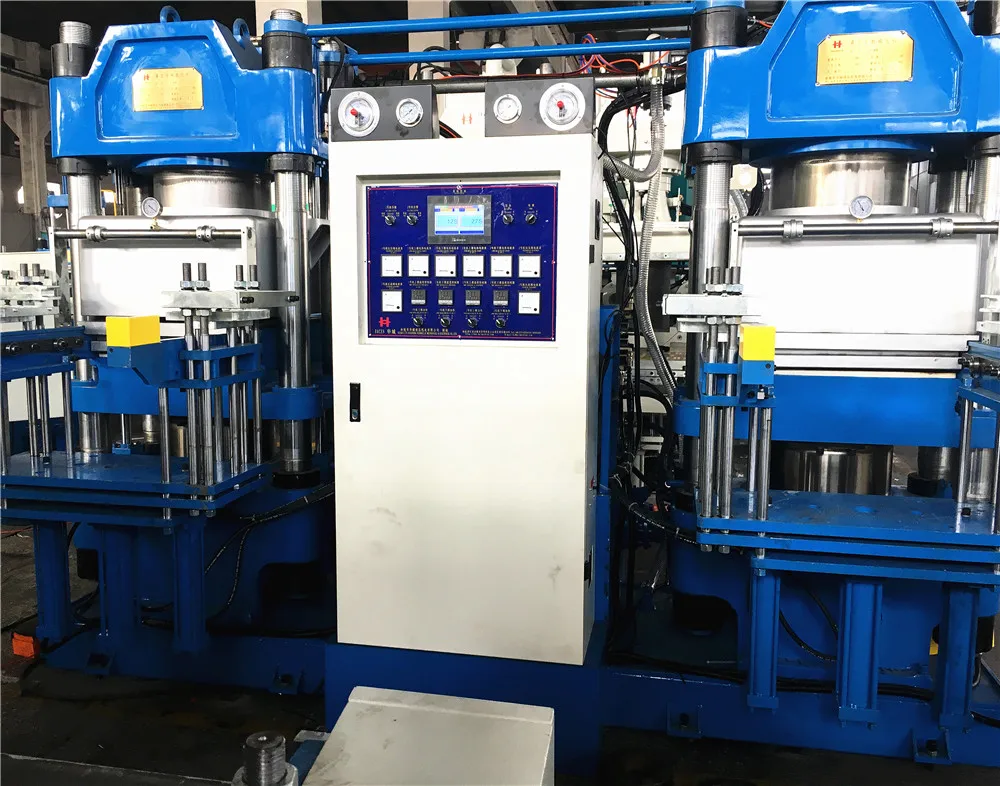

ZXB 250T rubber Vacuum heat pressMolding Machine

Product Overview

Description



Hydraulic Vacuum Molding Machine













Suits produces each kind of O-rings, the rubber keyboard, the medical service with the rubber components, rubber components and so on rubber components, the most economical tradition, the operation is simple, takes shape fast, may choose for three molds leaving. Characteristics   The machine structure after the computer pressure, the strain analysis,   the service life is long-time;   The special heating platen design, the temperature distribution is even,   guarantees takes shape the quality disposable;   The fluctuation track organization, guarantees the sliding panel and the   heating platen does not rub;   The high efficiency fast vacuum system, the end product lack materials, the   gas-free does not soak. Hydraulic system   The hydraulic pressure unit and an organism body, the design are artistic,   not oil leak, also may choose the proportion type . Electrical system   PLC matches touches the screen control, enhances the product quality   stability.

Specification  Parameters  Specification  Parameters  Specification  Parameters  Mold-locking force  350 TON  Opens the files most greatly  300mm  Mold use thickness   50~180mm  Max.working pressure  210 kg/cm2  Motor power  21.9kwx2  Main engine horsepower   15HPX6P(11.2KW)  Main engine piston diameter  457.2mm  Thermo plate dimension  700×700mm  Vacuum horsepower   VC-100(3.0KW/50Hz)  Max.stroke  250mm  Mold frame plate size  680×700mm  Fuel tank volume   800L
