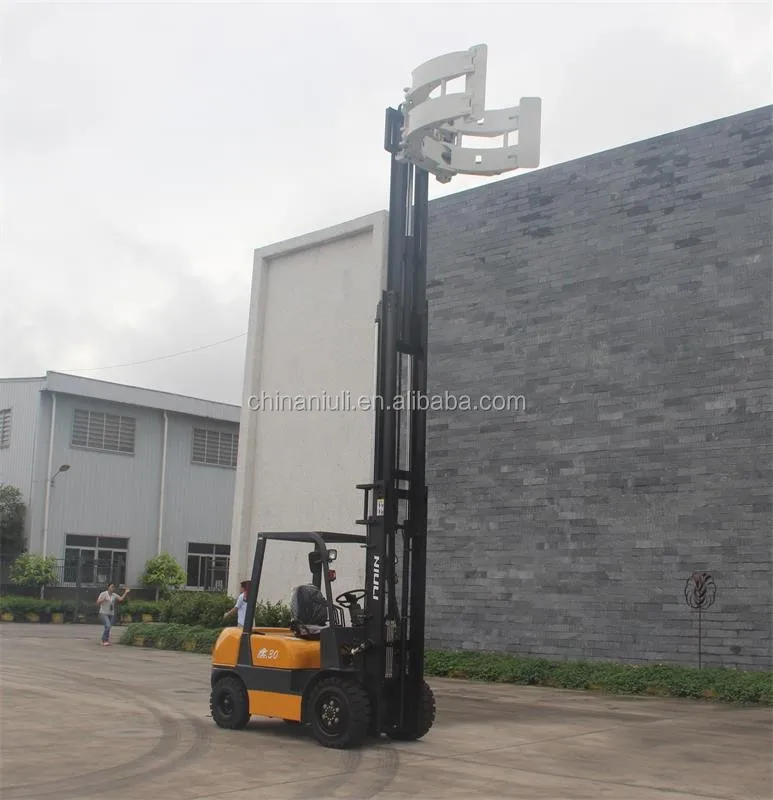

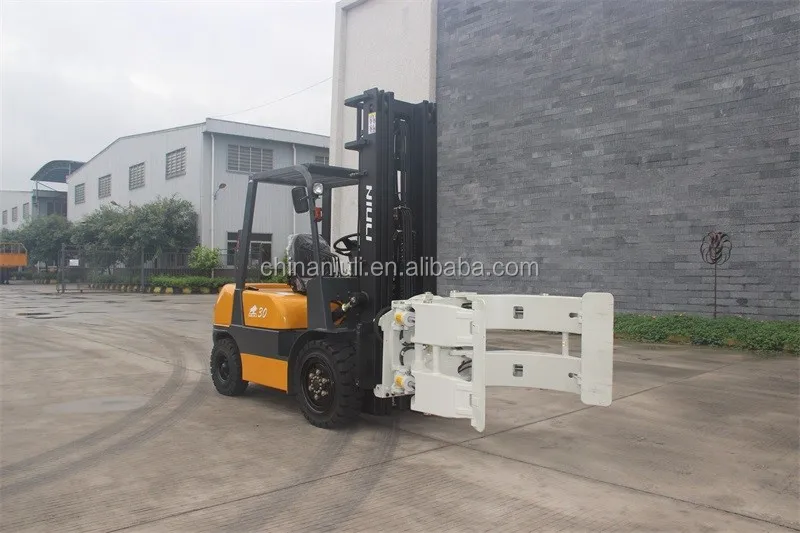

3000kgs Diesel Forklift With Paper Roll Clamp,ISUZU Engine

Product Overview

Description

 3000kgs Diesel Forklift With Paper Roll Clamp,ISUZU Engine



1. Niuli Brand Warranty: 1 years  or 2000 working hours spare parts  warranty for Niuli forklifts which  occurs first.



2.  Niuli 24hours Service system:  Any quality claim or question from Niuli customers will be replied by  Niuli service man within 24 hours,  to assure all customers get a  quick feedback from Niuli  for  their  problem.



3. Niuli 48hours  Service system:  Once quality claim  from customers are accepted by Niuli , we will arrange to send spare part to them for free within 48hours, to guarantee a strong spare parts supporting for customers.



4. Niuli  Online Service system: Niuli is the only factory in China  to issue online service system  for customers, It includes Online Claim system, Online Technique system, Online Forklift tracking system, Online spare parts order system, Customers can submit their quality claim, ask technique help, Tracking their forklifts and Order spare parts online easily, All this will be replied by service  man within  24hours.



5. Free Training System: Niuli supply  a free  training for customers to help  them know  better about  the quality  of forklifts, and also its performance.





General	1	Model					CPC30/CPCD30		CPC35/CPD35
	2	Power Type					Diesel/GAS		Diesel/GAS
	3	Rated capacity				Kg	3000		3500
	4	Load center				mm	500		500
Charactertic	5	Lifting height				mm	3000		3000
	6	Fork size				mm	1070*122*40		1070*122*40
	7	Mast Tilt Angle				Deg	6°/12°		6°/12°
	8	Front Overhang(Wheel center to fork face)				mm	500		500
	9	Ground Clearance(Bottom Of Mast)				mm	126		126
	10	Overall Dimension	Overall length(with/without fork)			mm	3790/2700		3790/2700
	11		Overall width			mm	1230		1230
	12		Mast lowered height			mm	2105		2105
	13		MastExtended height(with backrest)			mm	4110		4110
	14		Overhead guard height			mm	2140		2140
	15	Turning Radius(outside)				mm	2415		2415
	16	Min. intersecting aisle				mm	2500		2500
Performance	17	Speed	Travel(Full/Empty load)			km/h	18/19		18/19
	18		Lifting(Full/Empty load)			mm/s	460/540		530/540
	19	Max.Gradeability				%	20		20
Chassis	20	Tire	Front				28x9-15-12PR		28x9-15-12PR
	21		Rear				6.50-10-10PR		6.50-10-10PR
	22	Wheelbase				mm	1650		1650
	23	Self Weight				kg	4280		4500
Transmission	24	Battery	Voltage/Capacity			V/Ah	12/120		12/120

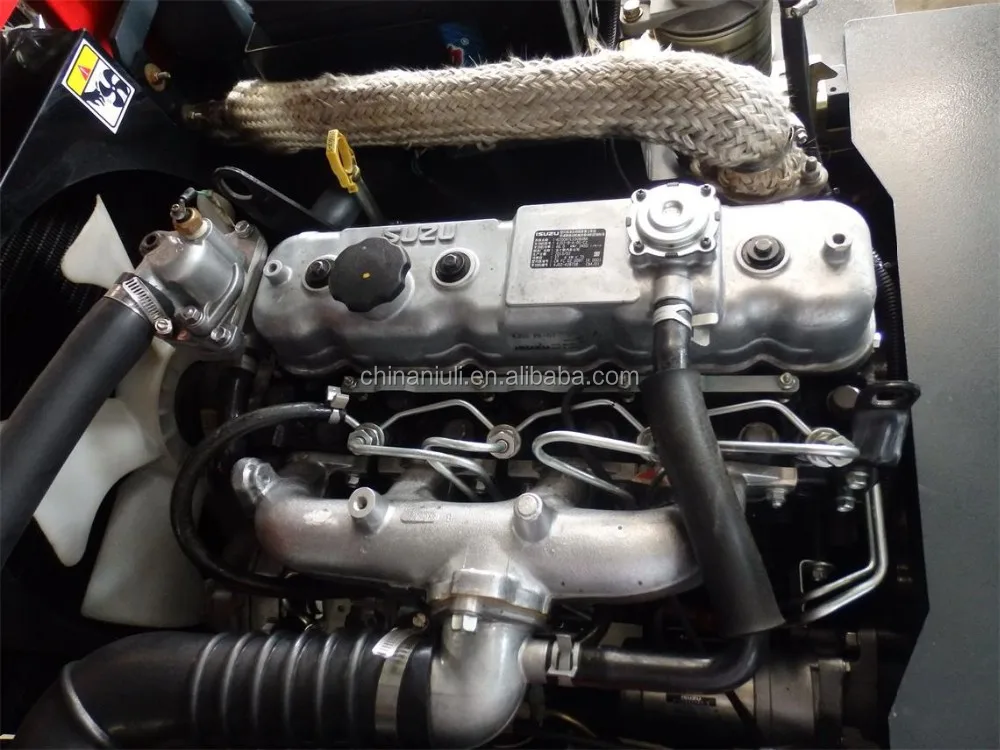

	25	Engine	Model				C240	C490BPG	QC495G
	26		Manufacturer				ISUZU	XinChang	Quanchai
	27		Rated output/r.p.m			kW/rpm	34.3/2500	34.3/2500	42/2650
	28		Rated torque/r.p.m			Nm/rpm	137.7/1800	160/1800-2000	174/1980
	29		No. of cylinder				4	4	4
	30		Bore x Stroke			mm	86x102	90x105	95x105
	31		Displacement			cc	2369	2670	2980
	32		Fuel Tank capacity			L	60	60	60
	33	Transmission					Machanical/Hydraulic		Machanical/Hydraulic
	34	Operation Pressure for Attachment				Mpa	17.5		17.5
