Bimetallic Thermostatic Steam Trap Bimetallic Steam trap Thermostatic steam trap

Product Overview

Description

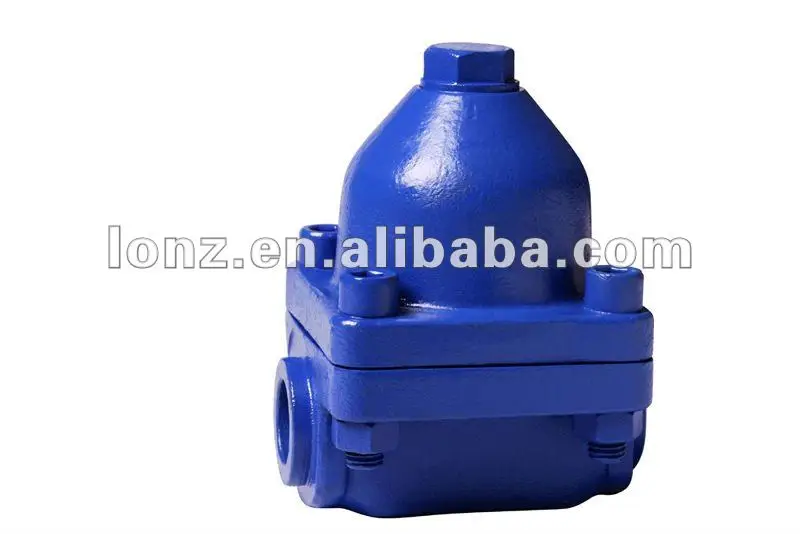

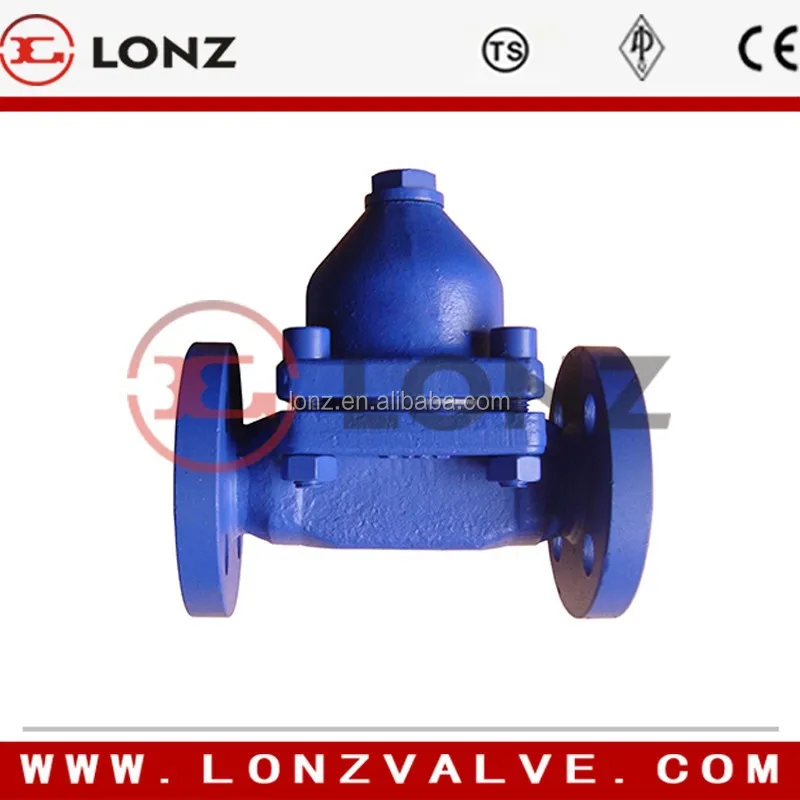

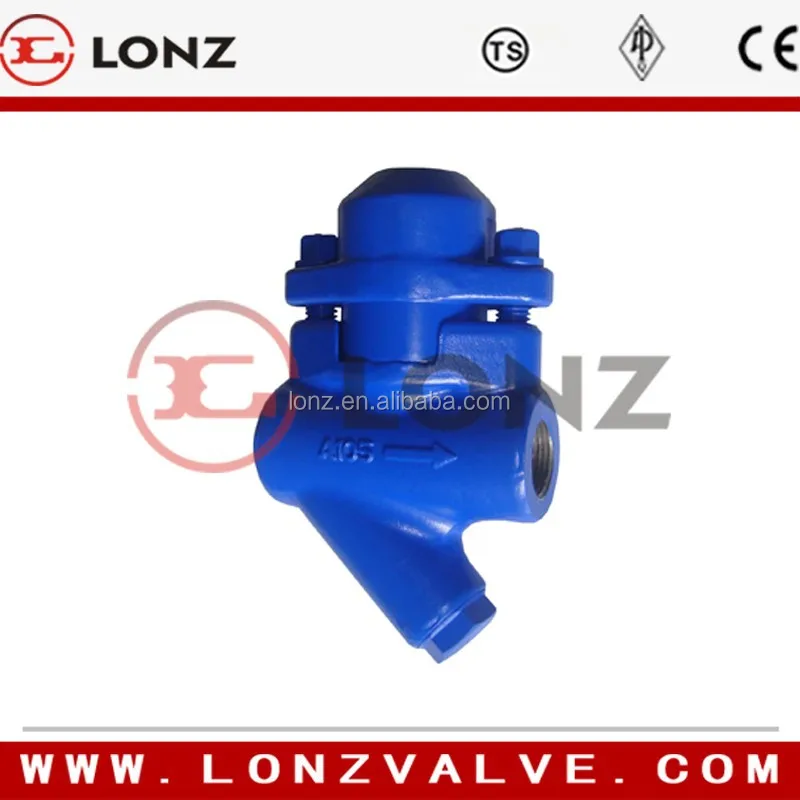

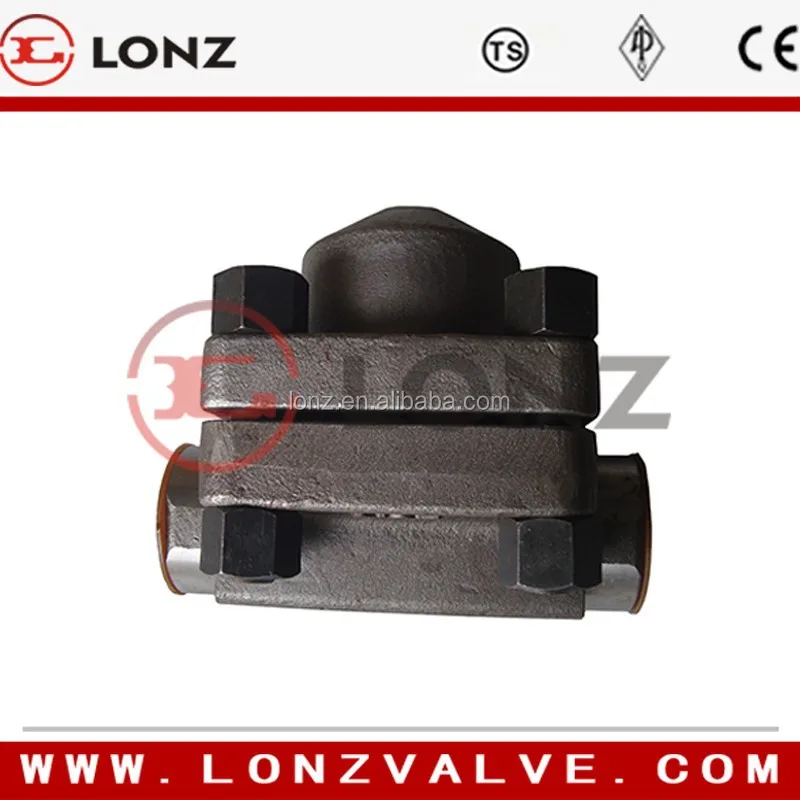

Bimetallic Thermostatic Steam Trap

Bimetallic Steam trap

Thermostatic steam trap





Description:

This steam trap operates on the temperature principle using two layers of bimtallic elements that have different expansion coefficients.The stem connected to the elements moves a valve into either an open or close position.

During start-up, the trap is cold so the elements are flat and the valve is wide open. This results in air and condensate being easliy removed from the system.

In standard operation, the position of the valve depends on two parameters: first, the pressure, which will cause the valve open ; and second , the temperature , which will cause the elements to convex and the valve to close.

When no condensate is present and set temperature is reached, the force of the elements is then high enough to completely close the valve.

The steam trap can adjust itself to changing conditions. because if the pressure rises, the higher pressure works on the valve. At the same time, the higher temperature will work on the elements.



Structure characteristics



1.This type of steam trap is applied with bimetal which expands with heat and contracts with cold in order to drain water and prevent steam.
2.This steam trap is small in size and light in weight. With easy installation, it can be installed in any angle.
3.It is sensitive in induction, and can drain water without any noise, which is also very strong in resistance to corrosion.



Main application



Bimetal strip Steam Trap can be applied in field of power station, petroleum, chemical industry, paper making, textile, metallurgical and other industrial steam heating system. This type of steam trap can automatically discharge condesnsation water from steam heating system to keep the system working efficiently on saving energy.
