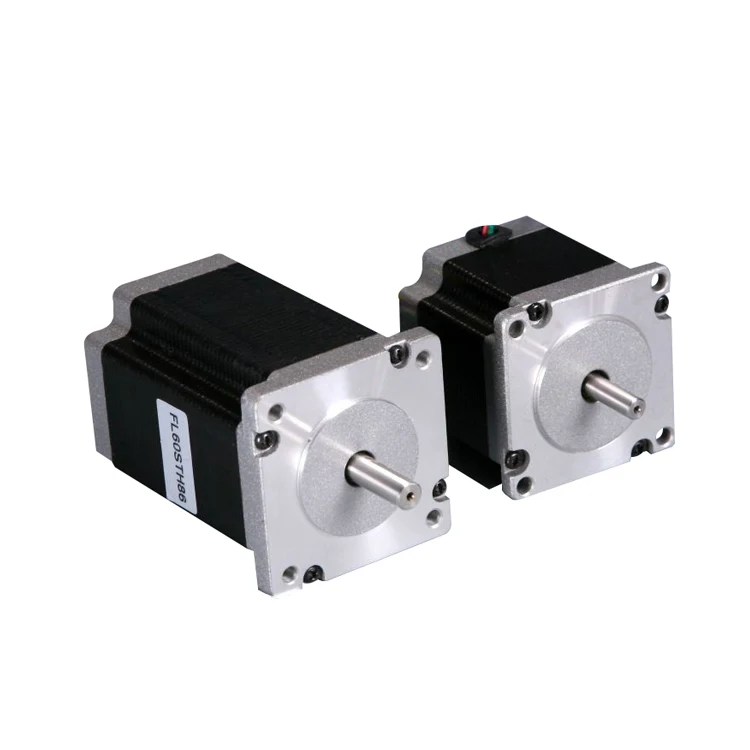

Wholesale High Quality 57mm 3 phase Hybrid Stepper Motor
- Category: >>>
- Supplier: Changzhou Fulling Motor Company Limited
Share on (208375904):
Product Overview
Description
Product Description
Size 57mm 3 phase Stepper Motor
Stepper motors,Step Motor
1) CE and RoHS approved
2) We can develop customer design version
3) TS16949.
General Specification for High Torque Hybrid Stepping Motor
| Item | Specifications |
Step Angle | 1.2° |
Step Angle Accuracy | ±5% (full step, no load) |
Resistance Accuracy | ±10% |
Inductance Accuracy | ±20% |
Temperature Rise | 80.C Max.(rated current) |
Ambient Temperature | -20.C~+50.C |
Insulation Resistance | 100MΩMin. ,500VDC |
Dielectric Strength | 500VAC for one minute |
Shaft Radial Play | 0.02Max. (450 g-load) |
Shaft Axial Play | 0.08Max. (450 g-load) |
Max. radial force | 75N (20mm from the flange) |
Max. axial force | 15N |
Insulation class | F |
Size 57mm 3-Phase Hybrid Stepping Motor Specifications
Model No. | Voltage /Phase | Inductance /Phase | Resistance /Phase | Current /Phase | Holding Torque | Detent Torque | Rotor Inertia | Weight | Length ( L ) |
unit | V | mH | ohm | A | N.m | N.cm | g-cm2 | kg | mm |
FL573P42-5206A | 6.76 | 1.4 | 1.3 | 5.2 | 0.45 | 2.1 | 110 | 0.45 | 42 |
FL573P56-5606A | 4 | 1.7 | 0.7 | 5.6 | 0.90 | 4 | 300 | 0.75 | 56 |
FL573P79-5806A | 6 | 2.4 | 1.05 | 5.8 | 1.5 | 6.8 | 480 | 1.10 | 79 |
Related Products
Company Information
Our Services
Packaging & Shipping
FAQ
Q:How long is the lead time of orders?
A:Lead time : 4 weeks after receive the deposit
Q:What is your trade Assurance?
A:100% product quality protection.
100% product on time shipment protection.
100% payment protection for your covered amount.
Q: What’s Moq?
A: No Moq , 1PC OK . Small Order Welcome.
Q:Do You Make Customized Product?
A:Yes,We Accpet IT.
Q:About After Sale Serive?
A: After Sales Services 24/7.
Q: What should I do if I'm not satisfied with your product?
A: If there are defects in its quality, we can exchange a good one for you.
Generally, this problem is rare.
Q:What is the payment term?
A:T/T and Paypal is used more,please contact us for details
Q:What is the quality level of your product?
A:We produce good quality, refuse to produce low quality.
