Duplex single worm plodder soap extruder bar soap making machine
- Category: Other Chemical Equipment >>>
- Supplier: Lanzhou Limac Machinery Works Co. Ltd.
Share on (208615471):
Product Overview
Description
Duplex single-worm plodder soap extruder bar soap making machine
Product Description
Duplex single worm vacuum plodder Type 3000ES- DRVP
Super-charge Duplex single-worm vacuum plodder Type 3000ES-DRVPT
3000ES-DRVPT-300 Super-charge Duplex single-worm plodder
Totally new super-charge plodders Series ES can be used both for production low and high TFM soaps. The new plodders have innovated speed reducer design, cooling-water system/jacket design and worm design,so that the machine has reduced driving torque, uniform pressure and no backflow of soap inside the worm barrel, resulting in high productivity, easy to operate, and lower labor-intensity. The plodder is auto-protected by ielligent-control, so it has much long service life.

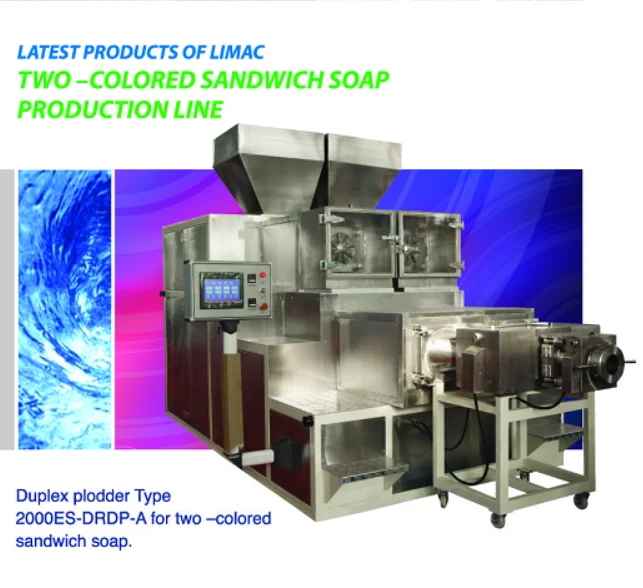

Technical Specification for Duplex Plodder Type 2000ES-DRDPT-A for Two-Colored Sandwich Soap
●Capacity :2000kg/h-3000kg/h finished two color sandwich soap cake.
●Worm:250mm in diameter,made from welded stainless steel 304 or Al-Mgalloy casting.
● Motors: 18.5KWX2 22KWX2
●Electric heaters at the conical outlet head:2KW+1KW
●There are 8 speed reducers in the plodder. The gears of the reducer are with high precision Class 6 and the teeth are case-hardened and ground.
●Worm:250mm in diameter,made from welded stainless steel 304 or Al-Mgalloy casting.
● Motors: 18.5KWX2 22KWX2
●Electric heaters at the conical outlet head:2KW+1KW
●There are 8 speed reducers in the plodder. The gears of the reducer are with high precision Class 6 and the teeth are case-hardened and ground.
Lower extruder 5 to 18 r/min adjustable;
The worm is with changing-pitch and changing depth, made from stainless steel 304
Warm barrel from one piece of seamless stainless steel 304 tube.
Frequency adjustable A.C. drive by Mitsubishi, Japan.
Electric components by Schneider, France.
Duplex single-worm vacuum refiner -plodder
The worm is with changing-pitch and changing depth, made from stainless steel 304
Warm barrel from one piece of seamless stainless steel 304 tube.
Frequency adjustable A.C. drive by Mitsubishi, Japan.
Electric components by Schneider, France.
Duplex single-worm vacuum refiner -plodder
Specification
Item | 1000-DRVP-200 | 1000-DRVP-250 | 2000G/S-DRVP-300 | 2000G/S-DRVP-350 | 2000 G/S DRVP -400 |
Capacity | 500kg/h | 1000kg/h | 2000kg/h | 3000kg/h | 5000kg/h |
Motor Power | 2*11kw | 2*18.5kw | 2*37kw | 2*45kw | 2*75kw |
Weight | 4000kg | 5000kg | 6500kg | 7600kg | 8800kg |
Dimension | 3800*1300 *2000mm | 3200*1600 *2100mm | 4805*1500 *2450mm | 5720*1540 *2450mm | 5740*2300*2800mm |
Type | Capacity (kg/h) | screw diameter (mm) | Motor(kW) |
4000ES-DRVPT | 3000-4000 | 350 | 37+37 |
3000ES-DRVPT | 2000-3000 | 300 | 30+30 |
1500ES-DRVPT | 1000-1500 | 250 | 22+22 |
5OOES-DRVPT | 500 | 200 | 11+11 |
1000ES-DRVPT-A | 1000 | 200 | 22+22+1+0.5 |
2000ES-DRVPT-A | 2000-3000 | 250 | 37+44+2+1 |
Details Images
Recommend Products
Company Profile
Limac Machinery Works Corporation, Lanzhou (LIMAC) is a professional corporation devoted herself to research, development, and manufacturing of all kind of soap machinery and equipment. The corporation owned a creative design and manufacturing team, most of them have thirty years of soap-making machinery design/ manufacturing experience. For years the corporation has produced a number of up-to-date soap-making machinery and equipment. The corporation adopts internationally new mode of cooperation, integrating domestic and foreign advanced technical and production resources, so the machinery and equipment supplied by LIMAC has been highly praised by the soap producers all over the world.
Exhibition
Shipping and Payment
FAQ
1. who are we?
We are based in Gansu, China, start from 2006,sell to Eastern Asia(30.00%),Africa(30.00%),Mid East(20.00%),Northern Europe(10.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
soap making machine,toilet soap production line,laundry soap making machine,packing machine,two colour-sandwich soap production line
4. why should you buy from us not from other suppliers?
Limac Machinery Works Corporation, Lanzhou (LIMAC) is a professional corporation devoted herself to research, development, and manufacturing of all kind of soap machinery and equipment. The corporation owned a creative design and manufacturing team.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Western Union;
Language Spoken:English,Chinese,Spanish,Portuguese,French,Russian
We are based in Gansu, China, start from 2006,sell to Eastern Asia(30.00%),Africa(30.00%),Mid East(20.00%),Northern Europe(10.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
soap making machine,toilet soap production line,laundry soap making machine,packing machine,two colour-sandwich soap production line
4. why should you buy from us not from other suppliers?
Limac Machinery Works Corporation, Lanzhou (LIMAC) is a professional corporation devoted herself to research, development, and manufacturing of all kind of soap machinery and equipment. The corporation owned a creative design and manufacturing team.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Western Union;
Language Spoken:English,Chinese,Spanish,Portuguese,French,Russian
