Product Overview
Description

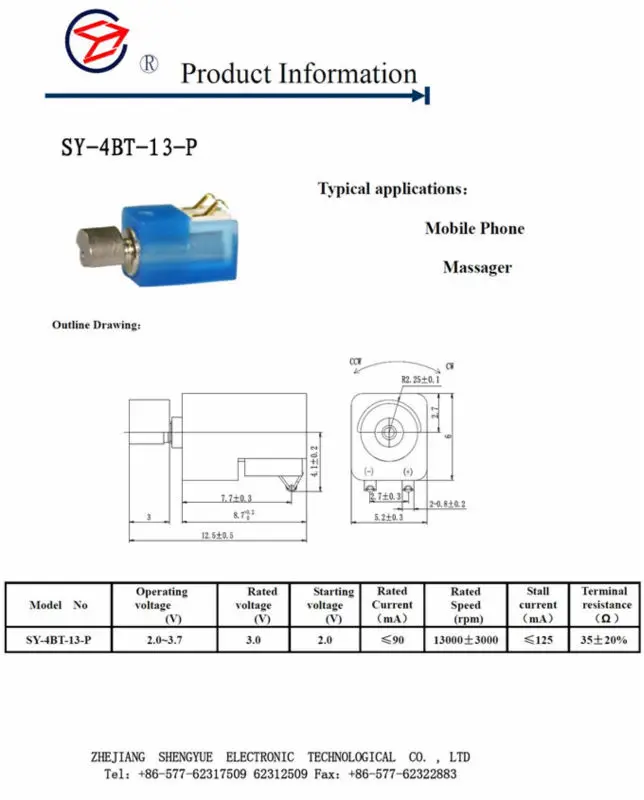

SY-4BT-13-P
Description:
Name : Vibration motor
Model : SY-4BT-13-P
Motor Data:
Model No. | Operating Voltage(V) | Rated Voltage(V) | Starting Voltage(V) |
SY-4BT-13-P | 2.0.-3.7 | 3 | 2 |
Rated Current(mA) | Rated Speed (r/min) | Stall Current(mA) | Armature Resistance(Ω) |
≤90 | 13000±3000 | ≤125 | 35+-20% |
Remark:These are only for reference, they can be customerized according to different requirements
Typical Applications:
Mobile phone
Massager

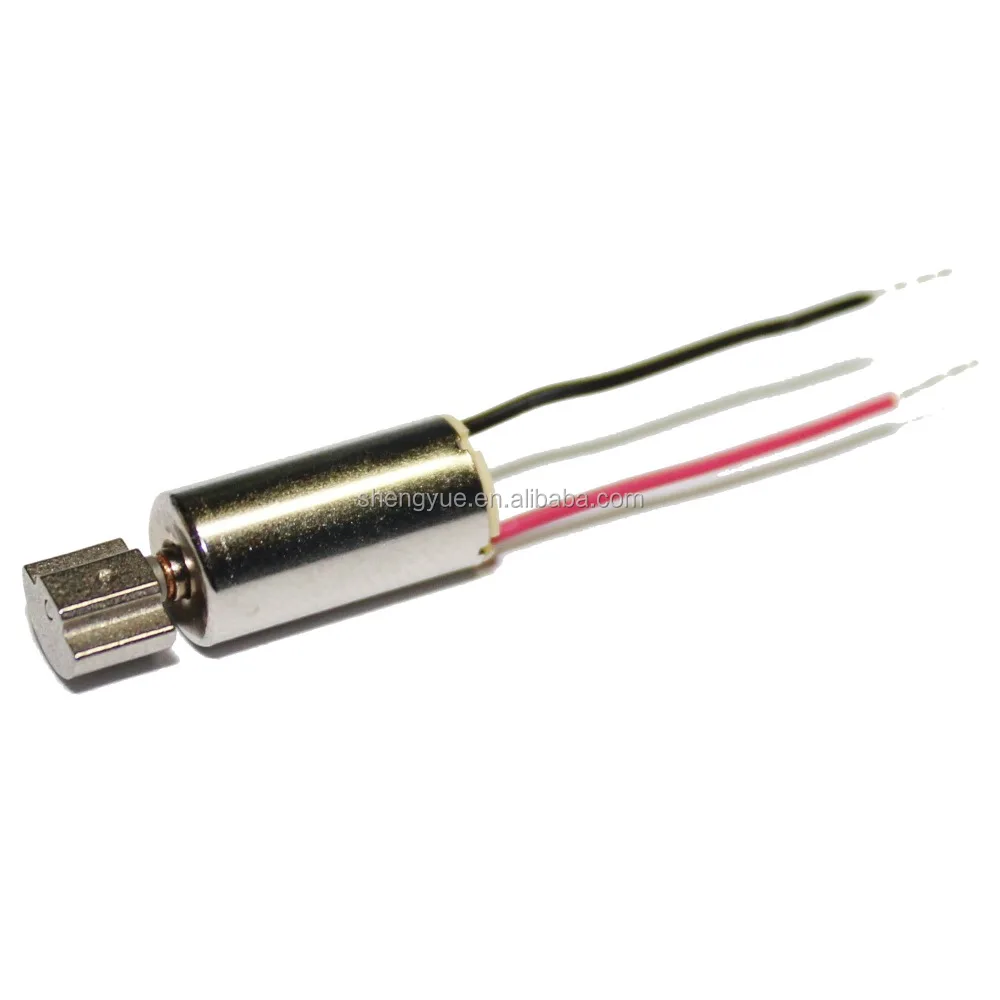

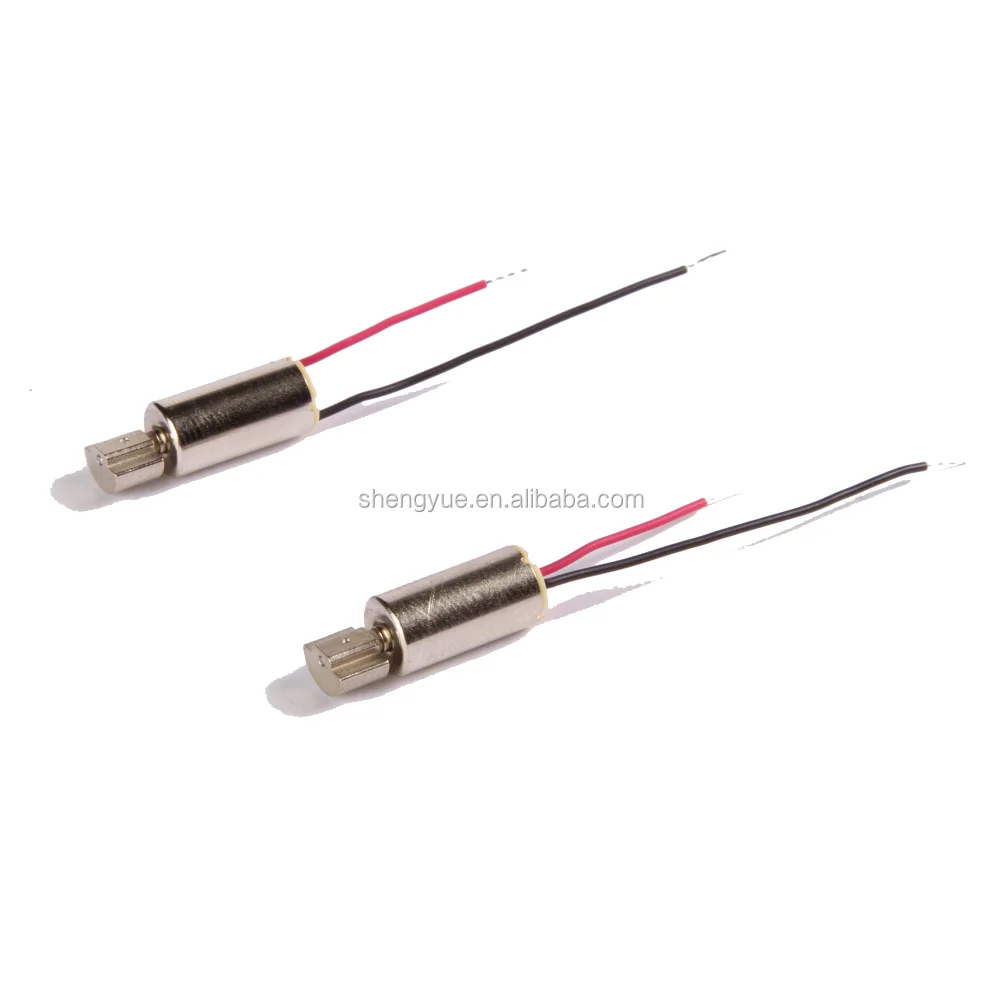

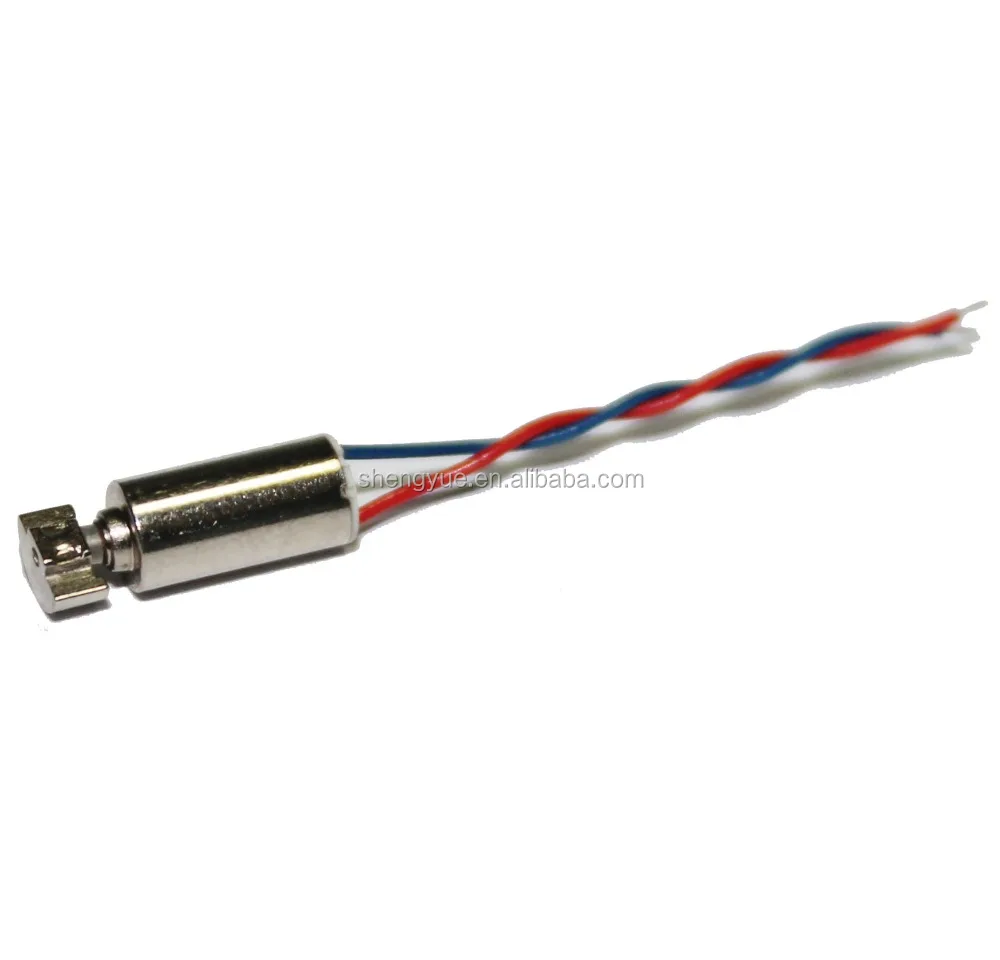

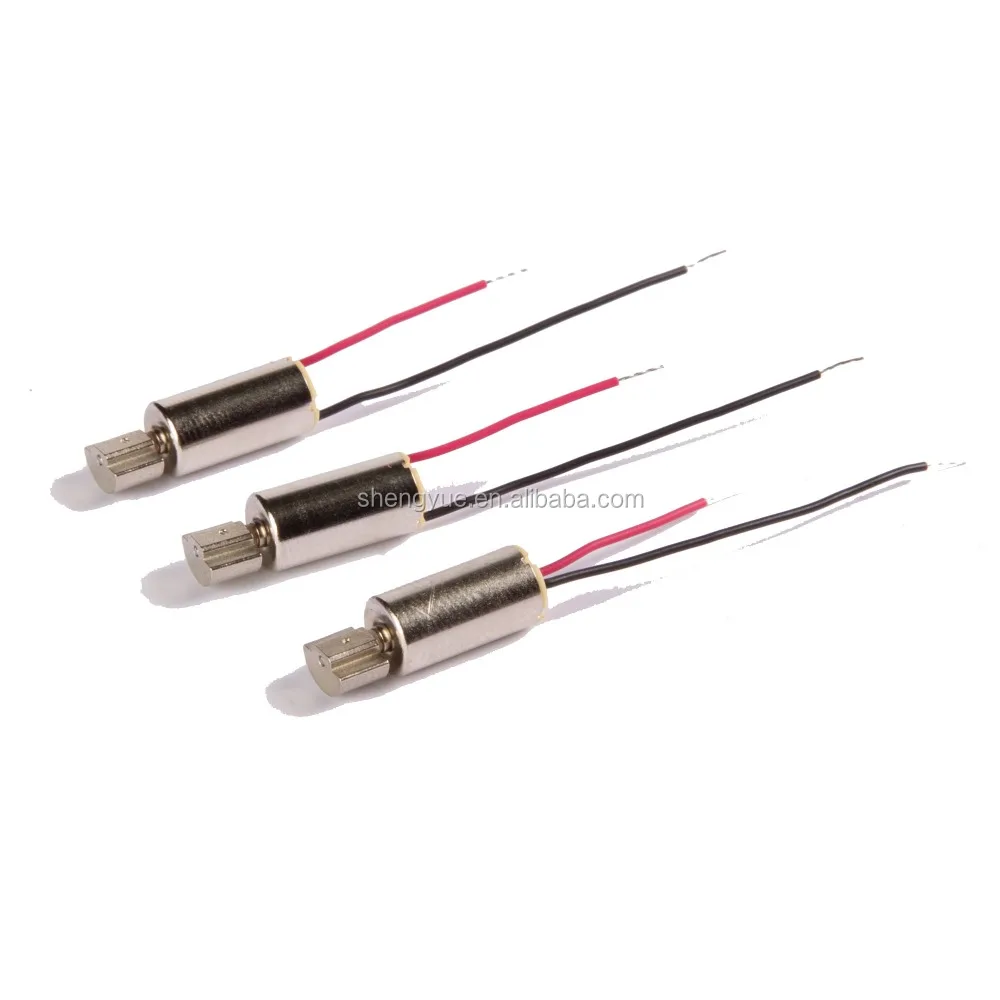

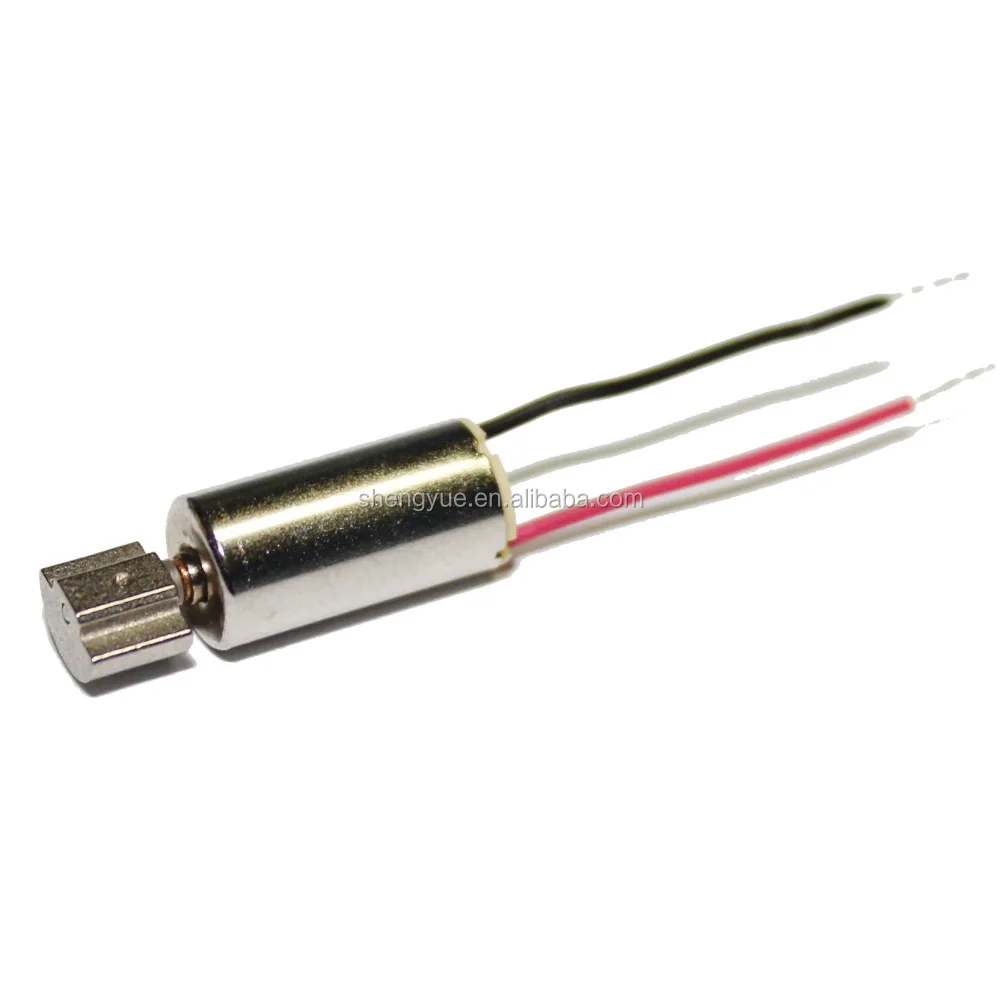

Motor pictures:
