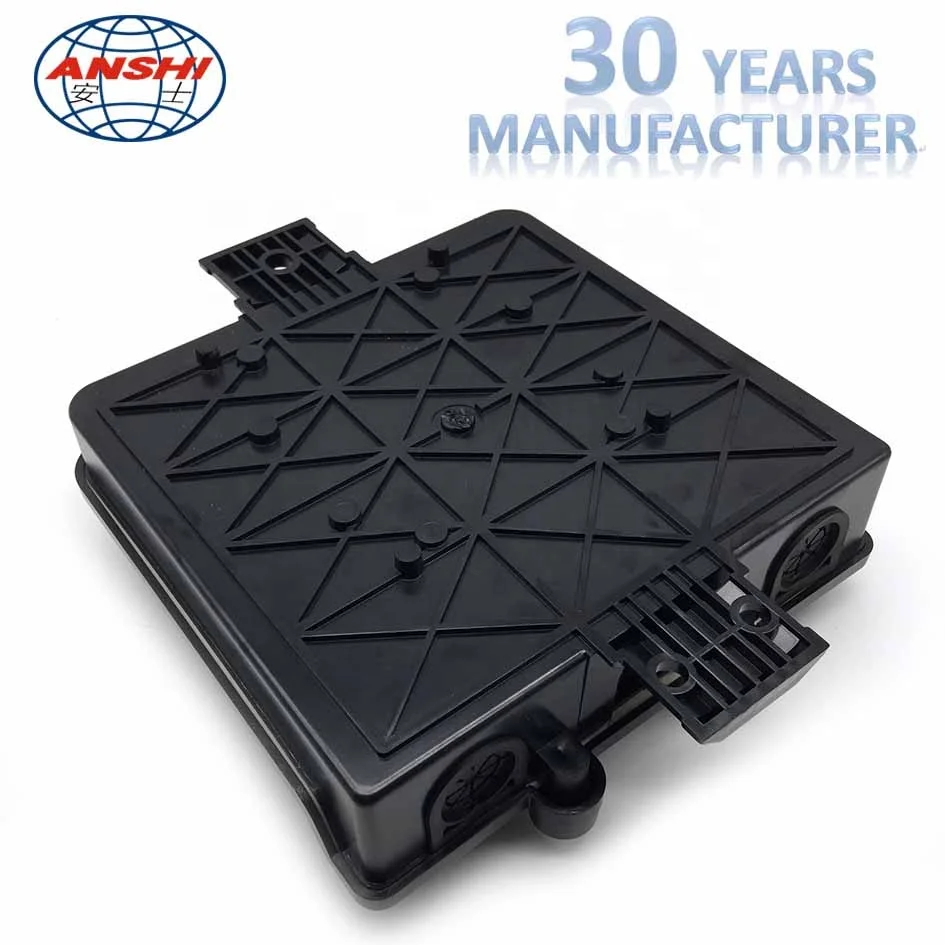

ANSHI 10 Paris Terminal STB Module Outdoor Distribution Box

Product Overview

Description

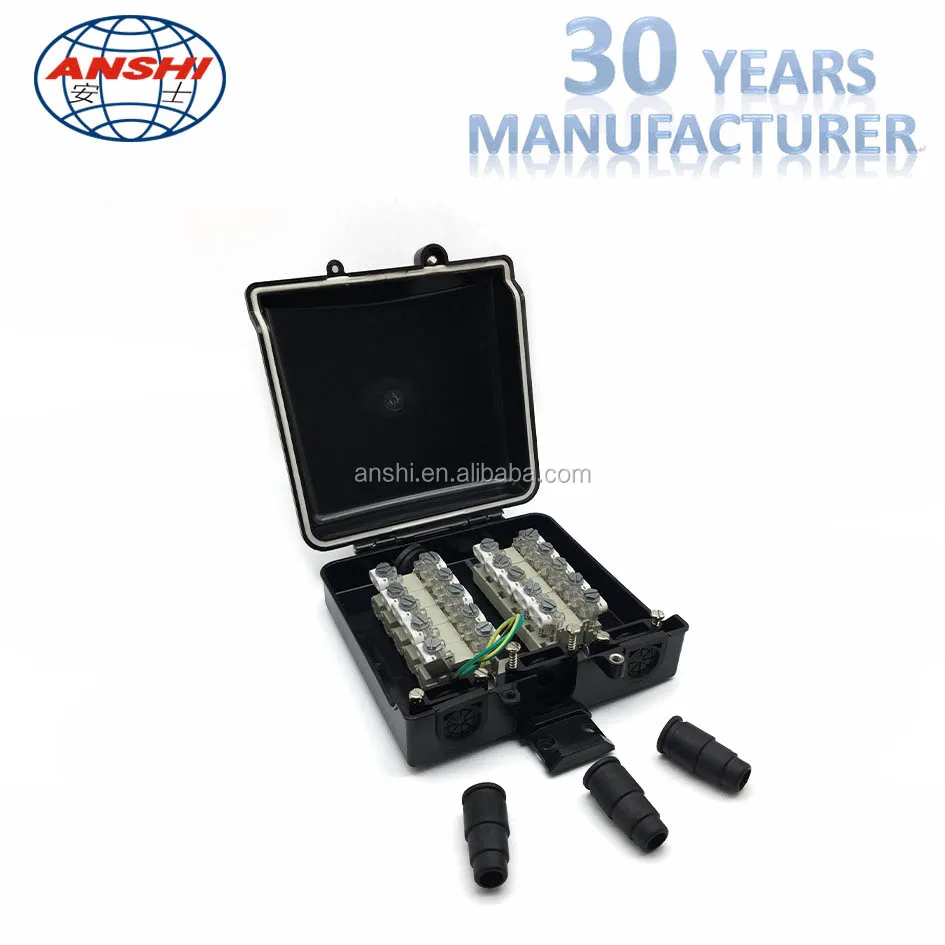

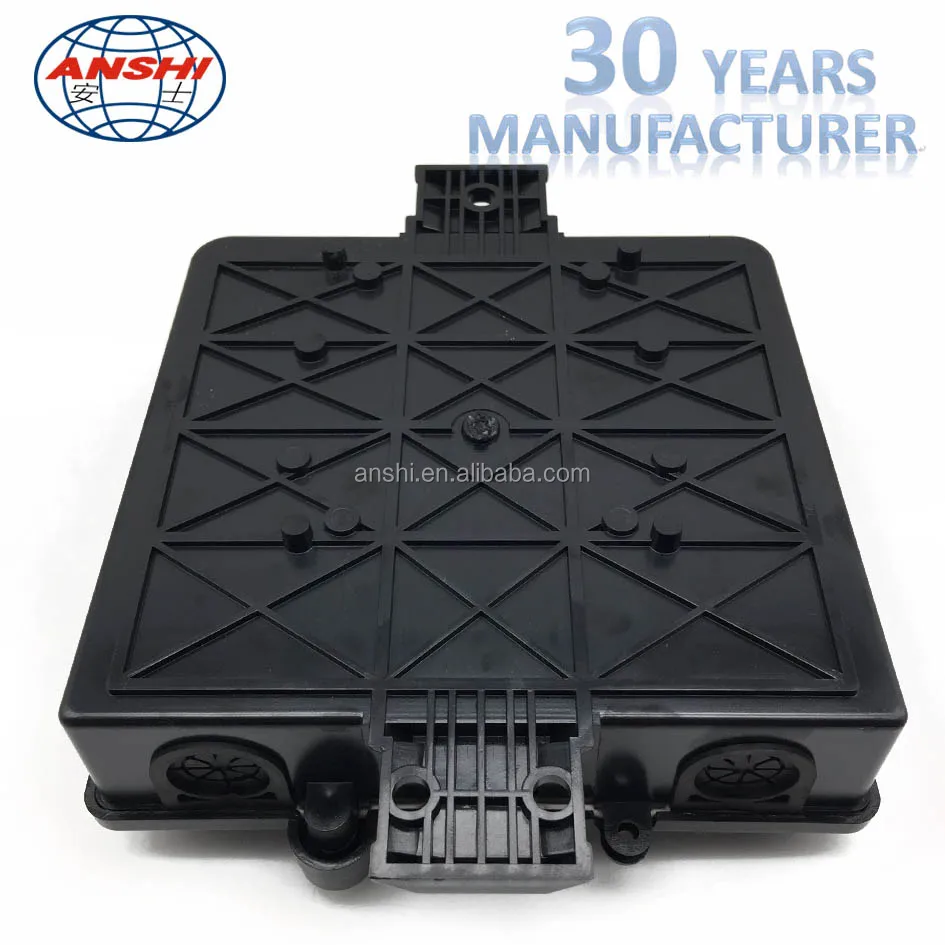

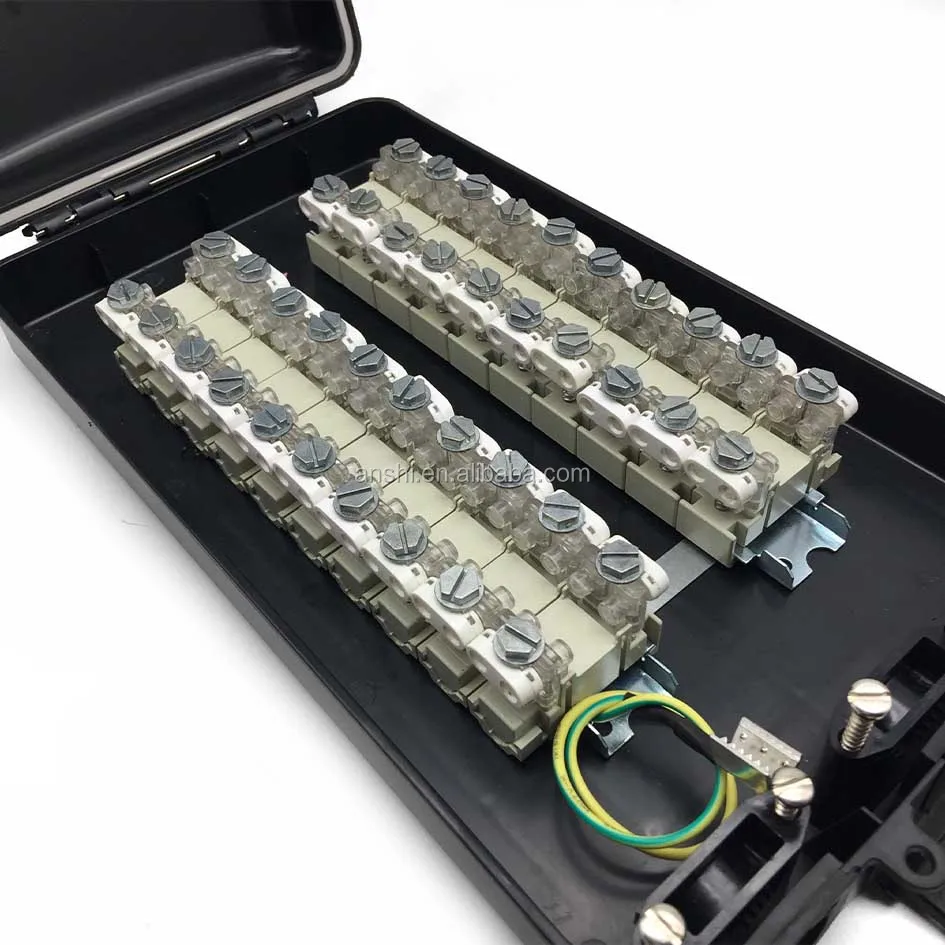

ANSHI 10 Paris Terminal STB Module Outdoor Distribution Box

Terminal Housings are a family of enclosures that may be used to environmentallyprotect 10, 15, 20, 25 or 30 terminal blocks. Each housing includes a standard DIN rail for mounting terminal blocksalong with all grounding hardware. A sufficient amount of room is provided for making drop wire terminations while thehousing features a small, compact and visually appealing design. Housings may be ordered with or withoutterminals, pre-stubbed or without stub wiring. Rubber grommets are included at all drop wire cable entry and exit ports.



The STB module provide a connection point between an exchange-side cable pair and
a distribution pair. It incorporates a 5-point plug in module to provide continuity
and a range of other options.

Multi-Serivce terminal housings are especially functional in that up to 10 pairs may be terminated inside the enclosure while up to 100 pairs may be “looped through”, a technique that eliminates the need for an additional joint or closure in close proximity to the terminal housing.

Features
Rugged, compact design.
Molded from high impact and UV resistant plastic.
Lightweight and cosmetically appealing.
All metal parts of non-corrosive materials
All bonding and grounding hardware included.

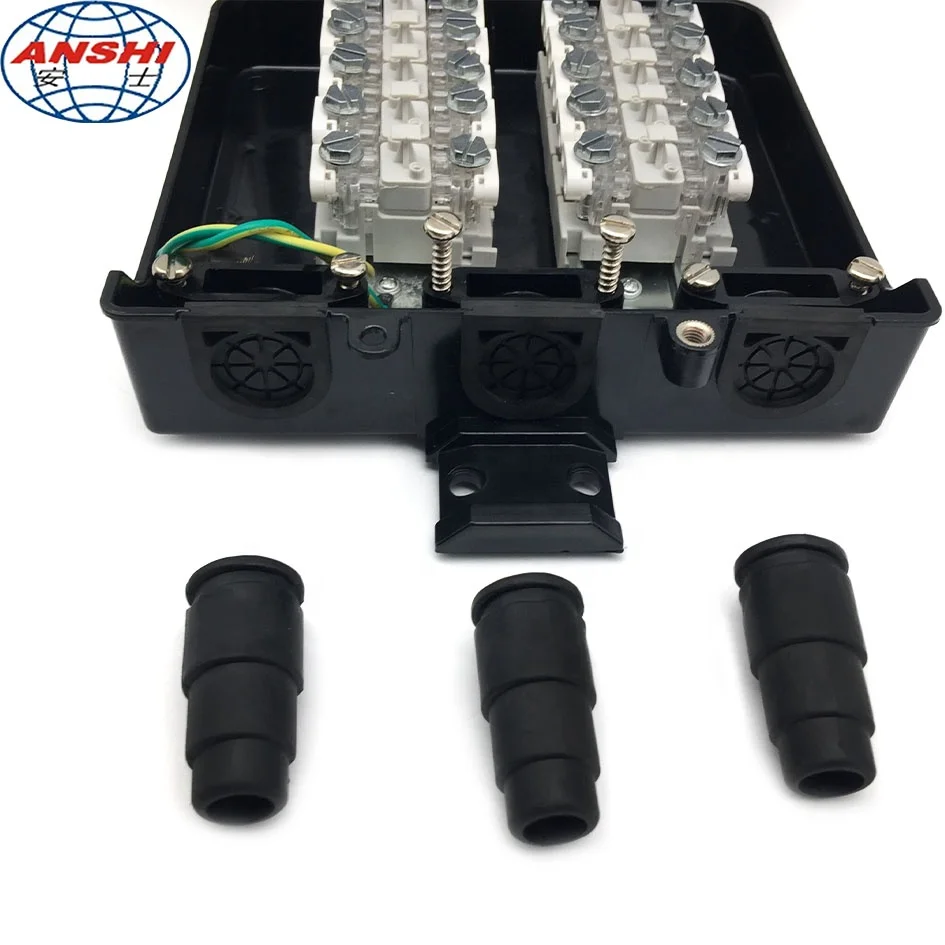

Rubber grommets included for all cable entry/exit ports.
Standard DIN rails included.
DIN rail doubles as an earth point.
Easy access to both sides of the terminal blocks.
Minimum twenty year life cycle tested.
Configurations
Fully populated, protected or unprotected terminals are preinstalled and cable ready.

Drop wire housing body: Transparent polycarbonate
Body: Flame retardant (UL94);fiber-glass reinforced;polycarbonate
Insertion contacts: Tinned phosphor bronze
Ground contacts: Cu-Zn-Ni-Ag alloy
Continuity contacts: Tinned hard brass
Lower sealant: Polymeric resin
Upper cable sealant: Silicone fluid
Pair/drop wire bearing cover: Polycarbonate
Plug-in module body: Flame retardant (UL94);fiber-glass reinforced;polycarbonate
Plug-in module sealant: Gel
"O" ring: EPDM
Cable/drop wire membrane: Thermoplastic rubber
Box base and cover: Polycarbonate RAL 7035
Earthing assembly: Stainless steel
Grommet: EPDM
Plug-in module configuration:Continuity;230 V GDT
* Note: if > 20 A up to 30 A is required, this is possible using a different GDT.



DISTRIBUTION BOX ANSHI
STB connection
Connection Module

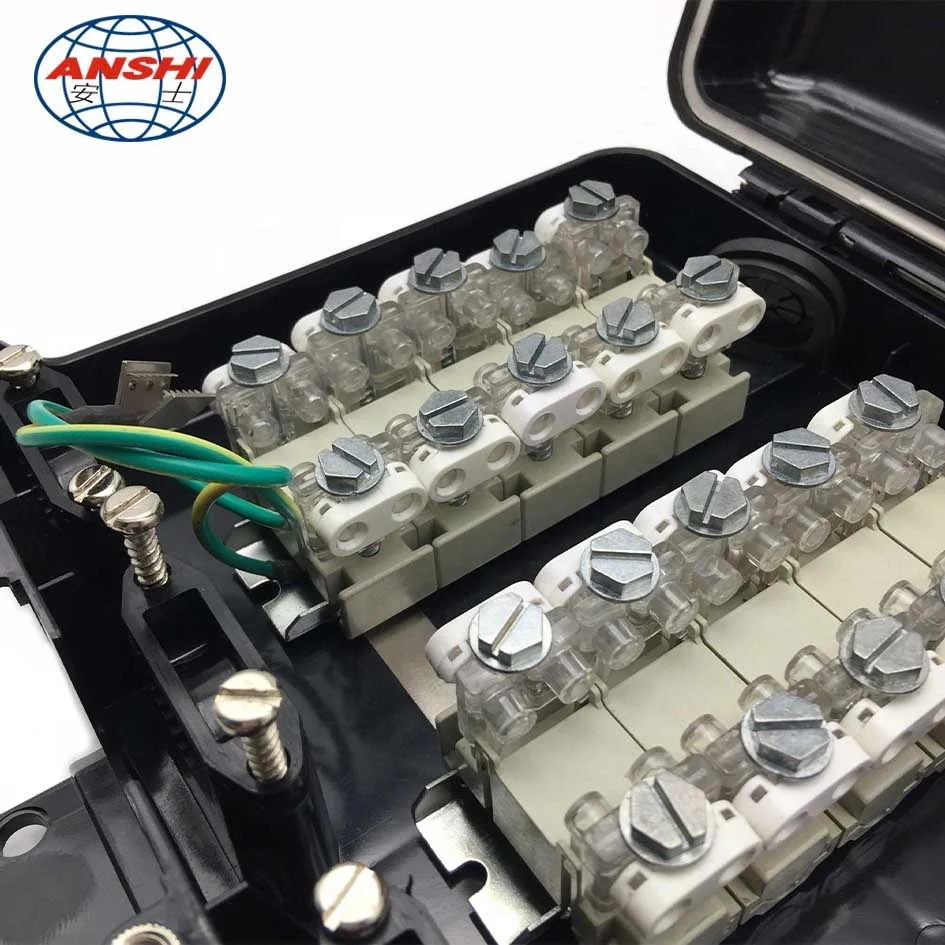

IDC type connections

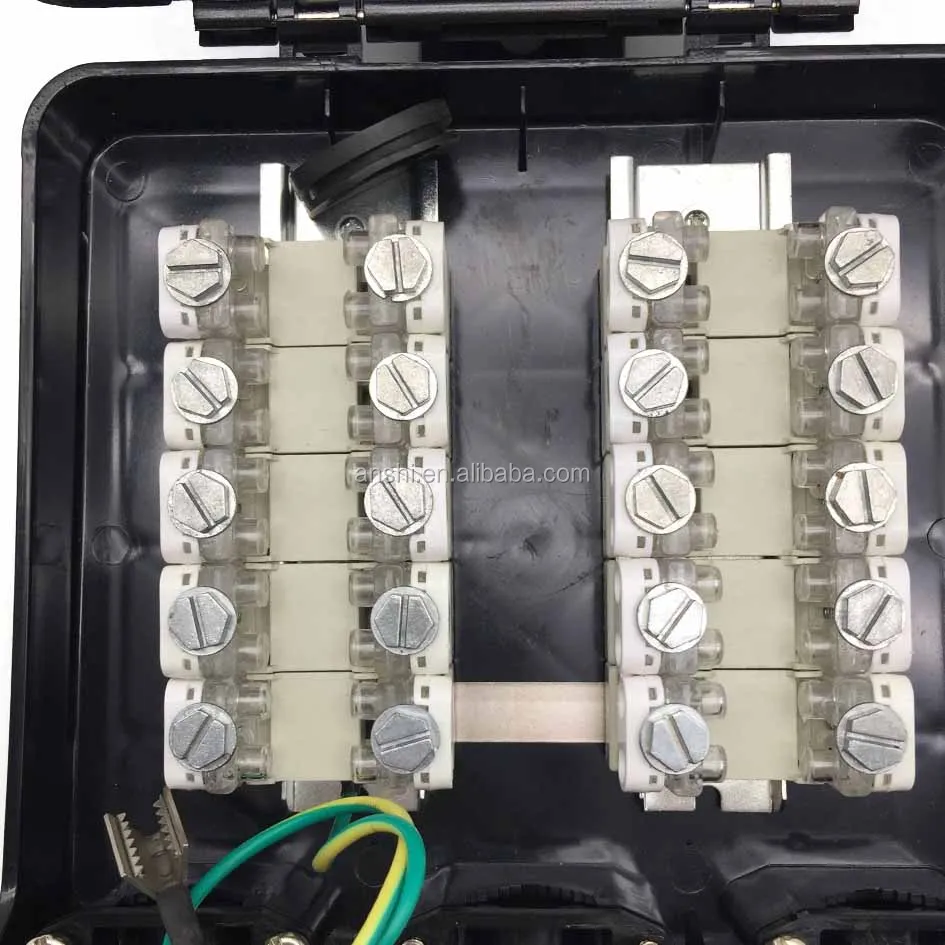

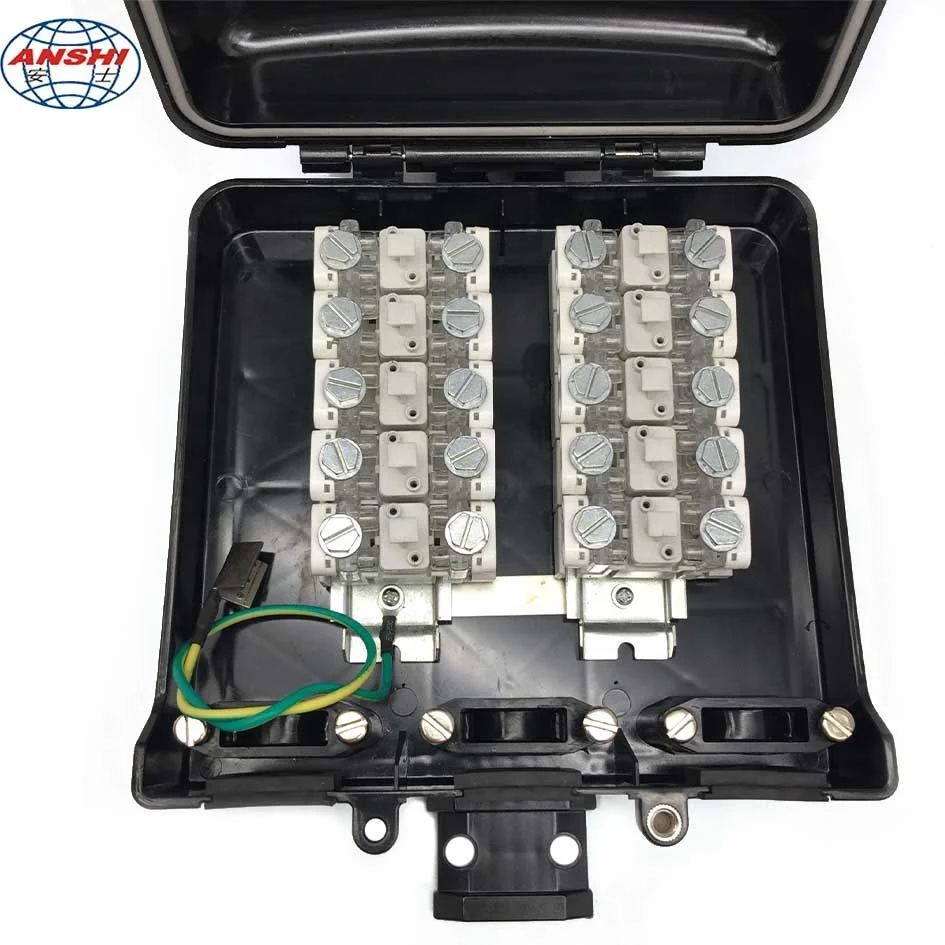

Subscriber Terminal Block

DISTRIBUTION BOX ANSHI
STB Connection Module
Connection Module
IDC type connection Box
Subscriber Terminal Block



ANSHI 10 Pairs Distribution Box for STB Connection Module
