RUIZHOU Shoemaking Pattern Cutting Machine Bag Digital CNC Equipment

Product Overview

Description





RUIZHOU Shoemaking Pattern Cutting Machine Bag Digital CNC Equipment

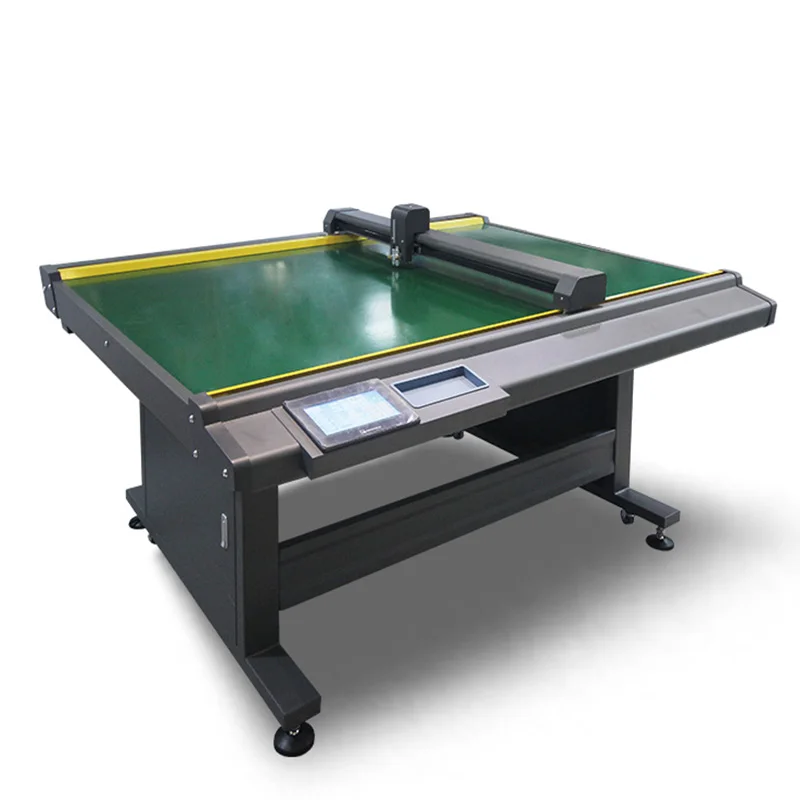

Ruizhou high-speed pattern cutting machine is specially developed cutting solution for footwear and garment industry. Introducing vacuum suction technology, it is able to create accurate footwear and garment patterns on standard pattern paper, cardboard, or PVC sheet.





Features:



•        Application of self-developed built-in digital control system, imported American CPU and precise electronic components reach the technologically leading level at home and abroad in stability and operability.


•        Joint use of imported linear tracks and synchronous belt in the machine makes the cutting precision up to the zero error of shuttle origin completely.


•        Touch control LCD display and digital control interface facilitate operation.


•        Standard I/O interface and HP-GL and GP-GL formats; cutting speed of 80-120cm/s.


•        Exceptional form-feed cutting function from the home-made cutting machine.


•        Connectible to random CAD software, it is widely used in such industries as apparel, shoe-making, suitcases, bags and lamps.



Technical Parameters:



Available Model	RZCUT-0906A	RZCUT-1209A	RZCUT-1509A	RZCUT-1512A
Cutting Area	900*600mm	1200*900mm	1500*900mm	1500*1200mm
Working Character	The computer operation and the machine work concurrently; the speed of data transmission is fast and it can be stored and re-used.
Cutting Materials	White paper board, Brown paper, Red hard paper board, Plastic board, Fiber middle & bottom board
Working Performance	Cutting Speed: 80-120cm/s (Max.)
	Cutting Thickness: 0.5 - 2mm
	Mechanical Resolution: 0.1mm

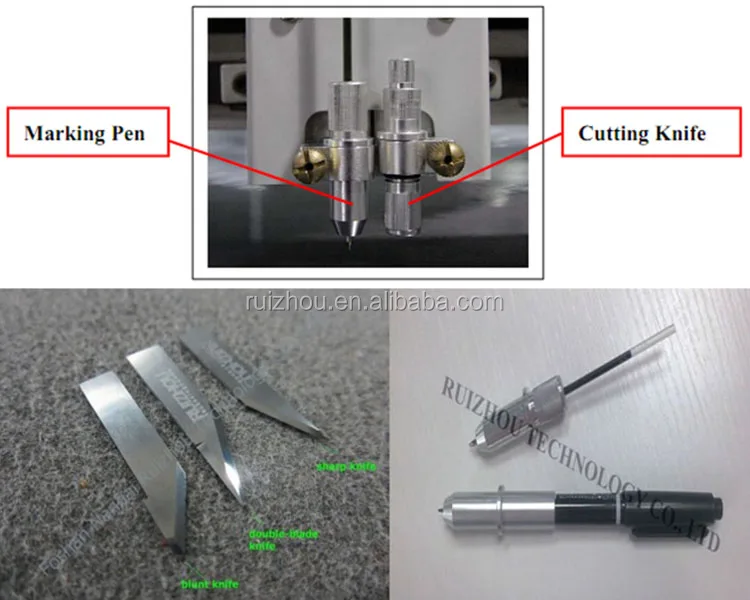

Pen Quantity	Eight kinds of different pen shape, setup of full and half blade
Applicable Pen Type	Common signing pen, Oil pen and ball-point pen
Mat. hold-down method	Vacuum Suction
Software Resolution	0.025mm, 0.01mm, 0.1mm optional
Command System	Standard parallel port or serial port
Transmission Interface	HP-GL and GP-GL compatible mode
Buffer Size	Form-feed cutting through once-and-for-all speed transmission
Control Panel	Touch control LCD display
Transmission Materials	Straight line guide track/Synchronous belt/Imported synchronous belt
Power Consumption	200W AC 220±10%,50HZ
Feeding Mode	Manual feeding/Auto-feeding
Specification of Fuse	6A
