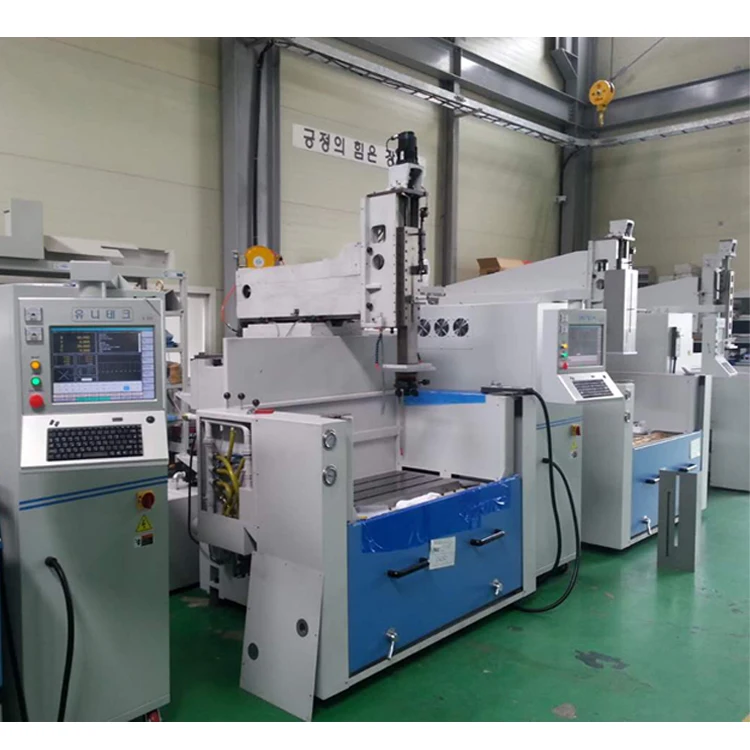

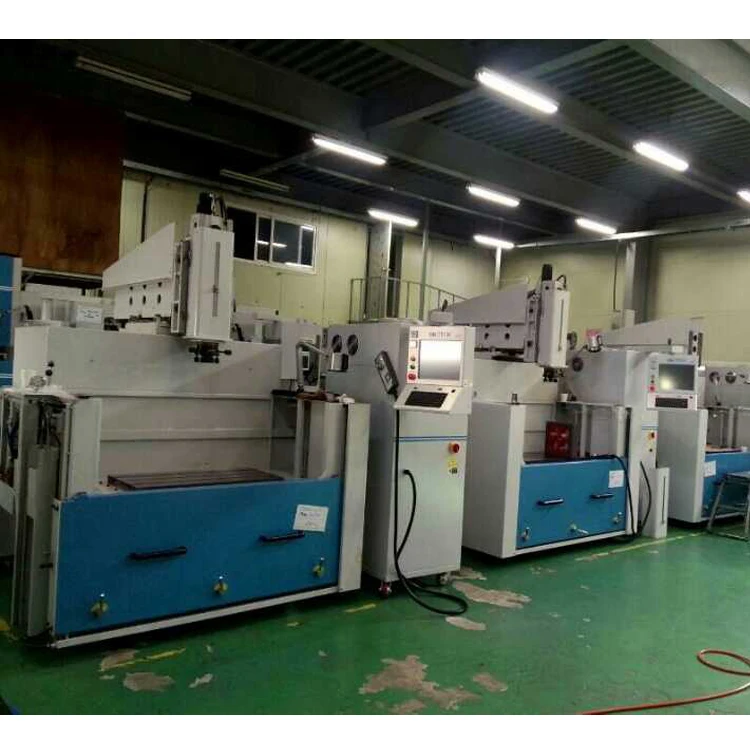

CNC-OX860 High precision automatic grade large machine tool CNC erosion machine
Machine Description
Machine Type
unit
CNC-OX860
Working table’s size
mm
1100X700
Travel(X,Y,Z)
mm
850X500(600)X450
The distance from the spindle under nose to working table
mm
500-950
Oil tank inside diameter dimension
mm
1900X1100X600
Size of oil box
mm
2-2000X1250X550
Maximum electrode weight
mm
200
Working table load
kg
3500
Machine weight
kg
5000
Product Description
1.It is fit for processing all sorts of metal materials dies and cavity dies of special shape parts. 2.Machine tool's 3 axis adopt the movement of double nuts ball screw by preloading. 3.The load weight capacity of table is big.It is applied to process large size molds of automotive ,home appliances,etc. 4.Installing the DC servo electrical motor and digital feedback of raster ruler can ensure high transmission precision and low driving torque. 5.Direct current servo system matched corresponding control system may accomplish the self-adapting machining. 6.Machine tools adopt fixed workbench design, machining accuracy may not influenced by workbench's loading. 7.X, Y axles' move adopt pillow style structure. 8. Gliding of two axles use high accurate line rolling guide and ball bearing wind of perch transmission. 9.So owns advantages like travel route big, rigidity good, coefficient of friction small, adapting to big, medium size mold's elaboration. 10.Z axle's bottom is loaded with a T type groove electrode connection board. 11.It can install large-scale electrode directly, also fitting for all sorts of tools to satisfy many kinds of small-typed electricity polar's installment. 12.Working tank's effective volume may reach 853 liters of work's oil box gross. 13.Demonstrated capacity can reach 1345 liters. 14.Ensuring actuating medium's clear rate with filtrate device. 15.The machine applies to large and medium-sized processing mechanical parts and complex mold manufacturing.
In addition to the features of CNC-OX-640, another features are as following: 1.With functions of boring optional shapes including circle,square,furcation,cross and hexagon.This makes process of orbital and electro discharge on its side is possible. 2.Automatic positioning,find central point and multipoint machining.
Company Information
Our company is established in 2000year,located in Zhaxi Industry Park,Nantong,Jiangsu.We are the professional manufacturer of vertical machining center,cnc gantry milling machine,cnc engraving and milling,electrical discharge machine and so on.Our machines have been exported to Europe,America,Southeast Asia,Korea and many foreign countries.We also supply our machines to famous companies in our country such as Haier,Midea group(Handan,Wuhan the major industry group and others,all use our machines,and our machine is one of reserved brand in tender,another brand is JDPaint).we also are the OEM manufacturer of some companies in Hongkong,Taiwan and other famous companies in our country.
Our Services
Custom first,Quality first is our company development direction. We make use of our powerful research and development ability to help customers to design special purpose machine tool in low price,englarge range of products,and improve the use efficiency of customers.
