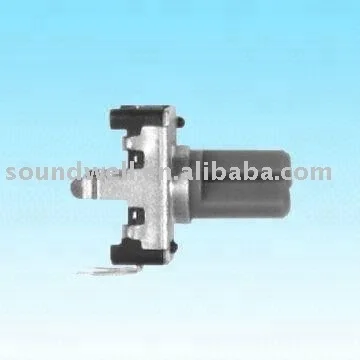

12mm EC12 Insulated rotary shaft encoder EC1211 02 X2D HA1
- Category: >>>
- Supplier: Soundwell Electronic Products Guangdong Co. Ltd.
Share on (210373892):
Product Overview
Description
Rotary Encoder Model | EC12 series |
Number of detent | 12/18/24/30 |
Pulses | 12/15/18 |
Rotational life | 30,000 cycles Min |
Working temperature | -40℃~85℃ |
EC12 Push Button Switch Rotary Encoder Main Specifications
Dimensions | 12.5mm | ||||||
Rated power | DC 5V | ||||||
Number of detent | 12/18/24/30 | ||||||
Pulses | 12/15/18 | ||||||
Working temperature | -40℃~85℃ | ||||||
Rotational life | 30,000 cycles Min | ||||||
Push operating life | 20,000 cycles Min | ||||||
Applications | Automotive electronics, professional audio, household appliances and other related electronic devices. | ||||||
Product Features | Small size encoder with highly reliable performance; Insulated shaft with push-on switch options; Available in many different variants. | ||||||
Functions | Frequency modulation, volume adjustment, temperature adjustment, function selection, etc. | ||||||
EC12 Push Button Switch Rotary Encoder Specifications
One、MECHANICAL CHARACTERISTIC
1. Rotational torque: 30-200gf.cm
2. Number of detent: 12/18/24/30
3.Switch circuit and number of pulse
4.Travel of switch: 0.5 ±0.3 mm
5.Operating force of switch: 450±200gf
6.Shaft wobble (mm p-p): 1.0 x L / 30mm p-p
Two、ELECTRICAL CHARACTERISTIC
1. Resolution: 12/15/18 pulses/360°
2. Phase difference: ≥4ms
3. Power rating: DC 5V
4. Insulation resistance: 10MΩ 1 Minute at DC 50V
5. Dielectric voltage: 1 Minute at AC 50V
Three、ENDURANCE CHARACTERISTIC
Three、ENDURANCE CHARACTERISTIC
1. Rotational life : 30,000 cycles Min
2. Push operating life: 20,000 cycles Min
Note: In this catalog, if some parameters or drawings are different from the "Approval sheet", it's subject to the "Approval sheet".
