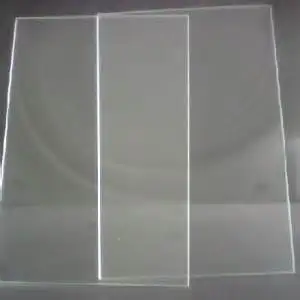

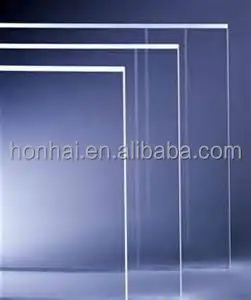

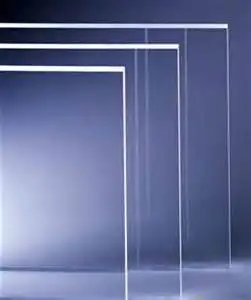

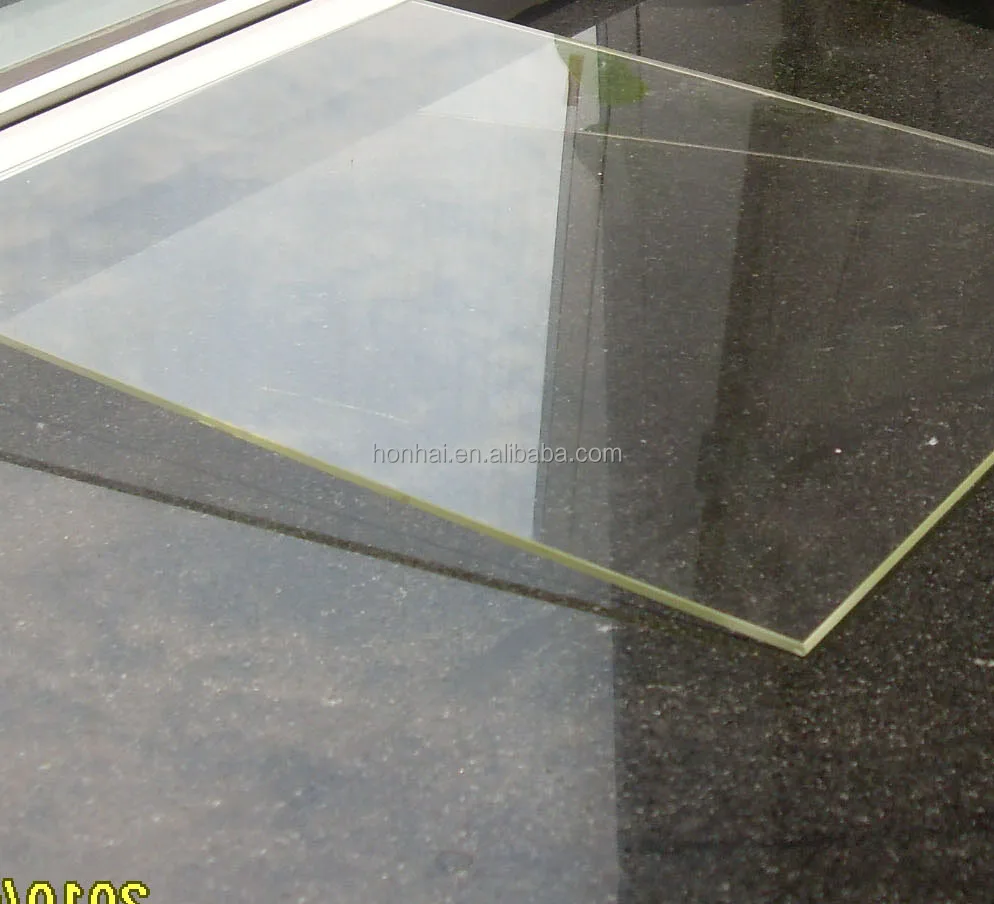

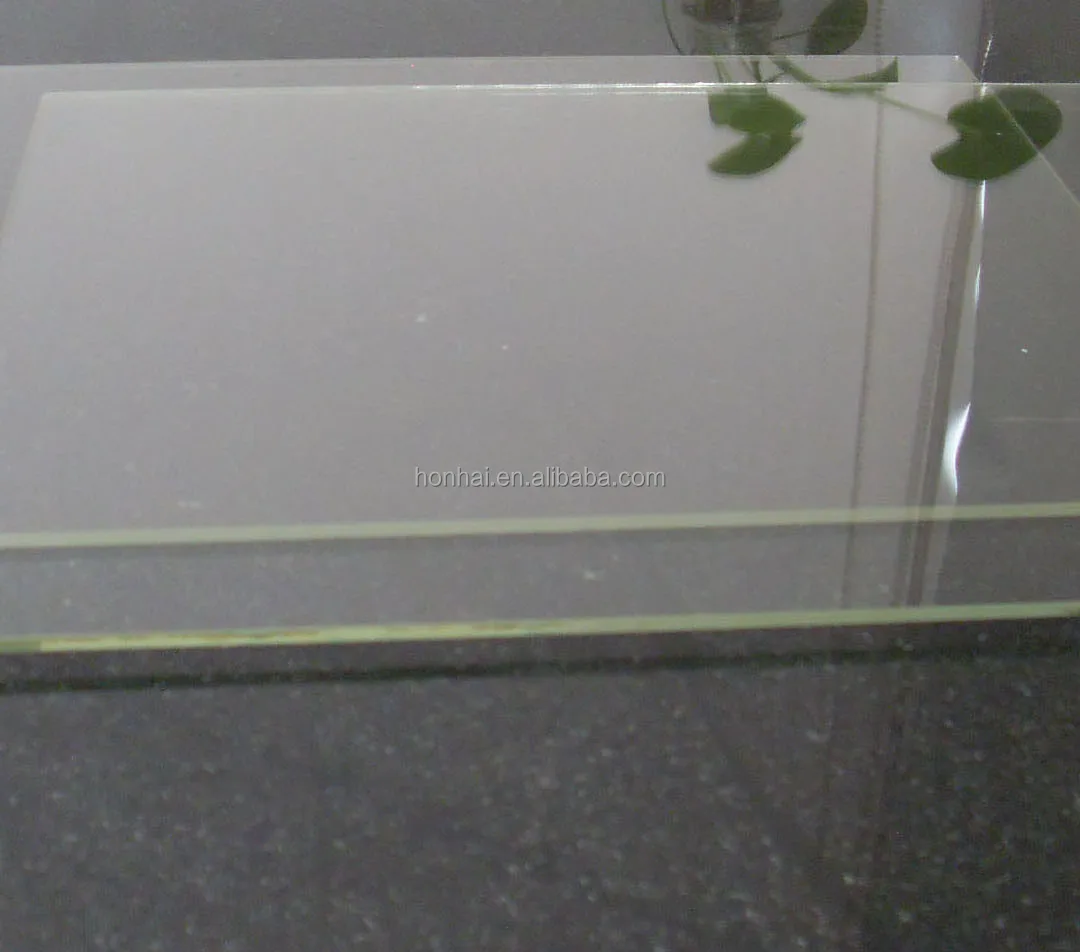

5mm heat resistant borosilicate 3.3 float glass for fireplace

Product Overview

Description

  4mm versatile quality heat resistant borosilicate 3.3 float glass

Borosilicate 3.3 serves as a material of truly functional and wide applications:

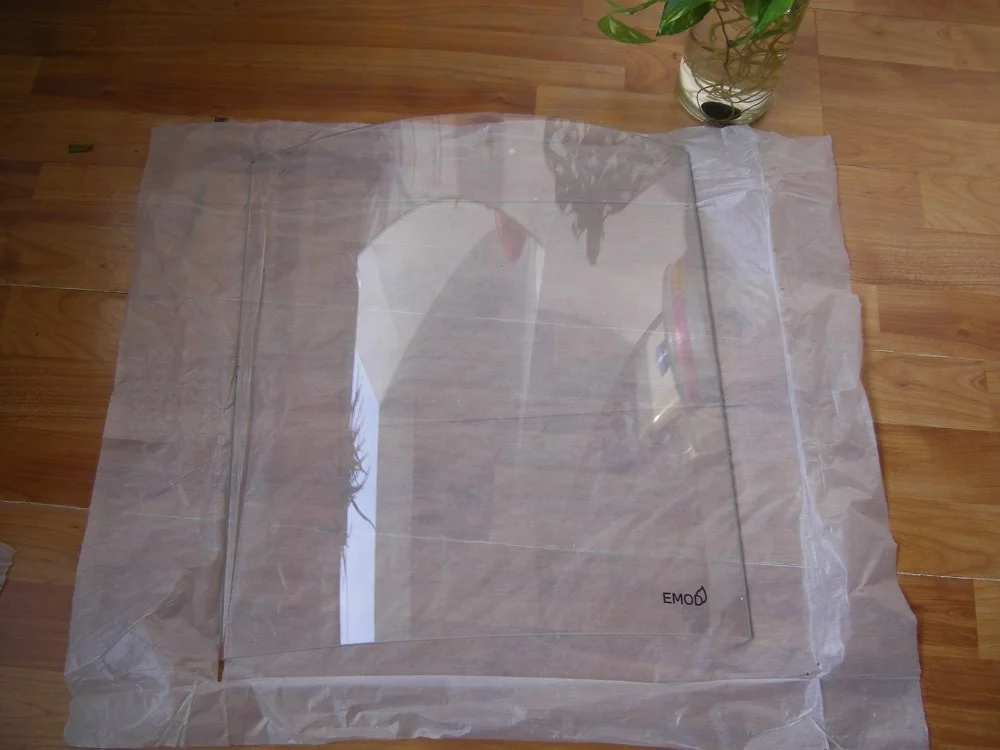

1).  Household electrical appliance (panel for oven and fireplace, microwave tray etc.);
2).  Environmental engineering and chemical engineering (Lining layer of repellence, autoclave of chemical reaction and safety spectacles);
3). Lighting (spotlight and protective glass for jumbo power of floodlight);
4). Power regeneration by solar energy (solar cell base plate);
5). Fine instruments (optical filter);
6). Semi-conductor technology (LCD disc, display glass);
7). Iatrology and bio-engineering;
8). Safety protection (bullet proof glass)



List of Thickness and Tolerance
Thickness mm Tolerance mm Thickness mm Tolerance mm
1.50            ±0.20       4.00         ±0.15
2.00            ±0.20       5.00         ±0.15
2.25            ±0.20       5.50         ±0.15
2.75            ±0.20       6.00         ±0.15
3.00            ±0.20       6.50         ±0.20
3.30            ±0.20       7.50         ±0.30
3.80            ±0.15       8.00         ±0.30

9.00            ±0.30       10.00        ±0.30
11.00           ±0.30       12.00        ±0.30

13.00           ±0.30       15.00        ±0.30

III. Performance of the Product

1).  Mechanical Performance
Density  ρ              2.23±0.02g/cm3
2). Thermodynamic Performance
Thermal expansion coefficient           (0-300) 3.3±0.1×10-6K-1
Softening point        820±10
Strain point        516±10
Caloricity (20-100) 0.82KJ × (kg×K)-1
Thermal coefficient        1.2W×m×K-1
Thermal shock resistance 180K
Strengthening type 300K
Identical temperature difference 100K
Strengthening type 300 K
Maximum working temperature Short time(<10h): 500
 Long time(>10h): 450
 3).  Chemical Performance
 Water resistance                      ISO719/DIN12111 HGB1/ISO720 HGA1
Acid resistance ISO1776/DIN12116 1
Alkali resistance ISO695/DIN52322 A2
4). Optical Property
Refractive index Nd: 1.47384
Transmittance spectrum curve

5). Electrical Property
Specific resistance lgρ 8.0Ω×cm at 250
Dielectric dissipation fraction tan σ (1 megacycle at 20): 38×10-4
Dielectric constant ε=4.7





IV. Means of Processing for Customers
Cutting
 Round corner
 Round edge
 Surface fine polishing

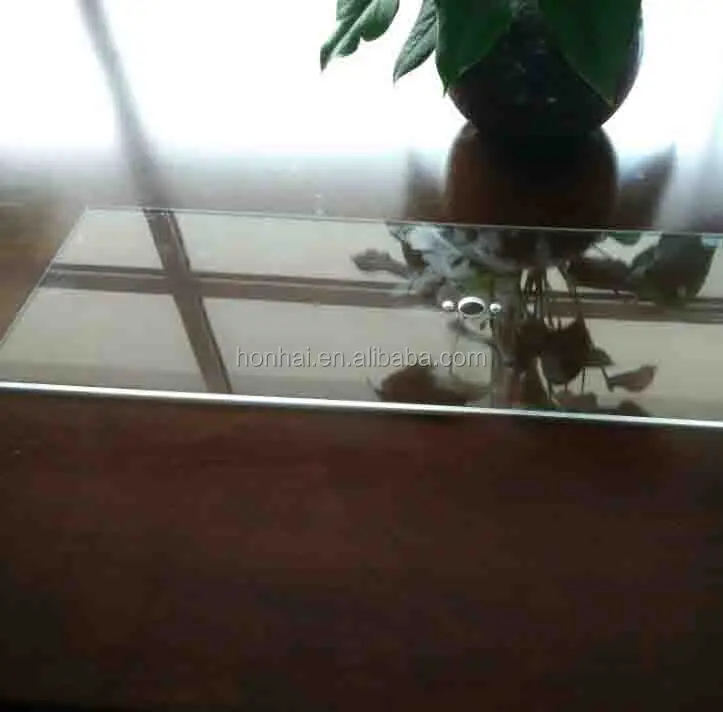

 Hole drilling
 Coating

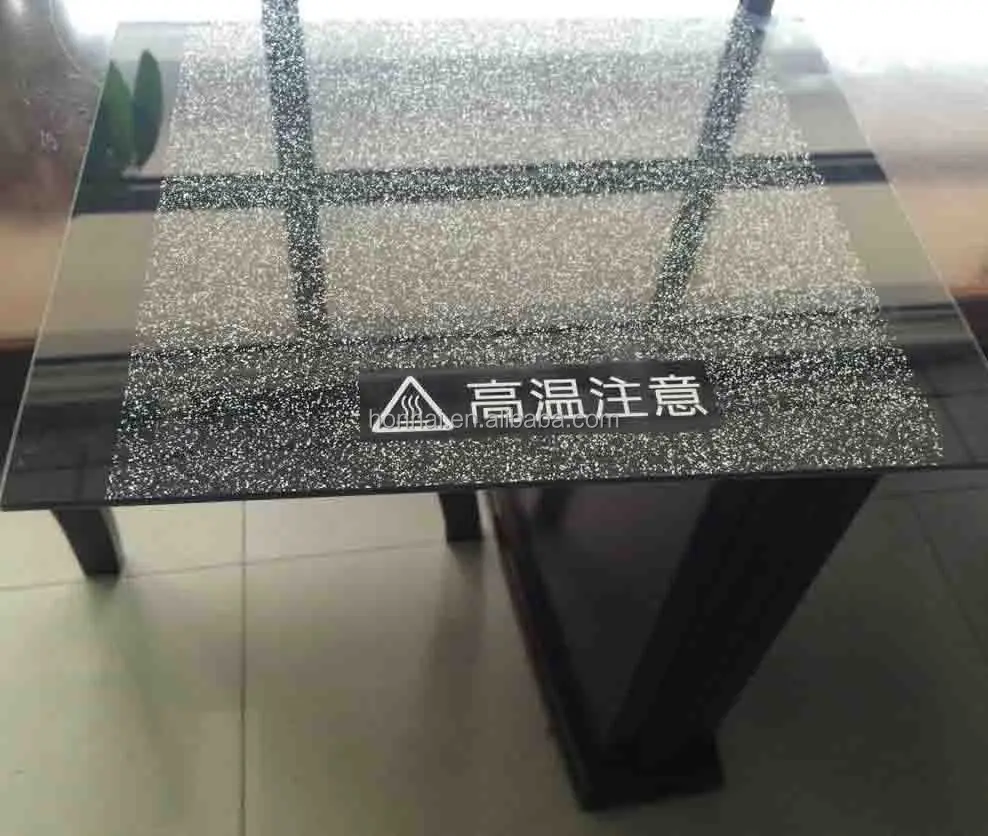

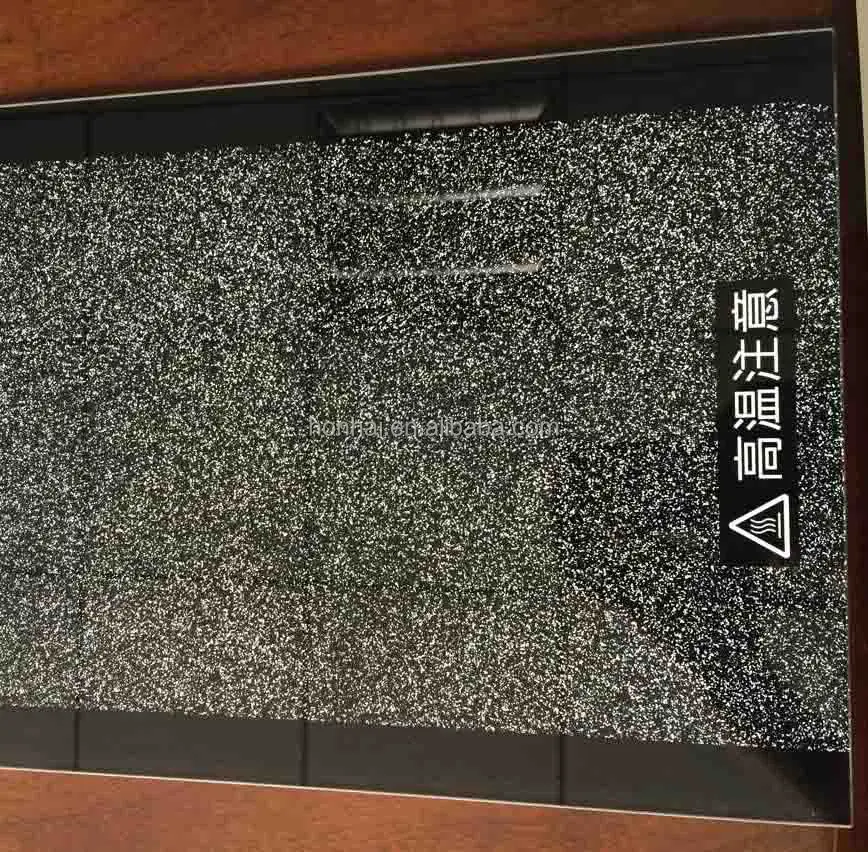

 Surface printing and sand blasting

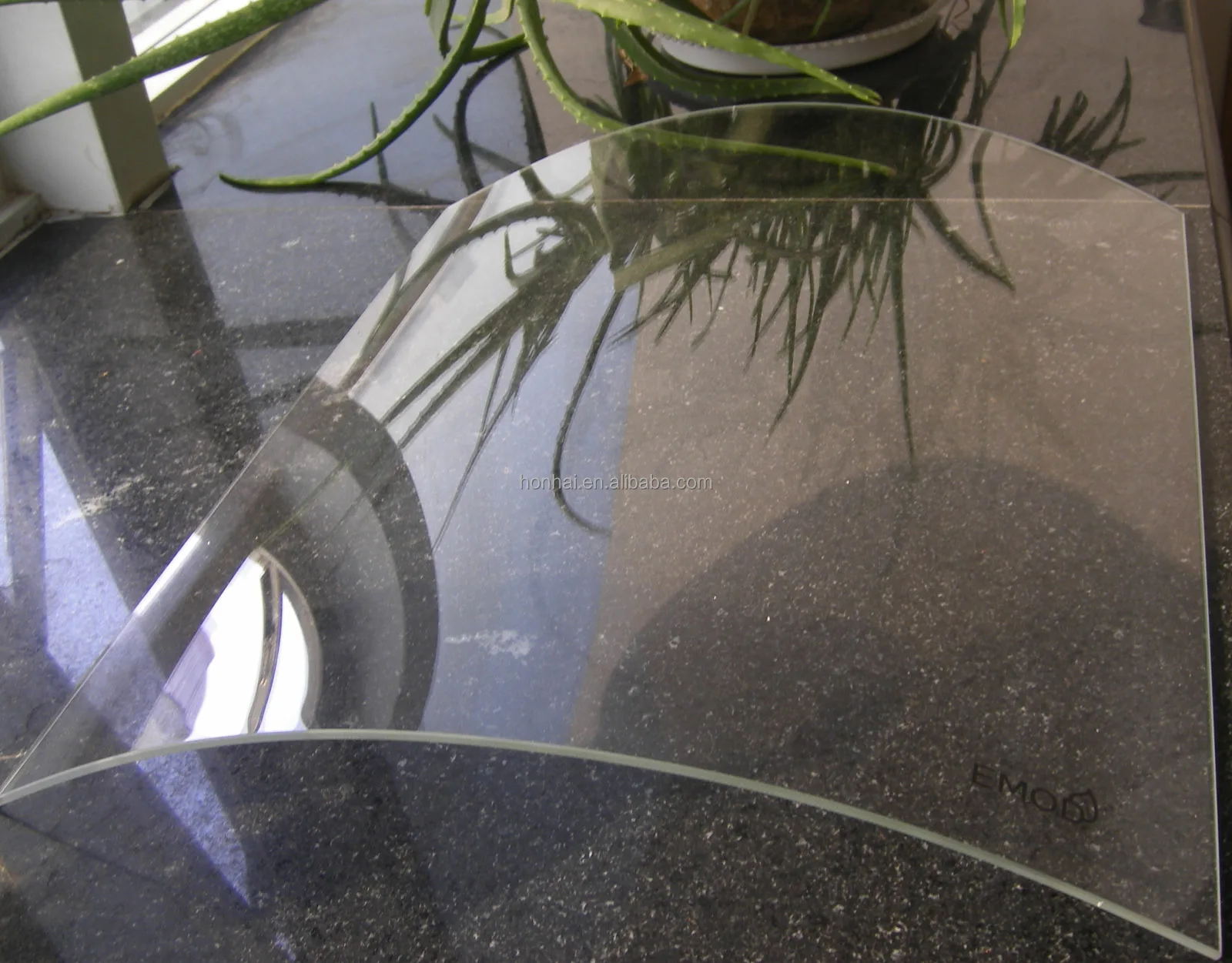

 Thermal bending
