shearing machine for fur, blanket, woolen

Product Overview

Description

Application:

The machine is mainly used in shearing curlshairiness or thread end on the surface of weavingknittingtowel fabricloop fabric and decorating fabric, and also used in surface shearing of woolen and worst fabrics.

Feature:

1.Controlled by man-machine conversation and PLC, the speed of shearing cylinder and fabric are adjusted by inverters.

2.Adopted the replacing cutting table (patent) to effect the optimal control for different fabric. 3.The shearing cylinder lift up by pneumatic to facilitate the mainte- nance of shearing blade. 4.Adopted seam detector, when it detects seam, the machine will electric alarm, and use a triangular cutter platform to pass the seam.

5.Lubrication of shearing cylinder is Automatic(optional).

Main technical data:

 Item                                                                                Data

Nominal width  (mm)                                               2600        3200         3600

Fabric speed (m/min)                                                    7-35 variable

Shearing cylinder diameter (mm)                                          183

Number of spiral                                                                   24

Rotation rate of shearing cylinder (r/min)                         250-1200 variable

Max. shearing height(mm)                                                     20

Motor power(Not include dust exhaustor)  (kw)                       13.7

Air pressure (PA)                                                         5x105(5kgf/cm2)

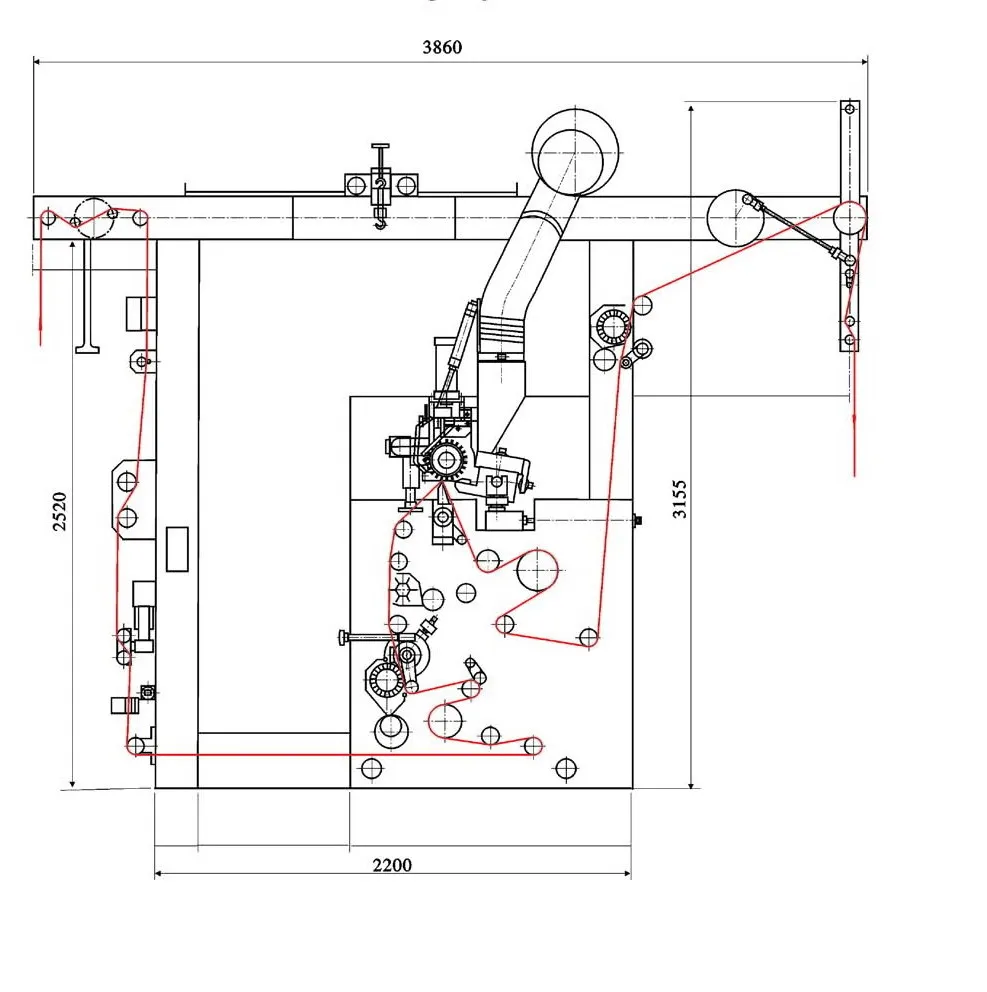

Overall dimensions  (mm)                                         3860x4880(5480/5880)x3155

Machine weight                                                      5000        5500          6500
