Hydraulic Hand Pallet Truck AC series

Product Overview

Description

Product Description

•Single valve cartridge for easy maintenance.

•Rubber coated handle comfortable even under extreme temperature conditions.

•Fully sealed galvanized hydraulic unit housing. Single valve cartridge for easy maintenance.

•Powder coated chassis made of high grade steel.

•Lead-in and lead-out rollers reduce damage to pallets.

•World class quality with 3 years warranty pump.







Model		AC20S	AC20L	AC25S	AC25L	AC30S	AC30L
Capacity	(kg)	2000	2000	2500	2500	3000	3000
Lifting Height	(mm)	115
Min. Fork Height	(mm)	85(or 75)
Max. Fork Height	(mm)	200(190)
Fork Lenght	(mm)	1150	1220	1150	1220	1150	1220
Overall Width	(mm)	540	685	540	685	540	685
Fork width	(mm)	160

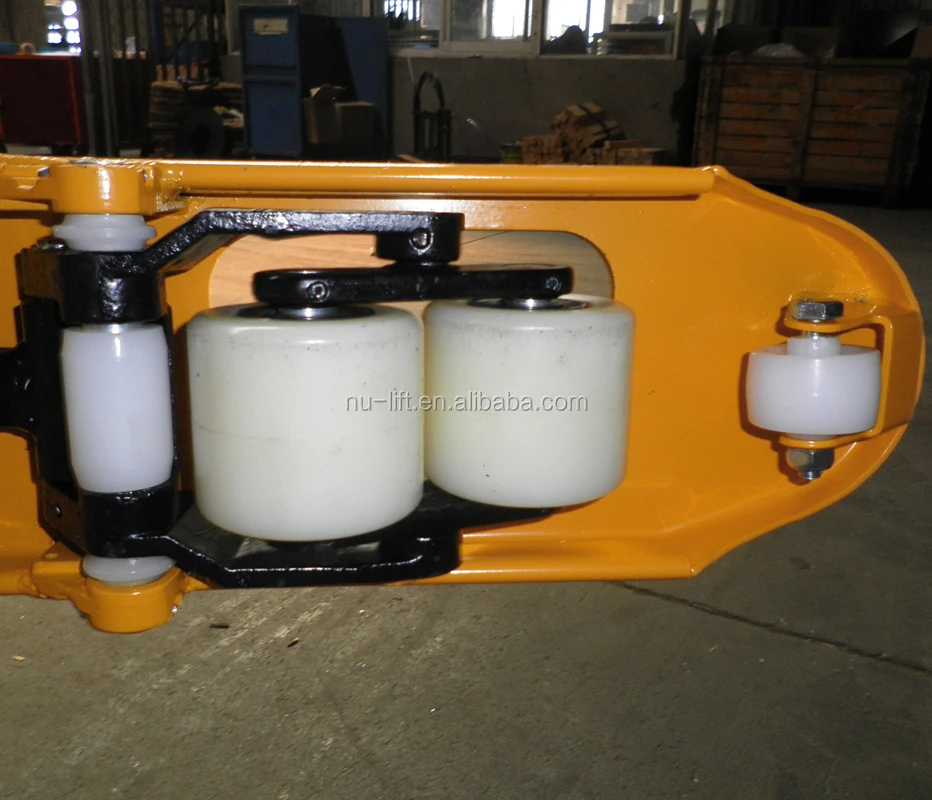

Load Roller	(mm)	Tandem 82x70, Single 82x93, Nylon, Polyurethane
Steering Wheel	(mm)	200x50(Nylon, polyurethane or Rubber)
Net Weight	(kg)	80	83	82	85	85	87



Special fork length available, 800mm, 950mm, 1000mm, 1500mm, 2000mm
