Brazed Plate Heat Exchanger
- Category: >>>
- Supplier: Ningbo Hrale Plate Heat Exchanger Co. Ltd.
Share on (212188517):
Product Overview
Description
VR
Products Description

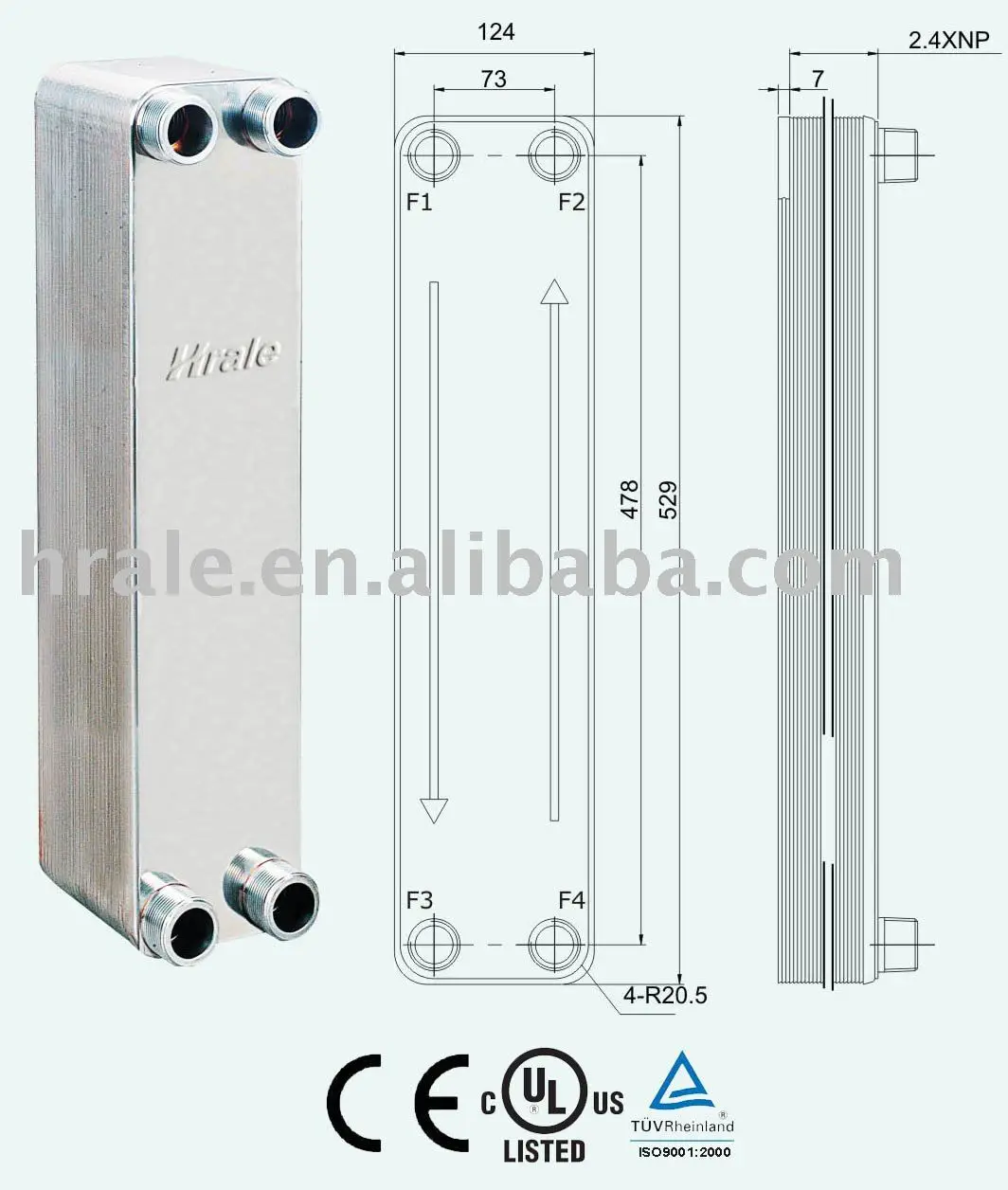

Product model | B3-60A |
Unit heat exchanging area | 0.060m2 |
Maximum Flowrate | 22m3/h |
Plate material | 316L or 304 stainless steel |
Welding material | 99.9% copper |
Thickness of plate | 0.4mm |
Volume per channel | 0.111L |
Maximum number of plate | 120 |
Design pressure | 3.0MPa or 4.5MPa |
Test pressure | 4.5MPa or 6.0MPa |
Design temperature | -195 ~+220 |
Connections | the biggest screw threads pipe for water: 5/4", the biggest welded pipe for other fluid : 15/8" |
Refrigeration Capacity | 10-70KW |
Basic Procedures | F1-> F3 F4-> F2 |
Application scope | Heaing Industry, Heat Pump, Cetral Air-conditioning, Refrigeration Equipment, Industrial water cooler, oil cooler, etc. |
