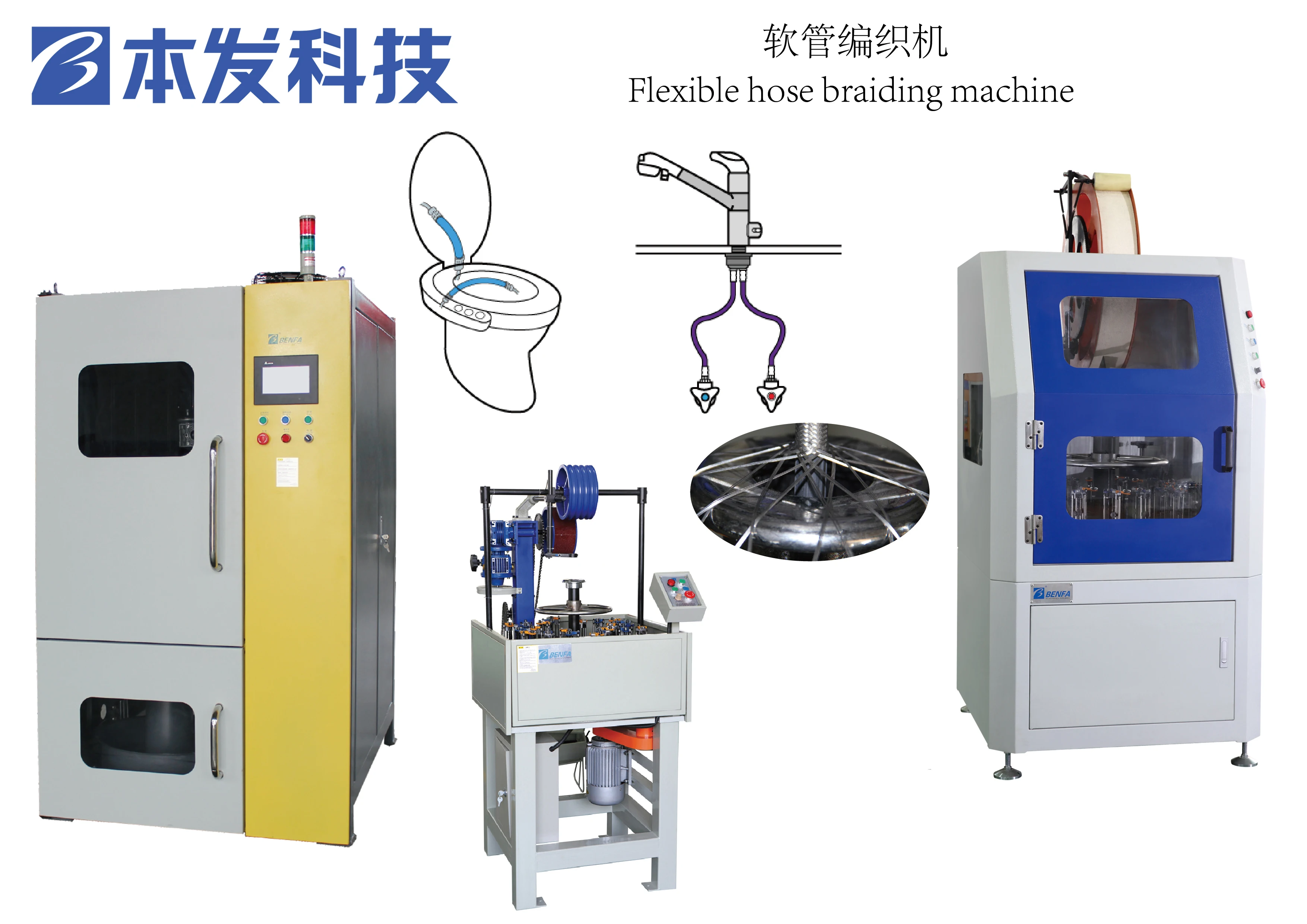

BenFa High Speed Polyester Yarn Braiding Machine

Application

• Shielding for wire and cable products

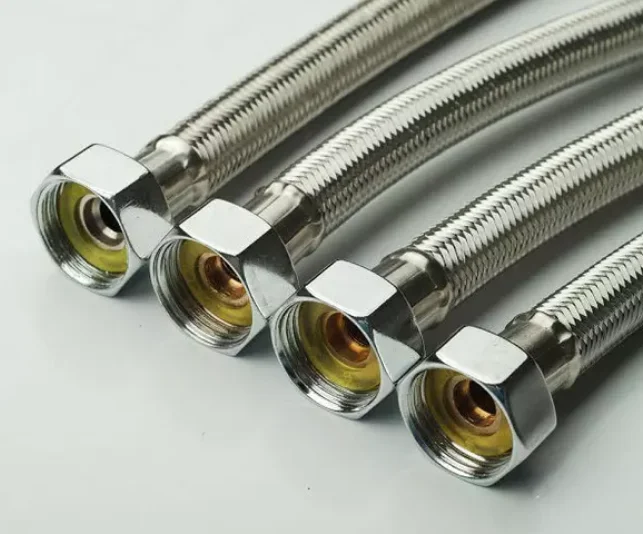

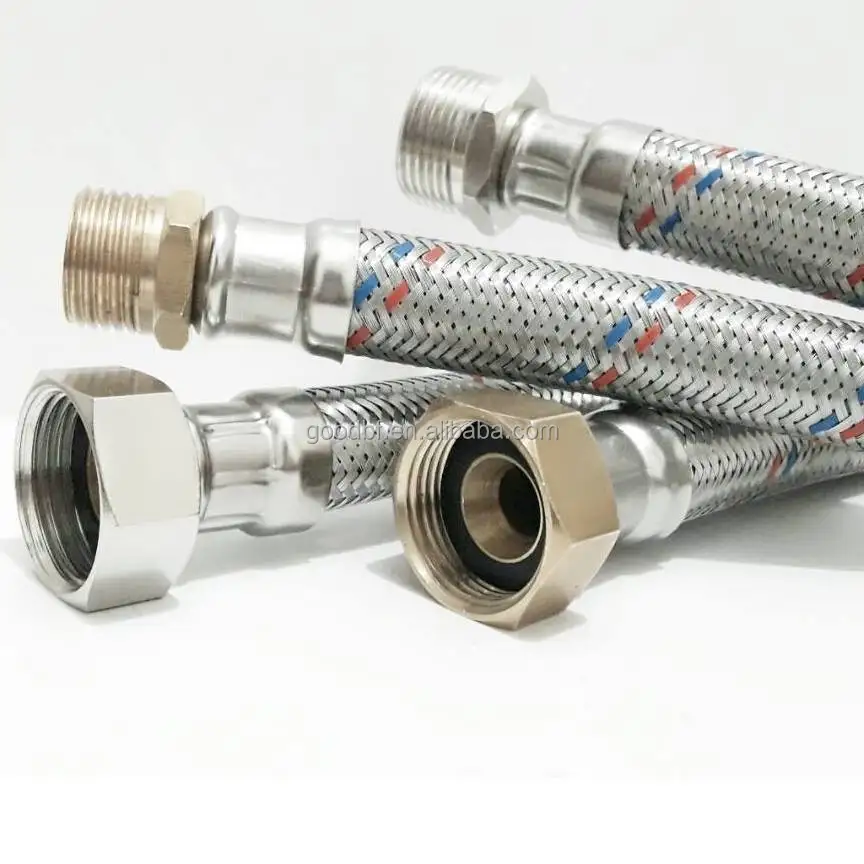

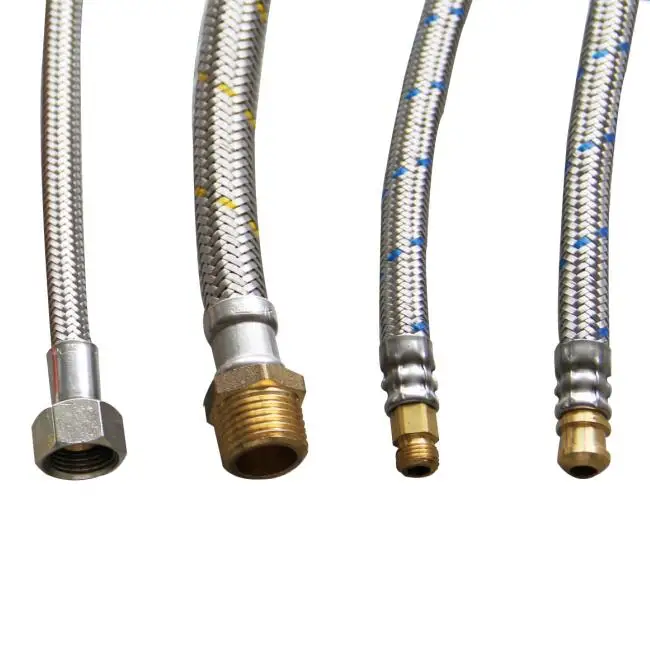

• Sanitary hose  (Plumbing hose) product


• Teflon hose


• Low pressure hose and high pressure hose


• Irony steam hose


• Refrigerating fluid charge hose


• Hydraulic hose

Braiding Material :

• Stainless steel wire  (0.10-0.35mm)


• Nylon wire


• Alumium wire (0.15-0.30mm)


• Carbon steel


• Polyester yarn


• Cotton yarn


• Aramid fiber

Technical Features

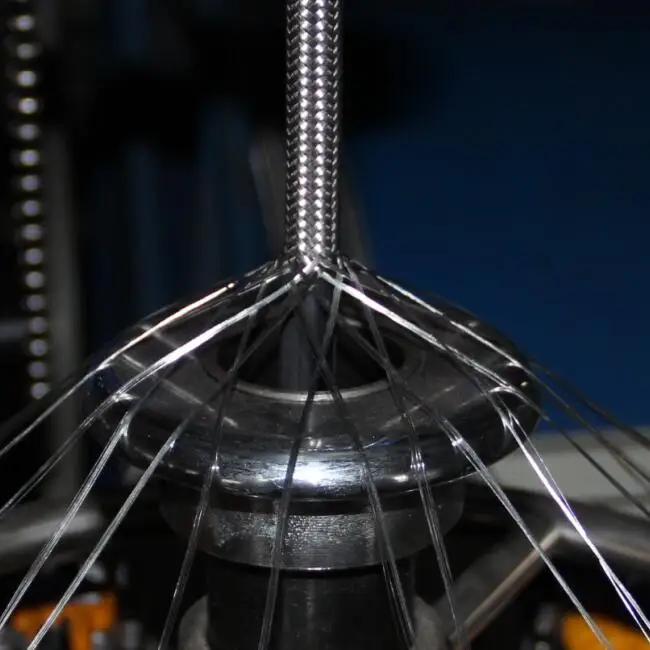

• Core centralizing unit


• Individual carrier tension control


• Operating speeds:




• 16 Carrier 55 rpm


• 24 Carrier 50 rpm


• 36 Carrier 36 rpm


• 48 Carrier 20 rpm




• Gear driven take-off for accurate  control


• Braid patterns (2 over 2, and 1 over 1)


• Inverter motor drive for controlled acceleration and deceleration


• Adjustable traverse mechanism to accommodate reel variation


• Digital production counter


• Options

• Empty bobbin detector


• Central lubrication system (recommended)


• Enhanced Sound Enclosure


• Keel lubricator (recommended)


• Advance display, variable speed


• Longitudinal tape applicator


• Motor driven capstan(speed reducer capstan )


• Single deck( Double Deck) Braiding System

Technical Specifications
