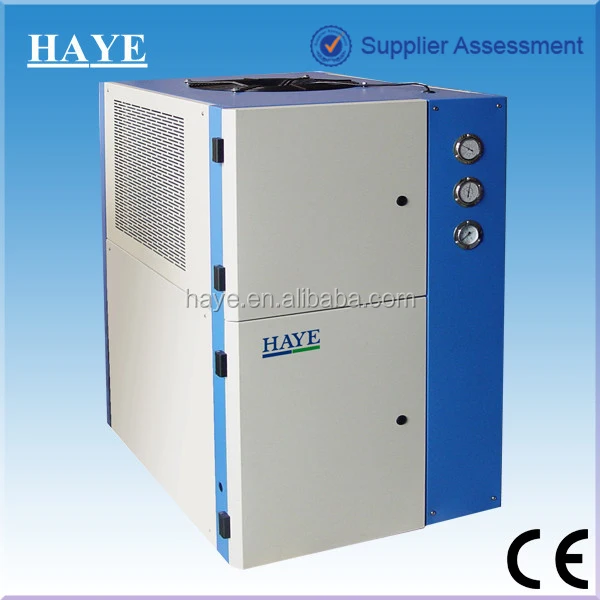

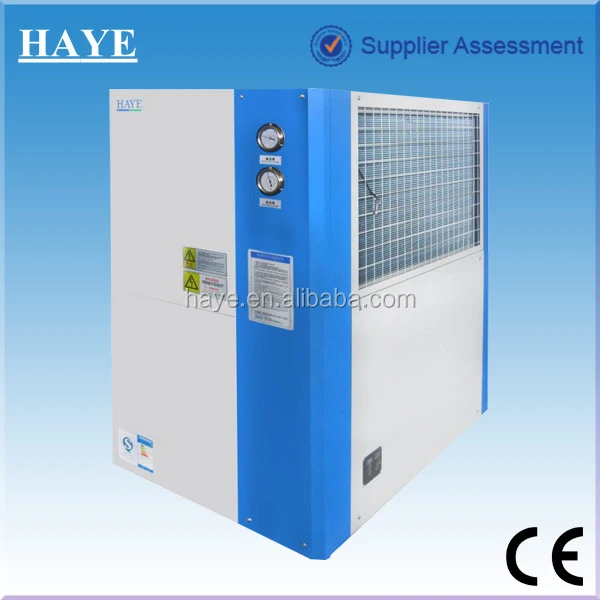

Glycol chiller/Industrial air cooled packaged water chiller

-- Unit features:

1. This serial unit appiles for Europe and America imported full-closed, low-noise, high-efficiency scroll compressor, imported digital thermostat.

2. Unit with one or two fefrigerating loop circuit, which can interchangeablely and independently run.

3. Perfect safety protection system and failure electronic signal assure that unit operates without damage and run safely.

4. Easy installation:Factory units have been completed in all of the components to install, run tests, and add frozen oil cooling agents, the user can be linked sea and circits can be put into use, a reduction of site installation and debugging time.

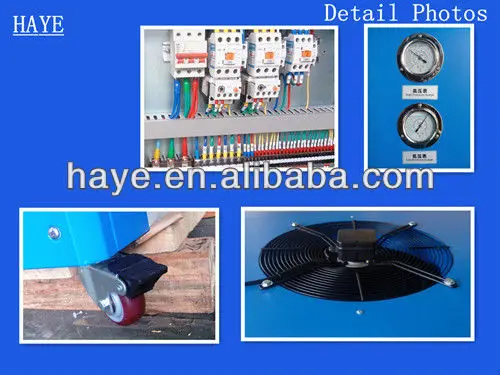

-- Detail Photos

<img src="//sc02.alicdn.com/kf/HTB19WrhlNuTBuNkHFNRq6A9qpXaa/200113298/HTB19WrhlNuTBuNkHFNRq6A9qpXaa.jpg" alt="2015 good quality chiller/Water Chiller/Industrial Water Chiller/Air Cooled Industrial Water Chiller" width="707" height="54" ori-width="707" ori-height="54">

1. Aboved mentioned cooling working condition:entering water temperature:12 °C, leaving water temperature:7°C

2. Unit safe wooking range: entering chilled water temperature: 9~20 °C .

3. Power supply: 380V/3N-50Hz, allowable voltage tolerance:±10 °C, allowable phase-between difference:±2 °C

-- Here is the parameter table of air cooled chiller (-5 °C)

Note:

1.Above mentioned cooling working condition: entering chiller water temperature:0°C, leaving chiller water temperature:-5°C, ambient temperature 35°C

2.This serial unit applies for low-temperature work condition, this must apply for 25% glycol antifreeze solution as refrgeration medium

3.Power supply:3N-380V-50HZ, allowable voltage toltage tolerance:±10%,allowable phase-between difference:±2%

4. 5.Host minus the actual head of the pump heagd inside the head loss.(1mH2O=9.8KPa)

-- Here is the parameter table of air cooled chiller (-15 °C)

Note:

1.Above mentioned cooling working condition: entering chiller water temperature:-10°C, leaving chiller water temperature:-15°C, ambient temperature -7~43°C

2.This serial unit applies for low-temperature work condition, this must apply for 40% glycol antifreeze solution as refrgeration medium

Here are air cooled chiller system flow chart:

All of our products are tested before leaving the test center.

This kind chiller is certificated with CE, CCC, ISO9001, ISO14001.

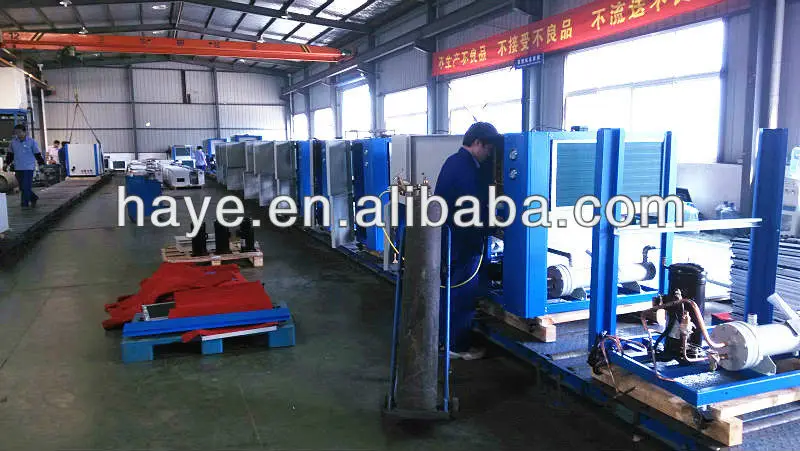

HAYE has two factories in China. (More than 80,000m²)
