Экскаватор погрузчик

Product Overview

Description

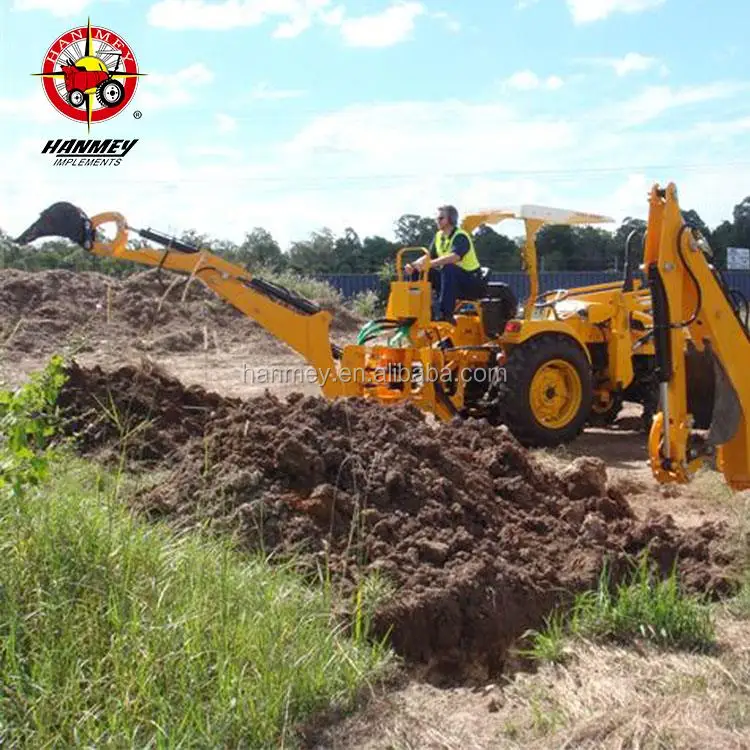

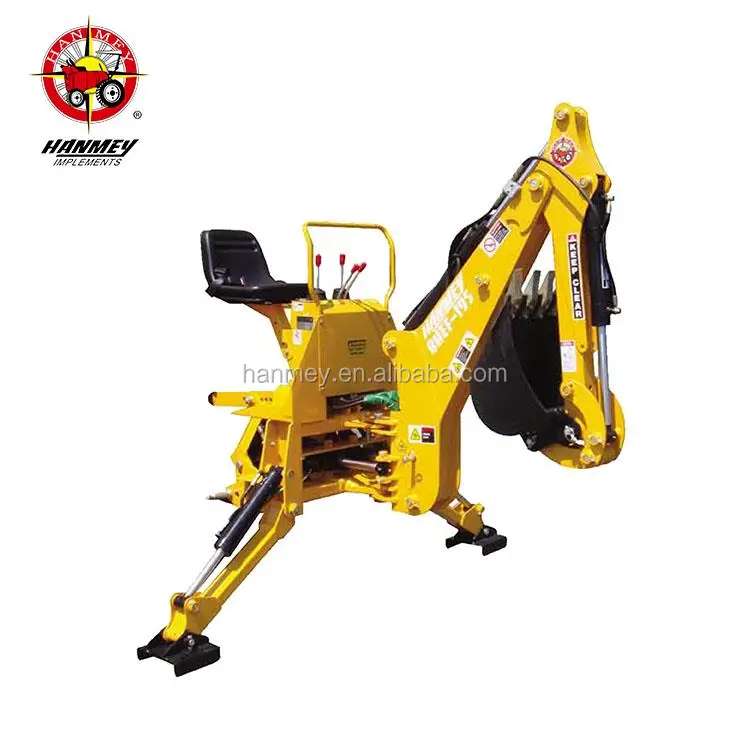

Hanmey Brand Backhoe, Model LW-6, LW-7, LW-8.



MODEL	LW-6	LW-7	LW-8
DIMENSIONS(L×W×H)	3800x2000x1680mm	4360x2000x1760mm	4980x2000x1760mm
STRUCTURE WEIGHT	600kg	650kg	700kg
MAX DIGGING DEPTH	1.85m	2.28m	2.64m
MAX DIGGING RADIUS	2.8m	3.3m	3.6m
MAX LIFT HEIGHT	2.5mm	3.2mm	3.5m
MAX UNLOADING HEIGHT	1.4m	1.76m	2.0m
STABILIZER WIDTH	2.0m	2.0m	2.0m
SWING ANGLE FOR BOOM	140°	140°	140°
BUCKET TURNNING ANGLE	160°	160°	160°
BUCKET CUBAGE	0.028m3	0.03m3	0.035m3
OPTIONAL:
BUCKET SIZE:  9"12"15"18"19"35.4".
SUB-FRAME TO BE FITTED WITH TRACTORS.
