17years factory price MUP High Quality 8pin switch sim card connector normally open 8pin amphenol automotive card socket

Product Overview

Description

 Hi, Dear friend, the price we set is for reference, the accurate price is based on your specific requirements, so please don't leave because the price directly.

if you have any requirements, contact with us, the product

you need and best price you want is waiting for you.

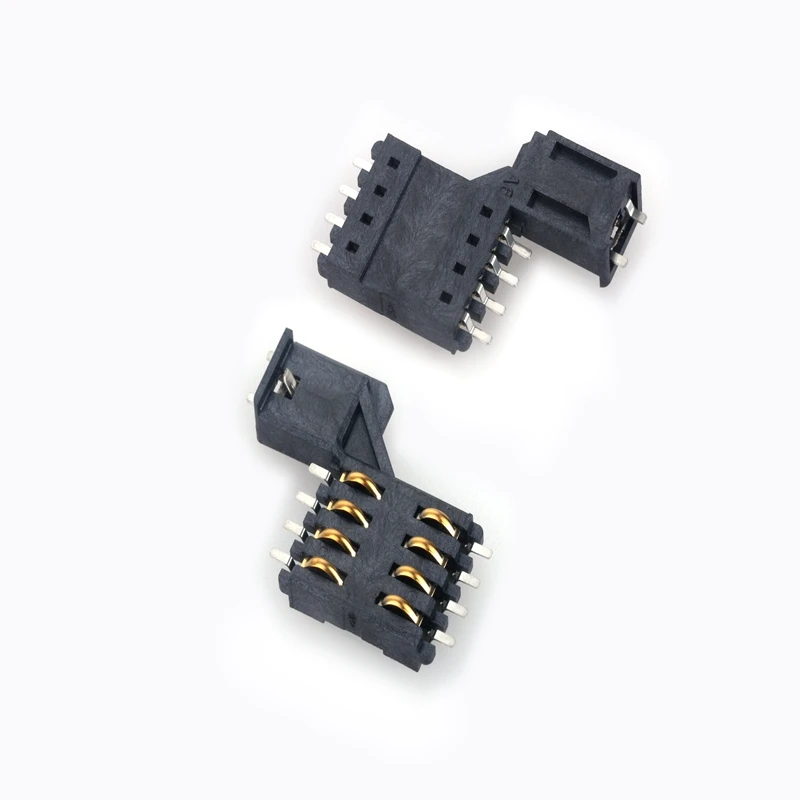

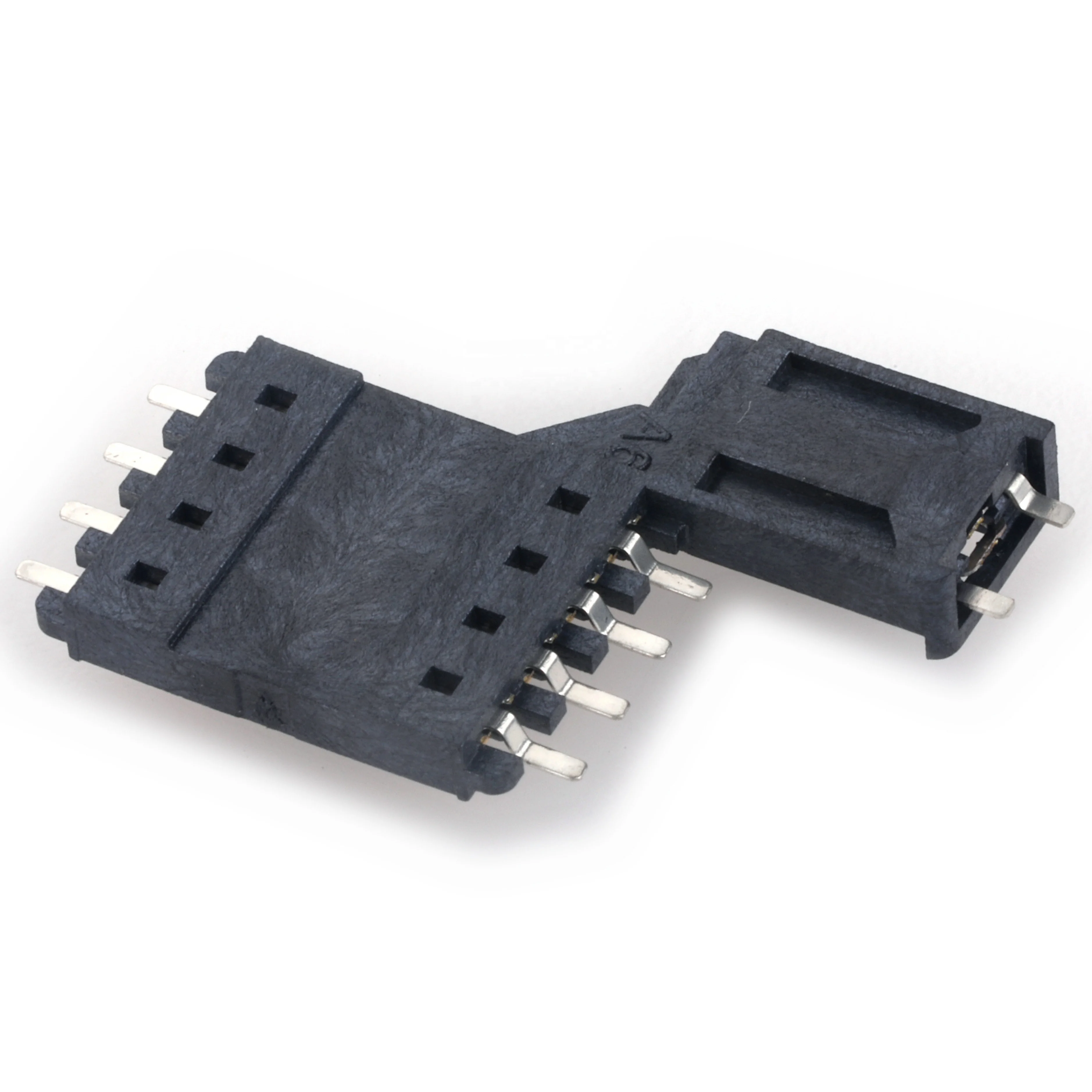

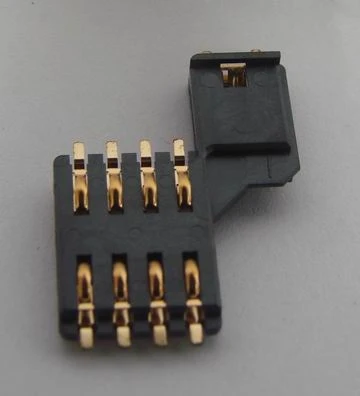

17years factory price MUP  High Quality  8pin+switch  sim card connector normally open 8pin amphenol automotive card socket

sim card connector 3d model







Product Description



1.General characteristics

   Dimensions:24.00L*18.75W*2.75Hmm

   Weight:1.0±0.2g

   Contact principle:Friction technology

   Operating position:shaft up/down/horizontal

   Mounting system:SMT(without post)

   Durability:5000 cycles min



2.Mechanical characteristics

   Insulation material:Thermoplastic,UL 94V-0



3.Electrical characteristics

   Number of contacts:6pins

   Contact resistance:50MΩ typical,1000 MΩ max

   Insulation resistance:>1000 MΩ/500V DC



4.Solderability

   Wave:not applicable

   Vaporphase:215^oC30sec Max

   IR reflow:230^oC,15sec Max

   Manual soldering:360^oC,3sec.Max



5.Environmental characteristics

  Operating temperature-40^oC +85^oC

  Operating humidity:10%≈+95%RH

  Storage temperature:-40^oC≈+85^oC

  Storage humidity:10%≈95%RH

  Thermal shock: -40^oC≈+85^oC,5cycles

  Damp Heat:40^oC,90%RH,10days

  Salt-mist:35^oC,5%Nacl,24H
