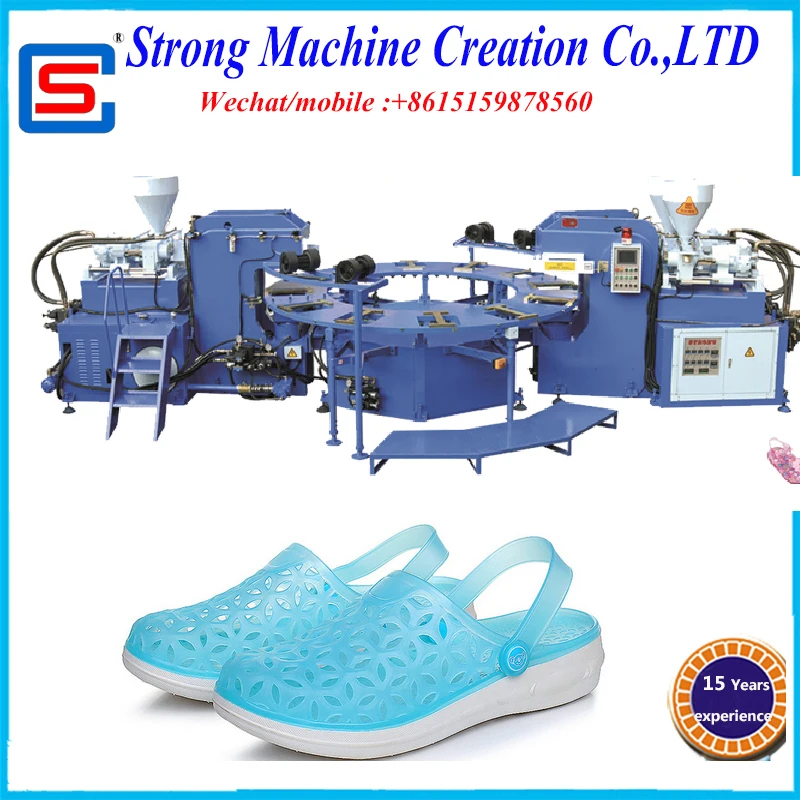

Automatic single color PVC Shoes footwear slipper soles Air Blowing Injection Moulding Machine

Product Overview

Description

Automatic single color PVC Shoes footwear slipper soles Air Blowing Injection Moulding Machine

1.This machine can produce high-resilience soft foaming pvc slipper and dip casual shoe and dip sport shoes.



2.Unique structure design has more capacity  for much bigger moulds, also equipped mould cooling device for operating simply and making products perfectly.



3.The major mechanical movements, such as injecting, feeding, disc-rotating, mould-clamping etc all controlled by programmable controller to make the movement more precise.



4.Equipped digital-type proportional controller to control mould-clamping,injecting, feeding pressure at the right time and  more accuracy.



5.Selecting servo energy conservation system  to save about 30% energy.





 Material: PVC/TPR

Work station:24 satation '

Mould -close pressure : 60Tons

Diameter of screw :65/70/75 MM

Max injection Capacity :690/800 g

 Injection pressure :140 kg/cm

Temperature control :4 sections

Heater of barral :6.9 kw Motor :25h*1HP

Total Electricity :26 kw

Machine dimension :7*3.65*3m

 weight :7.8 T
