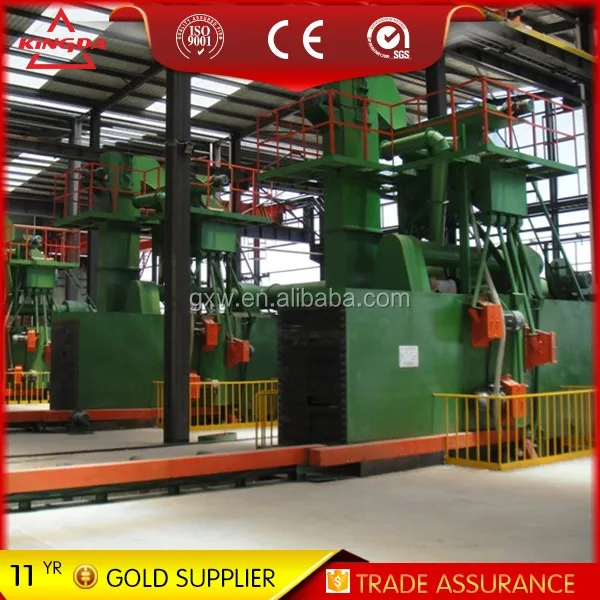

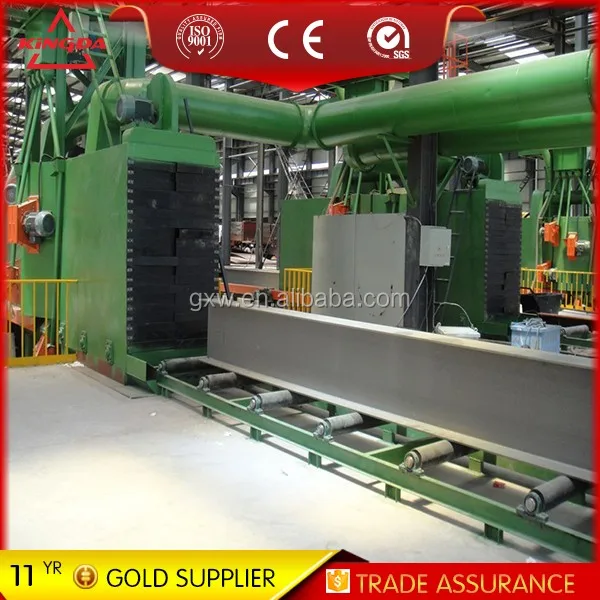

roller pass type shot blasting machine for welding structure steel profile and h beam

Product Overview

Description

  Machine introduction:

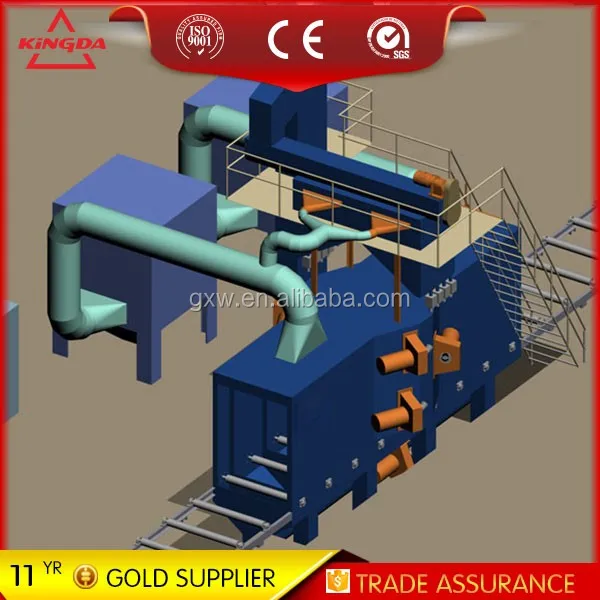

  Roller-type shot blasting machine  is consisted of the following units: Primary and secondary cleaning room, blaster, feeding system, shot-flowing pipe, elevator, separator, shot-feeding system, dust-removing system, electric control system etc.

 Some models:

modle		QH126	QH128	QH158	QH168	QH1810	QH2020
workpiece size	W*H mm	600×1200	800×1200	800×1500	800×1600	1000×1800	2000×2000
	L mm	≤15000
blasting turbine	capacity kg/min	6*250	6*250	8*250	8*250	10*250	12*280
	power  kw	6*11	6*11	8*11	8*11	10*11	12*15
elevator	capacity t/h	80		110		132	180
	power	5.5		7.5			11
work speedm/min		0.5~4
