DTM 321 thermometer HUMIDITY temperature data logger
- Category: >>>
- Supplier: TECPEL CO. LTD.
Share on (215764162):
Product Overview
Description

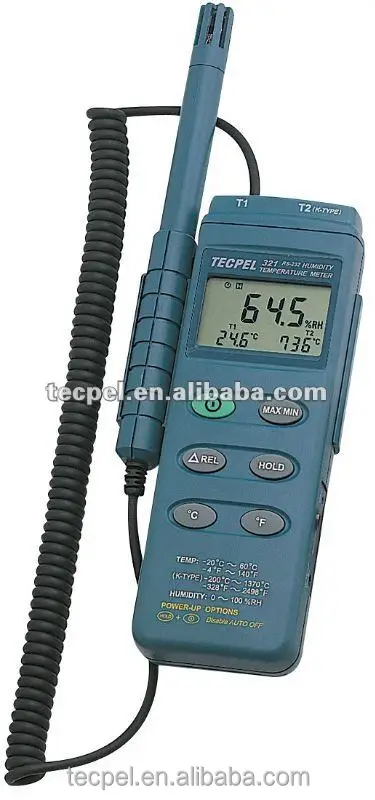

Hygrometer Humidity and Temperature meter
DTM-321: Temperautre and Humidity meter PC based data logger
Temp:-20°C ~ 60°C (-4°F ~ 140°F ); K-type: -200°C ~ 1,370°C (-328°F ~ 2,498°F); Humidity: 0 ~ 100% RH
- 4 Digit, Triple display.
- K-type Termocouple.
- Reading hold °C or °F annunciators.
- MAX, MIN. function.
- Auto power off.
- REL function.
- Automatic low battery indication.

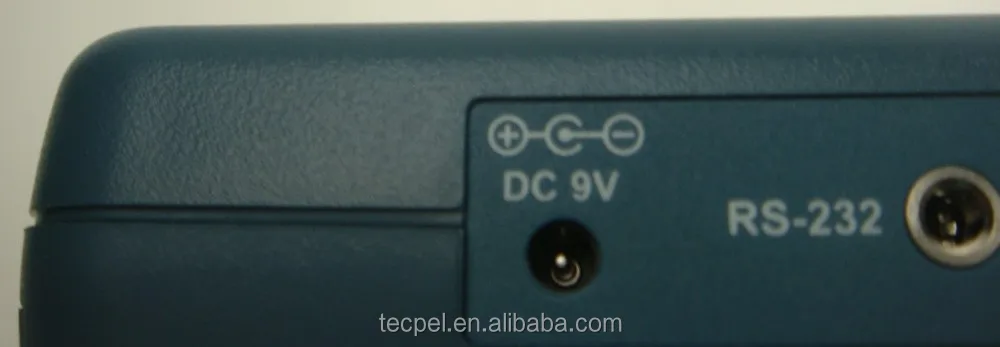

- RS-232 computer interface.
- USB /RS-232 cable and software for Windows (Options).
Specifications :
Measurement Range: | T1:-20°C ~ 60°C (-4°F ~ 140°F) |
| T2:K-type:-200°C ~ 1370°C (-328°F ~ 2498°F) | |
Humidity: | 0~100%RH, Accuracy ±2.5%RH |
Accuracy: | |
-20°C ~ +60°C: | T1:±0.7°C |
-4°F ~ 140°F | T1:±1.4°F |
-200°C ~ 1370°C: | T2:±(0.3%rdg+1°C) typical |
-328°F ~ 2498°F | T2:±(0.3%rdg+2°F) typical |
Temperature Scale: | Celsius or Fahrenheit |
Resolution: | Humidity:0.1%RH;Temp.T1:0.1°C,0.1°F T2:-200°C~200°C,0.1°C; 200°C ~ 1370°C,1°C. |
Sensor: | K-type Thermocouple |
Response Time (T1): | Humidity:75 sec. in slowly moving |
Temperature: | 40 sec. in slowly moving air |
Input Protection: | 60V DC or 24V rms AC Maximum |
| General | |

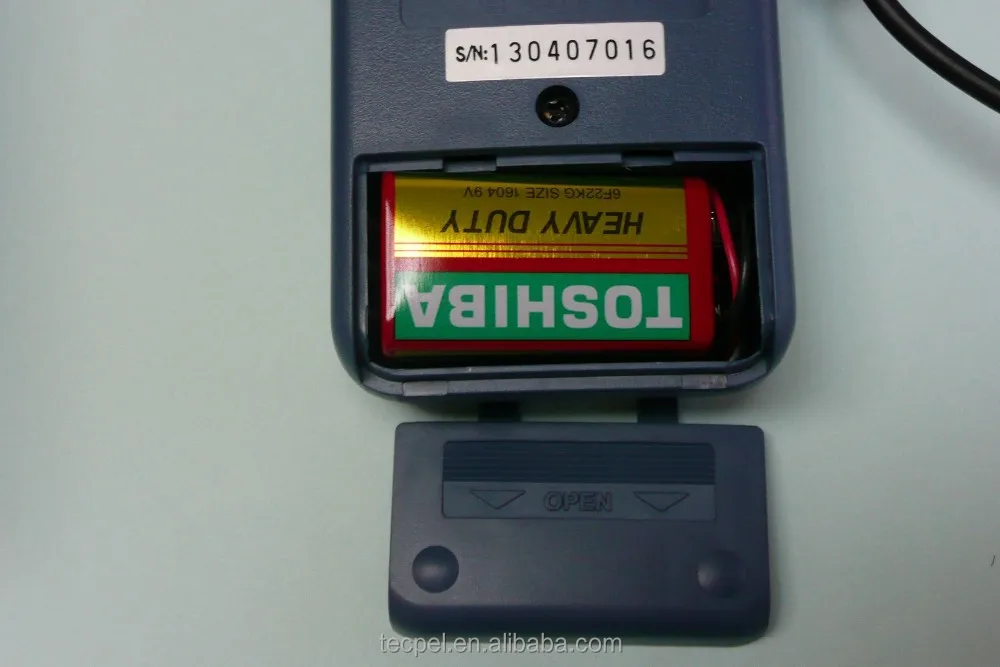

Power Requirement: | 1 piece 9V battery |
Dimensions: | Meter:10.8"x2.5"x1.2" (186x64x30mm) Probe:7.5"x0.6" (190x15mm) Weight:11.2 oz(320g) |

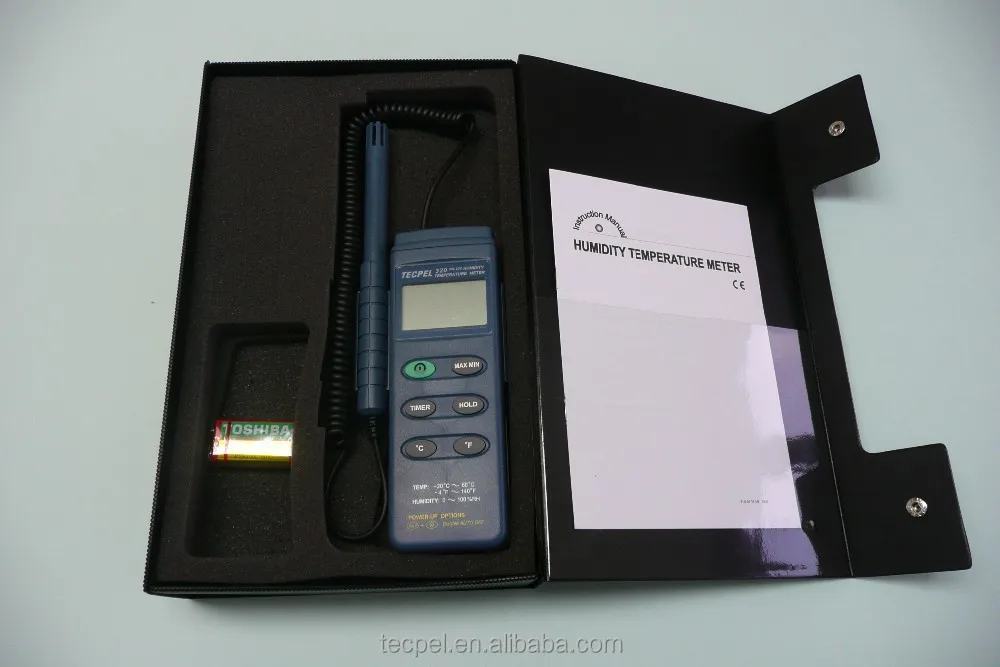

Accessories: | 1 x TPK-01,probe, 9V battery, |
Measurement Range: | T1:-20°C ~ 60°C (-4°F ~ 140°F) |
| T2:K-type:-200°C ~ 1370°C (-328°F ~ 2498°F) | |
Humidity: | 0~100%RH, Accuracy ±2.5%RH |
Accuracy: | |
-20°C ~ +60°C: | T1:±0.7°C |
-4°F ~ 140°F | T1:±1.4°F |
-200°C ~ 1370°C: | T2:±(0.3%rdg+1°C) typical |
-328°F ~ 2498°F | T2:±(0.3%rdg+2°F) typical |
Temperature Scale: | Celsius or Fahrenheit |
Resolution: | Humidity:0.1%RH;Temp.T1:0.1°C,0.1°F T2:-200°C~200°C,0.1°C; 200°C ~ 1370°C,1°C. |
Sensor: | K-type Thermocouple |
Response Time (T1): | Humidity:75 sec. in slowly moving |
Temperature: | 40 sec. in slowly moving air |
Input Protection: | 60V DC or 24V rms AC Maximum |
| General | |
Power Requirement: | 1 piece 9V battery |
Dimensions: | Meter:10.8"x2.5"x1.2" (186x64x30mm) Probe:7.5"x0.6" (190x15mm) Weight:11.2 oz(320g) |
Accessories: | 1 x TPK-01,probe, 9V battery, |
