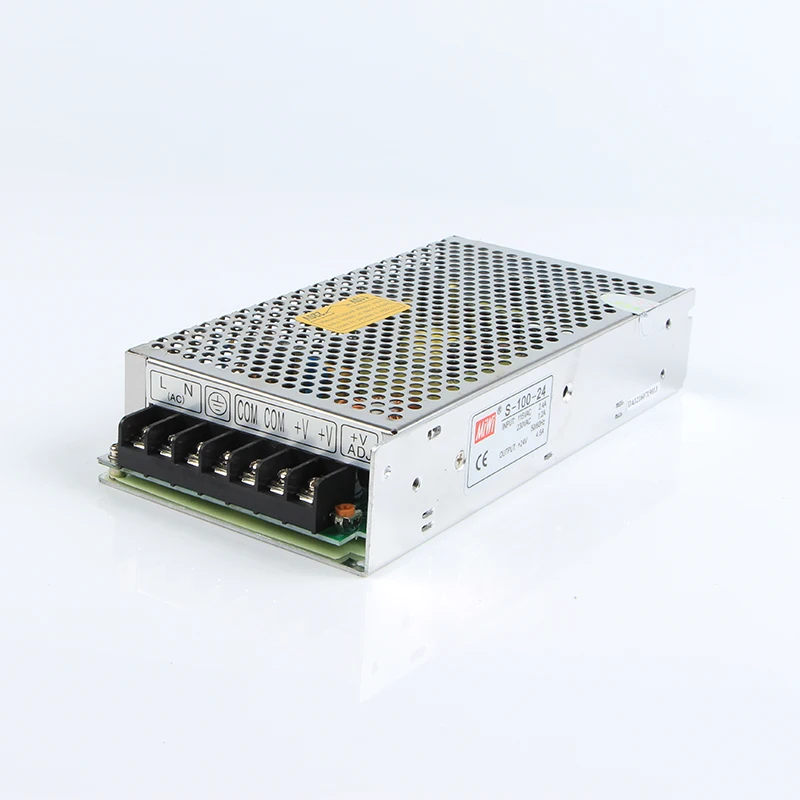

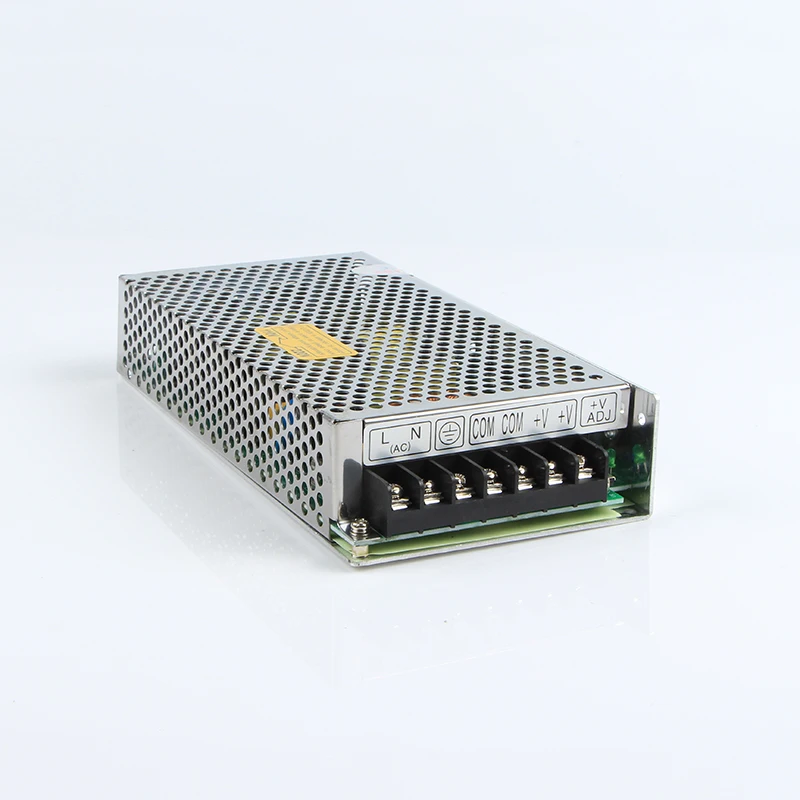

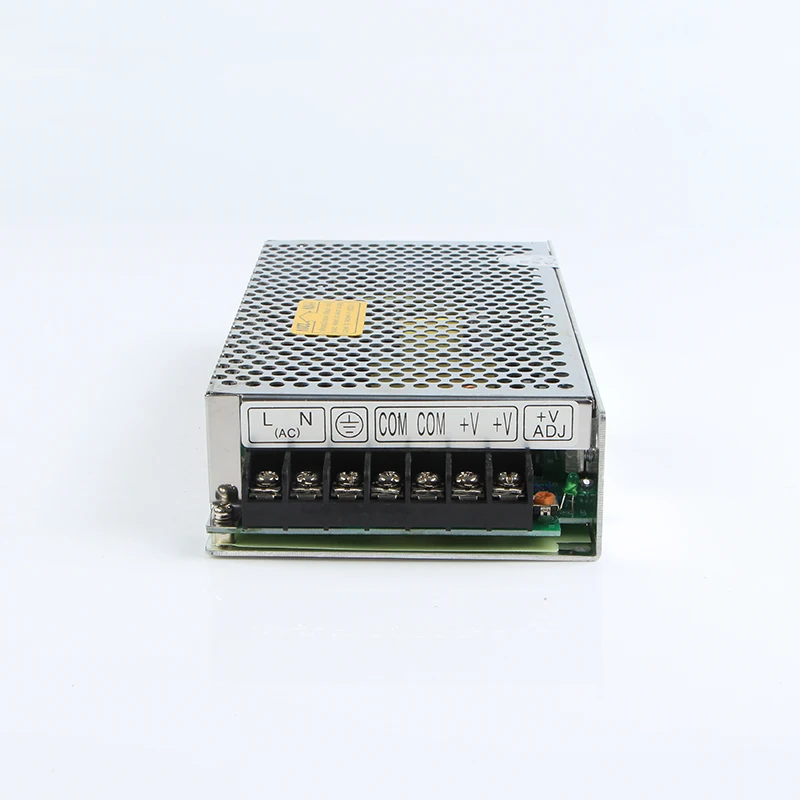

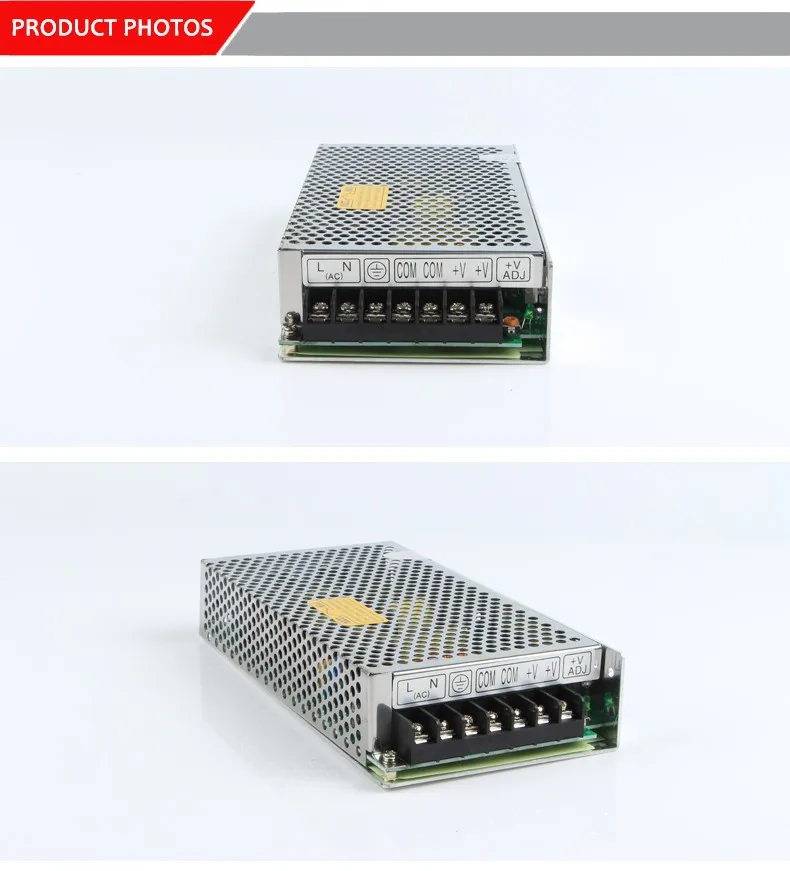

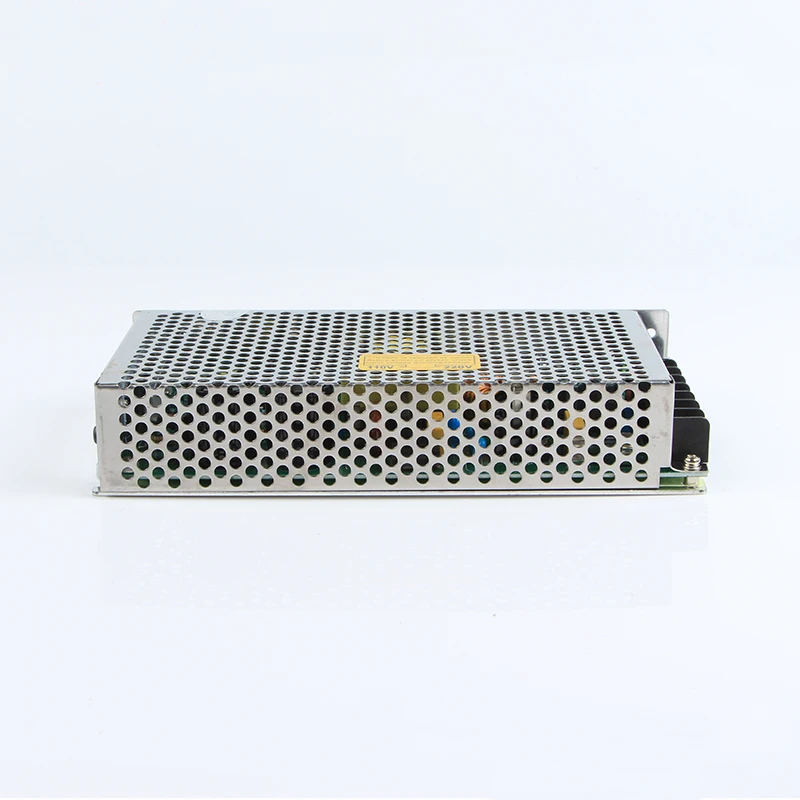

MIWI S 100 12 100W 12V 8.5A ac dc power supply led
- Category: >>>
- Supplier: Yueqing Mingwei Electric Co. ltd.
Share on (216122884):
Product Overview
Description
why choose us
Why choose us? What can we do for you?
We are the top ten leading brand.
♦ Founded in 2002 and experienced in the field of switching mode power supply and push button switch for 16 years.
♦ We have large capacity, over 100000pcs/month.
♦ Certificate: CE certificate
♦ We have our own technical and mould deparmtent, ready for any customized products.
♦ Sales network expands from over domestic sales to all over the world.
Yueqing Mingwei Electric Co., Ltd. is specailized in design, development, production and sales of switching power supply and push button switch. There are more than 4000 square meter plant, 60 workers and senior engineer. With know-how, expertise, and rich experience, we are on the way to do better and better. Our task is to offer qualified products and good services to all customers.Yueqing Mingwei would greatly appreciate the chance to convince you of our quality, ability and potential.
Featured Peoducts
Model Specification | S-100-3V | S-100-5V | S-100-7.5V | S-100-12V | S-100-15V | S-100-24V | S-100-27V | S-100-48V |
| DC Output Voltage | 3V | 5V | 7.5V | 12V | 15V | 24V | 27V | 48V |
| Iutput Voltage Error | ± 2% | ± 2% | ± 1% | ± 1% | ± 1% | ± 1% | ± 1% | ± 1% |
| Rated Output Current | 20A | 20A | 13.6A | 8.5A | 6.7A | 4.5A | 3.7A | 2A |
| Output Current Range | 0-20A | 0-20A | 0-13.6A | 0-8.5A | 0-6.7A | 0-4.5A | 0-3.7A | 0-2A |
| Tripple and Noise | 100mVp-p | 100mVp-p | 100mVp-p | 100mVp-p | 100mVp-p | 100mVp-p | 100mVp-p | 100mVp-p |
| Iniet Stability | ± 0.5% | ± 0.5% | ± 0.5% | ± 0.3% | ± 0.3% | ± 0.2% | ± 0.2% | ± 0.2% |
| Tolerance Voltage | ± 0.5% | ± 0.5% | ± 0.5% | ± 0.3% | ± 0.3% | ± 0.2% | ± 0.2% | ± 0.2% |
| DC Output Power | 60W | 100W | 102W | 102W | 100.5W | 108W | 99.9W | 96W |
| Efficiency | 70% | 78% | 80% | 81% | 81% | 84% | 84% | 84% |
| Adjustable Range for DC Voltage | 2.85-3.3 | 4.75-5.5 | 6.75-8.25 | 10.8-13.2 | 13.5-16.5 | 21.6-26.4 | 26-32 | 43.2-52.8 |
| AC Input Voltage Range | 85~132VAC/170~264VAC selected by switch 47~63Hz; 240~370VDC | |||||||
| Input Current | 2.4A/115V 1.2A/230V | |||||||
| AC Inrush Current | Cold-Start Current: 30A/115V, 60A/230V | |||||||
| Leakage Current | <1mA/240VAC | |||||||
| Overload Protection | 105%~150% Type: Cut Output, Reset: Auto Recovery | |||||||
| Over Voltage Protection | ………… | |||||||
| High Temperature Protection | ………… | |||||||
| Temperature Coefficient | ± 0.03% /℃ (0~50℃) | |||||||
| Start, Rise, Hold time | 200ms, 100ms, 20ms | |||||||
| Vibration | 10~500Hz, 2G 10min,/1cycle, a total of 60 minutes, Each axes | |||||||
| Withstand Voltage | Between Input and Output: 1.5KVAC, Input and Shell: 1.5KVAC, Output and Shell: 0.5KVAC | |||||||
| Isolation Resistance | Input and Output Intermal: Input and Enclosute, Output and Enclosure: 500VDC/100M Ohms | |||||||
| Working Temperature and Humidity | `-10℃~+60℃ (Refer to Output Derating Cutve), 20%~90%RH | |||||||
| Storage Temperature and Humidity | `20℃~+85℃, 10%~95%RH | |||||||
| Overall Dimension | 199*98*38mm | |||||||
| Weight | 0.65kgs | |||||||
| Safety Standards | CE | |||||||
| EMC Standards | Meet FCC Part 15J Conduction class B | |||||||
production process
Yueqing Mingwei Electric Co., Ltd. with a better organized, high efficiency and the most reliable engineer team and state-of-the-art technology, we are able to design and develop high-quality components,and customized solutions. We also have our own mold tooling open & design team,assembling production line and QA department.
Variety Of Products
Company Information
Every year we john 2-3 fairs to meet our customers. What we show is our ability, and what you feel will be our profession. We take the time to answer questions and ensure that our clients understand all there is to know about our products. Further, we work with all of our clients to help find the right products that will meet both needs and budget. We work hard to provide good customer service and ensure that it is never just about sales, but about building a relationship.
FAQ
Q1: Are you manufacturer or trading company?
A1: We are the real manufacturer which focus on power supply & push button switch since 2002,but not the trading factory for different kind of product.
Q2: What kind of payment term do you accpet?
A2: T/T,L/C,Paypal,Western Union,MoneyGram,Escrow,O/A.
Q3: What is your MOQ?
A3:The MOQ can be only 1PCS.
Q4: What's your Lead time?
A4: The delivery time is 1~25 days which depend on detail item and quantity.
Q5: Do you accept OEM?
A5: Yes.
Q6: Can we be your distributor?
A6: Yes,if your annuals sales much more than our other customers in your market that you can be our distributor
Over rich OEM experience,we can provide professional solutions for customers.
Click "Send "get the Latest quotation Now!!! You can get the FREE SAMPLES soon.
