Semi Auto Rotary Spray Washer

Product Overview

Description

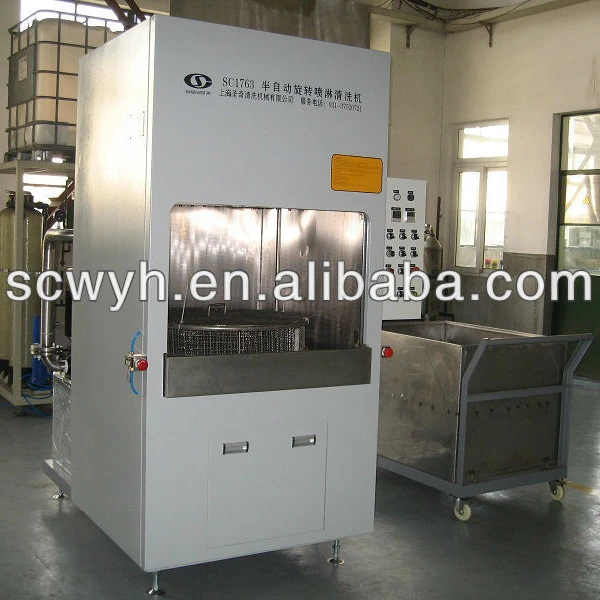

Semi-Automatic rotary spray cleaning machine

Product Description

1.Model: NC-NMH-R2

2.Application: industrial parts cleaning (automotive parts, metal parts, hydraulic parts etc.)

3.Process:

Manaul Loading ,

Automatic timing rotary spray cleaning,

Automatic timing blowing,

Buzzer sounds

Manual Unloading



4.Specification

Model	NC-NMH-R2
Overall Size (mm)	2100mm*1500mm*1900mm
Total Power (KW)	28KW 380V-460V 50/60Hz
Washing Pressure	8-10BAR, nozzles located bottom, top and side
Auto Lift/lowering Door	yes
Cycling filtration	yes
Washing Temp.	RM-70 C degrees
Approxi. Weight (KG)	1500KG
Control System: brand Schneider, Omron,  Mitsubishi(Siemens, AB option) High Quality famous pump and filter, nozzles, operation language English and Chinese, Tank Size, Machine Size , function , power optional as your parts to be washed





Packing &Shipping

plywood packing for export (vaccum packing available).

Shipping by sea





Our Service

One year warranty .

Provide free charge parts, online service, phone service during warranty time.

If still not resolved, we provide  site service .

Remote control function available.



Company  Information

Located in Fengxian Wuxing Industrial Zone, Shanghai Century Washing Machinery has been developing and manufacturing industrial washing machinery since 1999. We are one of the earliest industrial washing machinery ,optical lens manufacturing machinery makers in China and with an experienced designing and manufacturing engineering team. our machines have been widely-sold to around 40 countries and regions in the world.



Our main products are industrial washing machines for automotive, optics, electronics, medical, aerospace, and surface treatment industries. For the automotive industry, we supply ultrasonic and spray washers to remove oil and chips on different washing parts. The machines can be fully automatic that integrates with the current production line, or they can be semi-automatic or manual as a budget-tight option. Various machine configurations are customizable based on the washing part characteristics such as length, width, shape, and the location of holes. Different washing processes that involves spray washing, ultrasonic washing, rinsing, blow or vacuum drying can also be designed based on the parts. Water or hydrocarbon-based washing machines are available. The whole washing process is fully controlled by PLCs, and integration with Industrial PCs or SCADA systems is also possible.

For optical industry ,we supply optical basic lens casting line(automatic lens cleaning machine, automatic molds cleaning machine, chemical mixing machine, programmable polymerization oven, curing oven etc.), optical lens hard coating/Anti-fog line . The process is controlled by PLC, and intelligent remote control is available.

We also provide automatic conveyor line, automatic intelligent assembly line with Kuka Robot loading and unloading.



Our current and past clients include: Komatsu Japan Group (Japan Indonesia and China), SIAC, Hyundai Beijing, BWI Group, SKF China, Shiloh China, KUKA Robot China, FUNAC Robot China, Parker Hannifin China,, VCST Changzhou HOYA Lens, ROSOMZ Russia, YDS Turkey,  Conant Optical,  Chemilens China and Vietnam, Vision Ease Indonesia, etc.



Our certificates: ISO9001:2015,
