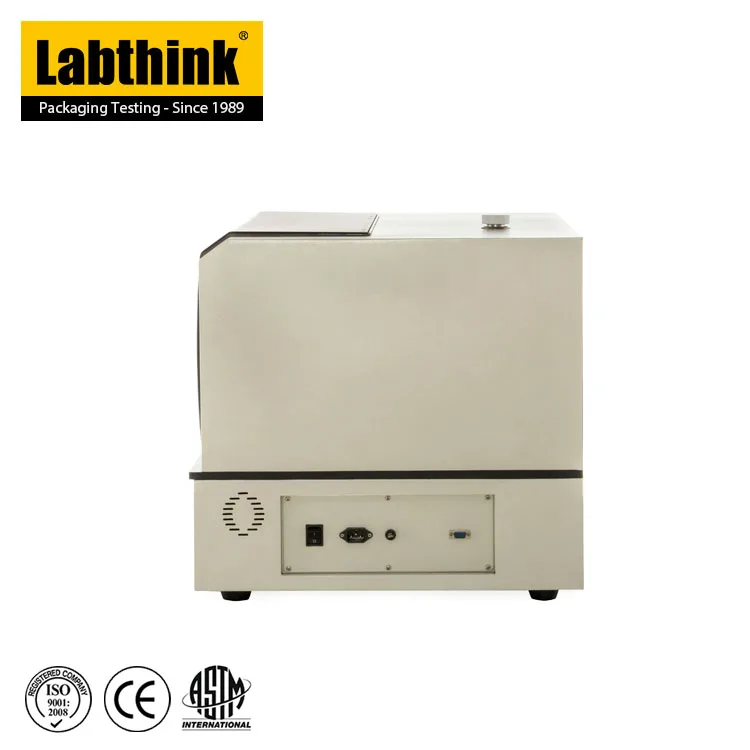

ASTM D1434 Labthink Plastic Film and Rubber Gas Permeability Testing Instrument

Product Overview

Description

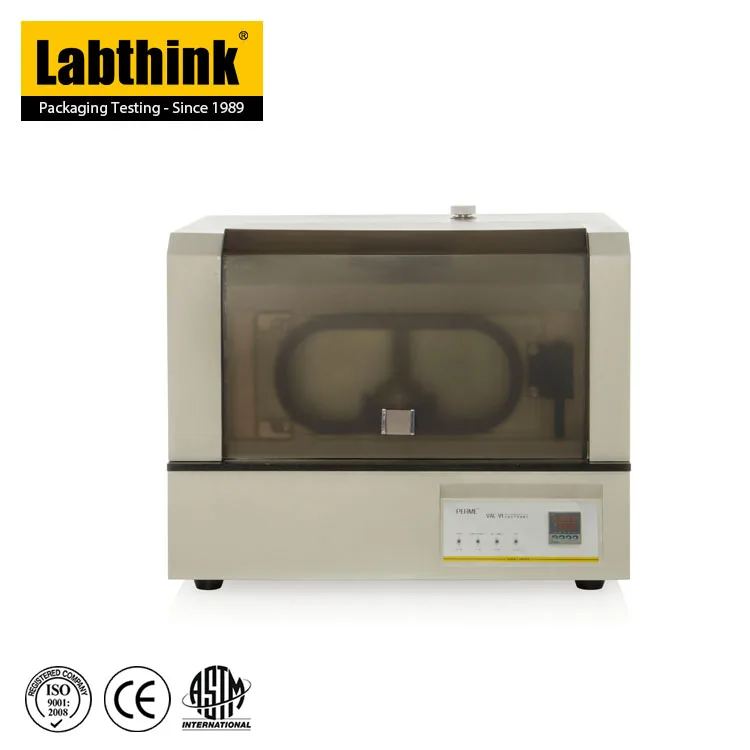

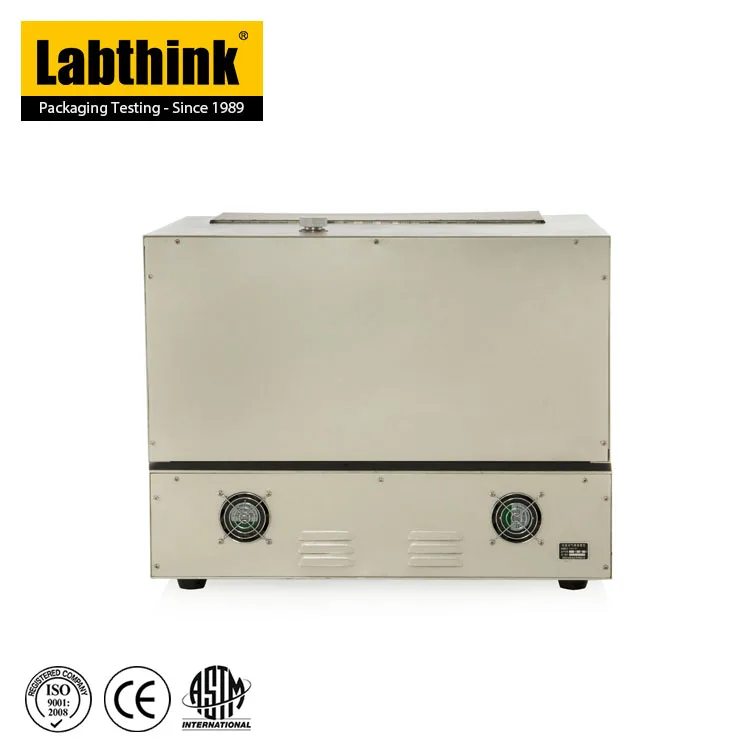

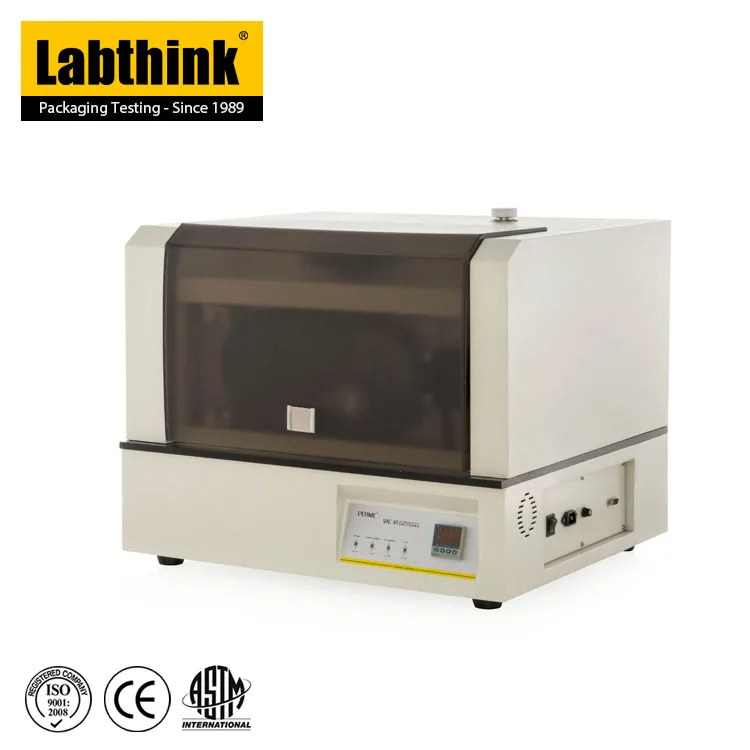

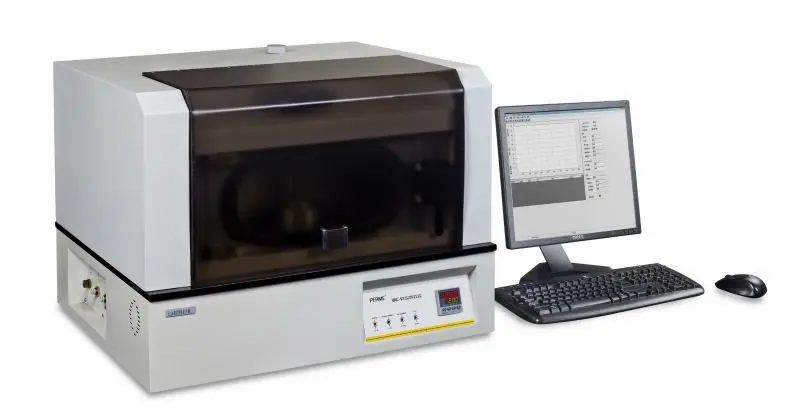

VAC-V1 Plastic Film and Rubber Gas Permeability Tester is based on the differential pressure method, and is professionally applicable to the determination of gas transmission rate as well as solubility coefficient, diffusion coefficient and permeability coefficient of plastic films, composite films, high barrier materials, sheeting, metal foils, rubber, tires, and permeable membranes.

• Gas transmission rate, solubility coefficient, diffusion coefficient, and permeability coefficient of the specimen could be obtained at one operation
• The instrument comes with two test modes: proportional mode and non-proportional mode
• Test range could be extended based on user requirements to test materials with high permeability
• High precision temperature control to meet different test conditions
• Test results could be easily obtained even at extreme condition by data fitting function, which could fit any temperature
• The instrument could be used to test poisonous, inflammable, and explosive gases (customization required)

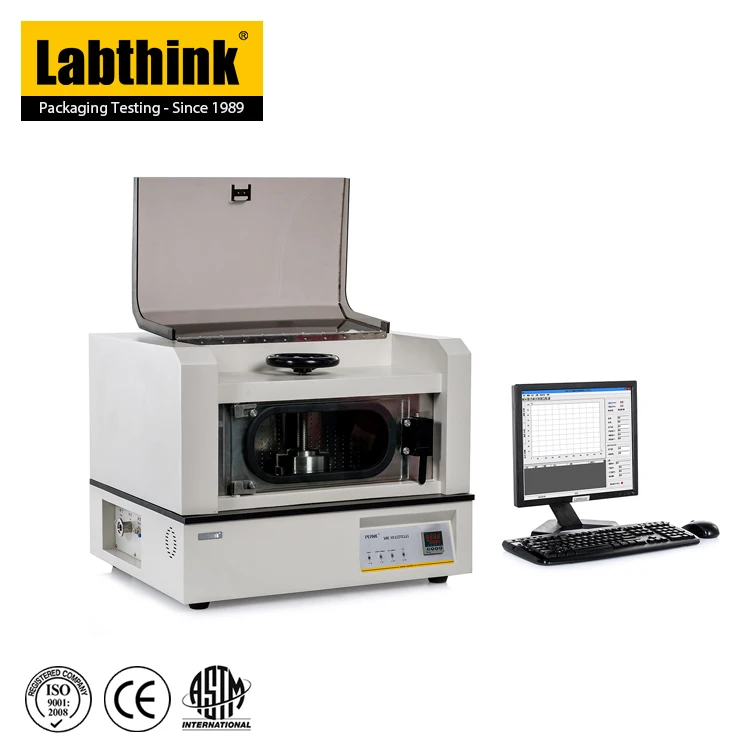

• The instrument is controlled by a computer and test process is automatic
• Reference film for fast calibration to ensure accurate and universal test data
• Fast-access calibration port for temperature and humidity, and standard RS232 port for convenient calibration and data transfer
• Support Lystem™ Lab Data Sharing System for uniform management of test results and test reports



 Applications

 VAC-V1 Plastic Film and Rubber Gas Permeability Tester is applicable to the determination of gas permeability of:

Basic Applications	Films Including plastic films, plastic composite films, paper-plastic composite films, geomembranes coextruded films, aluminized films, aluminum foil, aluminum foil composite films, and many others
Sheeting Including engineering plastics, rubber, and building materials, e.g. PP, PVC, and PVDC



 Technical Specifications

Specifications	Film
Test Range	0.1~100,000 cm3/m2·24h·0.1MPa (standard volume)
At least 600,000 cm3/m2·24h·0.1MPa (extended volume)
Note: Standard or extended volume is selected through software
Number of Specimens	1
Vacuum Resolution	0.1 Pa
Vacuum Degree of Test Chamber	<20Pa
Temperature	Room temperature~50°C
Accuracy	±0.1°C
Specimen Size	Φ97 mm
Test Area	38.48 cm2 (Φ70 mm)
Test Gas	O2, N2 and CO2 (not in supply scope)
Test Pressure	-0.1MPa~+0.1MPa (standard)
Gas Supply Pressure	0.4MPa~0.6MPa
Port Size	Φ6 mm PU Tubing
Instrument Size	680mm(L) x 565mm(W) x 550 mm(H)
Power	AC 220V 50Hz
Net Weight	130kg



  VAC-V1 Plastic Film and Rubber Gas Permeability Tester  conforms to the following standards:
ISO 15105-1, ISO 2556, GB 1038, ASTM D1434, JIS K7126-A, YBB 000820
