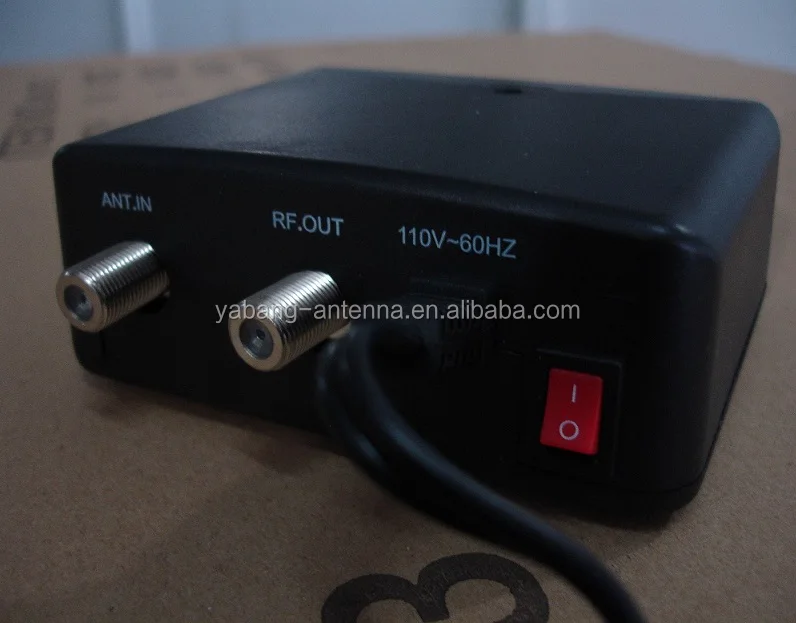

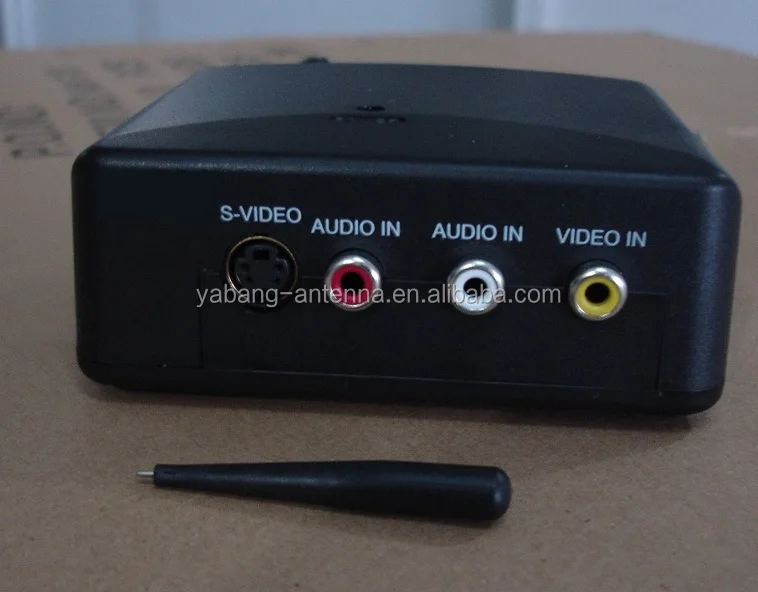

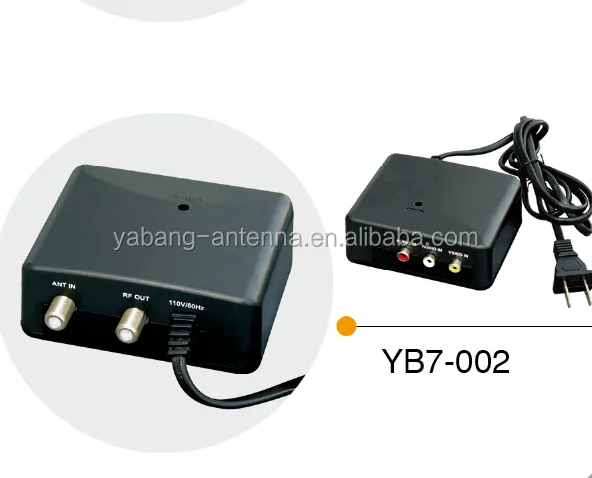

RF MODULATOR YB7 002 CH 4.
RF MODULATOR YB7-002 CH 4.
RF MODULATOR YB7-002 CH 4.
RF MODULATOR YB7-002 CH 4.

RF MODULATOR YB7 002 CH 4.

Share on (216720221):


Price:RUB 159.68

Quantity:


Product Overview

Description

Product Description



Technical Specification

ITEMYB7-002
StandardPAL /NTSC
Frequency RangeCH3/CH4  (54MHz~80MHz)
PAL:55.25/62.25      NTSC:61.25/67.25
Output Impedance75OHm
Output level80±5dBμV
Sound systemB=5.5MHz,M=4.5MHz
Video Input Impedance75 Ohms/1k Ohms (Switch able)
Audio Input Impedance13±3k Ohms
TV to ANT Insertion Loss 50-860-6±2dB
A/V connectorRCA female
RF InputIEC(f)
RF OutputIEC(m)
Power Consumption9Volt DC, 100mA
Operating Temperature-10℃ ~ +60℃
Dimension/Weight12.7*6*2.5 cm      /     0.35 KG
Carton Size/ Quantity55*35*30 cm         /     50   PCS













Packaging & Shipping


Company Information












































  .jpg







convert audio/video line level signals to a television without line level inputs.
