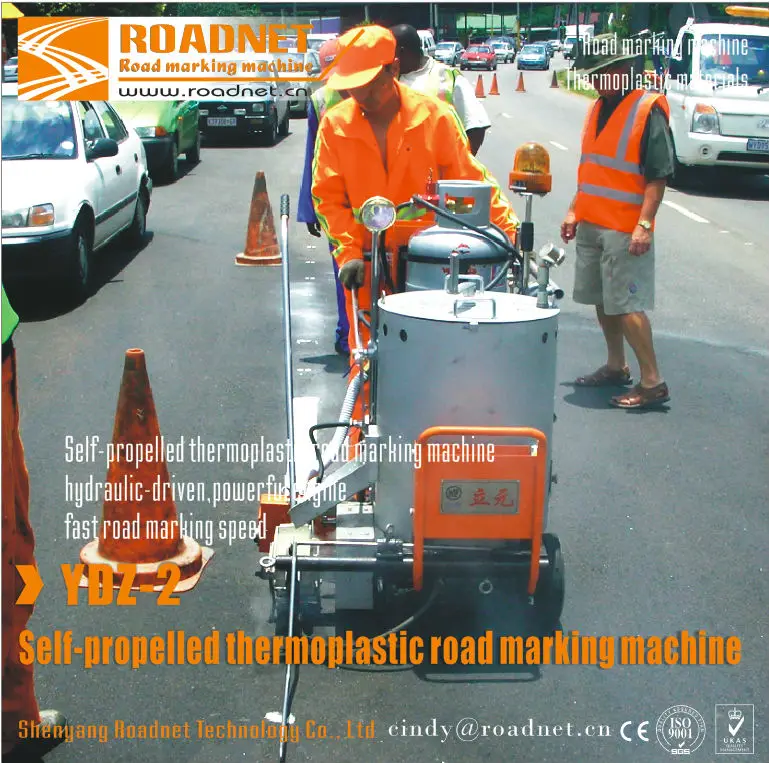

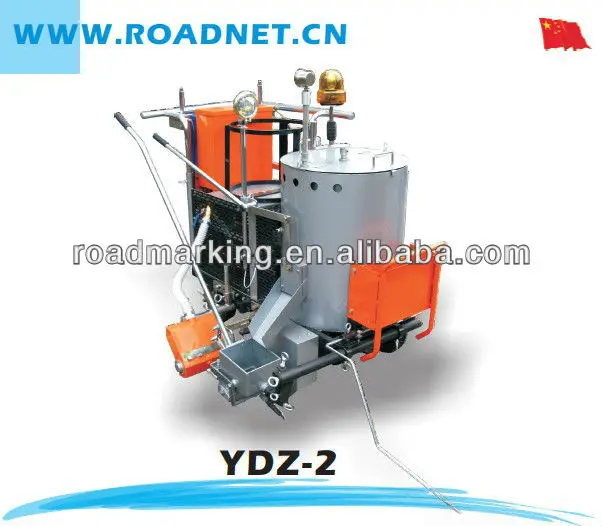

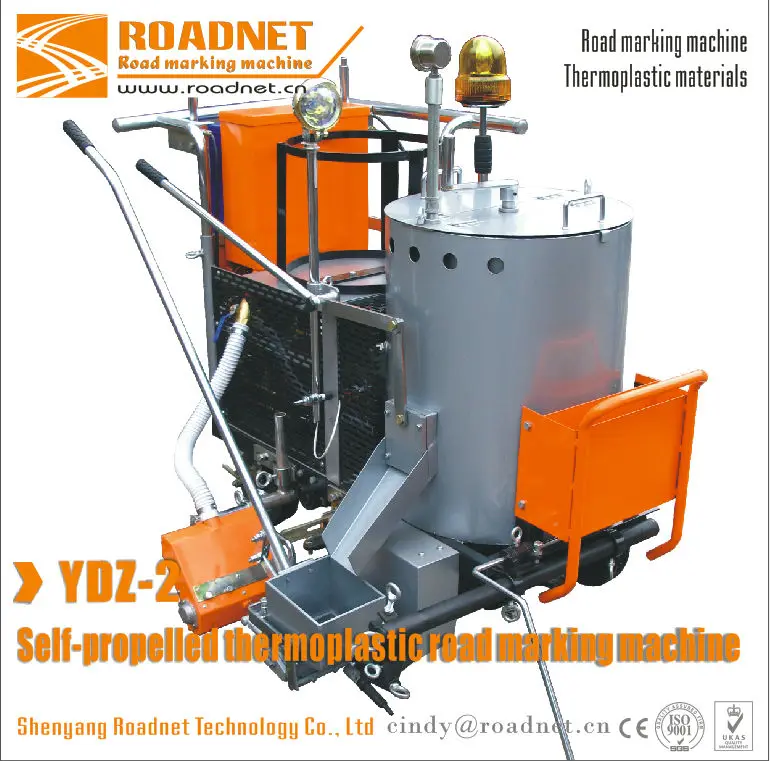

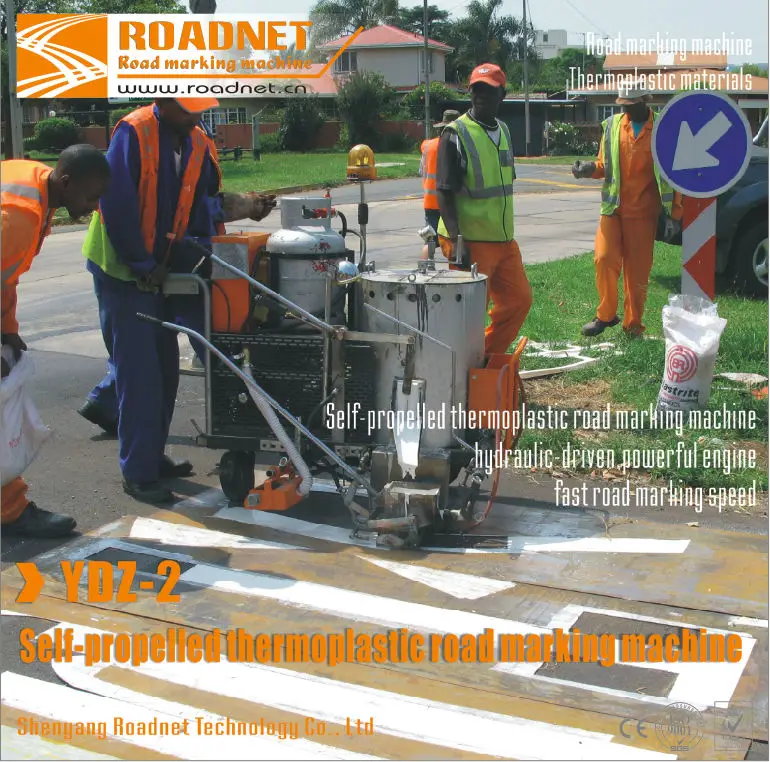

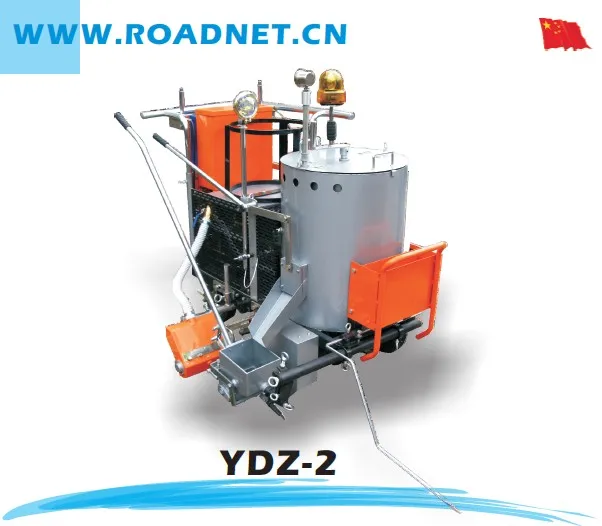

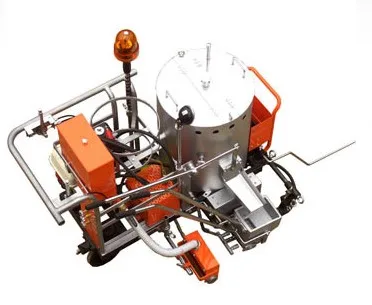

Self propelled honda Gasoline Engine Thermoplastic Screed Road Line Paint Machine for road marking

Product Overview

Description



 YDZ-2 covers not only all the advantages of hand-push-type thermoplastic maker , but also have its unique hydraulic driven to increase the speed of application and reduce labor intensity. It is the best choice for application at middle area or downhill area. It is equipped with liquefied petroleum gas engines, drive systems and insulation energy heating system integration, clean exhaust emissions in line with environmental requirements. Compare with other gasoline engines, Honda engine is more commercial, more secure, lower noise, and less vibrating.

Main features:
1. self propelled back and forward automatic, infinitely variable transmission.
2. hydraulic-driven, engine is powerful, quicker speed and high efficiency application.
3. with solid wielded mechanism and lightweight and more flexible.
4. with safety warning lights and lights for night application.

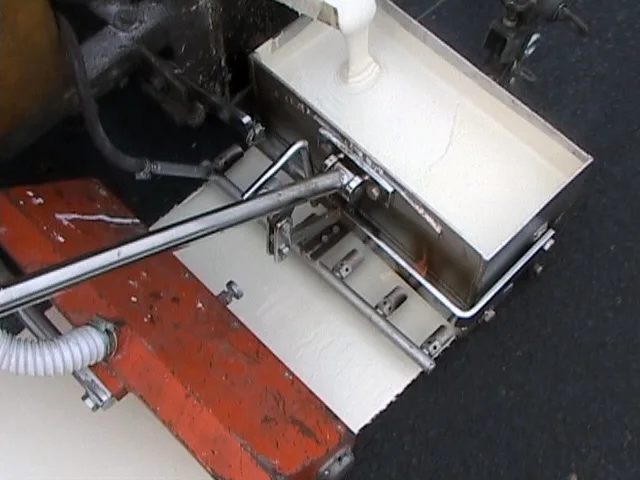

5. with special marking bucket, Alloy-steel grounded knife, eccentric interlink and movable design.
6. glass beads simultaneously spreading facilitate construction; quantities are adjustable to save glass beads.
7. have a stable speed on both even and downhill.
8. With automatic temperature control, automatic ignition, automatic fire protection of liquefied petroleum gas with warning and cut off devices.

Technical parameters:

Self-propelled  honda gasoline engine thermoplastic screed road line paint machine for city roads

engine	HONDA 5.5HP gasoline engine
Size	1400 × 820 × 1040mm
Weight	200 kgs
application Width	standard type 150/200/300 mm  option:80/100/120/240/400/450/500 mm
Paint tank capacity	100 kgs
Glass beads tank capacity	10 kgs
application thickness	1.0-2.5 mm
Walk-driven mode	hydraulic, infinitely variable transmission
Travel speed	0 ~ 10 Km / h
The largest climbing angle	15 °
The direction of control	locking back wheel devices to ensure  machine  walking straight
Heating fuel	petroleum gas (LPG tank with 5 Kg or 15 kg)
Application	screed-type



2.Training overseas provieded
