DDP850 Hydraulic Deep Drawing Press With Double Effect For Specific Purpose 1000 15000 kN

Product Overview

Description

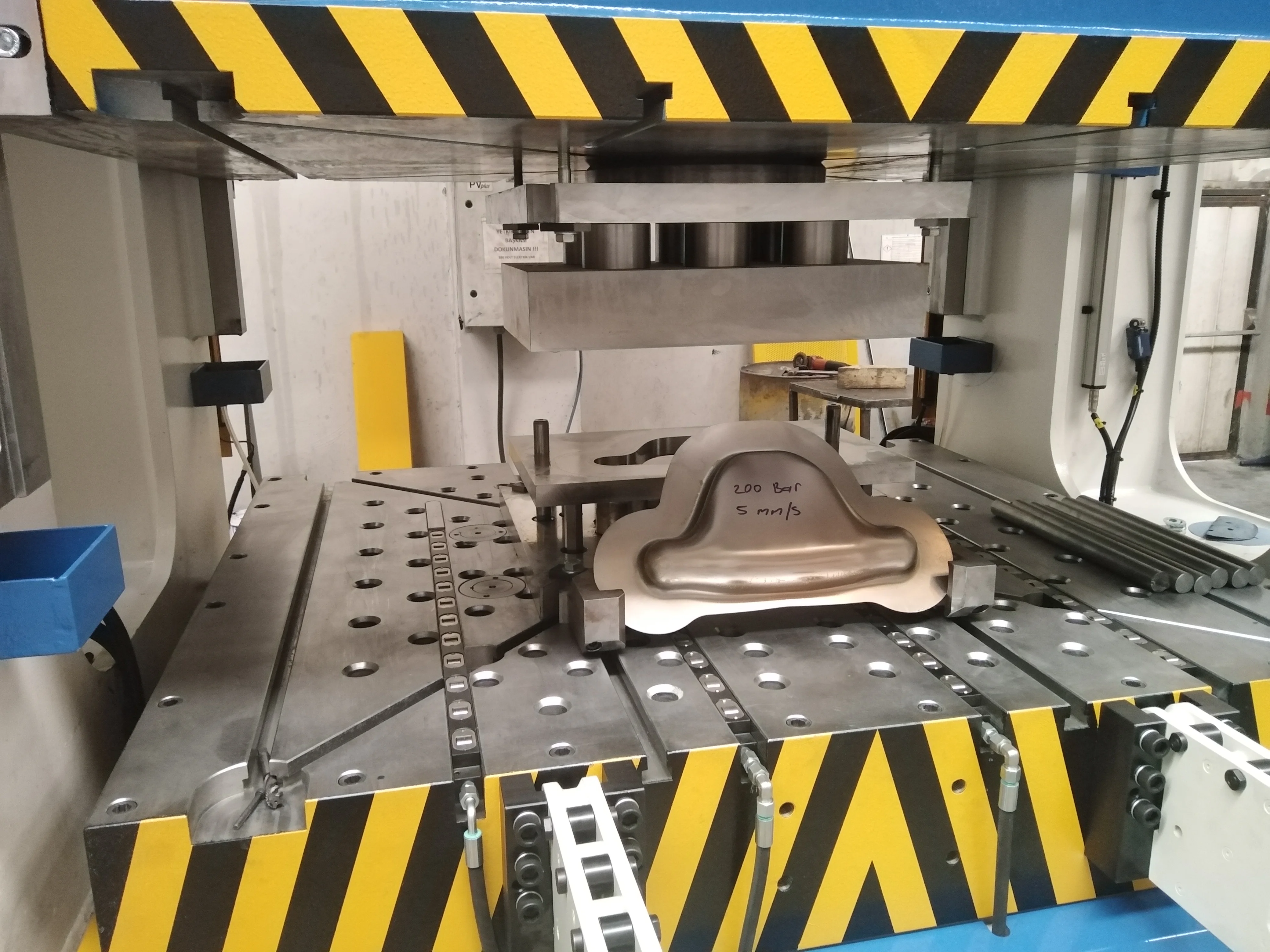

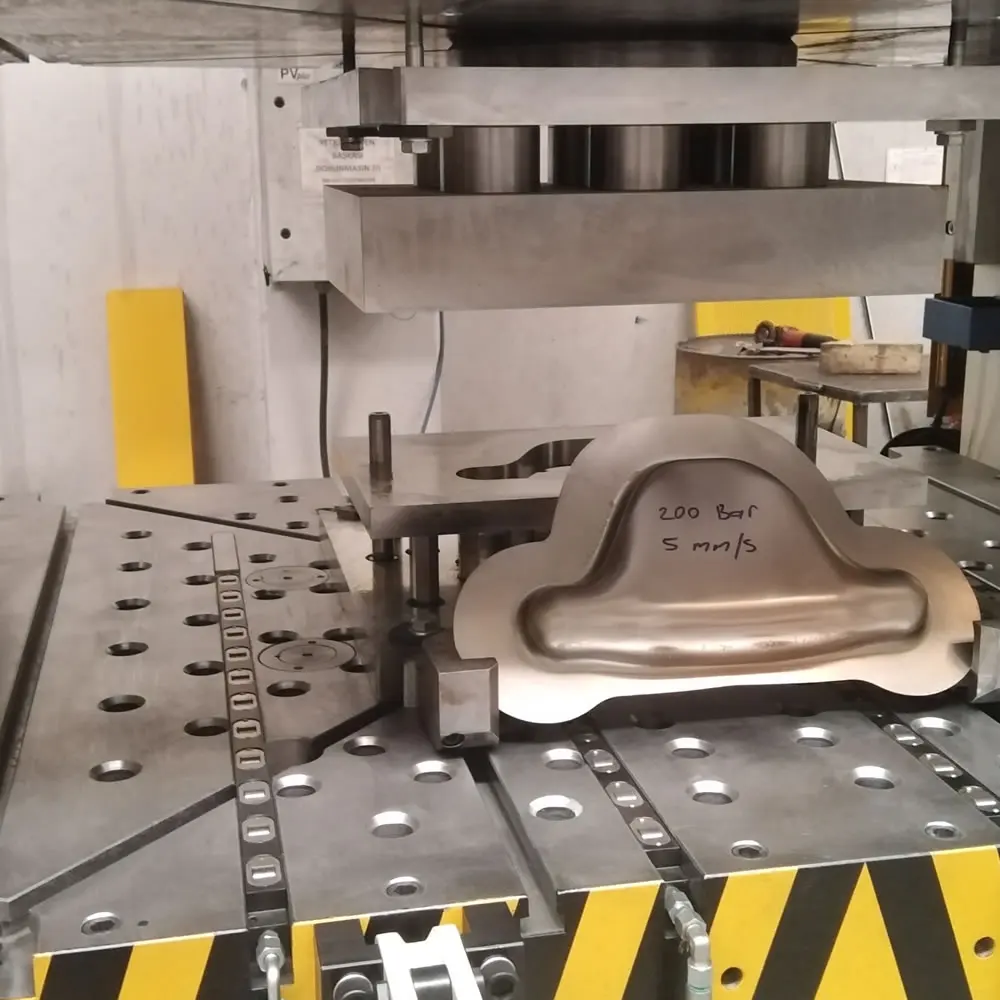

It is constructed as a closed frame press, the main cylinders are located in the upper part. The pressing table is located in the lower part. The upper tools are mounted on the slider table and the lower tools are mounted on the pressing table. With a sophisticated control system it is possible to precisely control the pressing force and position during operation. It is possible to work position or pressure dependent.

Used for:

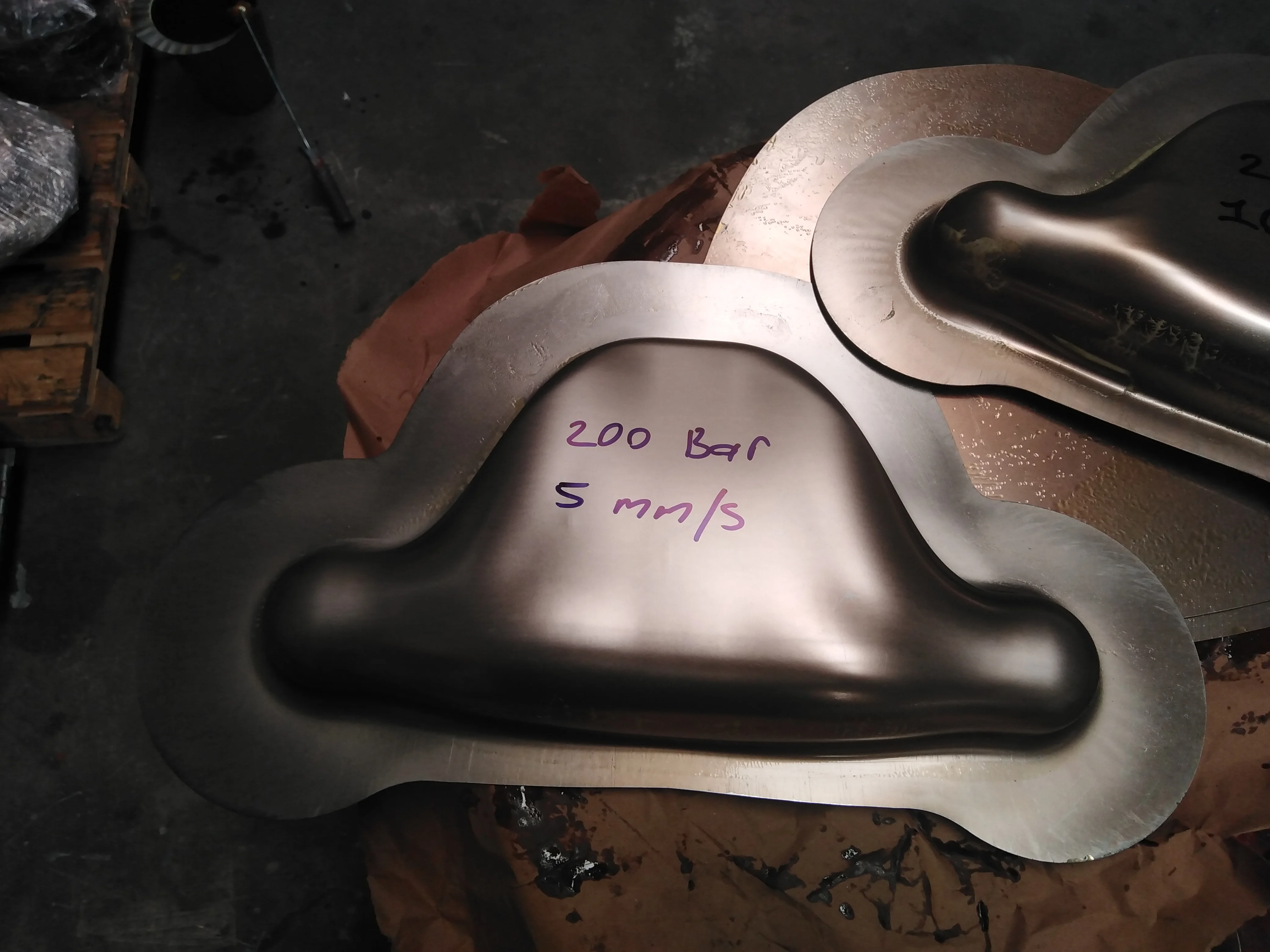

Drawing, bending, press printing, forming and part dropping processes for metal sheet.
Production of Wooden and Plastic parts
Manufacture auto parts and machine parts
Manufacture house hold electric parts
Manufacture steel sheet and aluminium doors
Production of Tungsten alloys, Teflon parts
Production fine ceramic and high-tech materials

Features:
User friendly (can be operated by one person)
Service friendly design, low maintenance costs by using only high quality components and tools
Sturdy construction and proven design which is a guaranty for a long life-span

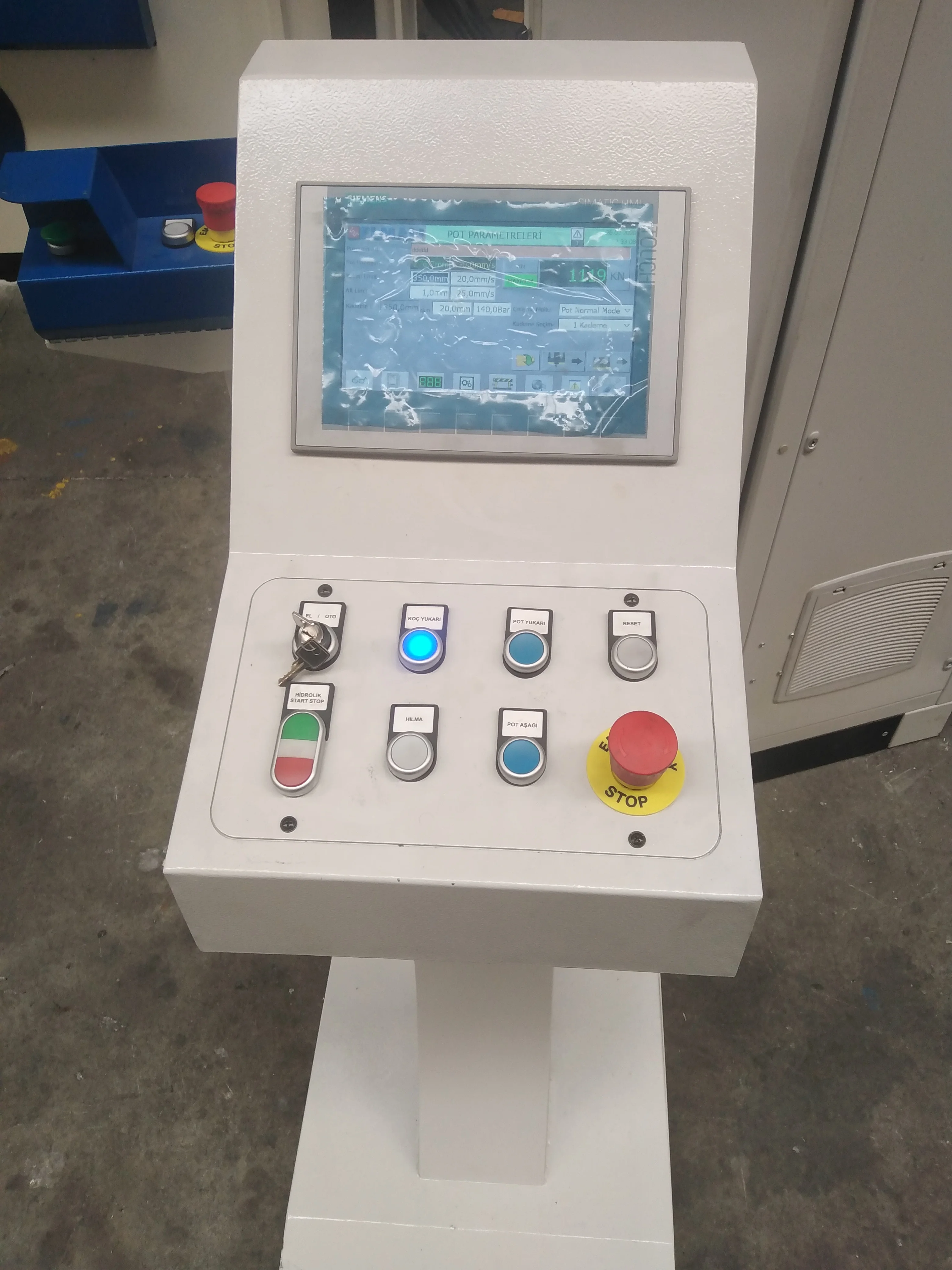

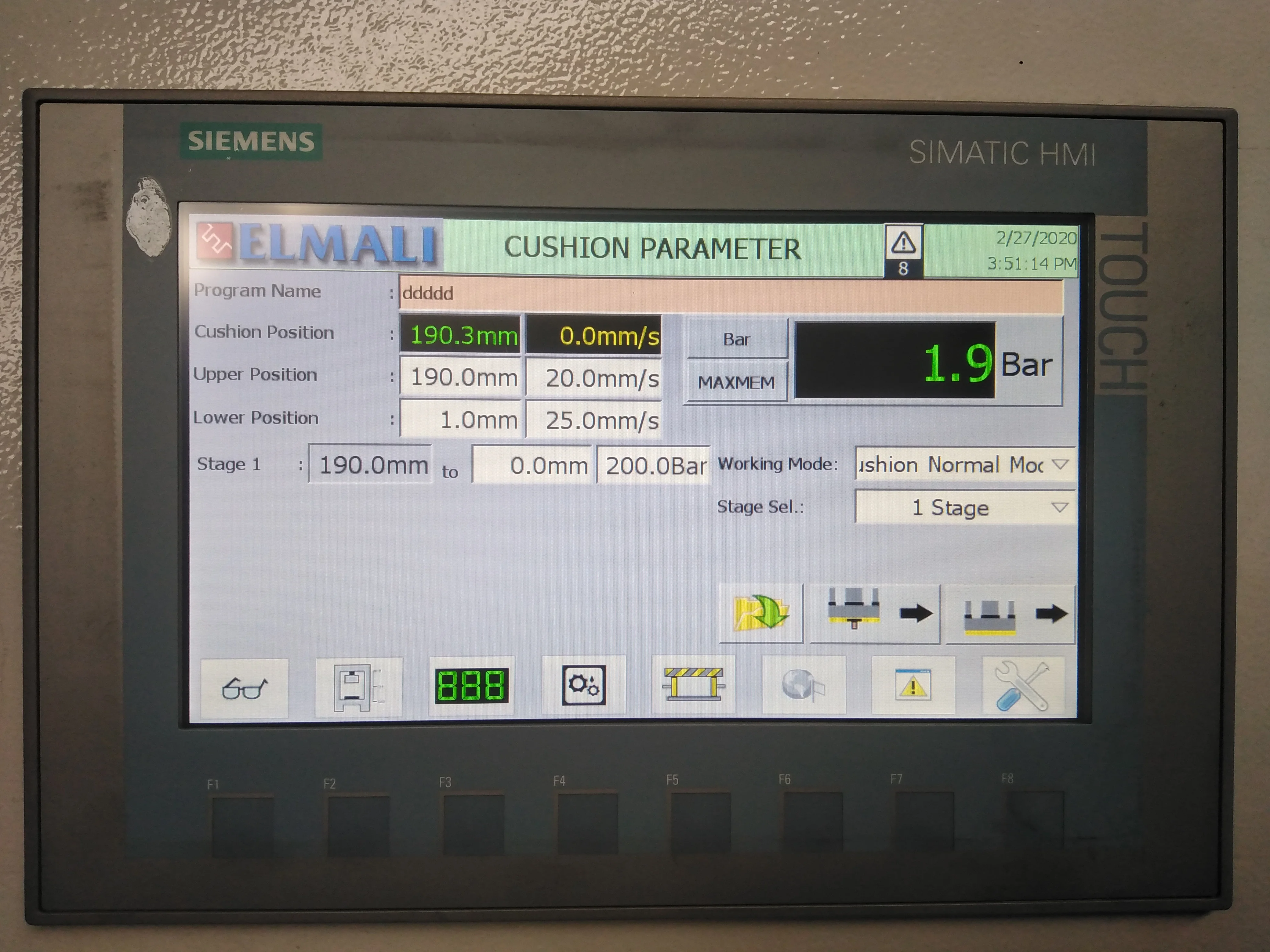

Advanced control system with PLC
Computer optimised vertical frame structure with high rigidity
Adjustable stroke and pressure in the specified scope.
Pressure pre-release unit equipped in hydraulic system minimum hydraulic shock
Straightening process for shaft parts and templates
Press-in process for shaft and sleeve parts

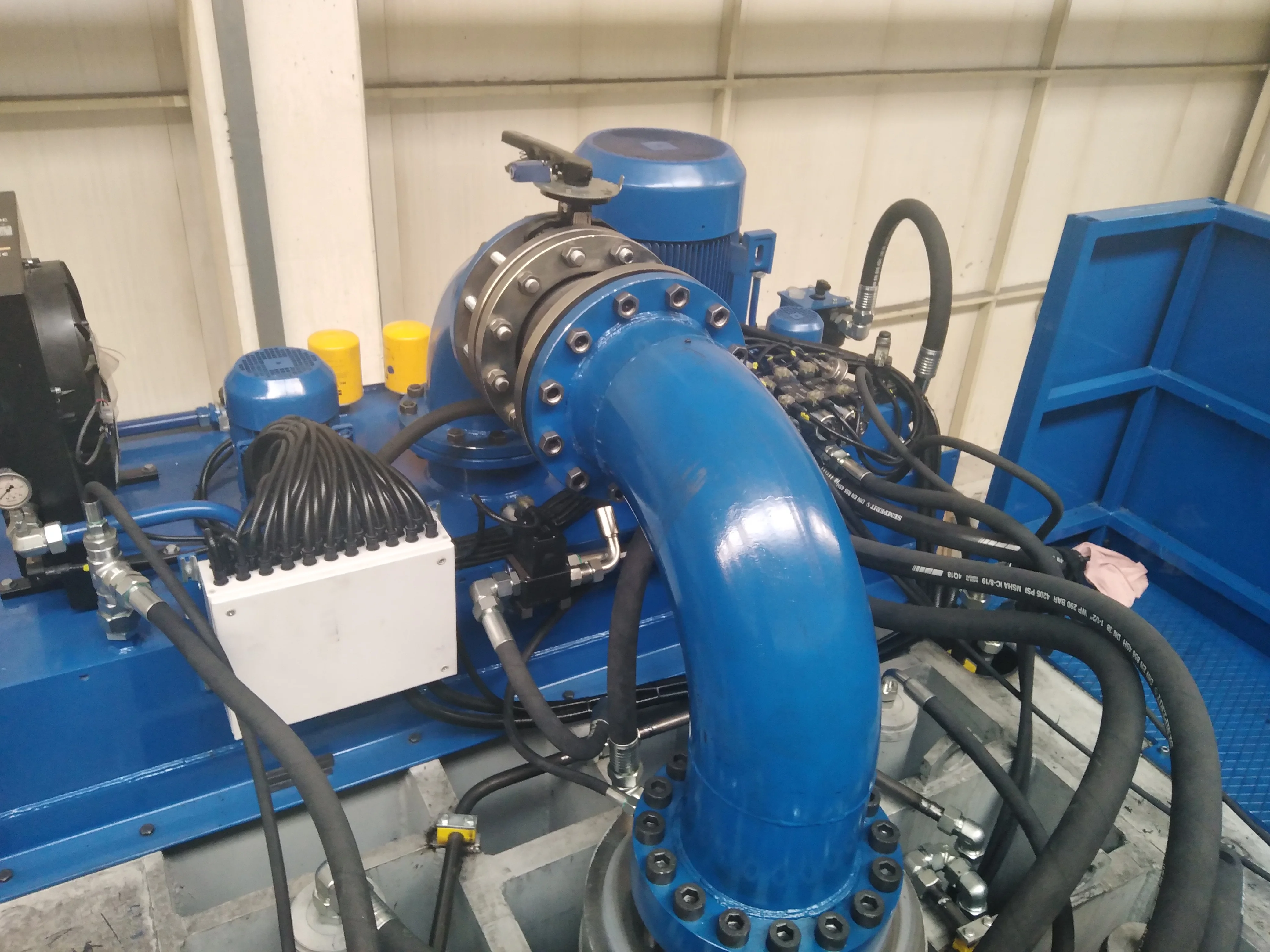

Hydraulic units and pumps: Rexroth
Control: Solenoid,
